Fuel Cannister

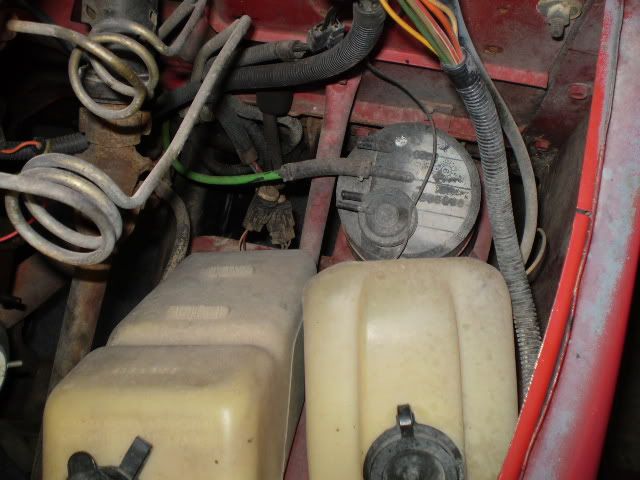

There's been allot of talk about the fuel cannister, not sure what the PO did to mine based on the pic what can you guys tell me. Thanks.


nichboy is offline
Sponsored Links
Advertisement

post #2 of 12 Old 07-03-2010, 07:11 PM
CrazyHorse6
Registered User
1979 CJ7

Join Date: Jun 2006
Location: Irmo, SC
Posts: 1,081
Seems he just removed all the hoses except for the fuel tank return. I've got all mine disconnected as well. If the vapors don't bother you, you don't have inspections in your state, and if you are not a tree hugger, don't worry about it!

In all seriousness though, it just absorbs the vapors coming from the carb and the fuel tank to minimize the impact on the environment. It shouldn't effect performance or fuel economy whatsoever.

CJ7, 258, Dana 20 T-case, Dana 30 & AMC 20, TFI Ignition upgrade, MC 2150 carb, YJ tub mod
CrazyHorse6 is offline
post #3 of 12 Old 07-03-2010, 08:25 PM
Trapshooter
Registered User
1986 CJ7

Join Date: Mar 2007
Location: Jacksonville, Oregon
Posts: 2,309
Take a look at this thread, BioTex has a great picture of the plumbing for the canister should you decide to hook the three open ports back up.

http://www.jeepforum.com/forum/f8/bu...lated-1059810/

'86 CJ7, 258, Carter BBD, Nutter'ed, TeamRush'ed, T-18, Twin Sticked Dana 300, D30 Frt-Pwr Lok L/S-4.10, AMC 20 Rear-Mosers-Detroit Locker-4.10, 2.5 BDS Lift, 1" Body Lift, 33" Wild Country M/Ts, Black Spoke wheels

'45 CJ2A, L134 Go Devil, T-90 Tranny, Warn O/D, T-18 T-Case, Dana 25 Frt, Dana 41 Rear, 531st CJ made

My 401 build: http://www.jeepforum.com/forum/f8/tr...build-1338277/
Trapshooter is offline
post #4 of 12 Old 07-04-2010, 06:26 AM Thread Starter
nichboy
Registered User
1985 CJ7

Join Date: Feb 2010
Location: Oklahoma
Posts: 287
If the vapors don't bother you, you don't have inspections in your state, and if you are not a tree hugger, don't worry about it!
None of the above, so i will leave it as is. Now i need to figure out if the PO bypassed the computer chip. Thanks guys.........
nichboy is offline
post #5 of 12 Old 07-04-2010, 08:58 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,342
The only thing you have hooked up to the Charcoal Canister is the vent tube from the Roll Over Check valve and not the fuel return as someone else has posted.

Unless you like the smell of raw gas I would get that thing hooked up like it should be. You are missing the vacuum lines for ported vacuum from the carburetor, full manifold vacuum and carburetor bowl vent.

.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is online now
post #6 of 12 Old 07-04-2010, 09:41 AM
walkerhoundvm
Registered User
1981 CJ8

Join Date: Apr 2010
Location: The Little Apple
Posts: 3,408
Quote:
Originally Posted by keith460 View Post
Unless you like the smell of raw gas I would get that thing hooked up like it should be. You are missing the vacuum lines for ported vacuum from the carburetor, full manifold vacuum and carburetor bowl vent.

...Depending on which carb he's running, which we don't know. If it's an MC2100, like mine, that all goes out the window and he's all hooked up. I would, however, try to find some rubber caps if your check valves are intact. Mine aren't, so the canister is basically an orphan.
-N
walkerhoundvm is offline
post #7 of 12 Old 07-04-2010, 10:05 AM
mcmud
Web Wheeler
1983 CJ8

Join Date: May 2008
Location: N.E. Alabama
Posts: 2,649
Quote:
Originally Posted by walkerhoundvm View Post
...Depending on which carb he's running, which we don't know. If it's an MC2100, like mine, that all goes out the window and he's all hooked up. I would, however, try to find some rubber caps if your check valves are intact. Mine aren't, so the canister is basically an orphan.
-N
Keith is right, it should be connected as complete as one is able, fuel vapors are nauseous at best. Pressure build up in the tank is greatly reduced with the canister connected and functioning.

If the MC carb is being used it would have the "S" ported nipple and a 'tee' at that line would be used as a purge valve signal, preferably through a CTO but a direct hook up is near as good. The purge line could the be connected to any manifold vacuum source. Then if the carb has no bowl vent of course that canister nipple would need to be plugged.
mcmud is offline
post #8 of 12 Old 07-04-2010, 10:19 AM
walkerhoundvm
Registered User
1981 CJ8

Join Date: Apr 2010
Location: The Little Apple
Posts: 3,408
Quote:
Originally Posted by mcmud View Post
If the MC carb is being used it would have the "S" ported nipple and a 'tee' at that line would be used as a purge valve signal, preferably through a CTO but a direct hook up is near as good. The purge line could the be connected to any manifold vacuum source. Then if the carb has no bowl vent of course that canister nipple would need to be plugged.
I maintain my position, but agree you should have it hooked up as much as you can. As I mentioned, both my check valves are rotted, so there is no link between the tank and the canister. No CTO, so nowhere practical to connect that port to. I also have a Clifford 6=8 intake manifold, no outsource as near as I can tell. I'd appreciate hearing if you know or would recommend otherwise, though. Where were you on the follow up to this thread, McMud?

http://www.jeepforum.com/forum/f8/oc...lated-1050276/

Just regurgitating what MR last told me in that thread, but as I said (sorry to threadjack here, nichboy, but I think this'll help you out, too), I'd love to know the right way to do this. There is still a smell of gasoline coming from the engine bay after hot shut-off. Some from the rear, too, but mostly from the front - I can almost narrow it down to the carb itself.
-N
walkerhoundvm is offline
post #9 of 12 Old 07-04-2010, 10:54 AM Thread Starter
nichboy
Registered User
1985 CJ7

Join Date: Feb 2010
Location: Oklahoma
Posts: 287
Not sure what carb i have, i'll post a pic latter.
nichboy is offline
post #10 of 12 Old 07-04-2010, 12:25 PM Thread Starter
nichboy
Registered User
1985 CJ7

Join Date: Feb 2010
Location: Oklahoma
Posts: 287

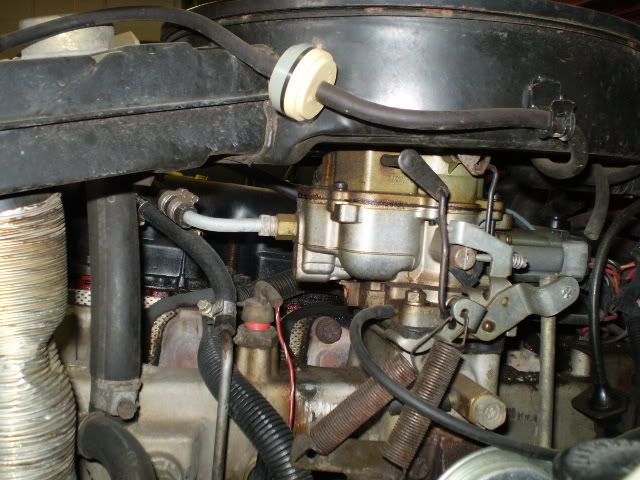

Hope you guys can tell from this pic.

nichboy is offline
post #11 of 12 Old 07-04-2010, 12:41 PM
Drednot
Registered User
1991 YJ Wrangler

Join Date: Aug 2005
Location: Phoenix
Posts: 3,288
Not an expert but that looks to be a relatively unmolested factory setup with a Carter BBD with the mixture control solenoid.

i would tend to say you should try to reconnect everything,emissions test or no, just to make everything run as it should.

When you have a complex stystem like this, all it takes is a malfunction in one of these seemingly innocuous and unneccessary sub-systems to throw the whole thing out of whack, driveability-wise.

91 YJ Sahara, 4.0L, AX-15/NP231, D30/D35@3.07
12 Cherokee 4x4,3.7L,42RLE/MP1522, D30M/8.25@3.73
Emission test=YES
"Non Vi Sed, Arte"
Drednot is offline
post #12 of 12 Old 07-04-2010, 02:20 PM
mcmud
Web Wheeler
1983 CJ8

Join Date: May 2008
Location: N.E. Alabama
Posts: 2,649
nichboy,
Here is a link that will allow you to reconize what each device is and it's intended function. Jeep Adventures Under the Hood

And an image that is contained in that web site which will be a good and quick reference in how to connect the cannister to your BBD.
