Ford shock towers on 73' CJ5

I've read several threads regarding the Ford shock tower conversion on later model CJs. Has anyone done this on a 72-75' CJ? Given the narrow track of these models, is there much to be gained with this conversion (if it has or can be done as easily as the late models)?

I currently have my jeep torn down to the frame. I plan to rebuild with a 2.5" BDS suspension upgrade and a 1 inch body lift so as to accomodate 33's. My intention is to maintain near stock steering and drive shafts. Will longer shocks gain me any worthwhile wheel travel? Or does extended wheel travel with this set-up open the door to other modifications regarding driveline lengths, steering, etc.?

Stumpfarming is offline
Sponsored Links
Advertisement

post #2 of 20 Old 01-30-2014, 01:52 PM
skizriz
Registered User
1978 CJ7

Join Date: Jun 2011
Location: Scottdale
Posts: 5,021
The Ford towers will raise them up a good bit, allowing longer shocks that will allow for longer suspension travel.
They will push them outwards towards the tires at the top though. I have narrow track axles on my 78, with 1.5" spacers, and 35x12.5 tires. They don't rub the towers when flexed up into the wheel wheels, but it is close.
The tops of my Ford towers are actually through my inner fenders, and accessible from under my hood. I have them as high as possible to run as long of a shock as I could.

With a little modification, you could tilt the tops in so the don't stick out as far from the frame, or cut some off so they aren't as high. They are very easy to modify, and either bolt on to the frame or weld them on.

Here's a picture of mine on my bare frame. I raised them up higher on the frame, and welded them on since these pictures were taken.
Attached Images

skizriz is offline
post #3 of 20 Old 01-30-2014, 02:17 PM Thread Starter
Stumpfarming
Registered User
1974 CJ5

Join Date: Nov 2013
Location: Port Angeles
Posts: 673
I don't know the actual specs, but the 73' shock mounts look to be even a bit shorter than the stock mounts on the 78'. From pictures I've seen, it appears that both top and bottom mounting brackets were relocated between the early 70's and late 70's models. Someone else might correct me on this. That's largely why I'm wondering if anyone has done this on an earlier CJ. If this application fits a 73' the same way it fits a later model, it's a no-brainer to me.

One concern I had was rubbing the shock at full compression. I think you answered that for me, thanks. I'm figuring that I will need to offset the wheels anyway to accomodate the 33's. With extra droop, does driveline length become a factor, or is that a nominal concern with this application?
Stumpfarming is offline
post #4 of 20 Old 01-30-2014, 02:43 PM
skizriz
Registered User
1978 CJ7

Join Date: Jun 2011
Location: Scottdale
Posts: 5,021
As far as i know, the short vs higher front mounts were changed when they changed to Wide track axles.
My 78 originally had the very short shock mounts, maybe only 3" above the frame. the new frame was an early 80's and it had the taller mounts, 8" or so.

Sent from my HTC One SV using JeepForum
skizriz is offline
post #5 of 20 Old 01-30-2014, 04:23 PM
RARECJ8
Registered User

RARECJ8's Avatar
1981 CJ8

Join Date: Dec 2004
Location: Reno/Tahoe
Posts: 1,844
on a similar build we simply cut the towers at the bend to avoid the canted out orientation. good luck. my main Cj uses these on all 4 corners permitting out boarding of the shocks.

Look it's a 4.6!
Life member BRC
Cal4Wheel. ECV 3697
www.hillsangels4x4.com
RARECJ8 is offline
post #6 of 20 Old 01-30-2014, 06:26 PM
cjjon7
Registered User
1983 CJ7

Join Date: Dec 2009
Location: Rocklin
Posts: 1,555
Garage
Quote:
Originally Posted by RARECJ8 View Post
on a similar build we simply cut the towers at the bend to avoid the canted out orientation. good luck. my main Cj uses these on all 4 corners permitting out boarding of the shocks.

While on the topic of using these on the rear, what benefit does outboarding the shocks give as far as the ride goes? I would assume the damping effect is significantly increased now that the axle has a longer moment arm from its articulation point to the shock mount?
cjjon7 is offline
post #7 of 20 Old 01-30-2014, 06:31 PM
RARECJ8
Registered User

RARECJ8's Avatar
1981 CJ8

Join Date: Dec 2004
Location: Reno/Tahoe
Posts: 1,844
Vast and substantial difference. Feels and drives better. Rancho 9000s. Am now in process of grafting in some air bags to help with rear sag when loaded up fir camping, towing the trailer and full tank of gas. Use that for the long sections of pavement, then deflate once on trail.

Look it's a 4.6!
Life member BRC
Cal4Wheel. ECV 3697
www.hillsangels4x4.com
RARECJ8 is offline
post #8 of 20 Old 01-30-2014, 09:19 PM Thread Starter
Stumpfarming
Registered User
1974 CJ5

Join Date: Nov 2013
Location: Port Angeles
Posts: 673
Quote:
Originally Posted by skizriz View Post
As far as i know, the short vs higher front mounts were changed when they changed to Wide track axles.
My 78 originally had the very short shock mounts, maybe only 3" above the frame.

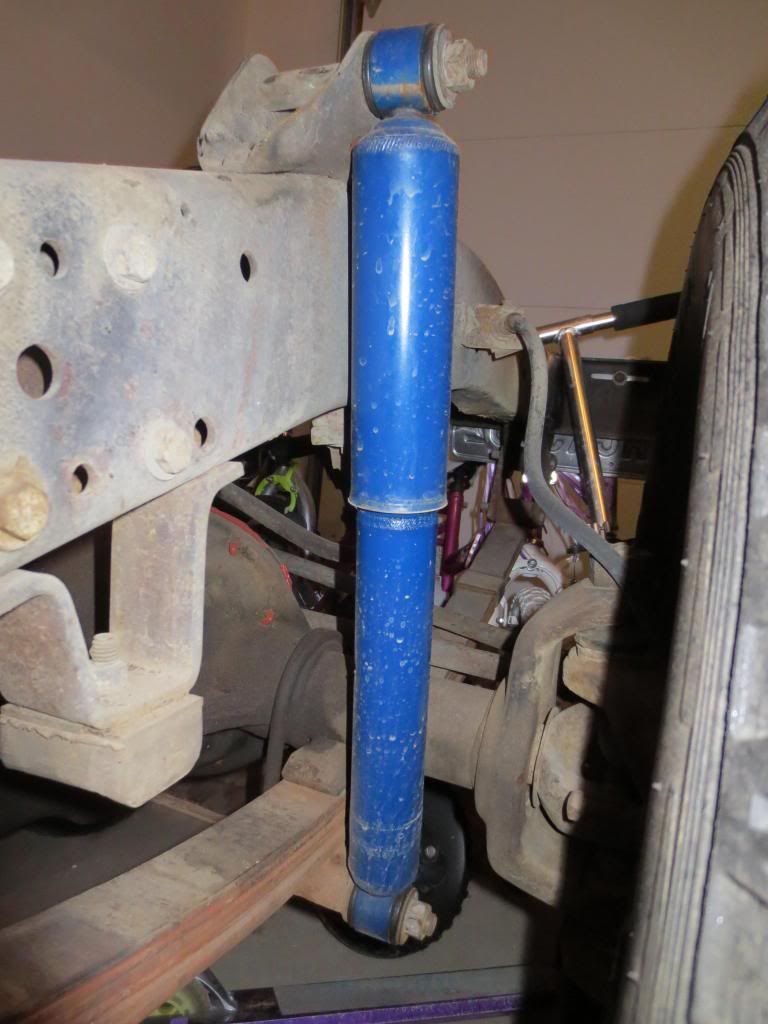

So you have the narrow track axles? Were your old shock mounts similar to this?

Stumpfarming is offline
post #9 of 20 Old 01-30-2014, 09:25 PM Thread Starter
Stumpfarming
Registered User
1974 CJ5

Join Date: Nov 2013
Location: Port Angeles
Posts: 673
Quote:
Originally Posted by RARECJ8 View Post
on a similar build we simply cut the towers at the bend to avoid the canted out orientation. good luck. my main Cj uses these on all 4 corners permitting out boarding of the shocks.
Do you have any pictures of this? I assume that on the rear you relocated the upper shock mount to place the shock in a more vertical position? (BTW, what is "out boarding")

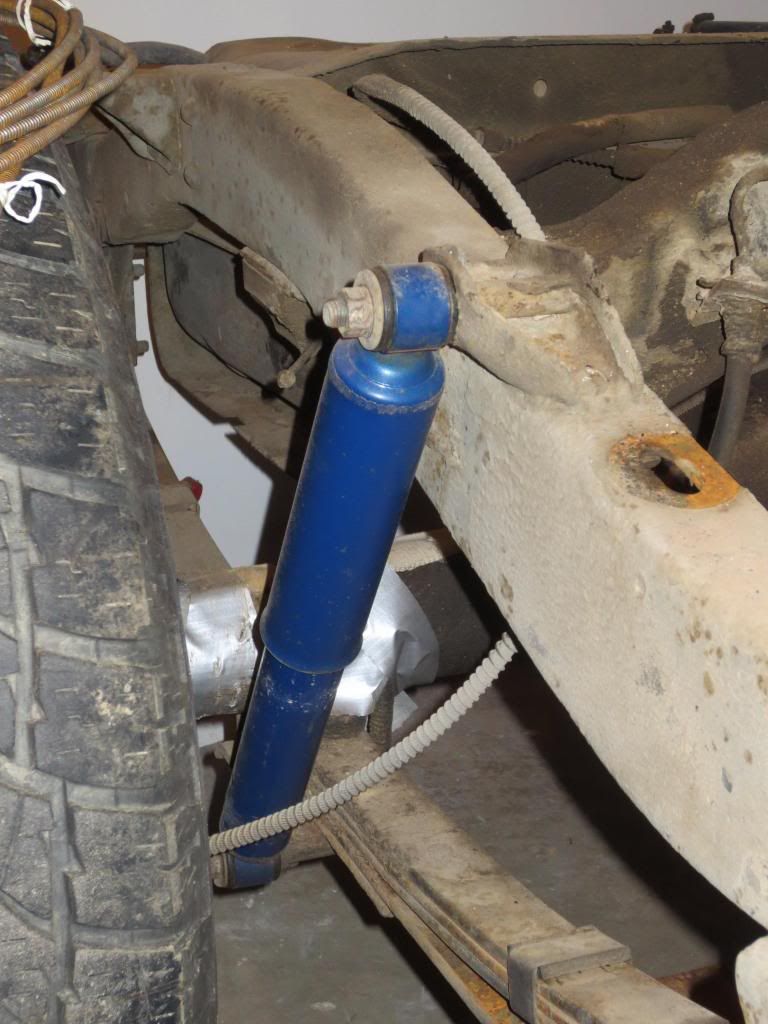

Here's a picture of my rear mount. Should I relocate the upper mount so that it is more or less directly above the lower mount, or configure it at an angle resembling this stock install?

Stumpfarming is offline
post #10 of 20 Old 01-30-2014, 11:25 PM
RARECJ8
Registered User

RARECJ8's Avatar
1981 CJ8

Join Date: Dec 2004
Location: Reno/Tahoe
Posts: 1,844
have lots of front, but no rears. will try to get a pic. the rear uses a ford tower welded to outside of frame and the lower shack mount welded to top of axle tube.

Look it's a 4.6!
Life member BRC
Cal4Wheel. ECV 3697
www.hillsangels4x4.com
RARECJ8 is offline
post #11 of 20 Old 01-31-2014, 01:14 AM
skizriz
Registered User
1978 CJ7

Join Date: Jun 2011
Location: Scottdale
Posts: 5,021
Quote:
Originally Posted by Stumpfarming View Post

So you have the narrow track axles? Were your old shock mounts similar to this?
Same size, just a little different in shape. They were welded to the top of the frame also.

Sent from my HTC One SV using JeepForum
skizriz is offline
post #12 of 20 Old 01-31-2014, 11:10 AM
RARECJ8
Registered User

RARECJ8's Avatar
1981 CJ8

Join Date: Dec 2004
Location: Reno/Tahoe
Posts: 1,844
Took some low light, grainy pix with ipad

Rear tower out boarded
Attached Thumbnails

Look it's a 4.6!
Life member BRC
Cal4Wheel. ECV 3697
www.hillsangels4x4.com
RARECJ8 is offline
post #13 of 20 Old 01-31-2014, 11:12 AM
RARECJ8
Registered User

RARECJ8's Avatar
1981 CJ8

Join Date: Dec 2004
Location: Reno/Tahoe
Posts: 1,844
Gotta figure how to get more that one pic per post. Upload second and it just replaces the first.

Another showing lay out. Note the lower end was trimmed to eliminate the cant and fit inside wheel well.
Attached Thumbnails

Look it's a 4.6!
Life member BRC
Cal4Wheel. ECV 3697
www.hillsangels4x4.com
RARECJ8 is offline
post #14 of 20 Old 01-31-2014, 11:22 AM Thread Starter
Stumpfarming
Registered User
1974 CJ5

Join Date: Nov 2013
Location: Port Angeles
Posts: 673
Quote:
Originally Posted by RARECJ8 View Post
have lots of front, but no rears. will try to get a pic. the rear uses a ford tower welded to outside of frame and the lower shack mount welded to top of axle tube.
I'd really appreciate seeing the pics of the front and the modification you did to the shock tower. Thanks
Stumpfarming is offline
post #15 of 20 Old 01-31-2014, 11:28 AM Thread Starter
Stumpfarming
Registered User
1974 CJ5

Join Date: Nov 2013
Location: Port Angeles
Posts: 673
Quote:
Originally Posted by RARECJ8 View Post
Gotta figure how to get more that one pic per post. Upload second and it just replaces the first.

Another showing lay out. Note the lower end was trimmed to eliminate the cant and fit inside wheel well.
I copy and paste the link from photobucket. I be sure to paste the next link on a separate line and it works for me.

I like seeing how you got it to fit inside the wheel well. Any chance of a close-up on the bottom bracket? It looks like this is mounted plumb with the axle? What size tires? lift? Thanks
Stumpfarming is offline
