Floor panel replacement questions.

I need to replace the entire front floor pan area in my CJ7. I'm looking at http://www.quadratec.com/products/im...2F37456-lg.jpghttp://www.quadratec.com/products/im...2F37456-lg.jpg

I was wondering if the body mount locations are on the bottom side of this panel or if I would have to modify this floor pan so I can remount the tub to the body. I called Quadratec to ask them but the guy I spoke to didn't know.


Last edited by Rojo78CJ7; 08-24-2010 at 09:03 PM.. Reason: Image didn't show up.
Rojo78CJ7 is offline   Reply With Quote
Unread 08-25-2010, 12:03 AM   #2
SonicR1
Registered User
2005 TJ Wrangler

Join Date: Jan 2010
Location: CenCal
Posts: 1,492
It may be different in the 7, but in my 5, there are ribs/supports that weld to the floor pan that line up with the mounts... I would bet the quadratec piece doesn't have them already... You will prolly have to drill out the spot welds on the existing tub, cut out the bad floor, then lay new floor in... I am doing that now with my 5, my supports were bad off to, so I am going overkill and replacing them with 1x3 square tube. Good luck!!!
__________________
[COLOR="Red"]... I guess I'm gonna have to fix that too…….[/COLOR]

[URL="http://www.jeepforum.com/forum/f9/sonics-05-tj-build-1168663/#post10985489"][COLOR="yellow"]The TJ[/COLOR][/URL]
2005 Wrangler X 4.0/6 speed, Dana 30/Ford 8.8--4.88--Eaton E-Lockers, 35" MT/R, Smittybilt bumpers/rockers/winch, SonicFab tire carrier, RE 3.5 springs, Zone 1.25 BL, FullTraction 3 link upper rear, RE super flex lower rears, UCF ultra high skid and lo/pro mount, brown dog mml.

[URL="http://www.jeepforum.com/forum/f8/sonics-74-cj5-build-1106795/"][COLOR="DarkOrange"]1974 CJ5 BUILD THREAD[/COLOR][/URL]
SonicR1 is offline   Reply With Quote
Unread 08-25-2010, 04:44 AM   #3
Rojo78CJ7
Registered User
1978 CJ7

Join Date: Jul 2010
Location: Warner Robins, Georgia
Posts: 56
Oh, I'm asking if the floor already has the nut-plates so after it is installed the body can be mounted back to the frame.
Rojo78CJ7 is offline   Reply With Quote
Unread 08-25-2010, 10:52 AM   #4
COBRA5LADDICT
Registered User

Join Date: Oct 2004
Posts: 289
i bought the 1 piece and it includes all the capture nuts and 1x3 bracing. it was pretty much a match to the orig. i had to cut 10" off for it to work for the 5. not an issue though and it looks original. mine was from omixada and i dont recall The part number. it is the easiest and quickest way to repair the floor hands down. plus the end product is much nicer. i think i have a couple pics of the install if you want.
COBRA5LADDICT is offline   Reply With Quote
Unread 08-25-2010, 02:17 PM   #5
twoleos617
Registered User
1986 CJ7

Join Date: Nov 2008
Location: Louisville, Ky.
Posts: 2,026
pics pics pics!
twoleos617 is offline   Reply With Quote
Unread 08-25-2010, 02:28 PM   #6
COBRA5LADDICT
Registered User

Join Date: Oct 2004
Posts: 289

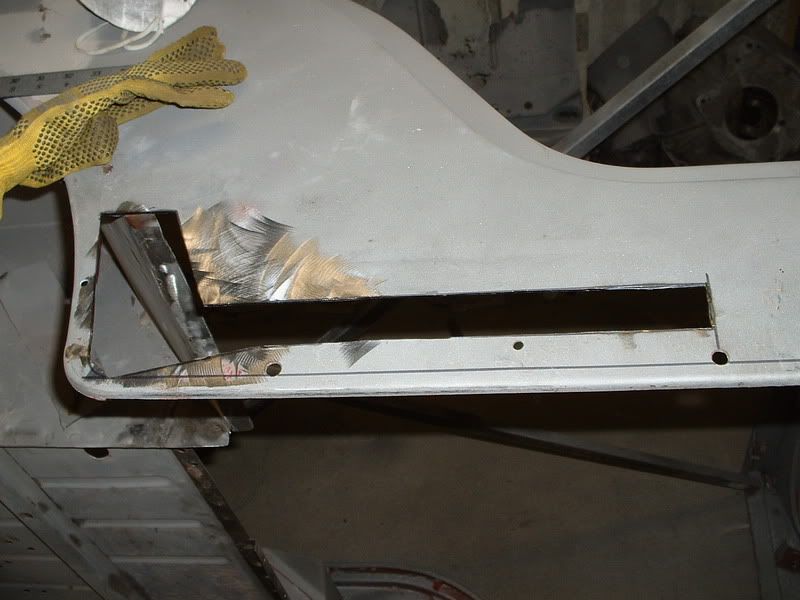

chances are the side panels are thin at the floor / side connection anyway so it is best to remove the rust while you are in there.
COBRA5LADDICT is offline   Reply With Quote
Unread 08-25-2010, 06:07 PM   #7
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 4,722
Those replacement floor pans are made by the MD Juan Company in the Philippines who make the Repli-tub bodies for Jeeps. I have a Repli-tub and it is the same floor pan as shown by COBRA5LADDIT. Since the design of the floor is based on 1976 CJ-7 model year, you won't have to cut out the transmission tunnel hole for later T4 or T5 shifters. The cutout will fit all top loading transmission without modifications.

You will get the bottom channels but you won't get the front toeboard mounts up front for the frame mounting near the firewall. You can buy them from Classic Enterprises - Restoration, Reproduction Parts for Studebaker, Jeep & Ford if you need them. They buy them from the MD Juan Company also.

Make sure you use body sealant after welding and primer coating it.



__________________
.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is offline   Reply With Quote
Unread 08-26-2010, 12:52 AM   #8
Rojo78CJ7
Registered User
1978 CJ7

Join Date: Jul 2010
Location: Warner Robins, Georgia
Posts: 56
Wow thanks folks. My blood pressure is back down to normal levels...for now. I have one last question about the install. How should I weld in the new floorboard? Should I make it one continuous bead or do I only need to put a one inch weld every ten inches? Or maybe I what I should be asking is, how did you do yours?
Rojo78CJ7 is offline   Reply With Quote
Unread 08-26-2010, 03:45 AM   #9
schlicktaco
Registered User
1997 ZJ

Join Date: Aug 2010
Location: Modesto CA
Posts: 14
go to this chilton data base... here is the portal link..Stanislaus County Library Virtual Branch then click on ONLINE DATABASES" then put this number in... then you should get access. 0210374362
good luck
schlicktaco is offline   Reply With Quote
Unread 08-26-2010, 04:00 AM   #10
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 4,722
Quote:
Originally Posted by Rojo78CJ7 View Post
How should I weld in the new floorboard? Should I make it one continuous bead or do I only need to put a one inch weld every ten inches? Or maybe what I should be asking is, how did you do yours?
I would do neither that you describe. I don't have access to my Jeep for close up pictures as it is at the paint shop but the floor pan is held in place by tack welds every 1 inch apart. Any welds bigger or longer then that will warp the sheet metal. You would need to start with large spacing at first, say 12 inches apart, then come back for the next welds at 12 inches apart and so on until you are back at the first welds. The trick is to minimize warping of the sheet metal. You should ask a professional welder in your area what is the best way to weld 18 gauge sheet metal without fear of warping the steel if you are not sure how it is done.
__________________
.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226

Last edited by keith460; 08-26-2010 at 04:30 AM..
keith460 is offline   Reply With Quote
Unread 08-26-2010, 09:01 AM   #11
COBRA5LADDICT
Registered User

Join Date: Oct 2004
Posts: 289
i drilled a 3/8" hole in the flange of the floorpan and did a plug or rosette weld about every 1.5-2" like Keith said, dont forget the seam sealer.
COBRA5LADDICT is offline   Reply With Quote
Unread 09-01-2011, 01:09 PM   #12
Renegade82
Web Wheeler

Renegade82's Avatar
1982 CJ7

Join Date: Apr 2011
Location: Lewistown, PA
Posts: 3,187
To revive an old thread, I have a few questions. I am going to spray both bare metal surfaces to be joined with a weld thru primer. I see that some use seam sealer before, and some after, welding a seam. Doesn't the stuff melt? And I see it is flammable too. But then if you apply it afterward, on a lapped and welded seam what's the point unless you leave the bead there, which isn't practical on a floor seam. So I'm looking for more specifics on it's use (when / where / how). Can you lay out a bead (I have it in a caulking tube), lap the joint and then spot weld it in the 1" / 12" pattern?
The devil is always in the details.
Renegade82 is offline   Reply With Quote
Unread 09-01-2011, 01:13 PM   #13
COBRA5LADDICT
Registered User

Join Date: Oct 2004
Posts: 289
you cant apply sealer before you weld.

weld through primer is ok
COBRA5LADDICT is offline   Reply With Quote
Unread 09-01-2011, 02:14 PM   #14
jhedges15
Registered User
1973 CJ5

Join Date: Feb 2010
Location: Missouri
Posts: 77
where can you find that entire floor pan? i see its on quadratec but i cant find the part anywhere. anyone have a part number for it?
jhedges15 is offline   Reply With Quote
Unread 09-01-2011, 07:19 PM   #15
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 4,722

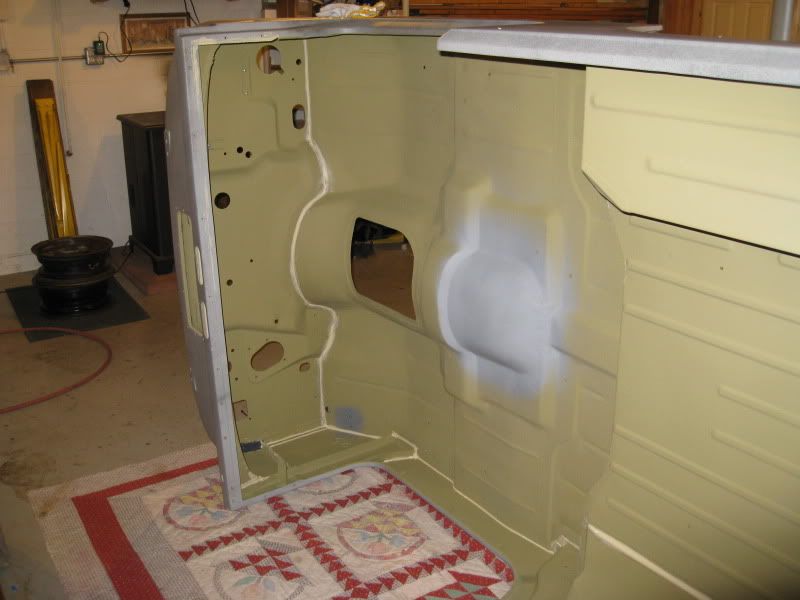

Do all your spot and stitch welding first followed by etching primer and then seam sealer. Top coat of paint is last.

Seam sealer should be applied to every seam, lap joint and spot weld on a Jeep body and seam sealer can only be applied after primer and not before. Failure to apply a seam sealer WILL promote rust guaranteed! Its why Jeep bodies rust in the first place.
__________________
.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is offline   Reply With Quote
