Unread 08-16-2011, 08:56 PM   #16
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805
Quote:
Originally Posted by foggybottombob View Post
Are you still there Bob? I think this is too shallow now. What do you think?

Yeah, too shallow now. Add in some shims maybe around .006 -.008 worth. Is that an Eaton locker?

80cj is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 09:12 PM   #17
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805
Quote:
Originally Posted by 80cj View Post
Yeah, too shallow now. Add in some shims maybe around .006 -.008 worth. Is that an Eaton locker?
Maybe even .010"
80cj is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 09:25 PM   #18
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,830
I had already added 0.005". What do you think about this one?
And yes that is an Eaton E-Locker. I have used that a couple of years now and I like it.

foggybottombob is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 10:01 PM   #19
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805
I'd say that looks pretty darned good. What's your backlash set at?
80cj is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 10:20 PM   #20
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805

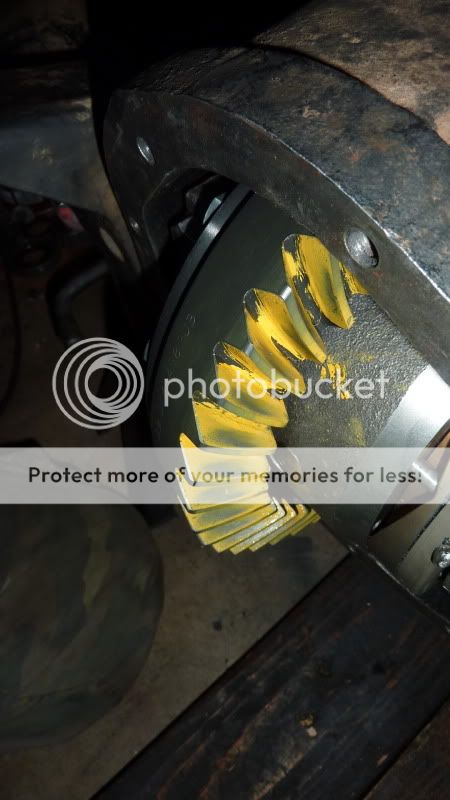

Hmmm. Looking at the pics, I don't know if it's the camera angle but I wonder what would happen if you stuck in another .002 or so if shim. the pattern on some coast teeth looks a trifle shallow. Like I said, I can't decide if it's the camera angle.
80cj is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 10:29 PM   #21
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,830
Backlash is at 0.008".
foggybottombob is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 11:02 PM   #22
bandhmo2
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Fairbanks, Alaska
Posts: 21
Quote:
Originally Posted by foggybottombob View Post
I had already added 0.005". What do you think about this one?
And yes that is an Eaton E-Locker. I have used that a couple of years now and I like it.

That is much better. I would say you could run that with no problems. As already said it might improve a little with the pinion a little deeper, but not much maybe 0.002" worth. However, if you are sick of playing with it, it should be fine.
bandhmo2 is offline   Reply With Quote Quick reply to this message
Unread 08-16-2011, 11:37 PM   #23
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,830
I'll add another 0.002" tomorrow after work. I'm out of garage land and back in computer land now.
foggybottombob is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 12:23 AM   #24
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805

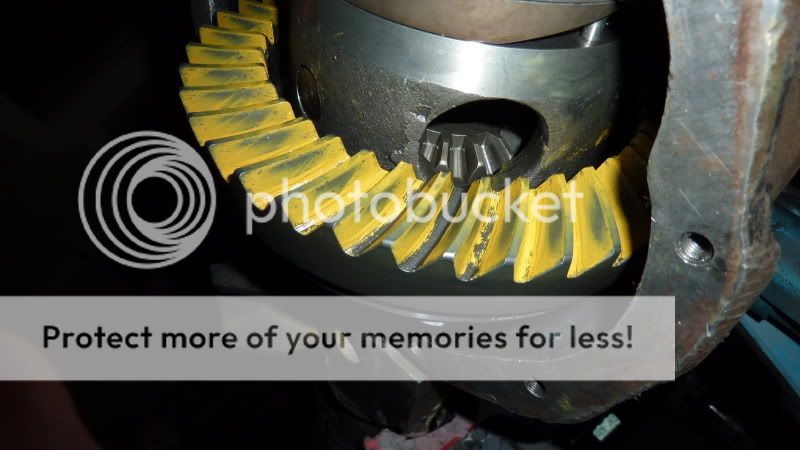

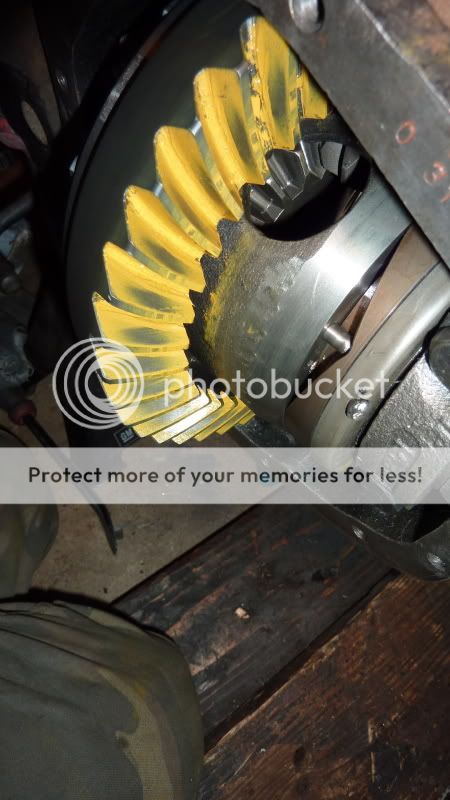

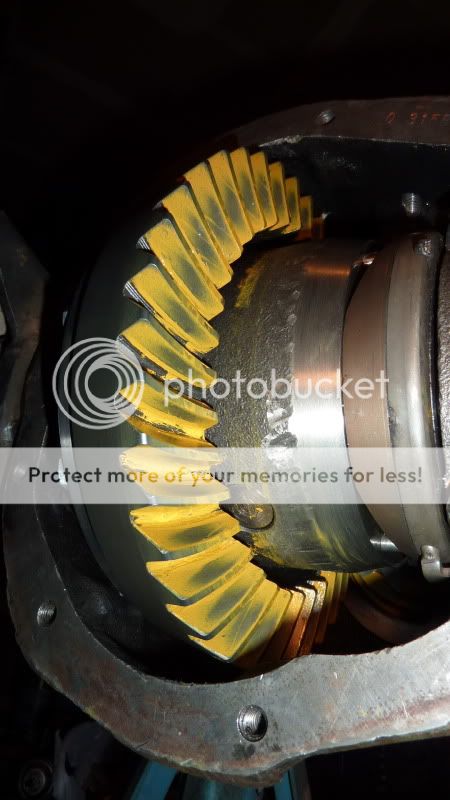

I've marked the gearteeth that I think are questionable. The pattern looks high or toward the face. Is it really like that or is it camera wide angle lens distortion? The drive side of the teeth further up look pretty well centered face/flank wise.
80cj is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 07:26 AM   #25
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,830
I think it's really that high. And note that is only a 0.010" depth change from the first picture.
foggybottombob is offline   Reply With Quote Quick reply to this message
Unread 08-17-2011, 07:34 AM   #26
justanotherjpr
Registered User

Join Date: Nov 2007
Posts: 6,337
Learning a lot from these pics and commentary..
__________________
Quote:
Originally Posted by Motorcharge View Post
So do you actually hear your thoughts in your head or is it just sort of a dull roar before you smash your face into your keyboard and just submit whatever dumb **** ended up on the page?
justanotherjpr is offline   Reply With Quote Quick reply to this message
Unread 08-24-2011, 09:18 PM   #27
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,830
Well I got done tonight finally. The final pattern wound up being only 0.006" out from where it was in the first set of pictures. So is was not really "way deep" to begin with. I have found that a little bit of shims can make a lot of difference in the way the pattern looks.

I've been busy with other stuff and just finally got back to this tonight.
It took 3 tries to get to where I started on this thread. Then it took 3 more tries to get done. I think this is the quickest I ever got a setup done. Thanks to all.
foggybottombob is offline   Reply With Quote Quick reply to this message
Unread 08-25-2011, 12:46 AM   #28
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805
Good to hear you got it all wrapped up. I thought about it the other day but figured you either got sidetracked or completed it and moved on. True what you say about small adjustments making a difference. That's the reason I tend to be conservative when suggesting adjustments but sometimes I am too conservative.
80cj is offline   Reply With Quote Quick reply to this message
Unread 01-08-2012, 08:04 PM   #29
xracer33
Registered User
1999 TJ Wrangler

Join Date: Jan 2011
Location: riverside, ca
Posts: 143
if you have a good drive side pattern and a so so pattern on the coast side , is there a way to change just the coast side or do you just run it ???
xracer33 is offline   Reply With Quote Quick reply to this message
Unread 01-08-2012, 08:41 PM   #30
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,805
Quote:
Originally Posted by xracer33 View Post
if you have a good drive side pattern and a so so pattern on the coast side , is there a way to change just the coast side or do you just run it ???
Can you post pics of the drive and coast side?
80cj is offline   Reply With Quote Quick reply to this message
