Dana 44 gear pattern

This is my pattern on my third shot at pinion depth. Any opinions on this?
These are new 4.88 gears.

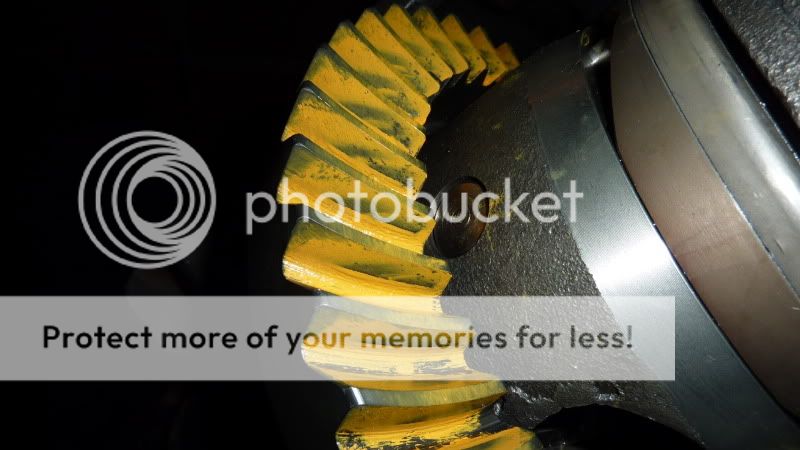

Drive side


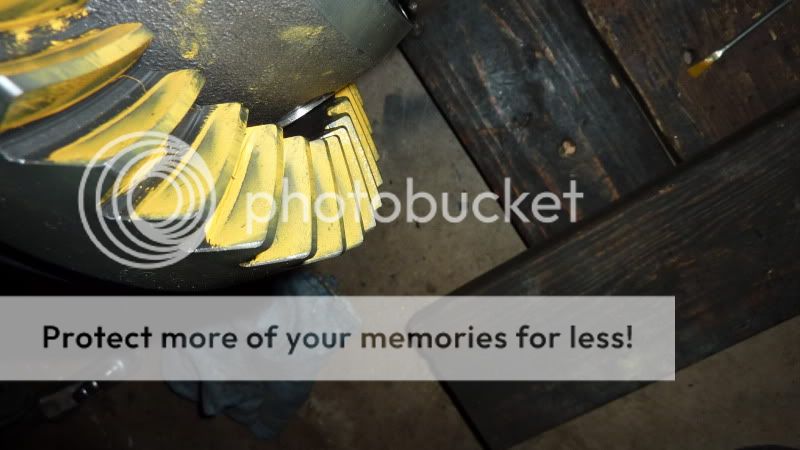

Coast side


foggybottombob is offline
Sponsored Links
Advertisement

post #2 of 30 Old 08-15-2011, 04:29 PM
bandhmo2
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Fairbanks
Posts: 21
Pinion is too deep, by quite a bit. Reduce pinion shims by 15 or 20 thousandths and try again.

In general it is better to make adjustments that are on the large size and to bracket the the correct value then to try to hit dead on, till the final adjustment.
bandhmo2 is offline
post #3 of 30 Old 08-15-2011, 08:03 PM
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 6,270
Quote:
Originally Posted by bandhmo2 View Post
Pinion is too deep, by quite a bit. Reduce pinion shims by 15 or 20 thousandths and try again.

In general it is better to make adjustments that are on the large size and to bracket the the correct value then to try to hit dead on, till the final adjustment.
Yup. Too deep.
80cj is offline
post #4 of 30 Old 08-16-2011, 07:34 AM Thread Starter
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,840
The pattern started out way too shallow so I have definitely bracketed the optimum if this is too deep.

Since this looks centered face to flank to me, what is it about this pattern that indicates it being too deep?
foggybottombob is offline
post #5 of 30 Old 08-16-2011, 10:33 AM
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 15,506
For my untrained eye, your contact pattern on the drive side is concentrated too much to the toe side of the gear. The pattern it's making looks like backlash is good, but it needs to be centered more between the toe and heel.

Take that with a grain of salt as my r&p experience isn't as fine tuned as many here.
CSP is offline
post #6 of 30 Old 08-16-2011, 10:36 AM
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 6,270
It isn't centered face/flank wise. The pattern is concentrated more in the bottom (root) of the ring gear teeth. Removing pinion shim will broaden the pattern and increase the bearing toward the face. Positioning the pattern heel/toe wise can be done after the pinon depth is correct by adjusting backlash.
80cj is offline
post #7 of 30 Old 08-16-2011, 11:11 AM Thread Starter
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,840
I can see that the teeth are bearing together harder (paint is rubbed off more) at the flank/root side. So is that the indication you are talking about?

I just want to get better at reading patterns.
foggybottombob is offline
post #8 of 30 Old 08-16-2011, 11:32 AM
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 6,270
Quote:
Originally Posted by foggybottombob View Post
I can see that the teeth are bearing together harder (paint is rubbed off more) at the flank/root side. So is that the indication you are talking about?

I just want to get better at reading patterns.
Yes. You're basically in the same situation that BioTex was in when he did his 44 although not to such a great extent.
80cj is offline
post #9 of 30 Old 08-16-2011, 11:58 AM
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 6,270
Remember that since the pinion gear is cone shaped, the further into the ring gear it is positioned, the mesh will tend to be toward the bottom or root of the ring gear.
80cj is offline
post #10 of 30 Old 08-16-2011, 01:03 PM Thread Starter
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,840
So is this more like what I want to see? In this pattern the bearing surface is more evenly distributed face to flank.
foggybottombob is offline
post #11 of 30 Old 08-16-2011, 01:21 PM
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 6,270
That's too concentrated in the root. I have some samples here of a some I've done.

This is a Ford 8.8. Note that the pattern covers most of the tooth face flank wise.



This one is Yukon gears in a Dana 35.




This is the AMC 20 on my CJ-5 with the pattern pretty much centered face flank wise with good coverage. The heel/toe position was the best I could get while staying with in the backlash spec. The important thing is that the pinion position is correct and Randy's Ring and Pinion stresses on this also. The second and third pics show the same gears after 500 miles. You can see that the pattern is nicely distributed over the gear teeth. they run nice and quiet.




80cj is offline
post #12 of 30 Old 08-16-2011, 03:06 PM
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 15,506
The pattern on my 14-bolt, which I felt could have used a bit more shim on the pinion. They do run quiet and I figured it was a trail only vehicle, so I left it.
Attached Thumbnails
drive.JPG   coast.JPG
CSP is offline
post #13 of 30 Old 08-16-2011, 03:21 PM
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 6,270
Quote:
Originally Posted by CSP View Post
The pattern on my 14-bolt, which I felt could have used a bit more shim on the pinion. They do run quiet and I figured it was a trail only vehicle, so I left it.
Looks pretty good actually. Just a trifle deep but very close. As I remember a 14 bolt has a pinion carrier so more shim would move the pinion outward which is like less shim on a D44.
80cj is offline
post #14 of 30 Old 08-16-2011, 03:31 PM
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 15,506
Correct, the shim is between the pinion carrier and the main housing. More shim moves it outward.

That was my first shot too! Sometimes it's better to be lucky than good.
CSP is offline
post #15 of 30 Old 08-16-2011, 08:05 PM Thread Starter
foggybottombob
Registered User
1984 CJ7

Join Date: May 2008
Location: Monument Colorado
Posts: 5,840
Are you still there Bob? I think this is too shallow now. What do you think?
I took out 0.015" pinion depth shims.

foggybottombob is offline
