contour fan writeup?

I've searched here, pirate, and google, but I'm still stuck...

I'm looking for a link (or anything really) to a writeup or something laying out how to do the Contour fan swap. I'm out of the state and my brother in law is doing this for me, but I need something to get him going.

Also, which specific cars (year/engine) will he need to look for at the junkyard?


Thanks!

__________________
Live free or die. Death is not the worst of evils.
www.freestateproject.org
RockScar is offline   Reply With Quote
Unread 12-30-2011, 06:26 PM   #2
1984CJ
Registered User
1984 CJ7

Join Date: Mar 2005
Location: B'ham, AL
Posts: 828
http://www.cj-8.com/forum/showthread.php?t=24725
http://www.jeep-cj.com/forums/f2/contour-dual-fan-5169/
and
http://www.jeepforum.com/forum/f8/co...-fans-1247090/

Might also drop a line to VACJ7 since he originated one of those threads.
__________________
84 CJ7 258, T5, D300, AMC 20, D30 EZ lockers F&R
33" TSL, 2.5"BDS lift, .5" shackle lift 1" body lift
Quote:
Originally Posted by ftdranger
You guys on the CJ tech page are a little to tech for me. Must be the leaf springs.
1984CJ is offline   Reply With Quote
Unread 03-18-2012, 12:20 PM   #3
ThisGuyUKnow
Registered User
1985 CJ7

Join Date: Jul 2008
Location: Harleysville, PA
Posts: 517
the link in post 2 at jeep-cj is my write up from a while back.

It is really not hard to do. You will need to source a contour fan, remove the four bolts holding on the manual fan, and either build brackets or use radiator straps to hold the fan in place. I suggest building brackets as the fans weight on those plastic straps can damage the radiator fins. If the four bolts holding the fan also mount the pulley onto the water pump you may need to source shorter bolts to bolt the pulley back up I can't remember.
I also suggest using this controller http://www.summitracing.com/parts/FLX-31165/ instead of the universal ones they sell at the parts houses because it works better and lasts longer.

Thats about everything if you have any more questions feel free to ask. Also you might want to consider if your alternator has enough oomph to handle the added amperage draw from 2 fans.
__________________
1985 CJ7 Laredo, 4.0, NV3550, D300, 3.31 AMC 20 w/trac loc
ThisGuyUKnow is offline   Reply With Quote
Unread 03-18-2012, 03:02 PM   #4
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493, Katy, Texas
Posts: 587
I used the same contoller and works great... NO problems what so ever.. Send me your email and I will attach a PDF of my wiring of the controller.... I can't figure out how to attach a PDF....
Maybe will help...
__________________
****************************
Calvin
Follow My CJ5 Build
81 CJ5, Ford 331 EFI, AX15, D-300, Dana 44 (Detroit Locker)....

When there are more people voting for a living than working for a living,
We are DONE as a Country!!!!!!

Newly Acquired 2014 Grand Cherokee Summit
****************************
Exposed is offline   Reply With Quote
Unread 03-18-2012, 05:10 PM   #5
bentring
Registered User
1976 CJ5

Join Date: Sep 2011
Location: , Jackson TN
Posts: 230
Quote:
Originally Posted by Exposed View Post
I can't figure out how to attach a PDF....
http://www.filedropper.com/ It's like photobucket for files. Just upload and post/pm a link.
bentring is offline   Reply With Quote
Unread 03-18-2012, 05:22 PM   #6
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,158

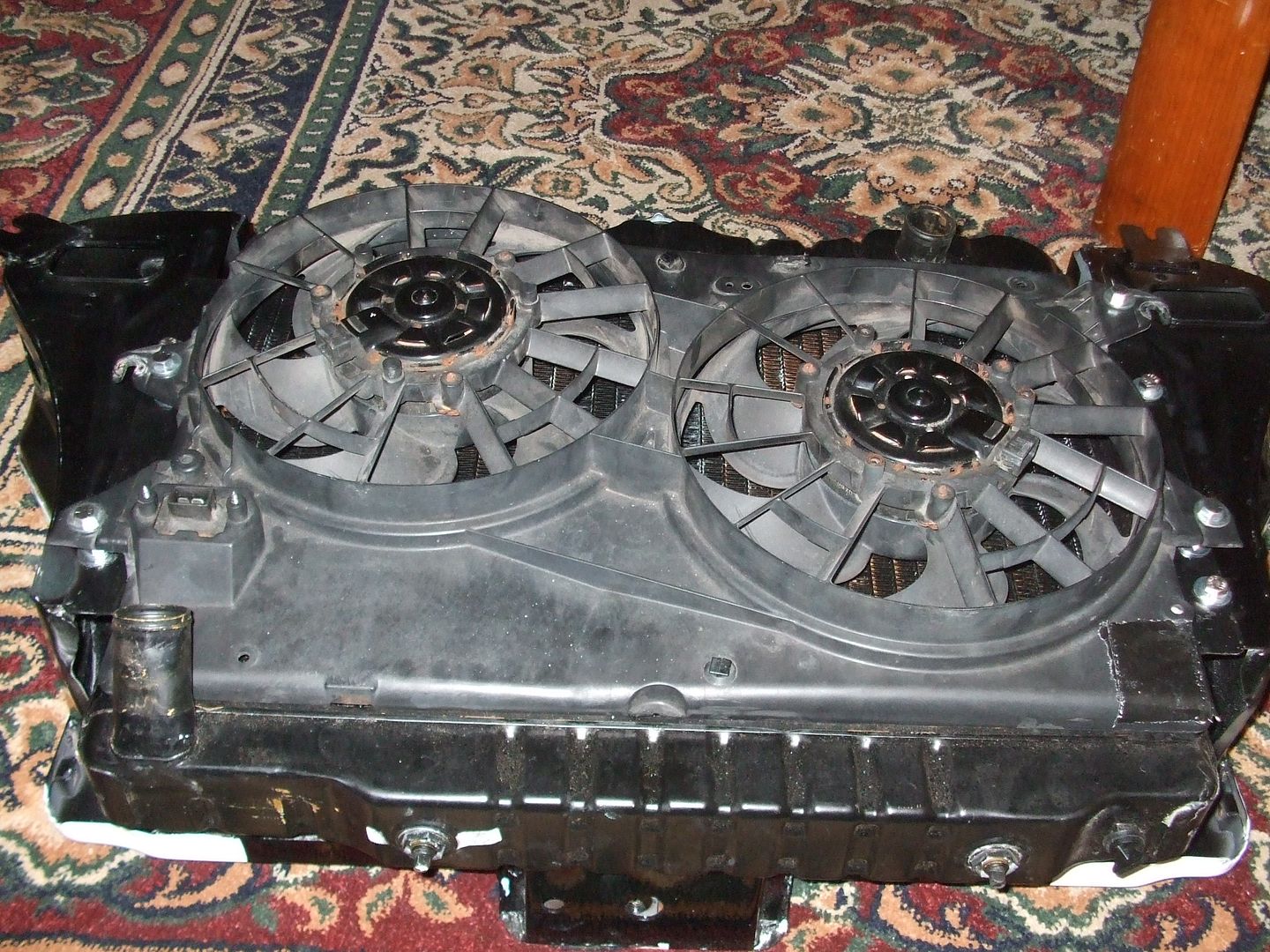

They pretty much bolt right up.



How you want to wire it depends on if you want to use a controller, thermostatic switches, or a simple switch. Here is an example of how I wired mine with the standard Flex-A-Lite two fan controller. I added in a switch to manually turn them on, off or let the controller do it automatically with the thermistor probe in the radiator fins.

__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 03-18-2012, 08:12 PM   #7
RockScar
Registered User
1984 CJ7

Join Date: May 2007
Location: MD
Posts: 245
Quote:
Originally Posted by Coiz View Post
They pretty much bolt right up.



How you want to wire it depends on if you want to use a controller, thermostatic switches, or a simple switch. Here is an example of how I wired mine with the standard Flex-A-Lite two fan controller. I added in a switch to manually turn them on, off or let the controller do it automatically with the thermistor probe in the radiator fins.
Wow, I finished this awhile ago, but that's a great schematic for the controller. I'm planning to wire in an on/auto/off switch in, so I'll be back for that!
__________________
Live free or die. Death is not the worst of evils.
www.freestateproject.org
RockScar is offline   Reply With Quote
Unread 03-18-2012, 11:16 PM   #8
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,158
I never noticed the original post date, just trying to help out. This might help someone else in the future doing a search.

If you're ever looking for a specific variance on wiring the fans, let me know what you're looking for as I am pretty good at working up specific schematics.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 03-19-2012, 03:50 AM   #9
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493, Katy, Texas
Posts: 587
Looks like Coiz beat me to the punch....
__________________
****************************
Calvin
Follow My CJ5 Build
81 CJ5, Ford 331 EFI, AX15, D-300, Dana 44 (Detroit Locker)....

When there are more people voting for a living than working for a living,
We are DONE as a Country!!!!!!

Newly Acquired 2014 Grand Cherokee Summit
****************************
Exposed is offline   Reply With Quote
Unread 08-19-2012, 05:45 PM   #10
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon, Oregon my home and for 200 billion slugs
Posts: 1,321
Since I'm only now doing this swap to cool down my 360 I've received a couple of "this thread is dead" notes, perhaps the moderator might consider collectively putting all the wiring diagram suggestions and other errata in a stickie?
__________________
The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline   Reply With Quote
Unread 08-21-2012, 02:28 PM   #11
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon, Oregon my home and for 200 billion slugs
Posts: 1,321
Okay gang, after being frustrated by failed attempts at getting part nos. I decided to go back to the boneyard and found these;

The text on the green one reads;
Ford C8F6A
93B6 8C616 AA
RELAT ASY.
ENG. COOL.
FAN CONTR.
12V-
[PA6-G30





The text on the normal sized one reads;
FORD G1UHD
93BG 14N089 CA
V23136-J4-X1

12V 70A

PA


Can anyone tell me if these are correct and what's up with the oversized green one?
__________________
The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline   Reply With Quote
Unread 08-24-2012, 07:47 AM   #12
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon, Oregon my home and for 200 billion slugs
Posts: 1,321
Sorry for my incessant posts folks, I will desist.
