post #512 of 1943 Old 09-05-2010, 12:09 AM Thread Starter
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,226
Garage
Thanks Dave. It is pretty cool going from this:

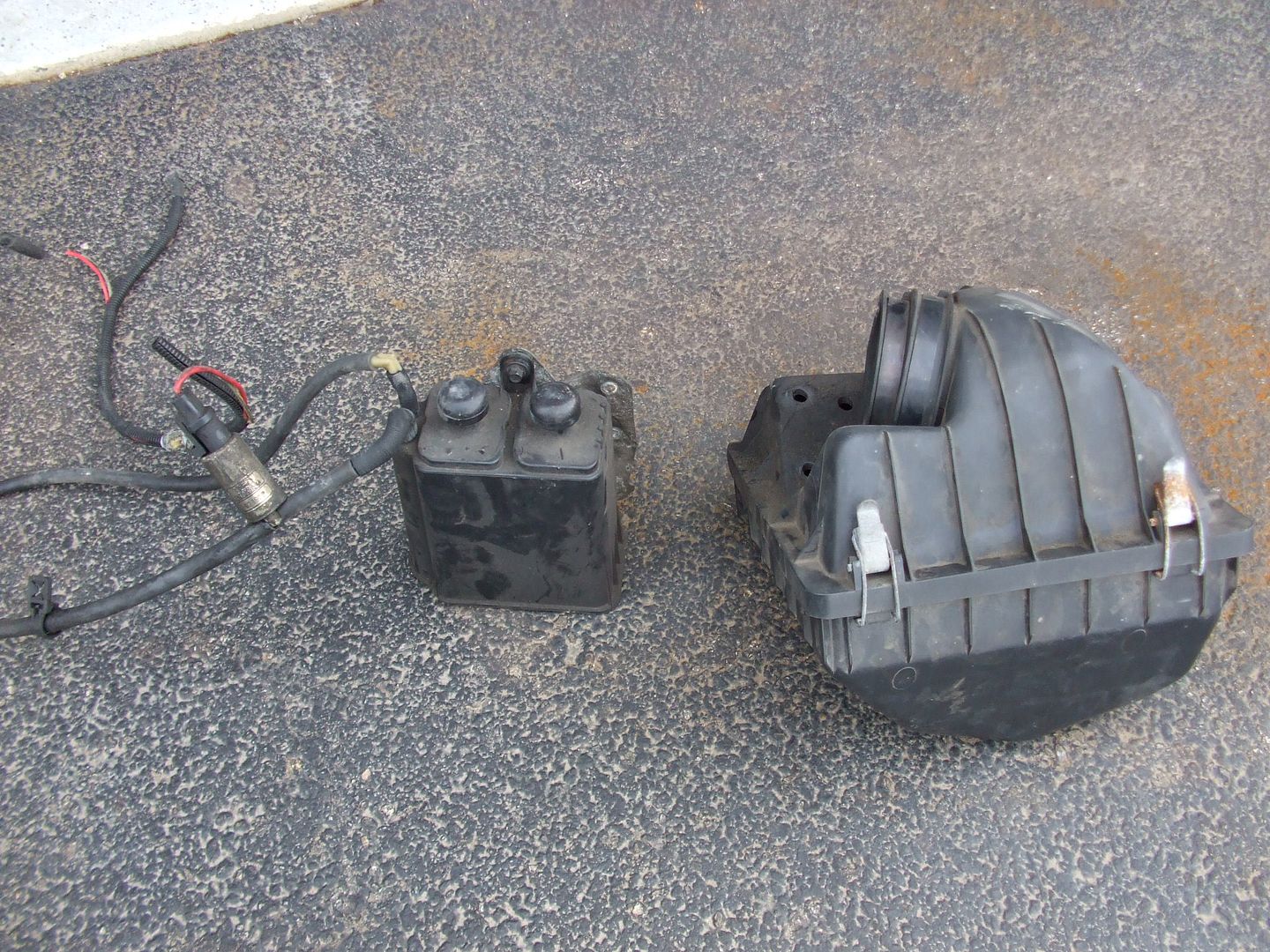

To this:



Mike

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline
post #513 of 1943 Old 09-05-2010, 01:58 PM Thread Starter
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,226
Garage
Charcoal Canister

I decided to mount my charcoal canister in the same location as the stock jeep canister. My CJ had never had the emissions system hooked up since I have owned it. Luckily I still had the liquid check valve in the fender well but the rollover valve had a broken nipple(replaced with the DeLorean Part) and the charcoal canister was missing. I picked up a canister out of an early ninety's Mustang and also picked up the canister purge solenoid. Got them both for $5 at the local salvage yard.

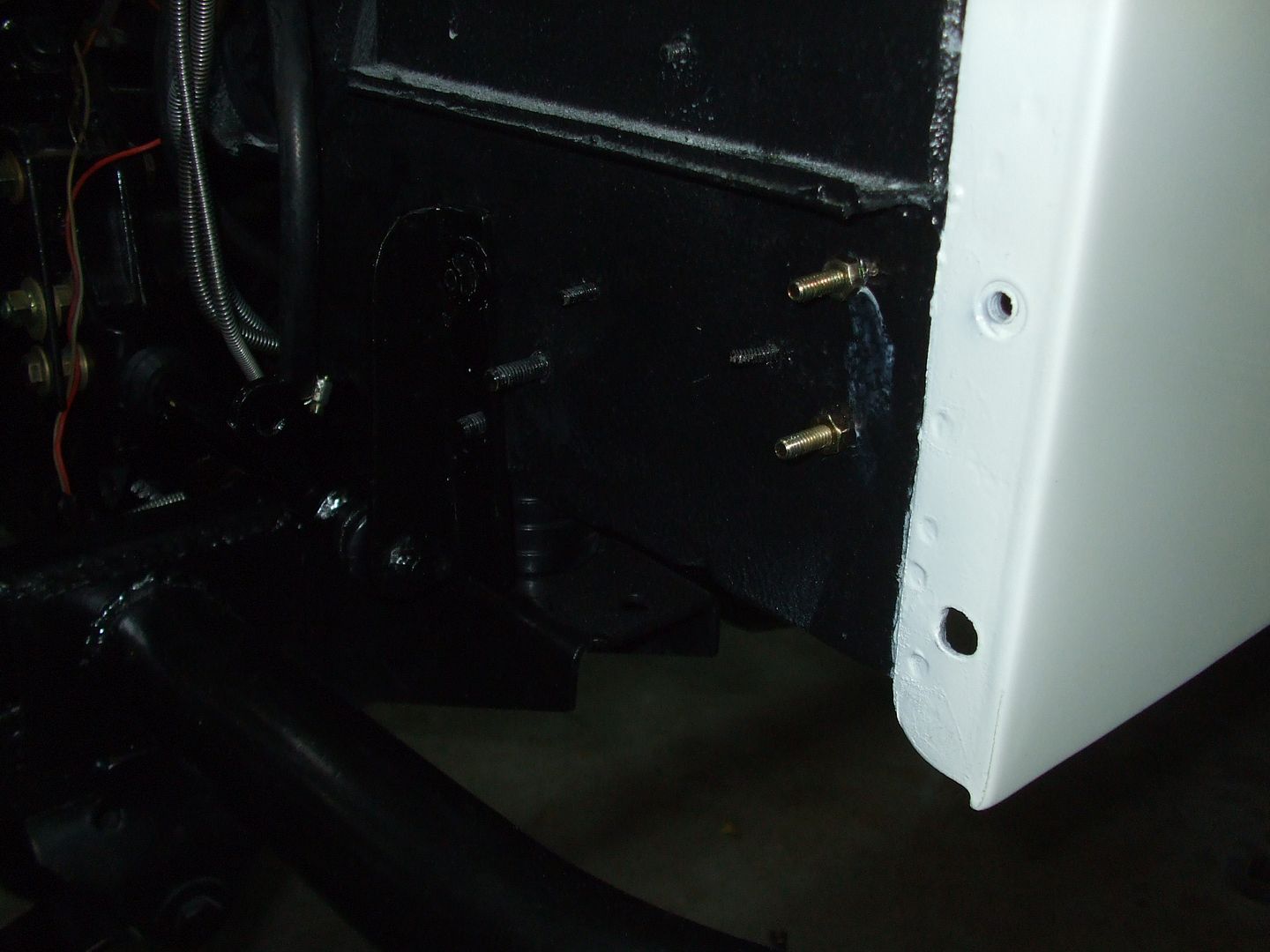

It came with this perfect little mounting bracket I had to attach to the firewall with two bolts. I couldn't mount it flush because the top would hit the lip for the floorboard so I added a couple nuts to the bolts to basically turn them into studs and to help space the mounting bracket out a little.

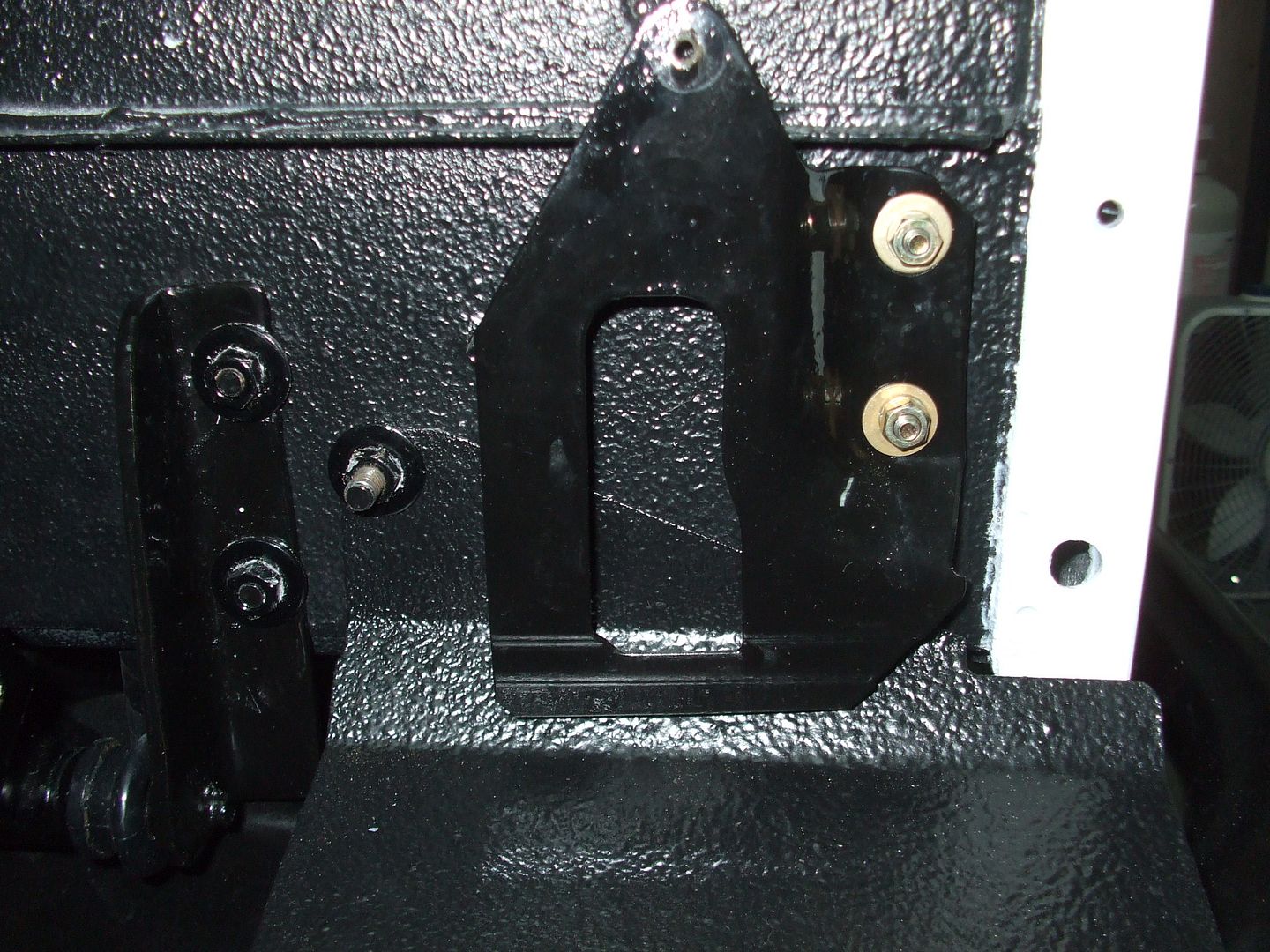

I mounted up the lower fender rock guard and placed the bracket in place to make sure everything was going to fit.

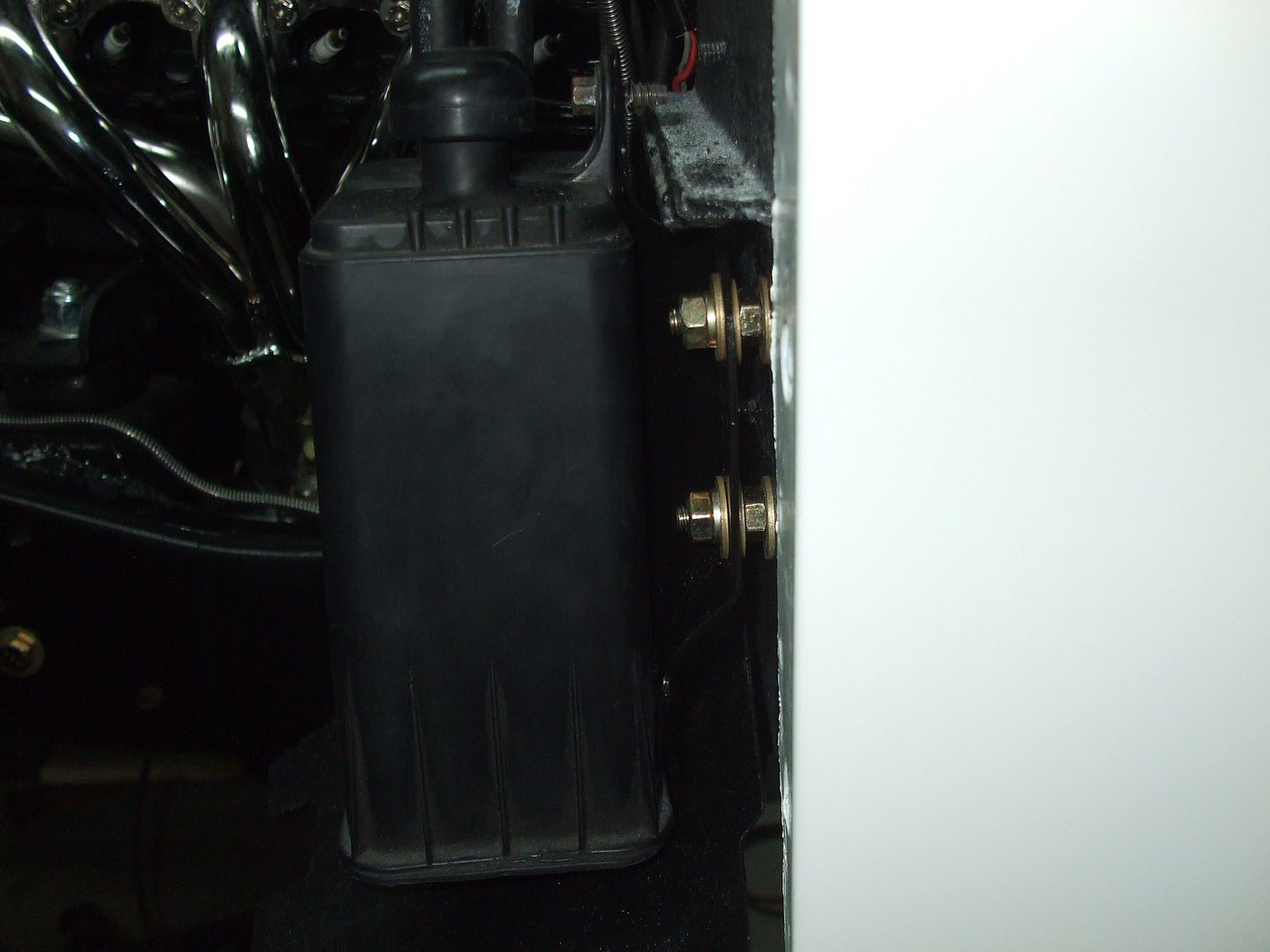

All bolted up, it is mounted pretty solid.


You can see how I spaced it out just a bit farther with a couple washers. They also distribute the load on the mount a little better. The canister has a lip on the bottom where it slides into the mount then locks in with a single bolt on top.


I got rid of the stock green plastic tubing and connected it to the 1/4" steel vapor line from the valves in the rear with standard fuel injection hose. I zip tied the canister purge valve to the brake lines. I'm not overly pleased with that spot but it appears it will work fine and should not cause any problems. The line from the manifold to the valve is also connected. I'll get the wiring sorted out when I get to that later.

Mike

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline
post #514 of 1943 Old 09-05-2010, 02:22 PM
motiv8ya
Registered User
1979 CJ7

Join Date: Dec 2008
Location: Las Vegas
Posts: 1,011
Very nice, you and 243 are so detailed with your work!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
motiv8ya is offline
post #515 of 1943 Old 09-05-2010, 05:43 PM
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 7,189
Mike the engine looks great sitting in place. I remember years ago the Accell wires were the thing to have. I bet they work fine. Keep up the good work my friend!!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
(Crabtree Shackle Hangers)

My build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Jim1611 is offline
post #516 of 1943 Old 09-05-2010, 06:42 PM
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493
Posts: 588
Mike, you are at the best part to me in the restore, putting it all together..
It is looking great.....

****************************
Calvin

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

81 CJ5, Ford 331 EFI, AX15, D-300, Dana 44 (Detroit Locker)....

When there are more people voting for a living than working for a living,
We are DONE as a Country!!!!!!

Newly Acquired 2014 Grand Cherokee Summit
****************************
Exposed is offline
post #517 of 1943 Old 09-05-2010, 06:53 PM
Skerr
Registered User
1985 CJ7

Join Date: Sep 2008
Location: White Springs
Posts: 9,495
Absolutely Beautiful! I love your headers.

Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline
post #518 of 1943 Old 09-06-2010, 02:26 AM
o2tj
Registered User

o2tj's Avatar
2006 LJ Wrangler

Join Date: Apr 2005
Location: Jeffersonton / NOVA
Posts: 430
autocomputerexchange.com can reprogram you comp the loose the evap monitor and program.
o2tj is offline
post #519 of 1943 Old 09-06-2010, 02:28 PM
jeepsterjc
Web Wheeler

jeepsterjc's Avatar
1977 CJ8

Join Date: Dec 2008
Location: Creston
Posts: 1,999
Hey there, Coiz. I've got a question for you. My 5.0 accessory package up front has an idler pulley way down on the passenger side front that is coming too close to my up CA mount... I think I may need to lose it.

What setup is your 5.0 out of and does it have AC with it?

Thanks, Jim

The New Hybrid Scrambler Build :-)
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


The old '87 YJ LT1 350 Build

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
jeepsterjc is offline
post #520 of 1943 Old 09-06-2010, 04:21 PM Thread Starter
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,226
Garage
Thanks for the comments everyone. I have been working on the wiring quite a bit lately. Lots of electrons flowing through my brain. I'm up to around 50 splices with solder and adhesive heat shrink. I should post some details on that later.

Jeepsterjc,
Mine was out of an early 90's Mustang. I don't have A/C but I remember having to buy the A/C eliminator kit to clean it up and provide an easier belt routing. I see all of the other 5.0L on here with a different belt routing than mine. They all have the long run between the crank and the alternator. I routed it so the long run, which is shorter overall, is between the power steering and the crank. I am pretty sure my overall belt length is considerably shorter than theirs. Mine is a 6k703, so six rib 703 cm long. I don't have any type of idler in the area you described.

Mike

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline
post #521 of 1943 Old 09-06-2010, 06:00 PM
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493
Posts: 588

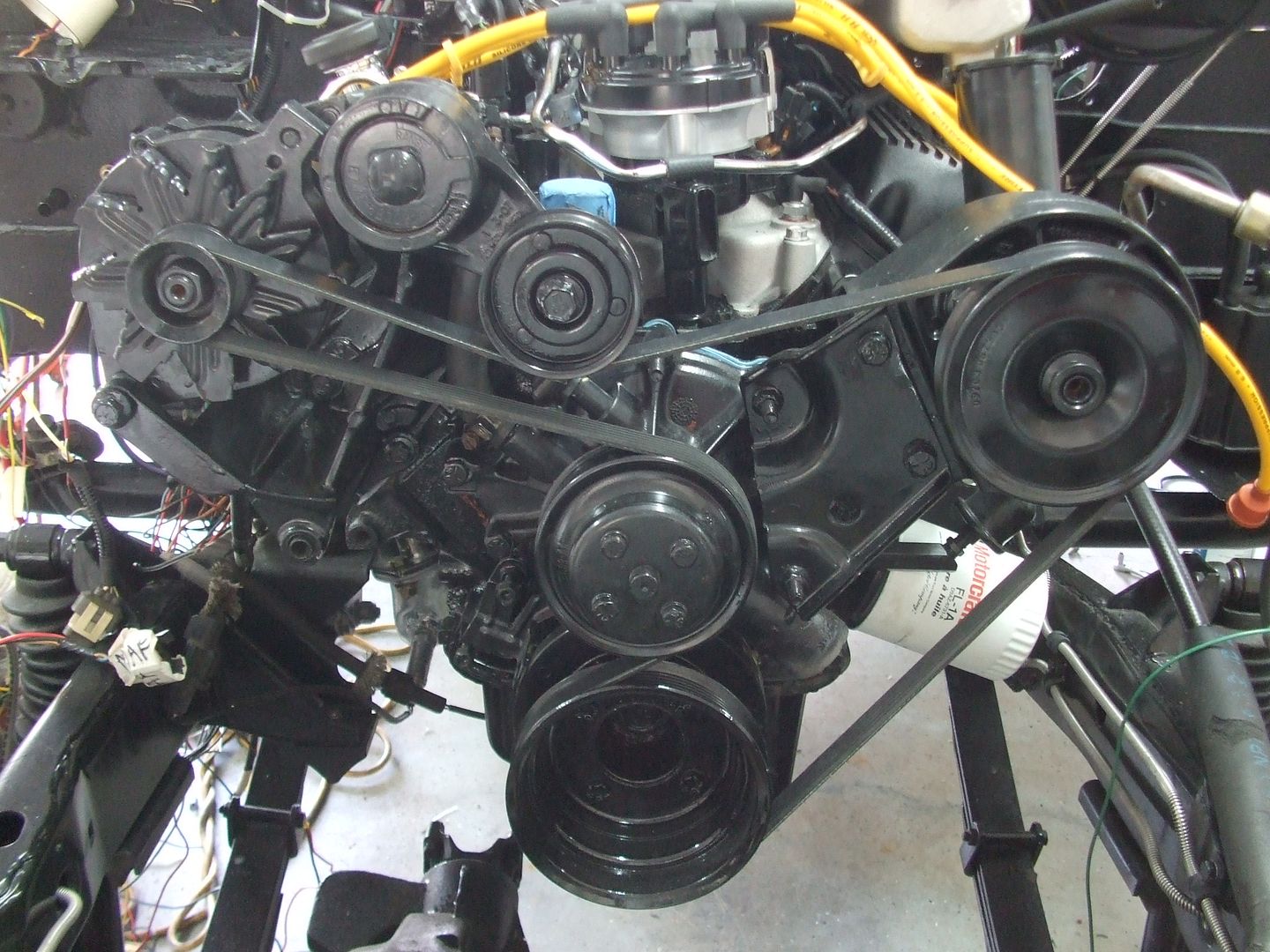

Since Mike does not have A/C, here is a couple shots of mine... Hope they help...
Attached Thumbnails
belt-1.jpg   web9.JPG

****************************
Calvin

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

81 CJ5, Ford 331 EFI, AX15, D-300, Dana 44 (Detroit Locker)....

When there are more people voting for a living than working for a living,
We are DONE as a Country!!!!!!

Newly Acquired 2014 Grand Cherokee Summit
****************************
Exposed is offline
post #522 of 1943 Old 09-06-2010, 09:34 PM
DaleII
Registered User
2005 LJ Wrangler

Join Date: Jan 2009
Location: Riverside/Apple Valley
Posts: 1,503
^^^ That is the belt routing of the stock 4L 6 cylinder.

2005 Silver LJ
DaleII is offline
post #523 of 1943 Old 09-11-2010, 02:47 PM Thread Starter
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,226
Garage
I've got about 80% of the wiring done. Just getting the grill back together so I can finish off the wiring to the cooling fans and the head lights. Also waiting on a couple parts for my gauges to finish up the dash.

Headed to Miller Park on our chartered bus to watch the Cubs/Brewers game today. I hope to post some updated pictures sometime tonight or tomorrow. Hope everyone is having a great weekend.
Coiz is offline
post #524 of 1943 Old 09-11-2010, 04:17 PM
jeepsterjc
Web Wheeler

jeepsterjc's Avatar
1977 CJ8

Join Date: Dec 2008
Location: Creston
Posts: 1,999
Quote:
Originally Posted by Coiz View Post
Thanks for the comments everyone. I have been working on the wiring quite a bit lately. Lots of electrons flowing through my brain. I'm up to around 50 splices with solder and adhesive heat shrink. I should post some details on that later.

Jeepsterjc,
Mine was out of an early 90's Mustang. I don't have A/C but I remember having to buy the A/C eliminator kit to clean it up and provide an easier belt routing. I see all of the other 5.0L on here with a different belt routing than mine. They all have the long run between the crank and the alternator. I routed it so the long run, which is shorter overall, is between the power steering and the crank. I am pretty sure my overall belt length is considerably shorter than theirs. Mine is a 6k703, so six rib 703 cm long. I don't have any type of idler in the area you described.
Thanks for the picture. That front end of your will certainly clear both of my upper control arm mounts on the axle. Shopping time for me now

edit added- And thanks for the link to the A/C Emilinator kit at Ford Racing. It may dome in handy. Also- it looks like my F350 Power Steering Pump may be the same bolt pattern as the Mustang... It would be great if it fit in place.
