After some proper motivation from John Strenk, I decided to use some of my off time to build a torque arm and move the mounts from its current center position and offset it toward the passenger side. I was originally going to use a piece of ¼" x 2" thick bar stock but was having trouble finding a piece at the local stores. They all have ¼" x 1.5" but not the 2" wide. When I got the torque arm mounts I put the two pieces of rubber together and measured that they have a 5/16" gap. I already had a piece of 3/16"x 2" and a piece of 1/8" x 2". So I clamped them together and started welding. I ended up with a 14" long piece of 5/16" x 2" bar stock.

I moved the transmission mount toward the passenger side and determined which holes in the skid plate would be used. This made the inner mount bolt hole very close to the center support brace on the adapter. I measured and marked the pieces then took it all apart. I had to drill a new hole in the trans adapter for the inner mount bolt.

Then I used the existing hole on the opposite side of the adapter and drilled a hole in the torque arm to match. This made sure the rubber mount had 2 bolts to the arm and the arm had 2 bolts through the adapter.

I bolted the entire thing back to the trans and skid plate to determine the correct point to drill the hole for the torque arm bushings.


So I measured and marked the correct location and took it back apart. I had to buy a $40 stepped drill bit to drill the 7/8" hole for the torque arm. I used a friend's drill press to make this a bit cleaner. Thanks Aaron. At this point I also cut about 2" off the end to make it the correct length.


This is the measurement that showed the arm should be 5/16" thick.


Of course I had to bolt it all back together again just to make sure everything lined up and bolted together.


So I took it all apart, primed and painted the torque arm, then put it all back together again.


Another angle


I am glad I took the time to do this and I'm very happy with the way it turned out. I think I put that thing together and pulled it apart about 5 times. It was a bit of work but well worth the effort.

__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 12-22-2008, 11:17 PM   #32
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,168

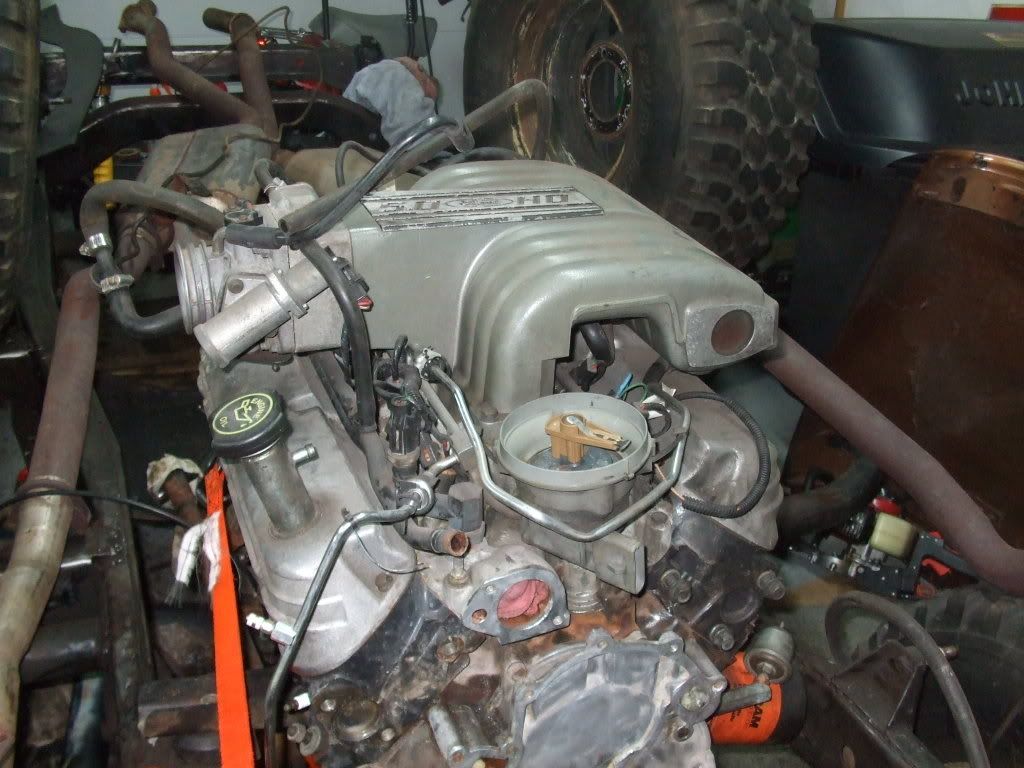

Engine paint and parts:

Engine paint and parts:
The engine was out of a 1992 Mustang GT with 27,000. 1992 was the last year for the forged pistons. I put on a set of GT40 heads with the cobra roller rockers shortly after I did the initial install. I saw it only fitting to buy the finishing parts.

Here is what it looked like before I started:

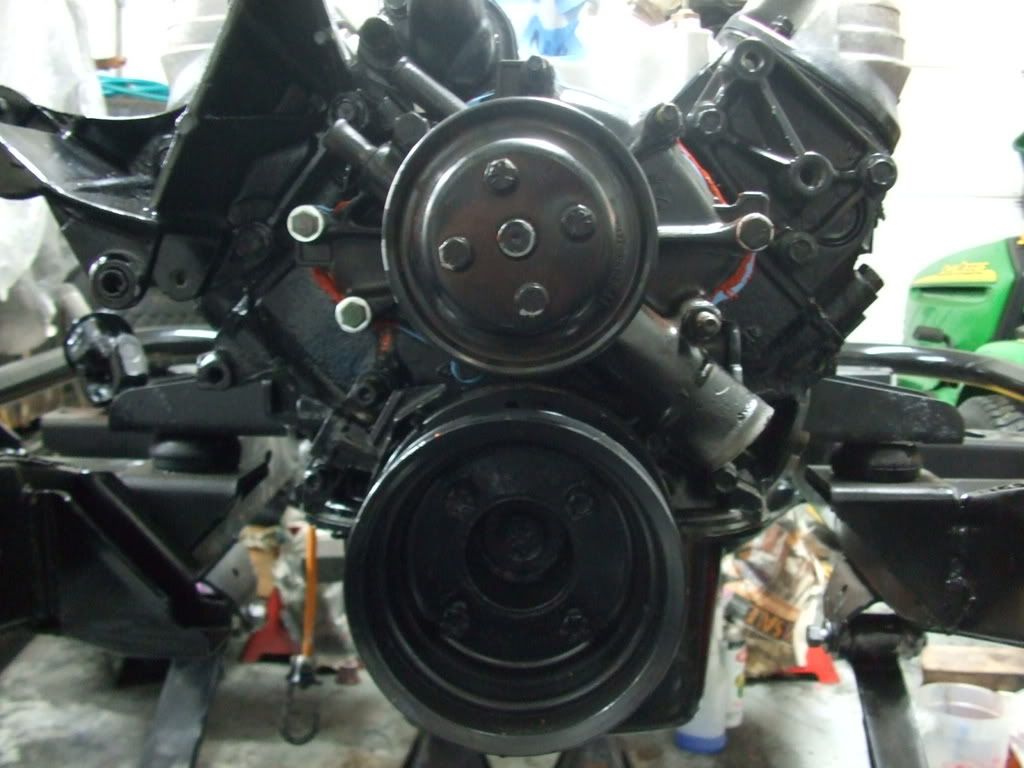

I also scuffed, cleaned and painted the engine. Here it is primed.

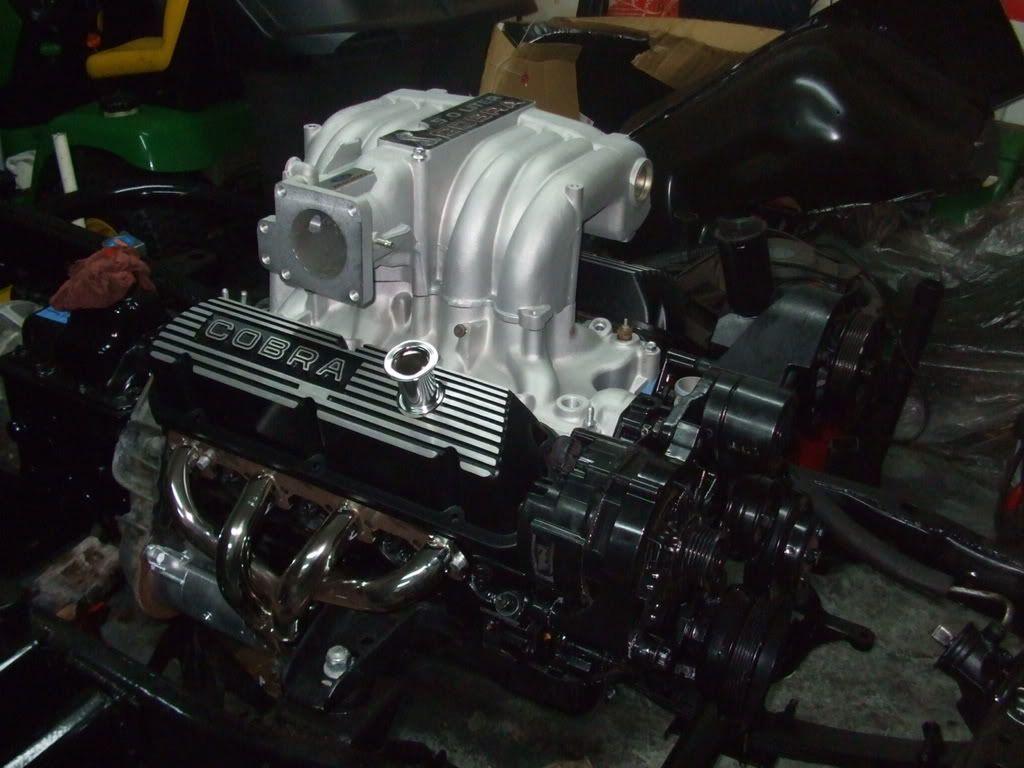

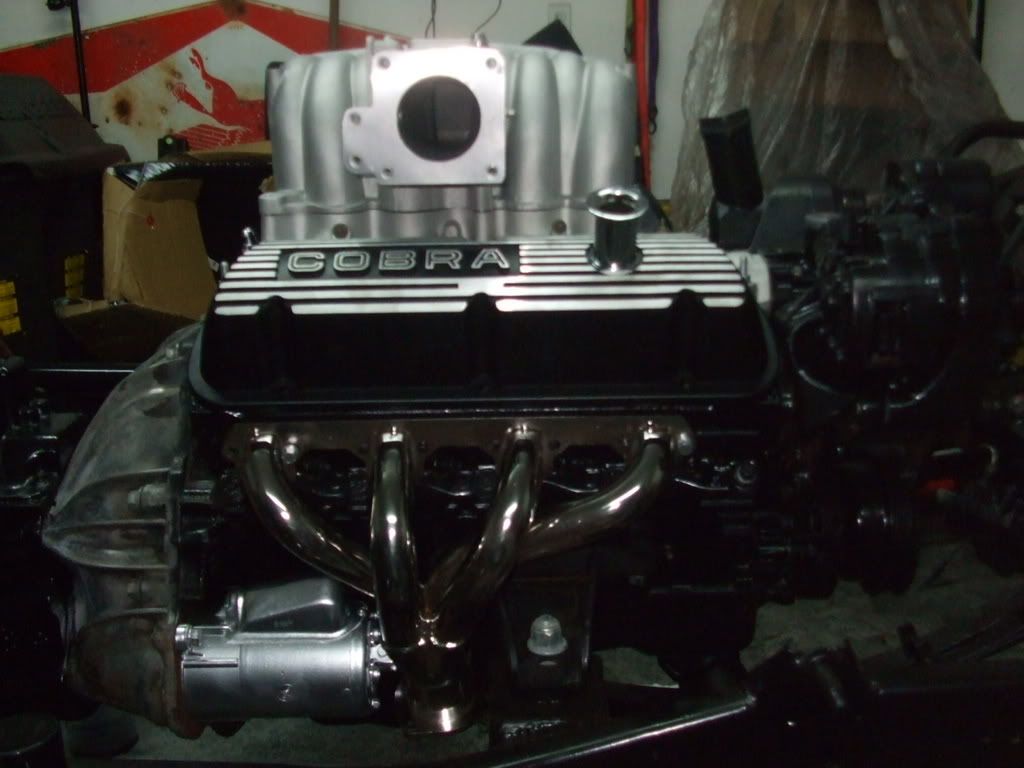

Painted with high temp engine paint:


No accessories:

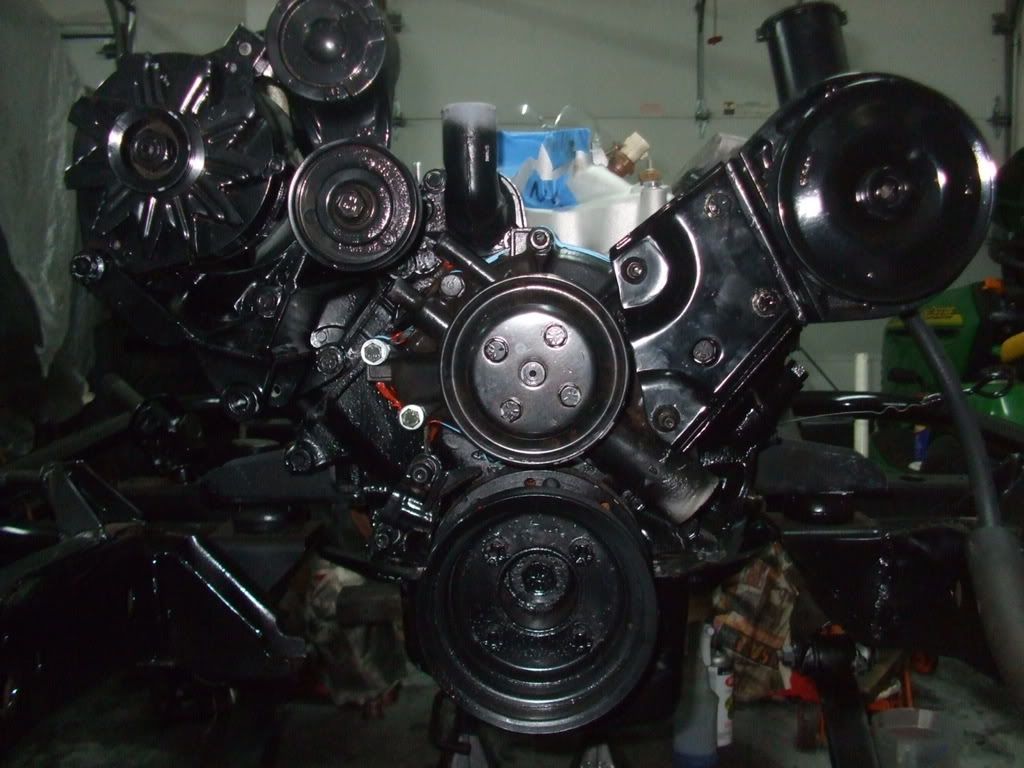

Water pump, alternator and power steering pump will all the brackets installed:


I was pretty much out of time right before I was leaving for Christmas but I couldn't help take 20 minutes to bolt on a couple parts so I could give a sneak peak of what this thing is going to look like. I really couldn't resist:




It will only take a half day worth of work to get the front end back together. After that I can install the fuel and brake lines along with all the bump stops. I'll get started on the body when the weather gets a little more reasonable. I'll keep the shiney engine parts off until after the tub is finished and bolted up.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.

Last edited by Coiz; 01-10-2009 at 01:35 PM.. Reason: Change picture link
Coiz is offline   Reply With Quote
Unread 01-08-2009, 01:15 PM   #33
CJman77
Registered User
1977 CJ7

Join Date: Nov 2003
Location: Nokomis, Florida
Posts: 726
Quote:
Originally Posted by Coiz View Post
Engine paint and parts:
The engine was out of a 1992 Mustang GT with 27,000. 1992 was the last year for the forged pistons. I put on a set of GT40 heads with the cobra roller rockers shortly after I did the initial install. I saw it only fitting to buy the finishing parts.

Here is what it looked like before I started:


I also scuffed, cleaned and painted the engine. Here it is primed.


Painted with high temp engine paint:


No accessories:


Water pump, alternator and power steering pump will all the brackets installed:


I was pretty much out of time right before I was leaving for Christmas but I couldn't help take 20 minutes to bolt on a couple parts so I could give a sneak peak of what this thing is going to look like. I really couldn't resist:




It will only take a half day worth of work to get the front end back together. After that I can install the fuel and brake lines along with all the bump stops. I'll get started on the body when the weather gets a little more reasonable. I'll keep the shiney engine parts off until after the tub is finished and bolted up.
LOL I like the Black. You gonna call it the dark knight?
CJman77 is offline   Reply With Quote
Unread 01-08-2009, 08:35 PM   #34
SOUTHERN-CJ5
Registered User
1979 CJ5

Join Date: Nov 2008
Location: Orange Beach, Alabama
Posts: 14
This is a great thread man. Im going to get my CJ5 safe to drive in about 3 weeks, and then next year I will start this while I'm at college. This thread is really helping me see that I can actually do this myself. I was a little worried, but now that I see that it is really easy but just time consuming I've decided to go for it. Keep this great thread going!
__________________
1979 CJ-5
mainly stock...for now.
SOUTHERN-CJ5 is offline   Reply With Quote
Unread 01-09-2009, 03:27 PM   #35
BigTDog
Registered User
1985 CJ7

Join Date: Oct 2008
Location: Interlochen
Posts: 108
Hey Coiz, Can you give me any info on your fuel tank? I've got donor jeep that has one just like it only not black just stainless. Do you know who makes them? Any info would be great.

Sweet build. Keep the pics coming.
BigTDog is offline   Reply With Quote
Unread 01-10-2009, 01:24 PM   #36
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,168
Quote:
Originally Posted by CJman77 View Post
LOL I like the Black. You gonna call it the dark knight?
LOL, maybe I should. Almost everything will either be white or black. I'm thinking about adding some louvers to the hood to help with any potential heat issues from the beefed up engine and everything being black.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 01-24-2009, 12:18 PM   #37
Rollbar
Registered User
1984 CJ8

Join Date: Aug 2005
Location: Tarpon Springs, Florida
Posts: 2,420
Nice job, what's your address, I'm gonna ship mine to U ya to finish

Shipping form 34465
__________________
Project CJ8 Build Gallery <----Click

CJ8 Build Thread<---- Click
Rollbar is offline   Reply With Quote
Unread 01-24-2009, 01:44 PM   #38
SparkyB
Registered User
1979 CJ5

Join Date: Jan 2009
Location: Colorado
Posts: 492
Looking good! I love seeing builds like these. Although complicated it shows hows simple these Jeeps really are.
SparkyB is offline   Reply With Quote
Unread 01-25-2009, 11:31 AM   #39
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,168
Quote:
Originally Posted by Rollbar View Post
Nice job, what's your address, I'm gonna ship mine to U ya to finish

Shipping form 34465
In my best Mini-Me, "shipping will be One Miiiiiiiiiiiiillion dollars". Or I might accept a half million dollar winter home in Florida with a covered pool and 5.5 car garage. Know someone with one of those?

I couldn't let you ship it to me, I couldn't stand seeing your beautiful rig sitting up here in the snow. My garage is already a Jeep wasteland, there is no more room. It's a balmy 12 degrees in my garage at the moment.

Quote:
Originally Posted by SOUTHERN-CJ5 View Post
This is a great thread man. This thread is really helping me see that I can actually do this myself. I was a little worried, but now that I see that it is really easy but just time consuming I've decided to go for it. Keep this great thread going!
Quote:
Originally Posted by SparkyB View Post
Looking good! I love seeing builds like these. Although complicated it shows hows simple these Jeeps really are.
Thanks for the comments. I am glad that you guys think I make it look easy. There are obviously countless hours of in between time on those pictures. My professional background gives me a little bit of an advantage too.

You are right that they are not overly complicated it is just a very time consuming process. Although it can be overwhelming at times, you just can't describe the level of satisfaction you get while standing in the garage sipping on a beer and looking at how far it has already come.

I only need a day to get it back to a rolling chassis but I need it to get into the upper 20's for my bullet heater to even have a chance at keeping me warm.

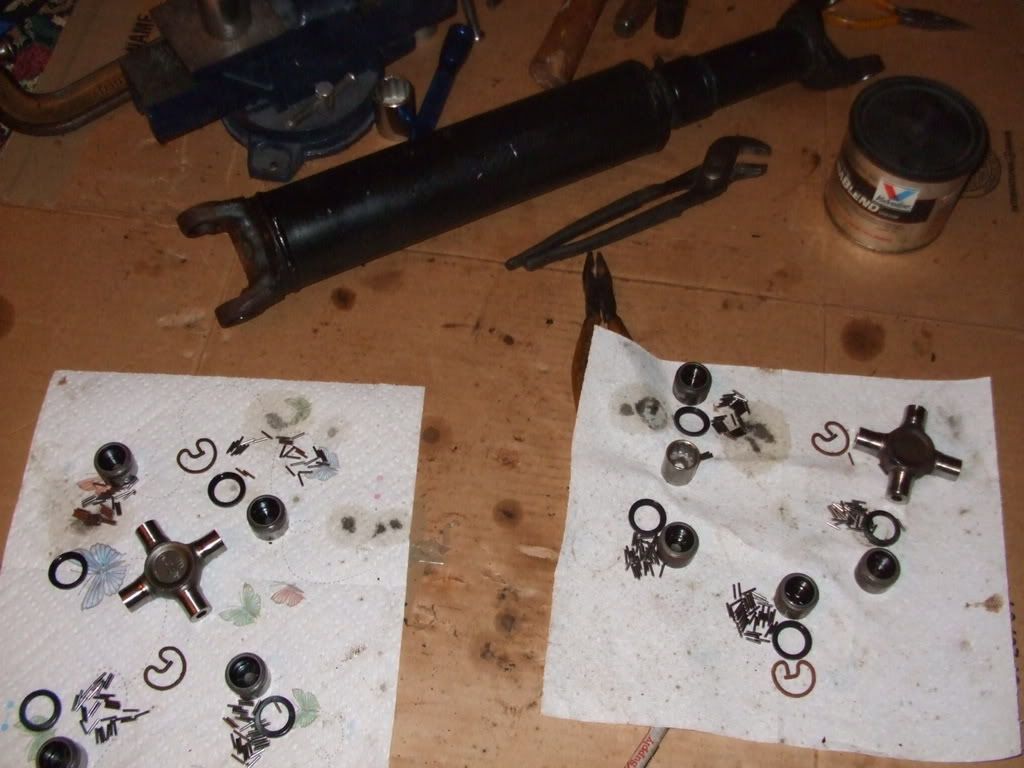

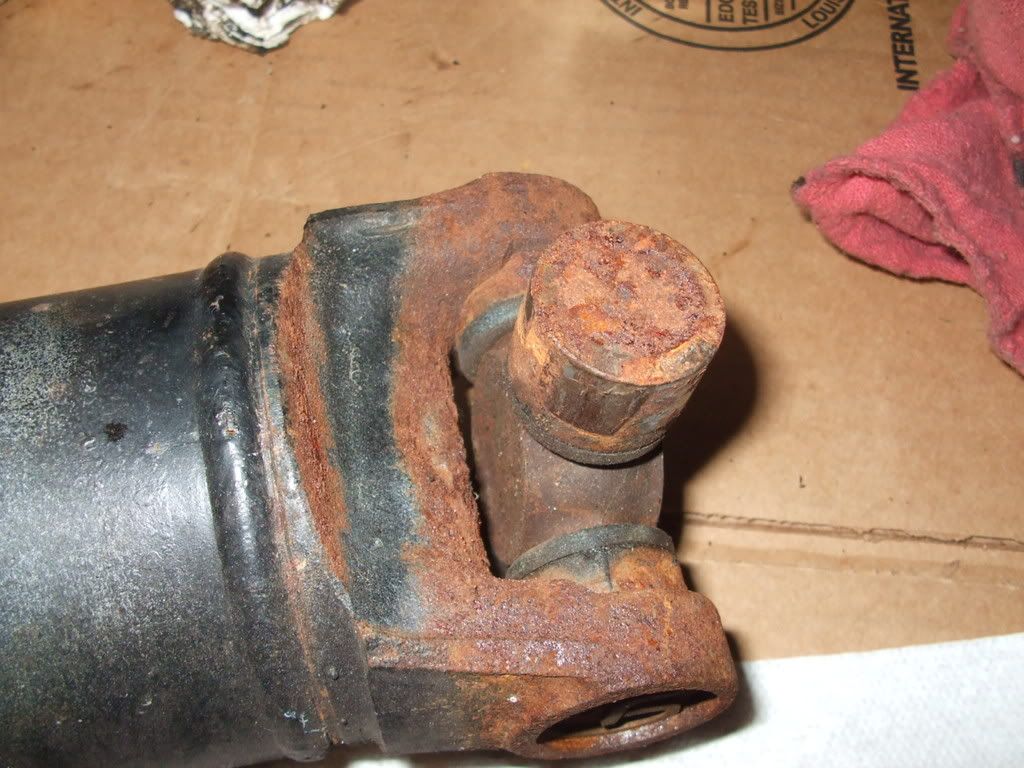

As far as recent progress on things I can do inside, I pulled apart, cleaned and re-greased all of the u-joints on my drive shafts and front axles. I actually ended up replacing the joints on the rear shaft. I think I might haul the transfer case down to the basement for a clean and reseal this afternoon. It still needs to be wire wheeled, cleaned and painted but I guess I can do that after it has been resealed.

After I had them all apart and cleaned I just decided to replace them and keep these as spares.


The girl friend just loves it when I do this stuff in the living room.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.

Last edited by Coiz; 01-25-2009 at 11:42 AM..
Coiz is offline   Reply With Quote
Unread 01-28-2009, 06:07 AM   #40
yamaguy01
Registered User
1989 YJ Wrangler

Join Date: Feb 2008
Location: McGuire AFB (Ft. Dix), NJ/Oxford, NC, I can't wait until I get to leave NJ!
Posts: 377
This project is looking great man! Keep up the good work!

Dave
__________________
NRA Life member
Square Headlights group member #222
Armed Forces Jeeps group member #65
United States Air Force group member #12
Guns and Jeeps group member #10
Ron Paul Jeepers group member #7
yamaguy01 is offline   Reply With Quote
Unread 01-29-2009, 09:11 PM   #41
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,168
Front Axle U-Joints

^^^ Thanks.

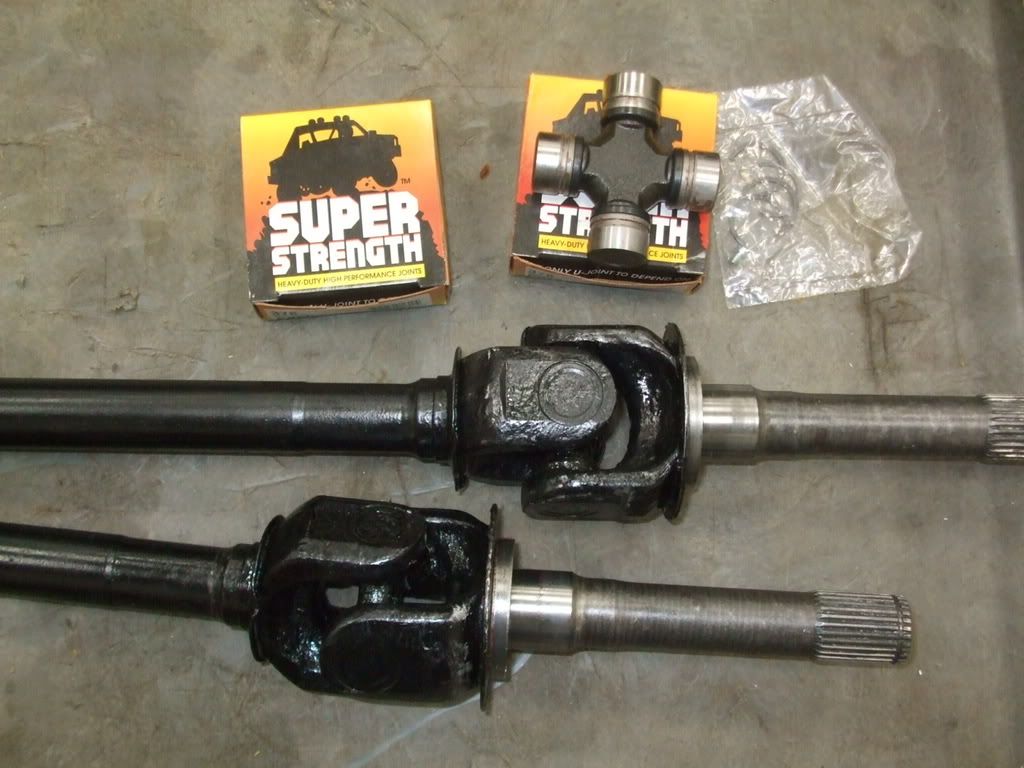

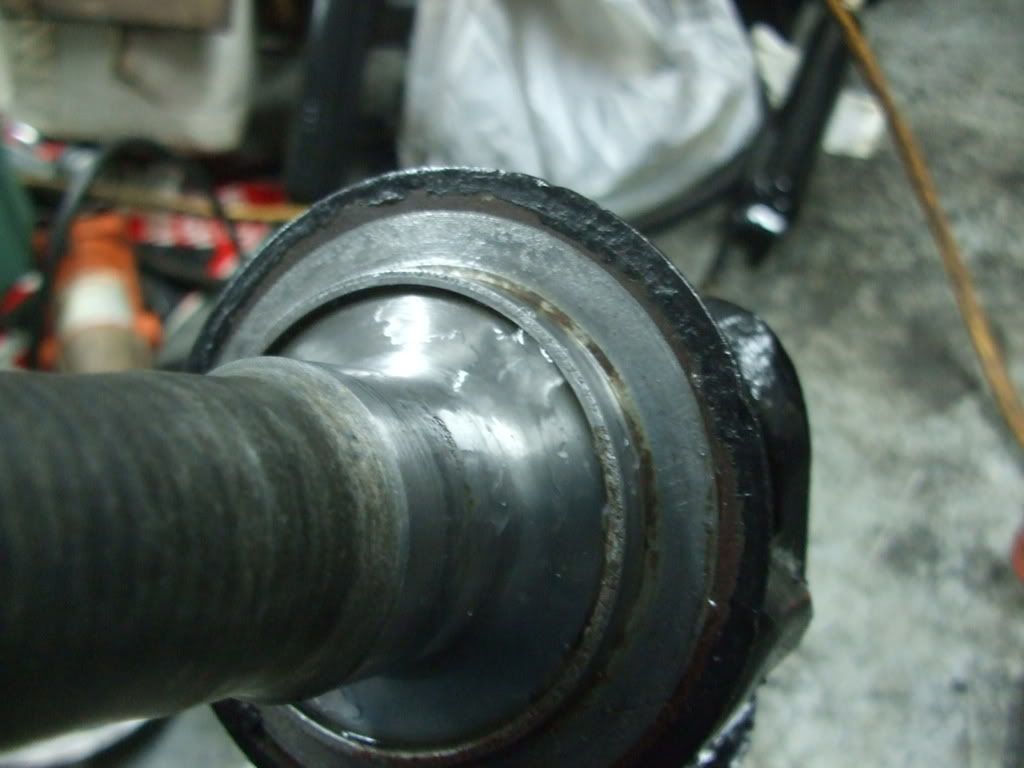

Well I decided to brave the cold and try to get something done this week so I went out the garage after work to put some of the front axle back together. I used a 2000 grit sand paper to clean up the spindle bearing surface. The water from the wet sanding turned to ice on the cold metal in well under a minute. About 18*F in my garage. I had to put a little Captain in my Coke to make sure it wouldn't freeze.


After I slid the axles in, greased the spindle bearings, installed all of the seals and mounted up the spindles with brake backing plates, I turned the pinion by hand to make sure I didn't have any problems. Two and a half turns into the pinion and it started to bind up. The drivers side knuckle started trying to turn to the right with the axle. I held it under tension in the bind while I worked the knuckle back and forth. It freed up quite a bit but I could still feel a light bind. So I took both sides back apart to replace the joints with new ones. Over an hour wasted working in the cold. So I went out and bought some new u-joints.

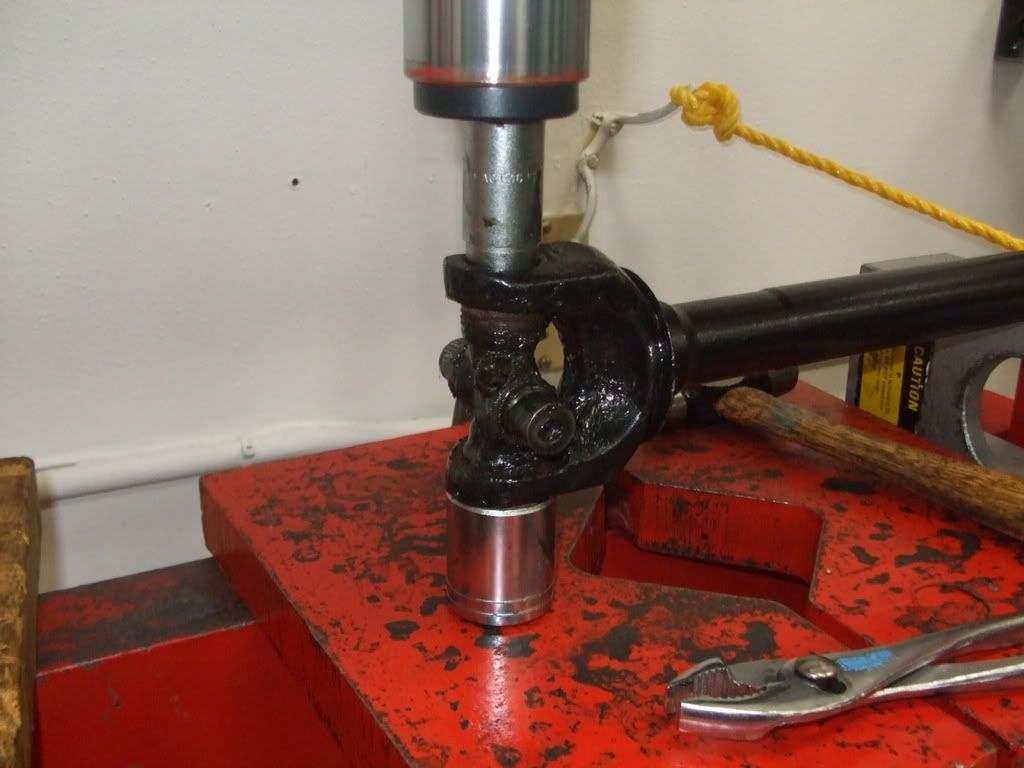

A few days later I was able to use a press during lunch.
