Unread 06-26-2013, 06:10 AM   #5011
gmakra
Registered User
1985 CJ7

Join Date: Jun 2008
Location: Chicago area
Posts: 2,891
All right skipper here's what were going to do. I want you to lay the harness on the engine and I want pictures. The picture should be close ups of the harness by the injectors, the TPS, the idle air controller, intake air sensor.

We will get these plugged in and start a process of elimination to get everything tied up.

gmakra is offline   Reply With Quote Quick reply to this message
Unread 06-26-2013, 09:26 PM   #5012
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
Quote:
Originally Posted by gmakra View Post
All right skipper here's what were going to do. I want you to lay the harness on the engine and I want pictures. The picture should be close ups of the harness by the injectors, the TPS, the idle air controller, intake air sensor.

We will get these plugged in and start a process of elimination to get everything tied up.
The harness is on the engine. Everything is plugged in with the exception of a couple things. Still trying to trackdown the correct oil sending unit sensor. We made a custom bracket for the PDC, and it is mounted. We still have to mount the computer.

All the wires have been traced at the PCM plug. I have one wire I need to splice back in per Ken's description.

Ken, your description varied slightly from the FSM diagram I had. It was actually more helpful. Our plug has two additional wires that are shown as blank, however.

Professor, I have to get on the A/C as soon as I am home, then the hot water heater. I don't know if I will have time to mess with the Jeep this weekend. I will do my best to get the pics posted up. I need and appreciate your help!

Thanks, All.
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 06-26-2013, 09:38 PM   #5013
pman
Web Wheeler

pman's Avatar
1988 YJ Wrangler

Join Date: Aug 2005
Location: Charleston, SC
Posts: 1,270
Sounds like we need to amass a bunch of JP Forum guys and have a "crimpathon" at Skippers Plantation!
__________________
88 Wrangler Laredo 258-999-NP231
81/76 CJ5 304-t150-Spicer 20
82 Wagoneer 360-727-NP208
82 CJ8 Scrambler 258-t5-Dana 300
http://www.jeepforum.com/forum/f8/cj...-lulu-1350563/
pman is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 11:54 AM   #5014
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,151
Too bad you are way down yonder... I'd stop over and help ya out. I'm one of those ones that "can just get it" with electrical stuff.

Except for those Stealth HEI things... still trying to get it to work right. Just too lazy to actually dig into it - it's not high on my list...
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 01:03 PM   #5015
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
I wish I lived anywhere there was another Jeeper with ambition, knowledge, and experience! Everybody around here just slaps big tires and 4-barrels on their CJs and struts!!

I will start off saying that the A/C is fixed. Thank you, Jesus! A $30 capacitor and we are cool again. Yes, Sir! Wifey is extraordinarily happy!

Here are the pics that George requested. Let me know if you need something more specific.

Injectors...




Cam/Sync sensor.



Coolant sensor.



TPS and, and, steppor motor?



CPS (CPK) Crank Position sensor.



Overall shot of engine bay.



PCM plug and bulkhead connector.



PDC (Power Distribution Center) mounted on pass fender.



What is this plug? Looks like a headlight plug that didn't get cut out. I want to be sure.



This harness is chopped up by PO. Goes to Alt, coil, etc. Can I save it or do I need another one?



Coil.



Oil pressure sending unit. Gotta change the sensor.



Oil sending unit plug. Looks to me like one tab???



Calling this a ballast resistor. Correct? Just screw it to some surface somewhere?



Still have pulleys to change.



A couple of oldie-but-goodie vices Clay's boss gave him!



How is it looking? Thanks, Everybody.
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 01:07 PM   #5016
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
I will also add that it doesn't look like the V-belt pulleys will line up. Water pump is at an angle. So is the power steering pump. If we go back to serp belt, what will it entail? I don't want to mess with electric fans and relays.
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 01:38 PM   #5017
243
Registered User
1983 CJ7

Join Date: Sep 2002
Posts: 3,276
The photos should help the guys a lot!

The Wilton bullet's are creme of the crop, hard to get them for less than 150.00 and normally they are a lot more. It's hard to determine what size those are from the photos, the big boys fetch outrageous prices.
__________________
You can't sit at the big boy table if you are gonna whine like a girl...M
243 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 02:32 PM   #5018
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
Quote:
Originally Posted by 243 View Post
The photos should help the guys a lot!

The Wilton bullet's are creme of the crop, hard to get them for less than 150.00 and normally they are a lot more. It's hard to determine what size those are from the photos, the big boys fetch outrageous prices.
Well I guess I am getting old, cause they are definitely heavy! Clay's boss likes him. He has asked Clay if he can continue working for him through the fall. It was supposed to be a summer only job. He has offered to Clay an old hydraulic metal brake and a wire-feed welder. Some of his old, commercial stuff that has been updated. When Clay told me about it my jaw 'bout hit the ground, and I started trying to figure out where to put them! Too bad they are both 3-phase!
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 02:35 PM   #5019
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
I also need to identify the Vehicle Speed sensor plug.

I cut out the data-link connector. If my research is correct, since the donor harness is out of a '92 XJ, the connector should have been on the left-hand fender (under the hood), near the PCM. That is a black, odd-shaped, plastic plug? I guess I should splice it back in??
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 02:38 PM   #5020
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,151
Your "Ballast Resistor" is a relay. Mopars used an ASD relay (Auto Shut Down), that powered the coil and injectors. They also used a Fuel Pump Relay. Maybe check the wiring into it and see if you can determine what relay it is...

The other round w/ 3 blade terminals looked almost like a A/C switch, but don't quote me on that.

and I would reconnect the Data Link Connector - that way you can pull codes easier if needed.
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 02:41 PM   #5021
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,151
You mentioned speed sensor plug... that could also be that 3-terminal round plug. They looked similar to those, only with just 2 wires IIRC.
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 03:13 PM   #5022
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 886
Quote:
Originally Posted by Skerr View Post

...

TPS and, and, steppor motor?
TPS and IAC (Idle air control). IAC should have 4 wires going into it.

Quote:
CPS (CPK) Crank Position sensor.
Man, you really went at that bellhousing!! Your sensor position looks a little off. Maybe that's just 'cause the hole is so big!

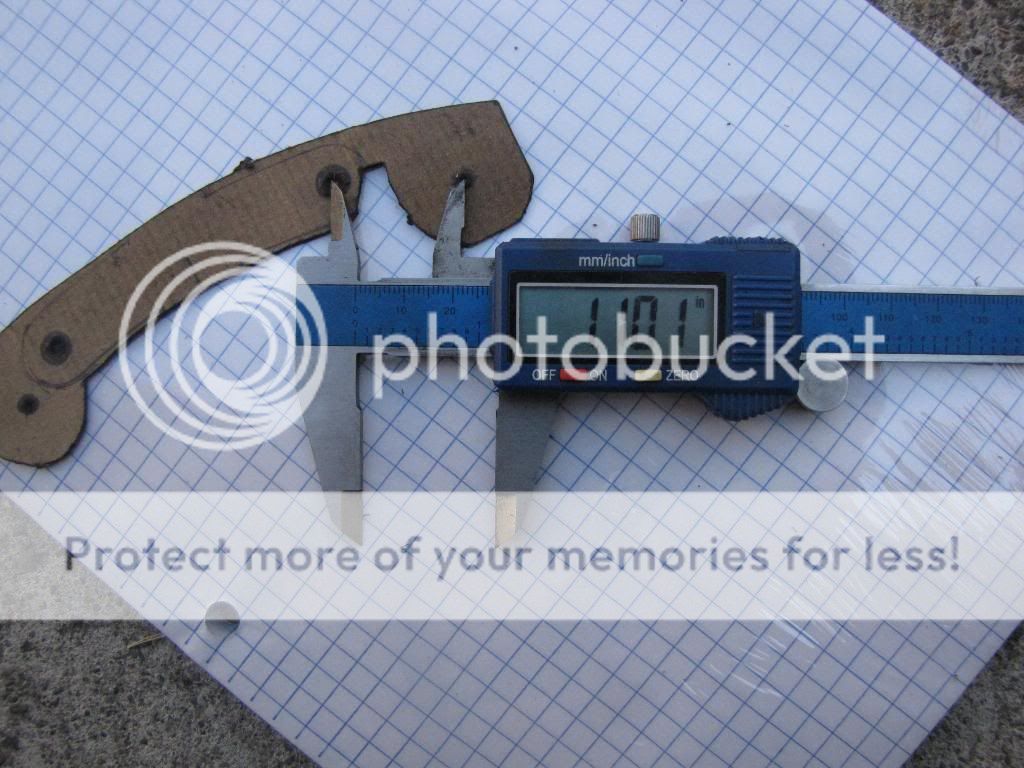

Here's a photo I used for reference...


Quote:
This harness is chopped up by PO. Goes to Alt, coil, etc. Can I save it or do I need another one?
That alternator connector is tough to find! (The molded one with a bunch of ring terminals coming out of it.) I'd try to save it if possible.



Quote:
Calling this a ballast resistor. Correct? Just screw it to some surface somewhere?

Quote:
Originally Posted by Cutlass327 View Post
Your "Ballast Resistor" is a relay. Mopars used an ASD relay (Auto Shut Down), that powered the coil and injectors. They also used a Fuel Pump Relay. Maybe check the wiring into it and see if you can determine what relay it is...
It would make sense that the fuel pump relay is triggered by the CJ ballast resistor wire. This wire should be hot on Start/Run, which is when you want the fuel pump running
SLO_Ken is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 04:04 PM   #5023
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
Quote:
Originally Posted by Cutlass327 View Post
You mentioned speed sensor plug... that could also be that 3-terminal round plug. They looked similar to those, only with just 2 wires IIRC.
I'll investigate that. Thanks, Rick.

Quote:
Originally Posted by SLO_Ken View Post
TPS and IAC (Idle air control). IAC should have 4 wires going into it.
I believe it does have 4 wires. So this one should be good.

Quote:
Originally Posted by SLO_Ken View Post
Man, you really went at that bellhousing!! Your sensor position looks a little off. Maybe that's just 'cause the hole is so big!
Here's a photo I used for reference...
I let my son (Clay) do all this on his own. It was very hard to sit back and keep quiet! But he built the bracket, mounted it up, everything by himself. He measured carefully to get the sensor in the right place. I hounded him about it! I'm hoping it would prove to be an issue. I did not go behind him and check it.

Quote:
Originally Posted by SLO_Ken View Post
That alternator connector is tough to find! (The molded one with a bunch of ring terminals coming out of it.) I'd try to save it if possible.
Will do...

Quote:
Originally Posted by SLO_Ken View Post
It would make sense that the fuel pump relay is triggered by the CJ ballast resistor wire. This wire should be hot on Start/Run, which is when you want the fuel pump running
So is this correct? Ballast resistor? It does look like a relay, but I thought the fuel pump relay was inside the PDC?
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 04:55 PM   #5024
SLO_Ken
Registered User
1986 CJ7

Join Date: Nov 2009
Location: California
Posts: 886
Quote:
Originally Posted by Skerr View Post



So is this correct? Ballast resistor? It does look like a relay, but I thought the fuel pump relay was inside the PDC?
You are correct, that there is a fuel pump relay in the PDC. Your photo looks just like the fuel pump relay from my Howell TBI setup. It's definitely NOT a ballast resistor. All the ballast resistors I've ever seen either look like this...

or a long section of resistor wire integrated in the harness. It exists to reduce the voltage to the coil from 12V to around 9 or so (to keep the coil from overheating).

What I meant is that it would make sense to have your fuel pump relay switched by a lead from the ballast resistor. As in, when there is power to the ballast resistor (and therefore to the coil), the fuel pump relay (and therefore the fuel pump) should be energized.

So there should be four wires going to the fuel pump relay (regardless of if it's in the PDC or elsewhere). Fused Batt(+) [30], switched power (from ballast resistor, or other start/run source)[86], ground[85], and fuel pump(+)[87].
SLO_Ken is offline   Reply With Quote Quick reply to this message
Unread 06-28-2013, 05:03 PM   #5025
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
Quote:
Originally Posted by SLO_Ken View Post
You are correct, that there is a fuel pump relay in the PDC. Your photo looks just like the fuel pump relay from my Howell TBI setup. It's definitely NOT a ballast resistor. All the ballast resistors I've ever seen either look like this...

or a long section of resistor wire integrated in the harness. It exists to reduce the voltage to the coil from 12V to around 9 or so (to keep the coil from overheating).

What I meant is that it would make sense to have your fuel pump relay switched by a lead from the ballast resistor. As in, when there is power to the ballast resistor (and therefore to the coil), the fuel pump relay (and therefore the fuel pump) should be energized.
I'll retrace it. Wonder what it is for? Your technical knowledge is leapyears ahead of mine! I do have a ballast resistor as shown in your pic.
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
