CJ7/8 Stock Fog/Driving Light Hook Up - Not Working

I have a stock set of these and I have good grounds as well.

The set (lights) works, I tested them on the battery before I mounted the bumper.

Black=ground

Red=hot

The red wire hooked to the red pig-tail on the drivers side harness (factory connection) behind the headlight.

I did test the red feed wire w/a test light (it works/tested it on battery) w/the new headlight switch to full on (like if you were driving at night) and the test light did not work.

I did look for a fuse but couldn't find anything noting a driving light or ... All fuses are good, but maybe I'm missing something.

Are the lights hook up correctly (I've never had a factory install for this set up) and does anyone have any info on this factory set up.

Thanks,
Jim

__________________
Project CJ8 Build Gallery <----Click

CJ8 Build Thread<---- Click
Rollbar is offline   Reply With Quote Quick reply to this message
Unread 11-08-2011, 11:57 PM   #2
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile, Alabama
Posts: 4,173
If you want it stock? Do you have the correct dash switch and the harness that goes with it? it has a relay and ties into the headlight switch and only powers the fog lights on low beam.

__________________
Ed

1975 CJ-6 304 T15 Dana20 30/44 3.73
1983 CJ-8 258 T5 300 30/44 3.31 Looking for full or half hardtop buy or trade
1986 CJ-7 Laredo 4.6 stroker T5 300 30/44 3.31
1986 TJ-7 Trail Jeep project in the works
2003 Inca Gold TJ Rubicon
only in a jeep cj is offline   Reply With Quote Quick reply to this message
Unread 11-09-2011, 04:43 AM   #3
bobbysjeep
Registered User
1984 CJ8

Join Date: Nov 2009
Location: Advance, NC
Posts: 18
That's correct, the factory fog light switch/relay plugs into the wiring harness just below the head light switch.
bobbysjeep is offline   Reply With Quote Quick reply to this message
Unread 11-09-2011, 03:34 PM   #4
Rollbar
Registered User
1984 CJ8

Join Date: Aug 2005
Location: Tarpon Springs, Florida
Posts: 2,420
Stock would be nice. Nope, I don't have a switch, thought it was just in the circuit.
__________________
Project CJ8 Build Gallery <----Click

CJ8 Build Thread<---- Click
Rollbar is offline   Reply With Quote Quick reply to this message
Unread 12-01-2011, 04:00 PM   #5
Rollbar
Registered User
1984 CJ8

Join Date: Aug 2005
Location: Tarpon Springs, Florida
Posts: 2,420
OK, the stock set up was big $$ from a PO.

So, I bought a switch/fuse/wire.

The lights are plugged in behind the grill (red lead) and grounded.

Question, is there a way to pick up the HOT lead to the lights under the dash so I can make them work?

I don't know which wire to look for, anyone have a pic?

Thanks,
Jim

If all else fails, I can run a HOT wire to the harness on the finder and splice it there.
__________________
Project CJ8 Build Gallery <----Click

CJ8 Build Thread<---- Click
Rollbar is offline   Reply With Quote Quick reply to this message
Unread 12-01-2011, 05:00 PM   #6
bobbysjeep
Registered User
1984 CJ8

Join Date: Nov 2009
Location: Advance, NC
Posts: 18
Quote:
Originally Posted by Rollbar View Post
OK, the stock set up was big $$ from a PO.

So, I bought a switch/fuse/wire.

The lights are plugged in behind the grill (red lead) and grounded.

Question, is there a way to pick up the HOT lead to the lights under the dash so I can make them work?

I don't know which wire to look for, anyone have a pic?

Thanks,
Jim

If all else fails, I can run a HOT wire to the harness on the finder and splice it there.

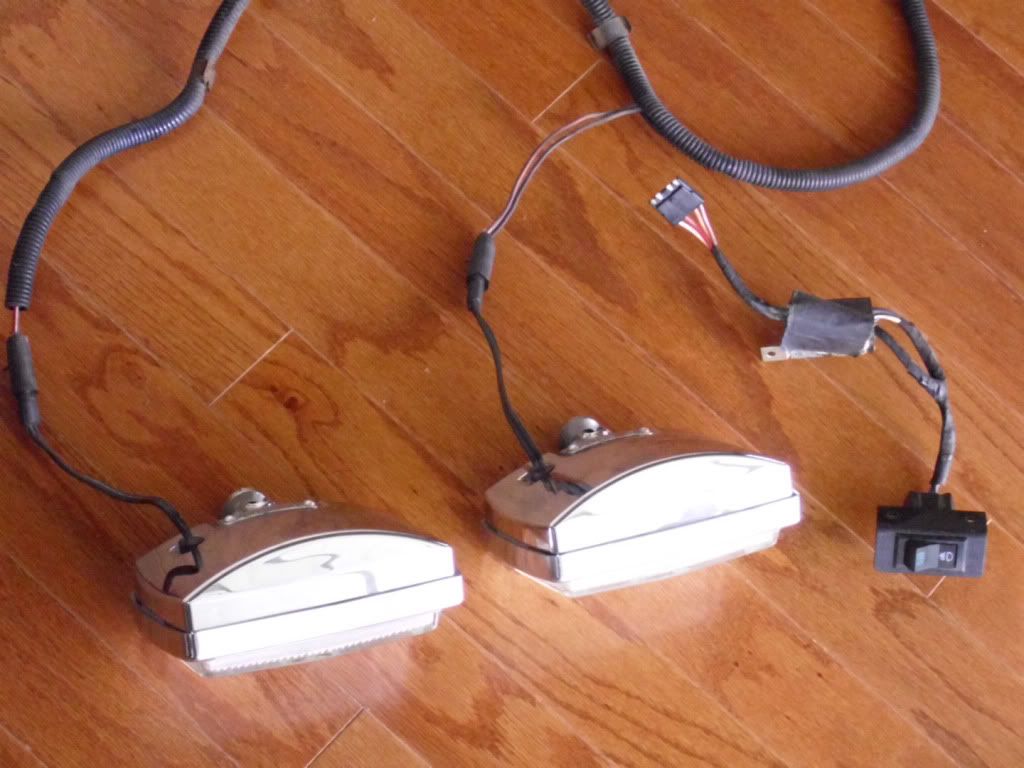

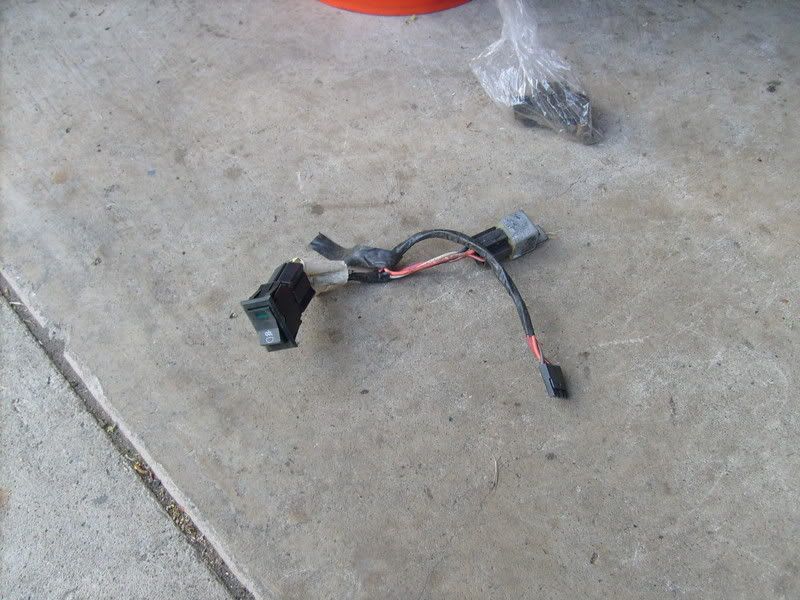

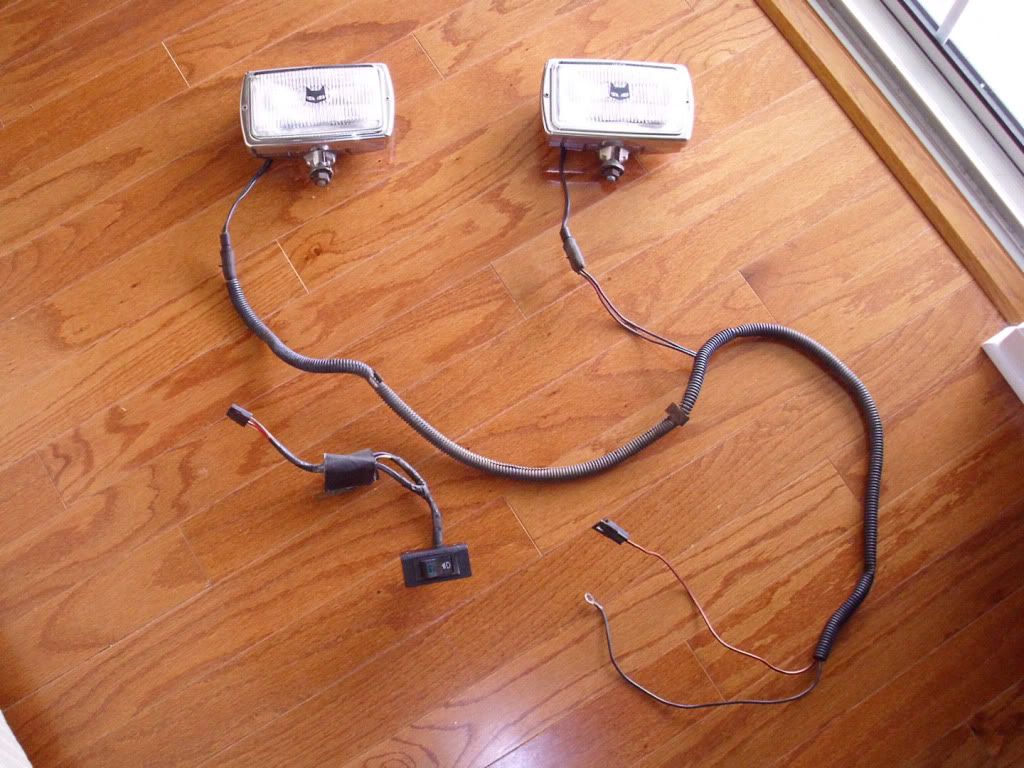

The switch assembly (switch, relay, plug) plugs directly into the factory harness just behind the head light switch. If you look under the dash in that general area you should see the flat 4 wire plug hanging there. It sounds like you have the other end hooked up correctly. If you still can't find it I will take a picture of mine under the dash.



bobbysjeep is offline   Reply With Quote Quick reply to this message
Unread 12-01-2011, 07:09 PM   #7
Rollbar
Registered User
1984 CJ8

Join Date: Aug 2005
Location: Tarpon Springs, Florida
Posts: 2,420
Thanks, got it all working.

Jim
__________________
Project CJ8 Build Gallery <----Click

CJ8 Build Thread<---- Click
Rollbar is offline   Reply With Quote Quick reply to this message
Unread 12-02-2011, 03:34 AM   #8
bobbysjeep
Registered User
1984 CJ8

Join Date: Nov 2009
Location: Advance, NC
Posts: 18
Glad to help.
