Unread 02-20-2010, 04:22 PM   #1
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,764
CJ Heater Box Restoration...pic heavy!!

I've started a frame-off restoration. What I've done is take all the spare components that I've had in stock, and rebuild them, so that when it comes time to do the swap, it will go quicker.

This thread is the rebuild of a spare heater box that I had.

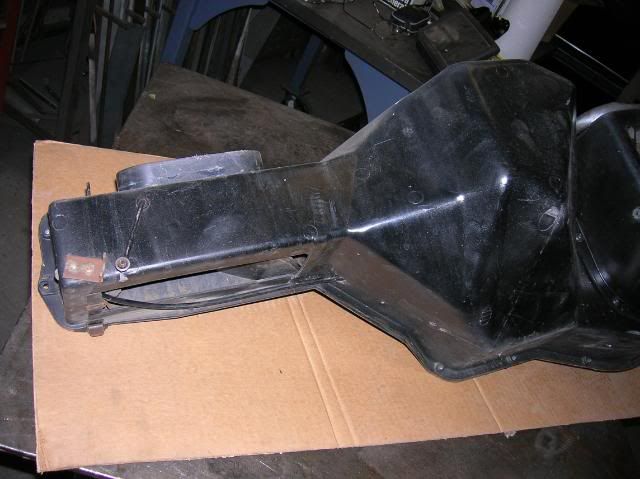

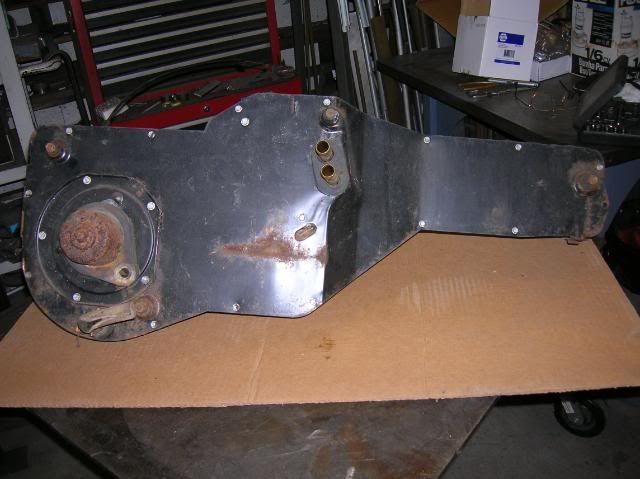

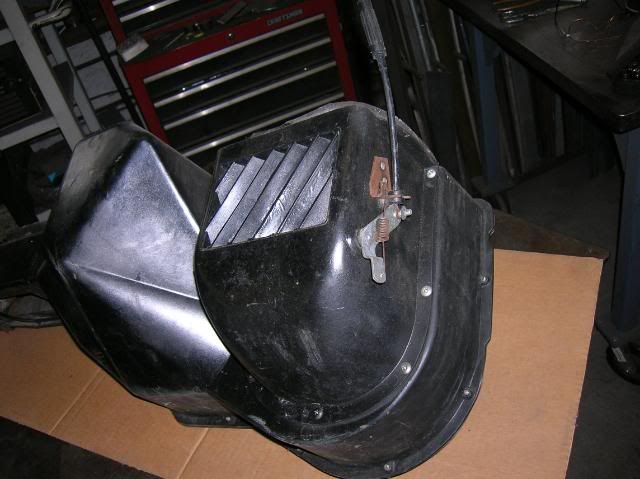

This is what I started with...





.

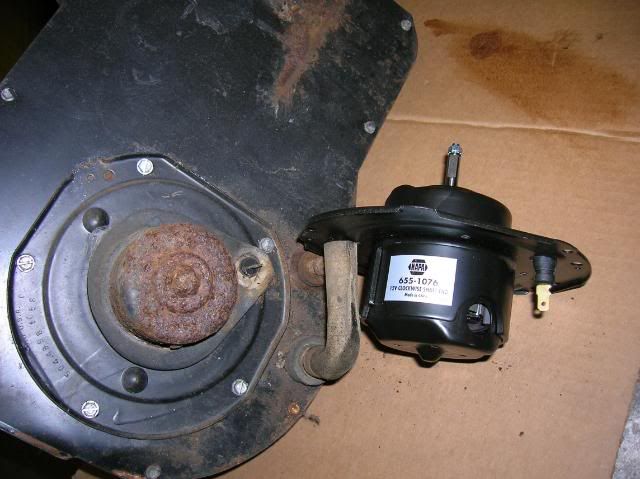

Here is a NAPA '73 Blazer blower motor that I bought over a year ago, for this project...

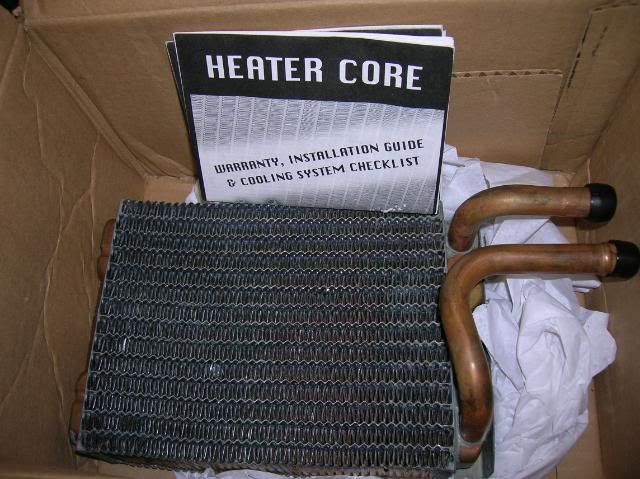

I also bought a new heater core cheap on ebay, from a private party...

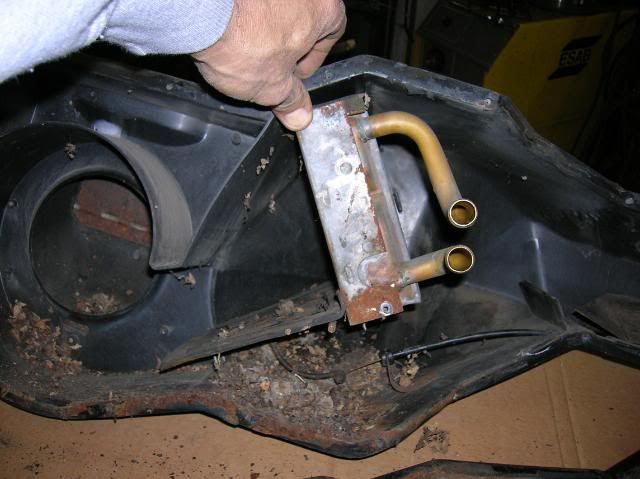

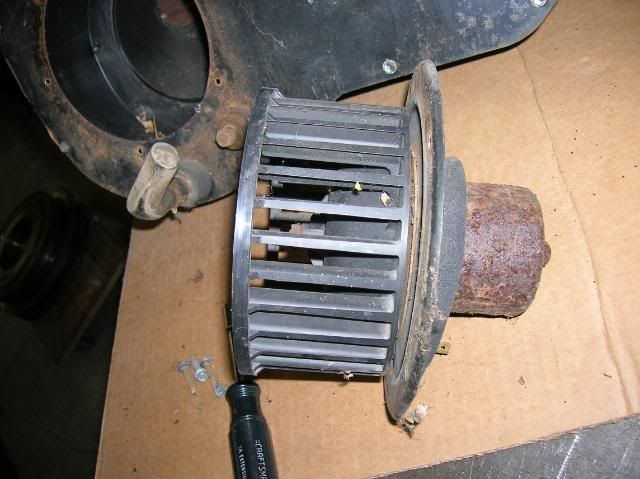

Started the teardown...

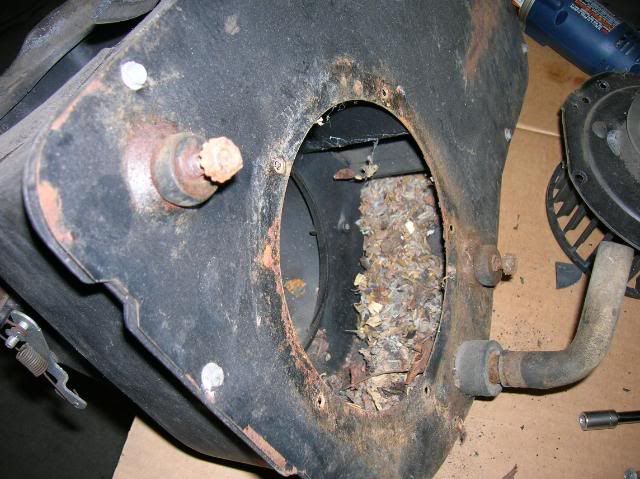

Mouse condo...

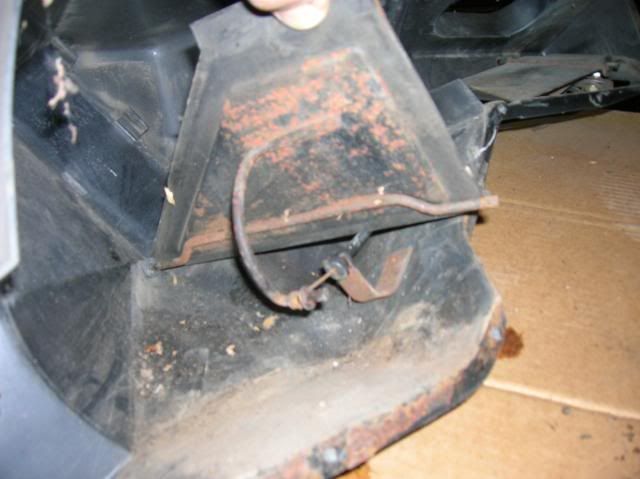

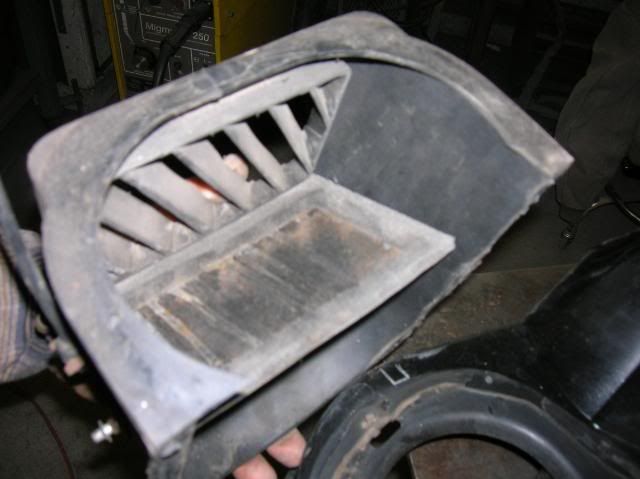

Other inside stuff...

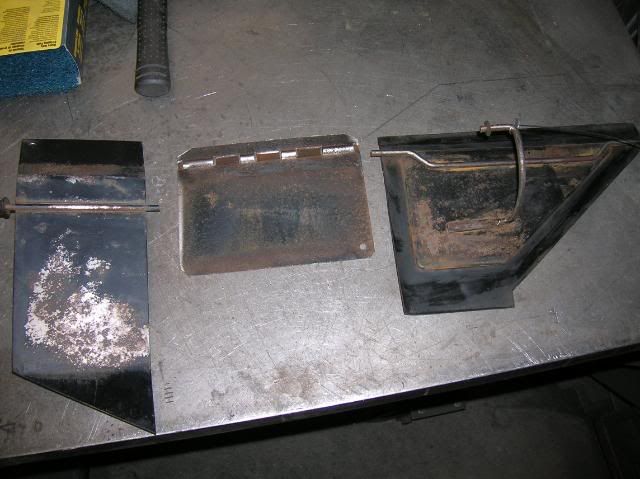

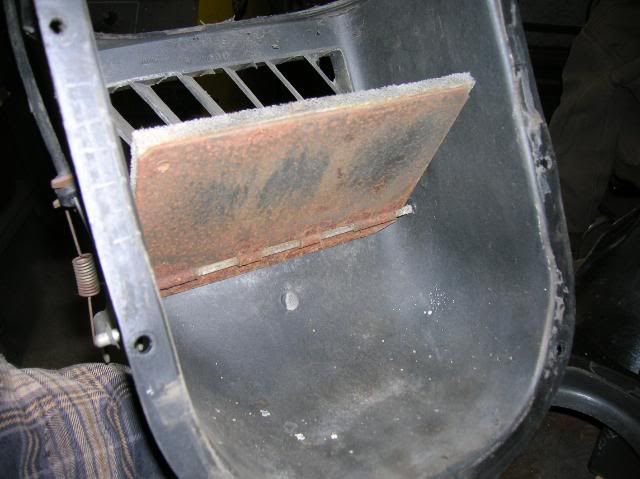

Took the flaps out...

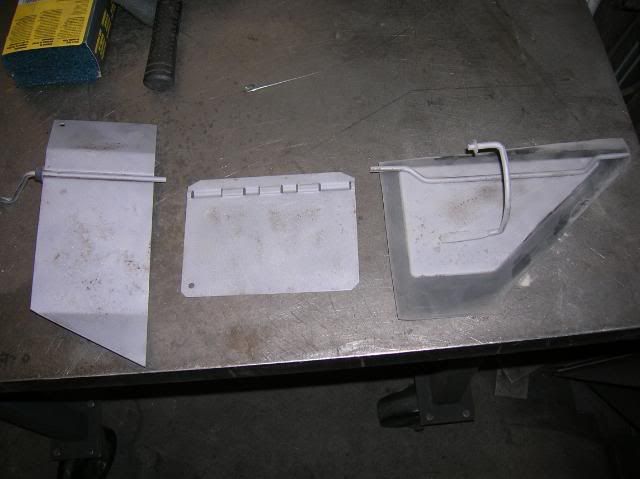

Bead blasted them...

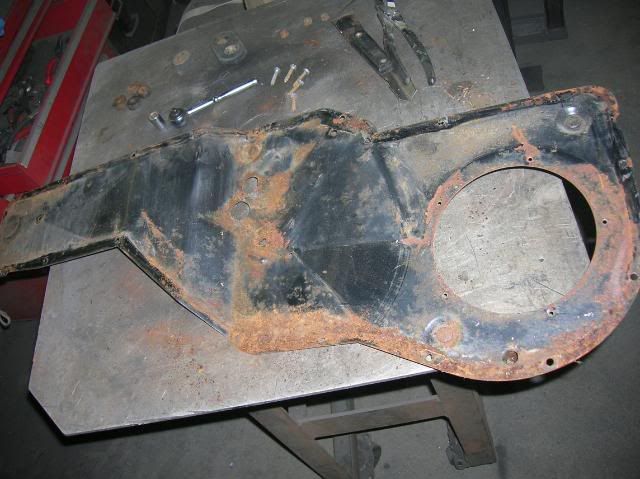

The rusty metal backplate...



Blasted...

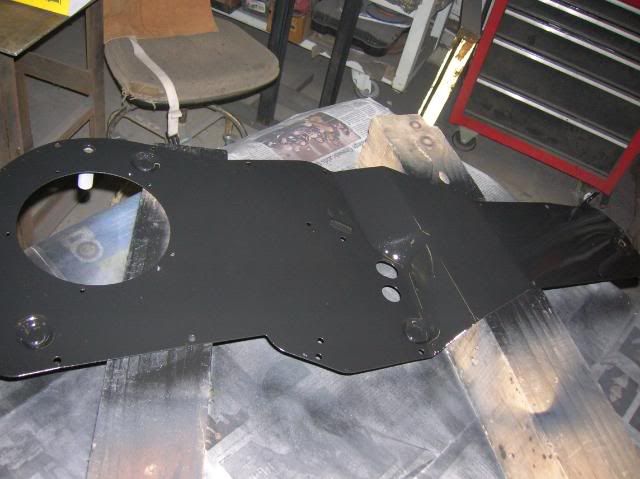

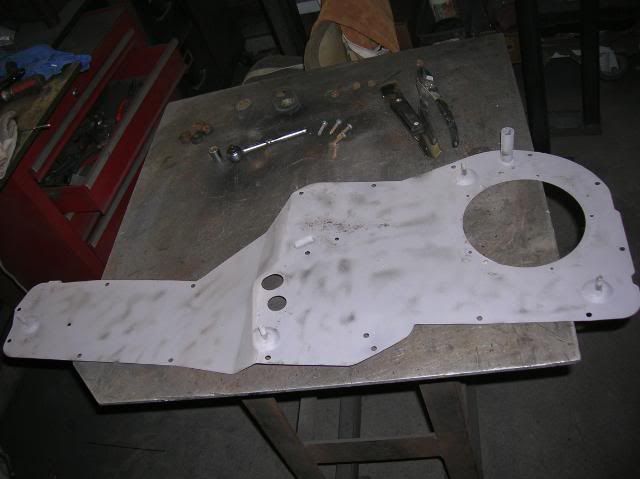

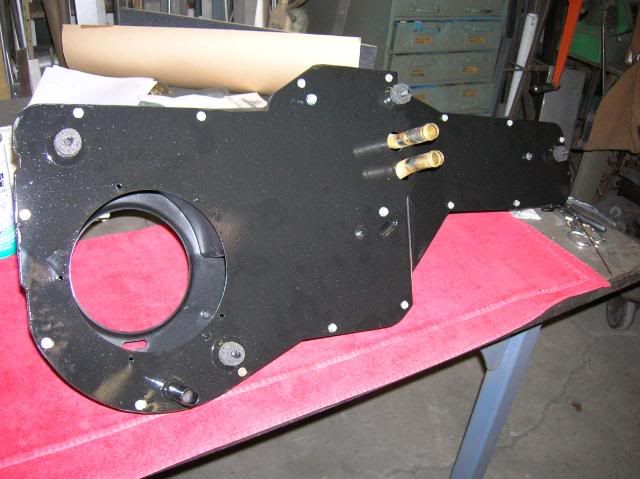

Primed and painted...

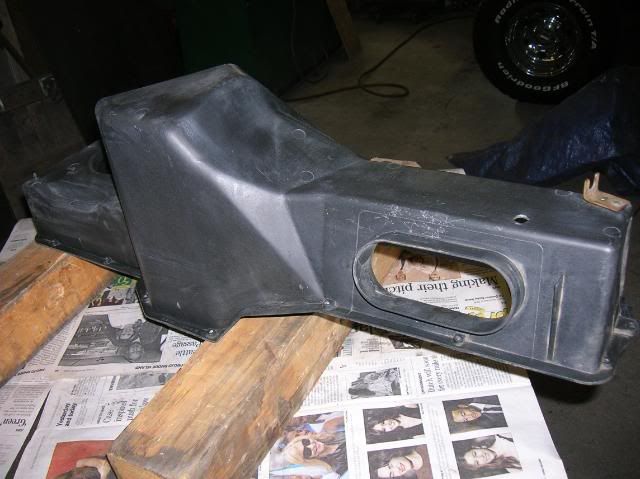

I prepped the box for painting...





__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 04:24 PM   #2
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,764

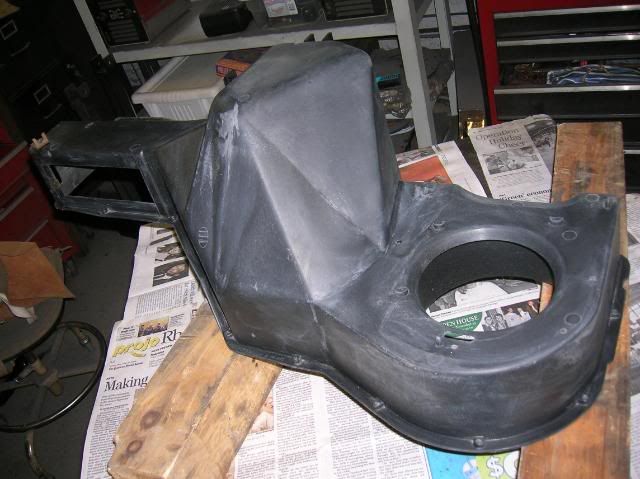

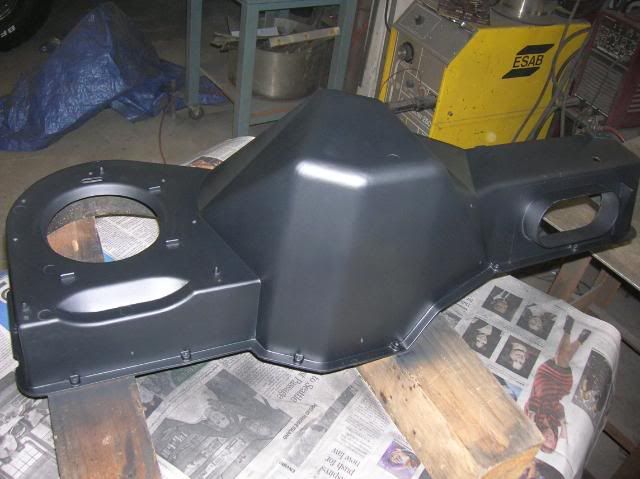

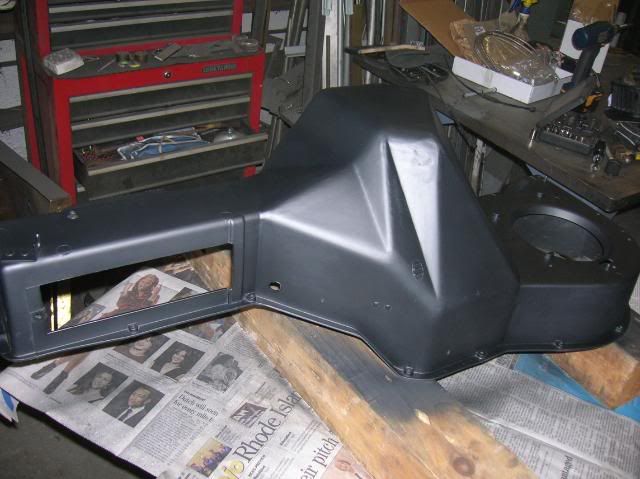

...and painted it with NAPA Underhood Black...

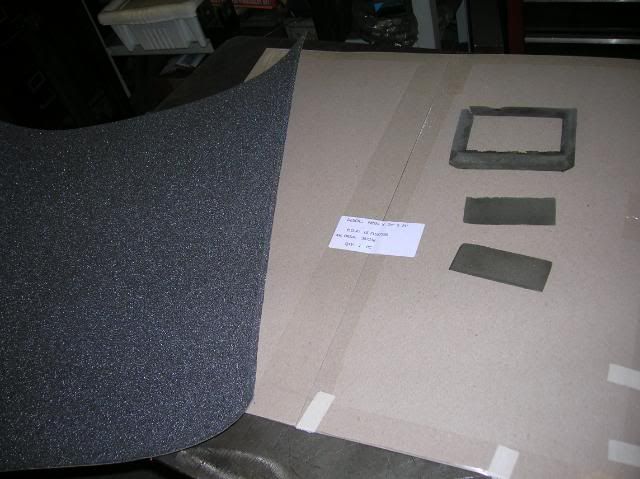

I wanted to replace all the foam sealing pieces, so I bought a 24" square sheet of waterproof self adhesive poly foam, 1/4" thick. Here are some of the old pieces that I want to replace, and some others that were missing...

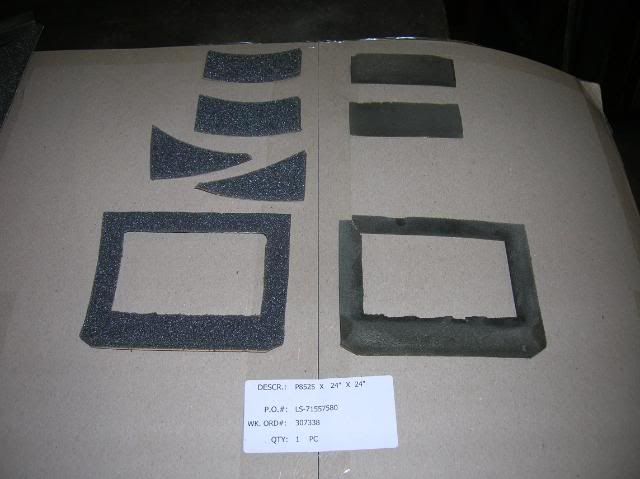

Here are the replacements...

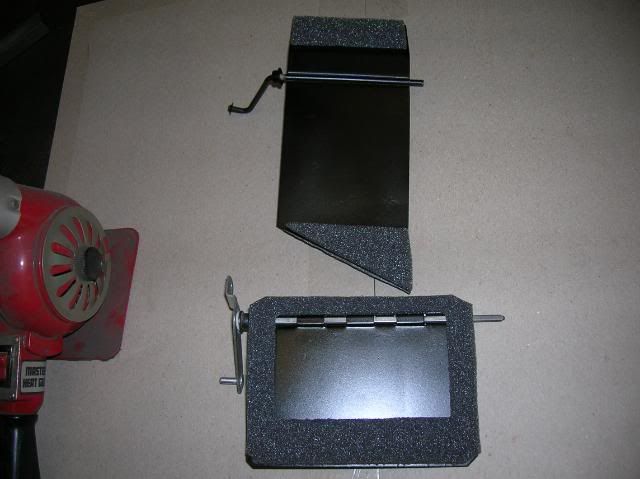

...and glued to the primed and painted flaps...

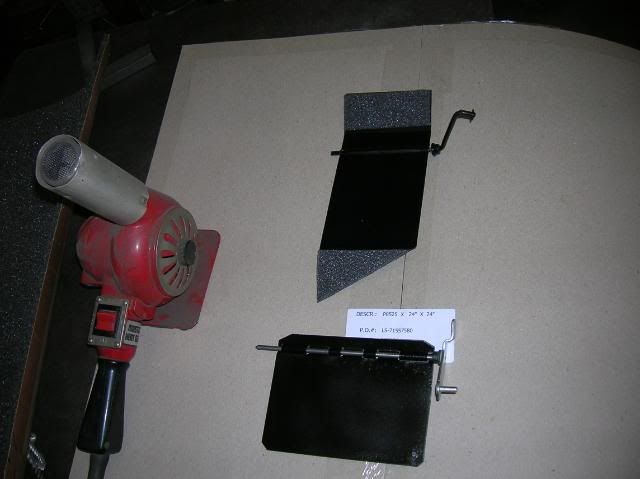

I use a heat gun to warm up the metal parts so that the glue sticks well...

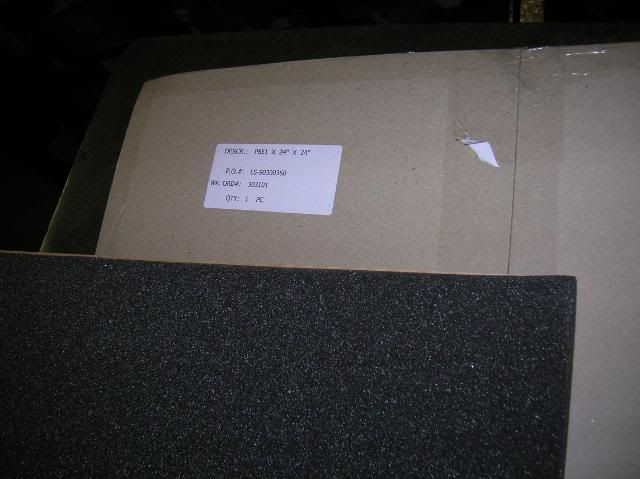

I also bought a piece of the same foam, 1" thick...

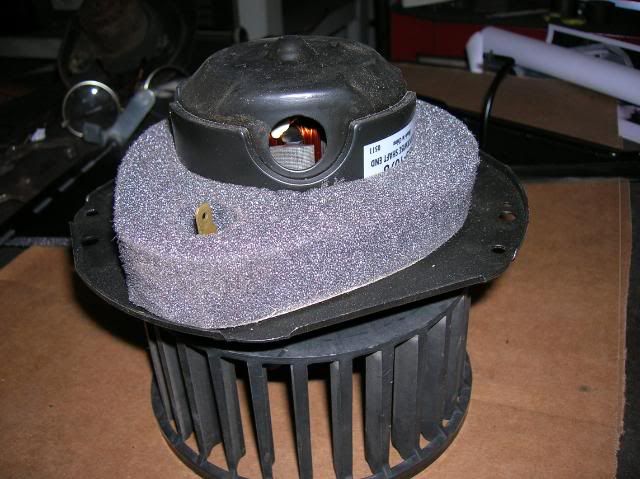

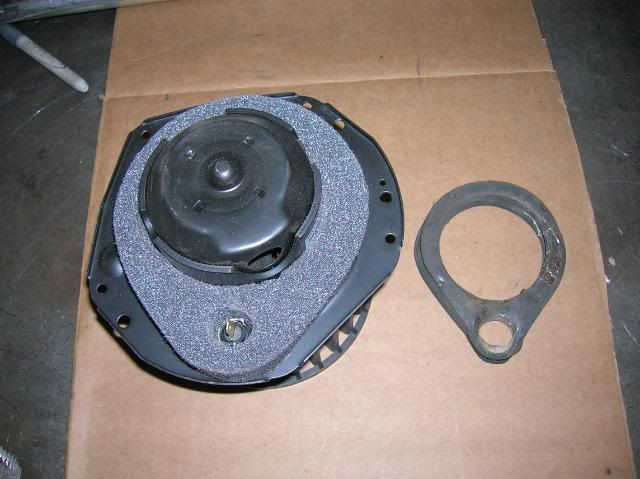

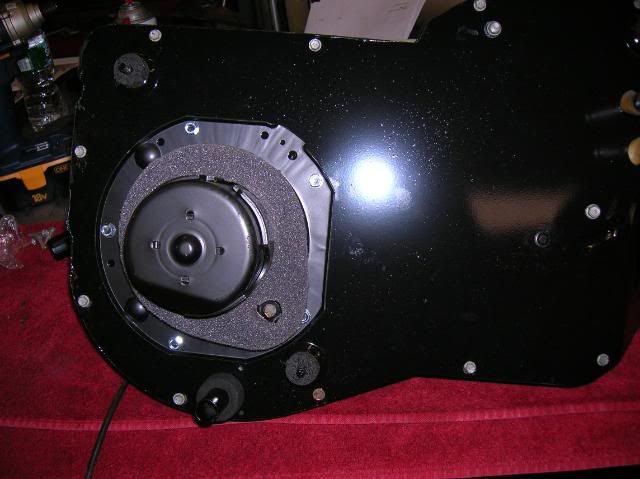

...to make the seal around the new blower...

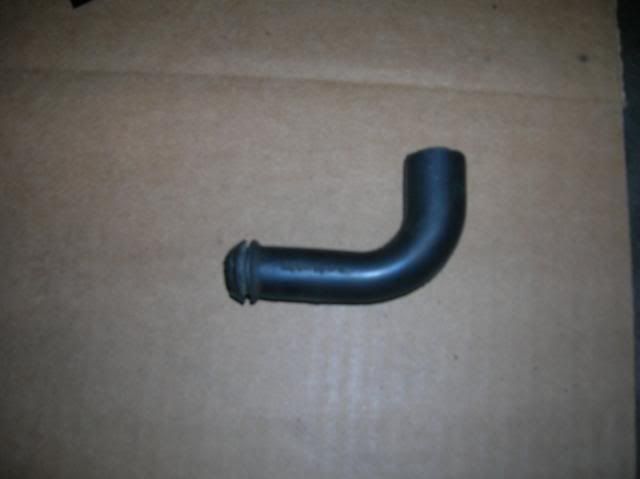

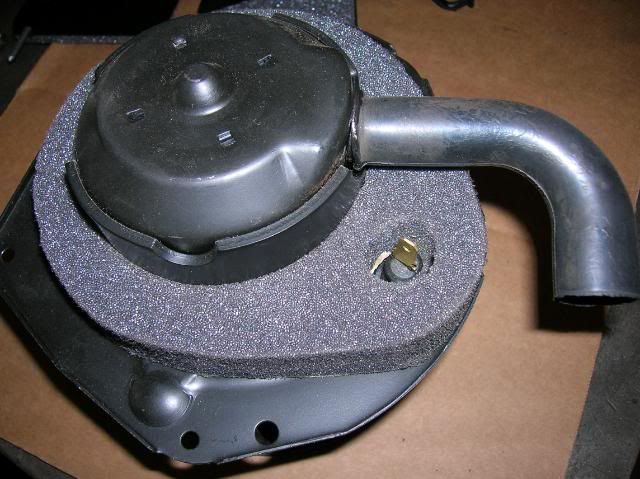

Notice the hole in the housing. A rubber hose is meant to snap in there, and go into the heater box...got one from a salvage yard (free!).

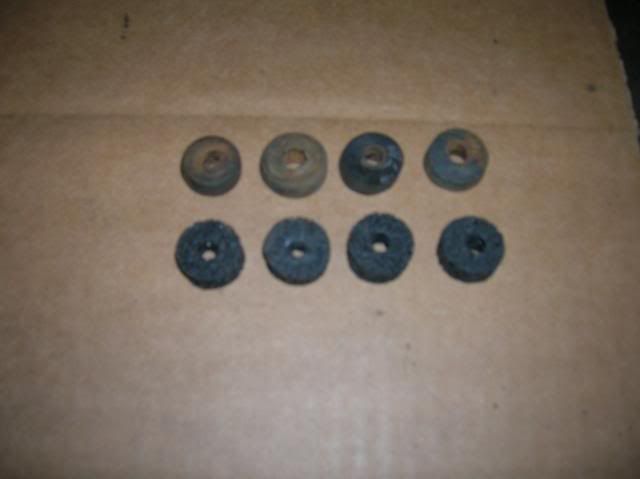

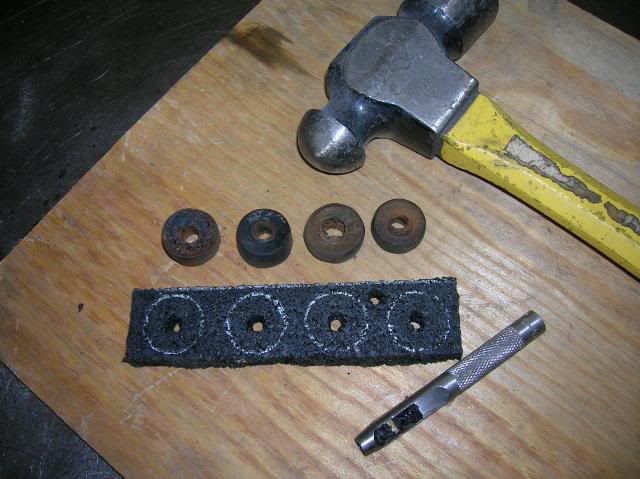

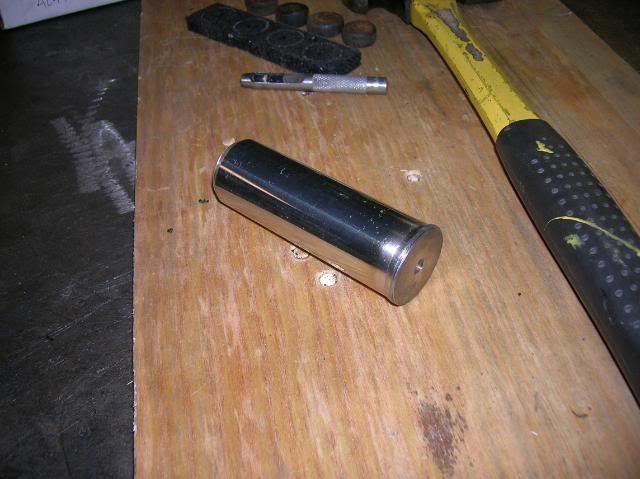

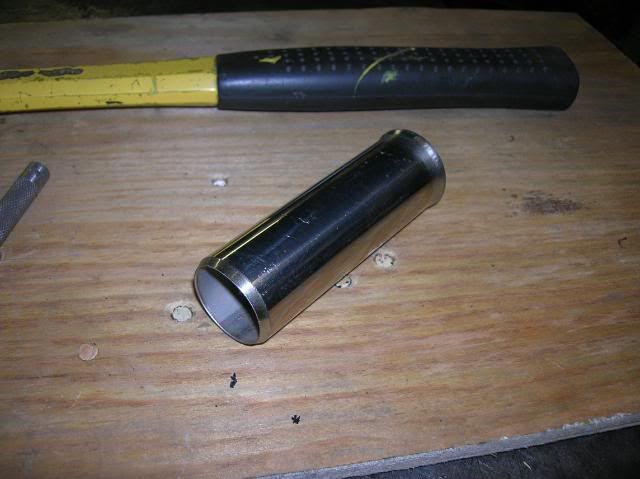

These rubber cushions needed replacing, so I took some rubber I had and laid out the new ones. I didn't have a hole punch big enough, so I made a punch out of a piece stainless tube...

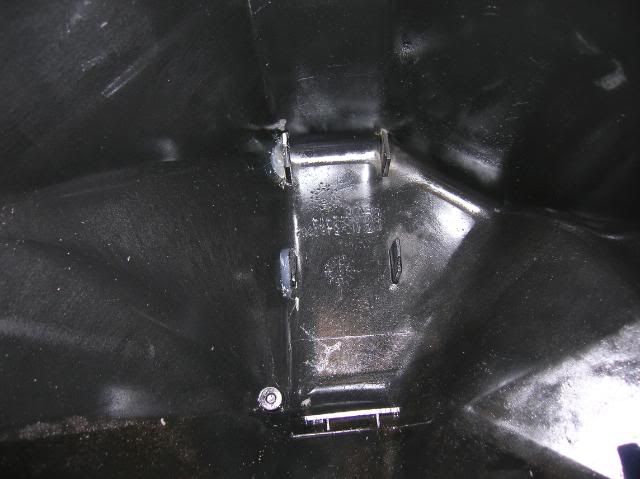

Two of the tabs that locate the end of the heater core had broken off, so they got hot glued back..



After comparing the original heater core to the aftermarket one, there's no comparison. The old one is much better quality, so it went to Dip's Radiator for a flush, and to check for leaks. That's the one going back in.

So, I cut a strip of foam to wrap around it...

__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".

Last edited by rixcj; 02-21-2010 at 03:08 AM..
rixcj is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 04:25 PM   #3
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,764
Time to start re-assembly...

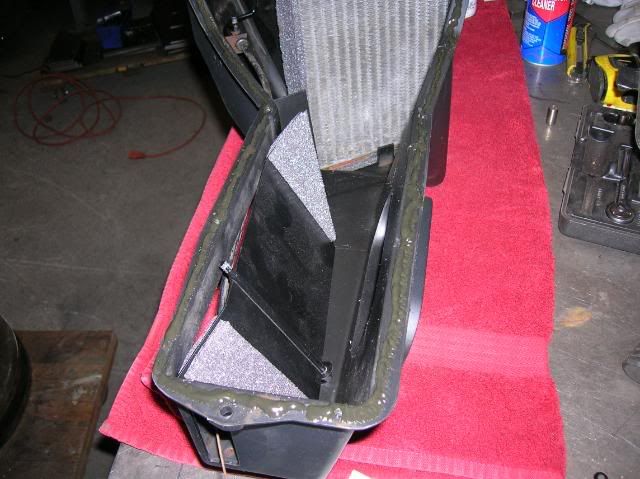

After the heater core and flap are in, it's time to put the sheet metal back on. There was some sort of sealant there, when I took it apart, so I put some Permatex#2 non-hardening sealer all around the lip...





It's a good idea to use some sort of sealant, because the sheet metal had gaps in it between the screws. I thought about adding a screw in between each one, but opted to push more sealant in the large spaces with my finger.

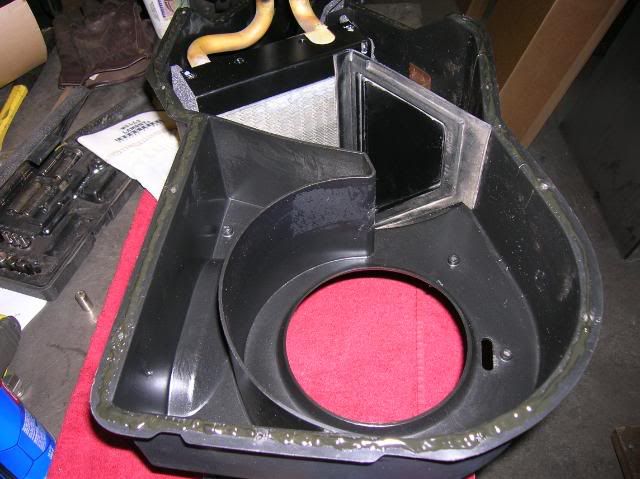

Sheet metal's back on...



My re-assembly instructions......



NOTE: FOR THOSE OF YOU WHO HAVE READ THAT A '73 BLAZER MOTOR W/AC IS THE CORRECT ONE...TAKE IT FROM ME...IT DOESN'T WORK FOR EVERYONE!!

I found out the hard way that it was wrong for me, anyway. So, I called NAPA and ordered NAPA PN 655-1039, and this was the right one.

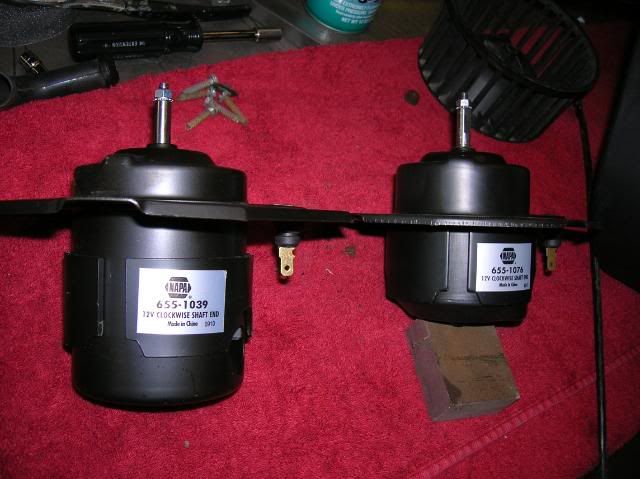

The difference...



Moving forward, once again...

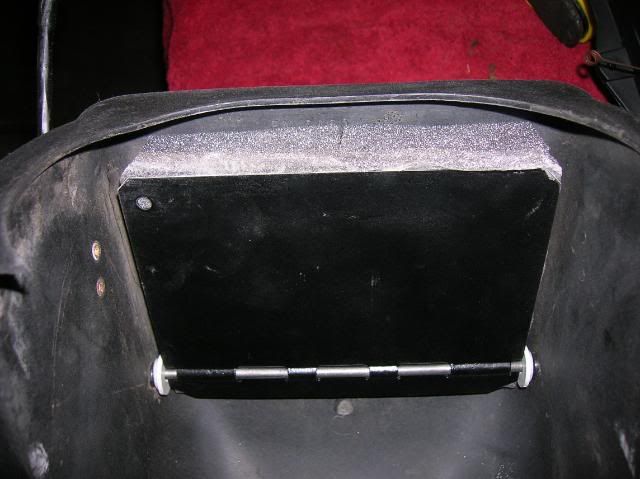

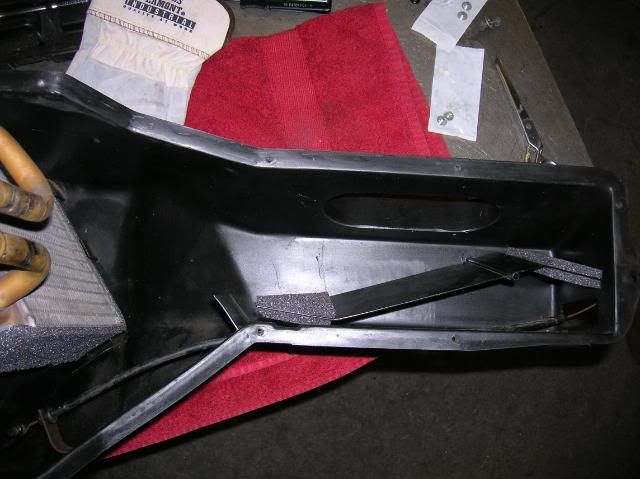

After installing this flap, I didn't like the way the top of the flap sealed, so I added a foam strip along the top edge...



Now it seals nice...if you notice, I also added some extea teflon washers onto the pivot shaft, on each side of the flap to keep it centered...

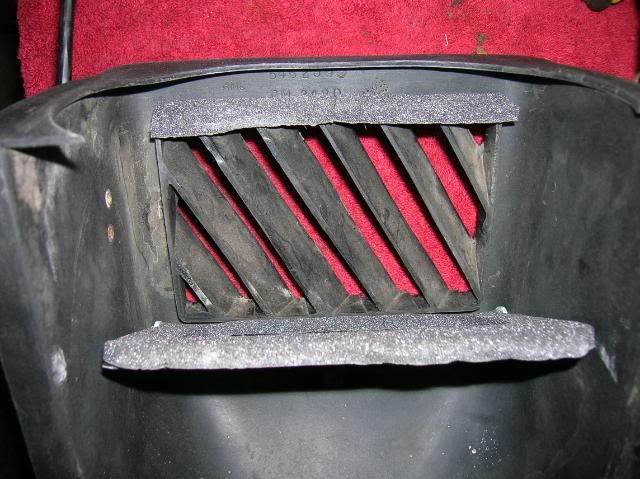

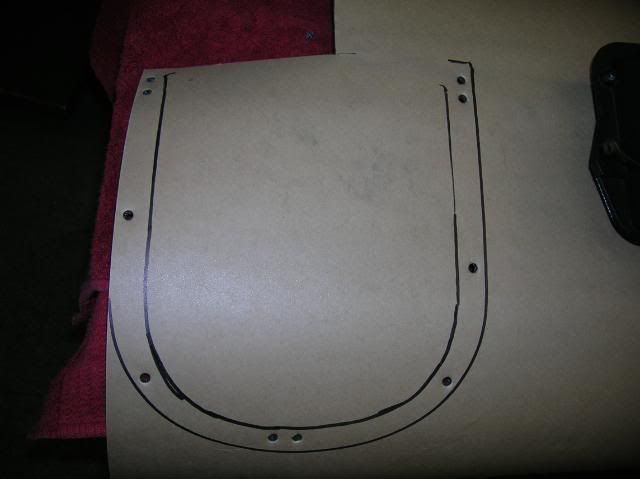

There should be some sealant when attaching the vent piece, too, but I decided to cut a piece of the 1/4" foam, and make a nice, clean seal...





...and attached...

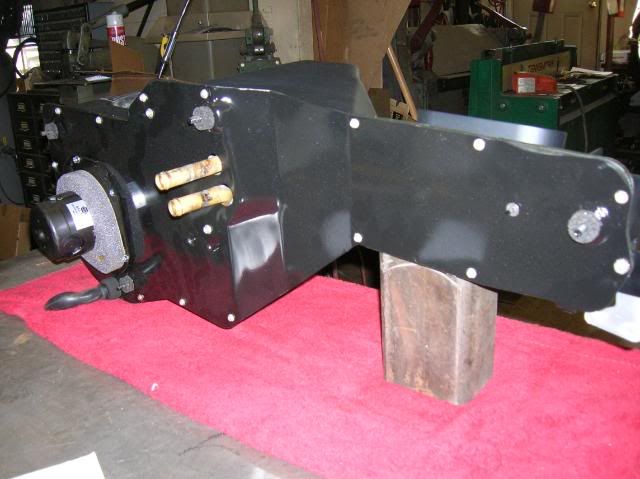

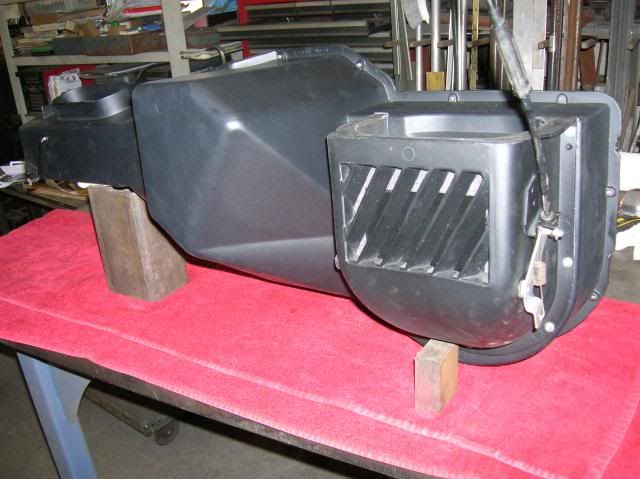

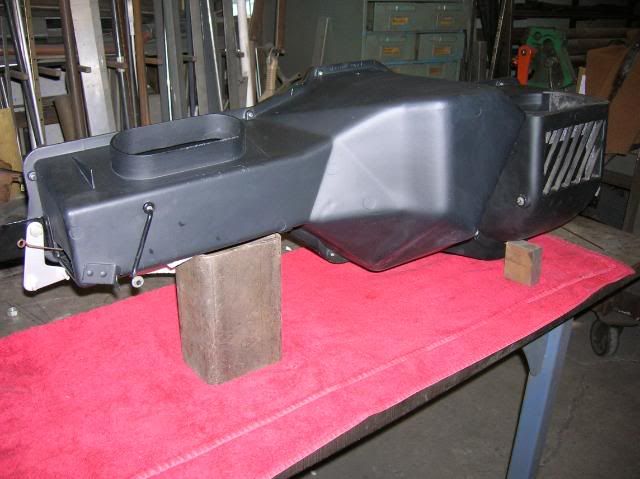

Well, it's mostly done (I ordered a new heater core seal...not here, yet). So here are some final shots...









This baby better put out some heat!!

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 04:39 PM   #4
Bow-hunt-er
Registered User
1978 CJ7

Join Date: Sep 2009
Location: Maryland
Posts: 175
Great job!
__________________
1978 CJ7, AMC360, D30 front, D44 rear, lock-rite lockers front & rear, 3.73 gears, Dana 20 transfer, T-18 4speed tranny
Bow-hunt-er is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 04:59 PM   #5
Ken4444
Corripe Cervisiam

Ken4444's Avatar
1985 CJ7

Join Date: Oct 2005
Location: Houston, Texas
Posts: 4,631
Fantastic work! Great photos. Let us know how it runs.
Ken4444 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 05:06 PM   #6
trebor3009
Registered User
1985 CJ7

Join Date: Jan 2008
Location: Maryland
Posts: 11
Nicely done...the 'definitive' heater box restoration how-to. This warrants a sticky under the "CJ STICKIES THREAD (FAQs)"
trebor3009 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 05:06 PM   #7
thord
Registered User
1986 CJ7

Join Date: Feb 2009
Location: Memphis
Posts: 193
great work and awesome write up

Thanks!!!
thord is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 05:47 PM   #8
chet44
Web Wheeler
1985 CJ7

Join Date: Oct 2008
Location: Northeastern Illinois
Posts: 1,324
This is great timing! In the next week or so I was going to do just what you've done. Now I've got some great pics to follow.
chet44 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 06:24 PM   #9
fireman72737
Registered User
1984 CJ7

Join Date: Jul 2009
Location: Greensboro NC
Posts: 11
Great picture thanks getting ready to do this my self.
__________________
"You can let people think you are a dumba** or open your mouth and prove it."
fireman72737 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 06:25 PM   #10
IdahoJeeper
Registered User
1995 ZJ

Join Date: Jan 2006
Location: Pocatello, Idaho
Posts: 230
Wow...great job!! I did mine a couple weeks ago. I used RTV (put a bead on, spread it out, let it set up) to seal the box up and like the OP, added a bit extra to those areas that didn't seal so well. After all that effort, I didn't want ANY air escaping anywhere except the ducts.
__________________
'95 ZJ Laredo, 4.0L, Auto, 225K, Forest Grn
'98 ZJ Laredo, 4.0L, Auto, 210K, White
IdahoJeeper is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 07:02 PM   #11
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,185
I imagine y'all have heard this by now, but since RTV is acidic, it can corrode metals... The Permatex #2 seems to be a good choice, was going to use that, but I forgot it at work, so I went to Walmart and got some of that rope caulking and put a double strand around the box to seal it. When I tightened it down, I made sure there were no gaps. It was like 3/16" - 1/8" thick, so I didn't have any issue with gaps between the screws.
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 07:05 PM   #12
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: RI
Posts: 1,764
Thanks for the kind words, guys! I take a lot of pictures for several reasons...the main one being that I need them to remember how everything goes back together!

This would definitely help people out with future restorations. I don't think many guys tear into them this deep.

I didn't plan to go this deep, but one thing leads to another... plus, I enjoy it.

Rich
__________________
'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 07:11 PM   #13
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,575
I just finished the same project. It was a real pain in the butt, but the results were spectacular! Sounds like I have a little tornado behind my dash, and it actually defrosts my windshild. My box had so many leaks and holes I'm suprised it ever worked. BTW: you would not believe the trash I pulled out of it! I have a Kentrol stainless cowl vent cover. To it I glued a piece of plastic screen, trimmed it around with a razor blade and installed it. No more trash in the heater box!
__________________
Beer is the answer - it doesn't matter what the question is!

'86 CJ7, 265 CI, DUI, TF999, Borla, Weber, 4" BDS Lift.
'04 AEV RUBICON.
'00 TJ Sahara.
CJ Chet is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 07:17 PM   #14
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,185
Quote:
I have a Kentrol stainless cowl vent cover. To it I glued a piece of plastic screen, trimmed it around with a razor blade and installed it. No more trash in the heater box!
I was thinking about doing that too, just to save the crap from dropping in there..

After you resealed it all, do you still get air out the defrost when you have it on floor, and vice versa?? I think mine is only directing 70% to whichever way I put the mode selector... I even added foam to the doors to help seal..
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 02-20-2010, 07:47 PM   #15
_Kyle_
Registered User
1996 ZJ

Join Date: Oct 2005
Location: Abingdon, MD
Posts: 2,763
I just did the same rebuild and sealed it all up like you did. I am VERY pleased with it.
__________________
-Kyle

1996 Grand Cherokee

RIP Troy (bigbluezj94)

1996 ZJ FOR SALE
_Kyle_ is offline   Reply With Quote Quick reply to this message
