CJ-7 Vs CJ-8 frame differences

As the title states, I am looking for the precise differences in the frames on a CJ-7 and a CJ-8. I know the 8 is longer in two places, just in front of the rear wheels in the flat part and at the back of the frame. I am wondering if anybody knows just how much you need to stretch in both places and where to add the new frame cross member as well as the new body mounts. My reasoning, fairly obvious as it may be is that I am contemplating stretching my 7 and starting with an 8 is definitely not an option. If anybody has pictures would be amazing and experience from somebody that has done this would also be fantastic. As always thanks in advance for the help guys.

OutoOfMyMindCJ is offline   Reply With Quote Quick reply to this message
Unread 03-03-2013, 09:47 PM   #2
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,442
Do a google image search on CJ frame specifications. There's a chart or two floating all over the internet that give the measurements for each, which originally came out of the factory service manuals.
CSP is offline   Reply With Quote Quick reply to this message
Unread 03-04-2013, 08:50 AM   #3
OutoOfMyMindCJ
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: Lexington, Kentucky
Posts: 74
I have tried google, all i can seem to find is a cj7 and for the 8 they only stretch it in one place which I know is incorrect.
OutoOfMyMindCJ is offline   Reply With Quote Quick reply to this message
Unread 03-04-2013, 03:48 PM   #4
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile, Alabama
Posts: 4,174

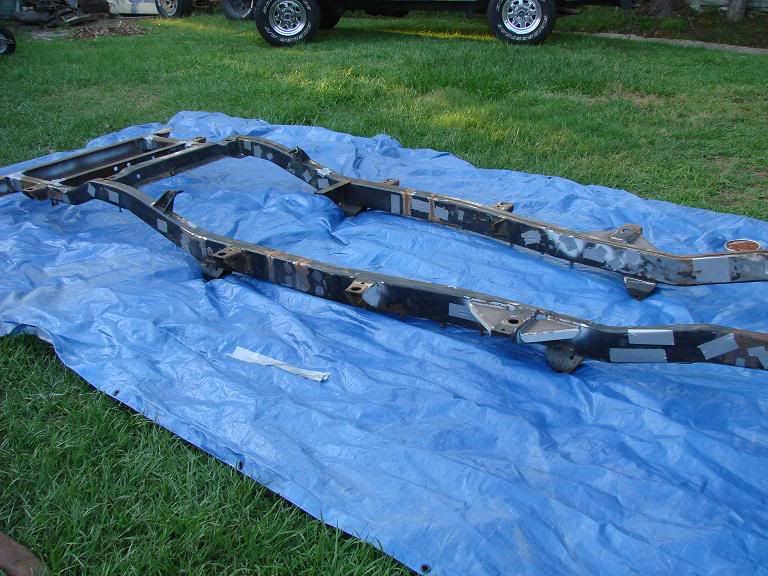

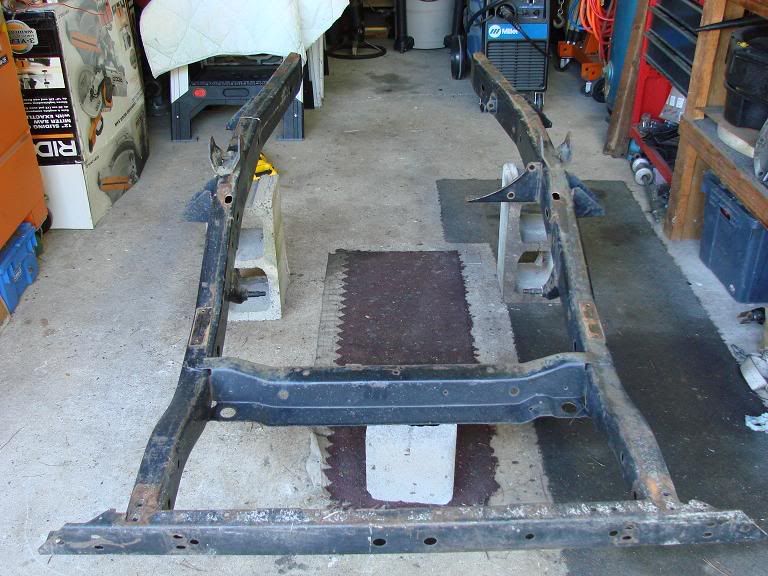

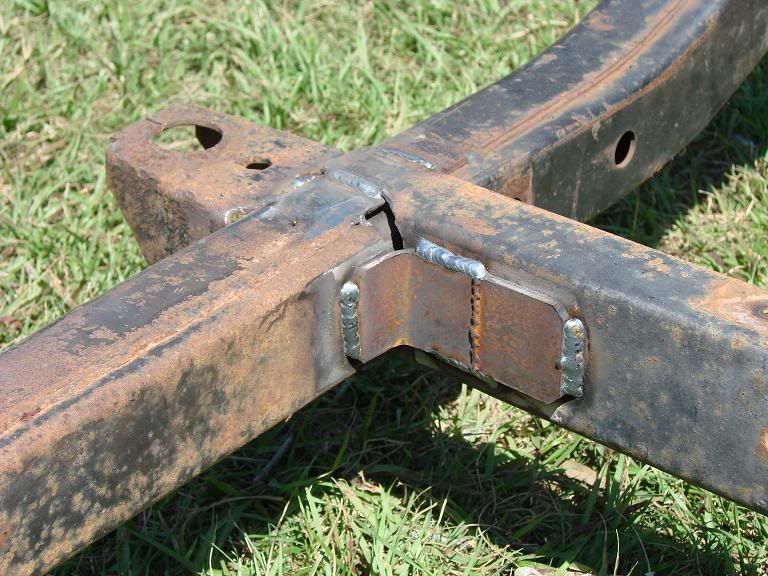

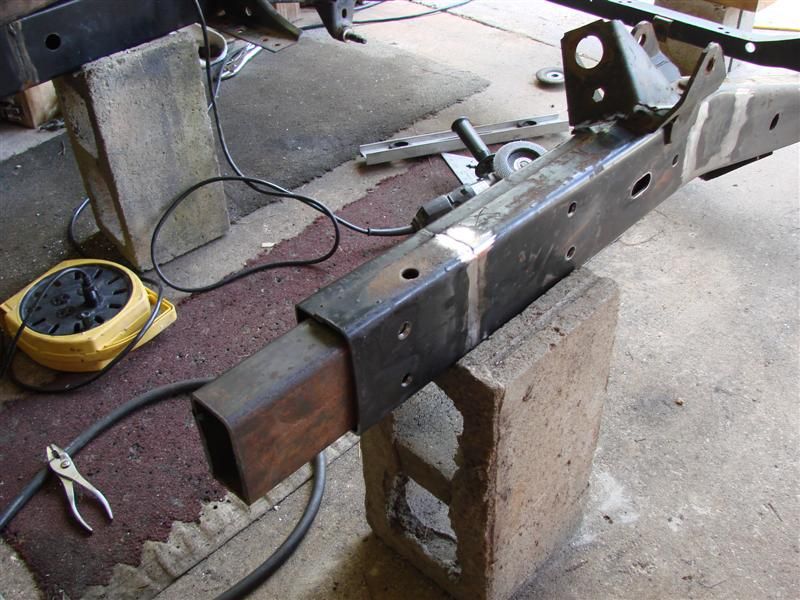

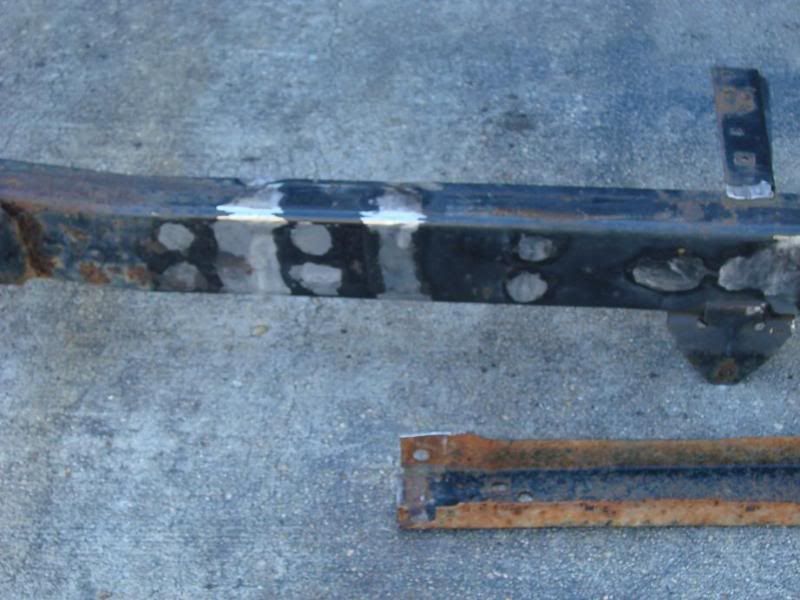

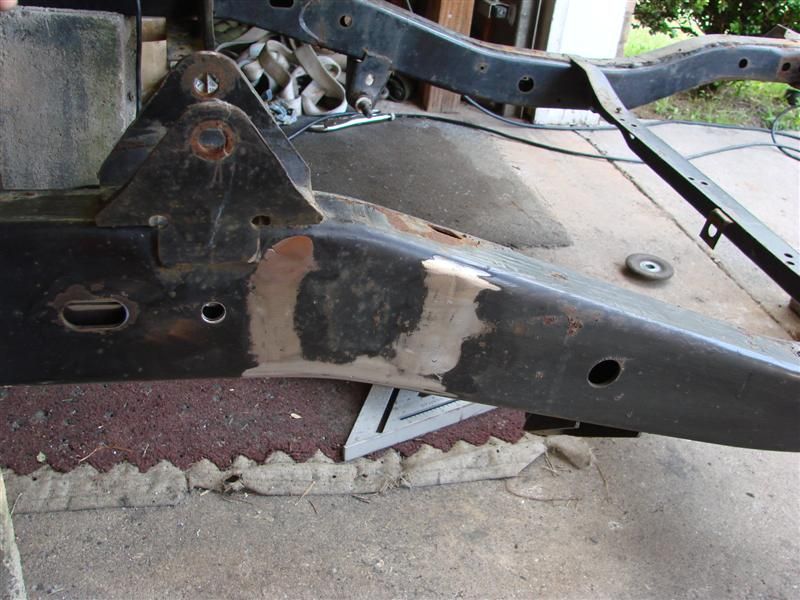

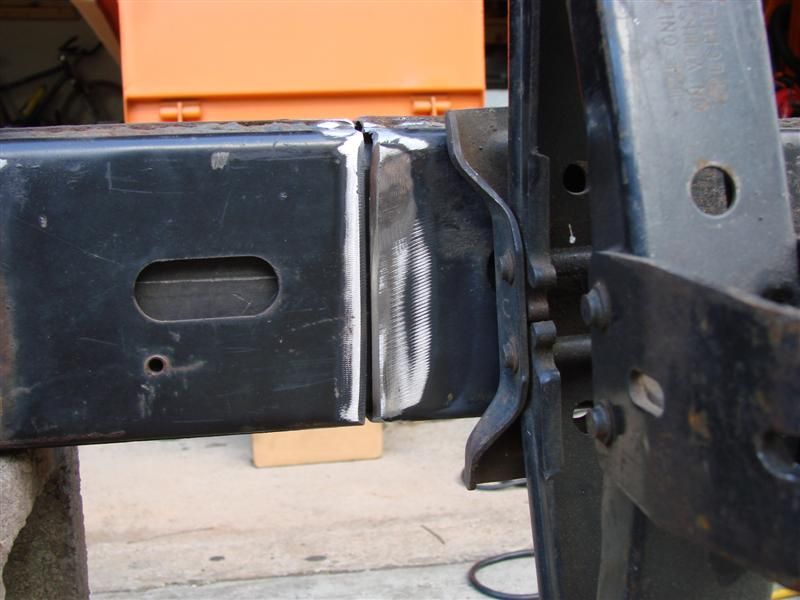

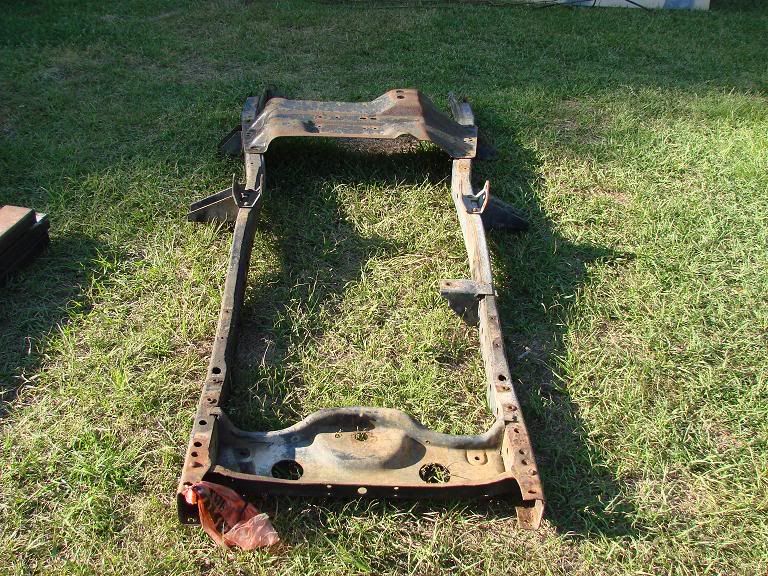

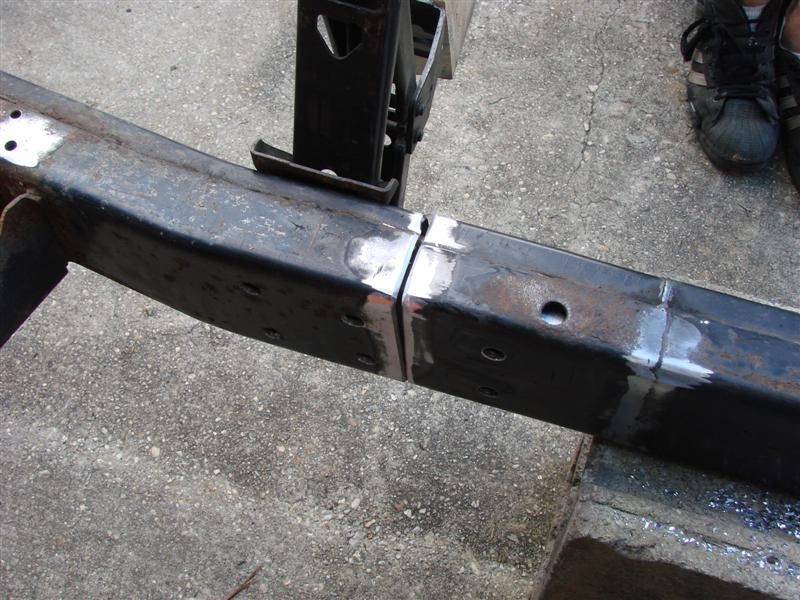

Buddy bought a project Scrambler and it had BAD frame rot and more cracks than Ive seen in a frame ever. Instead of unsuccessfully trying to repair it, I made a spot on replacement using two CJ-7 frames. One was damaged in the front and the other in the rear. I cut each just past the halfway section in the center parallel rails so it would equal the extra length needed there. I did reuse the rearmost extensions from the old Scrambler as they were fine and different dimensions than any of the left over parts. A total of 4 tub mounts need to be moved. I used 2x4 3/16th thick square tubing running past the repair and welded to the thicker or outer rail as well. Here's some pictures that are self explanatory.

Started with these two sections:






















What was KEY was that I had another GOOD bare Scrambler frame to take exact measurements from.
__________________
Ed

1975 CJ-6 304 T15 Dana20 30/44 3.73
1983 CJ-8 258 T5 300 30/44 3.31 Looking for full or half hardtop buy or trade
1986 CJ-7 Laredo 4.6 stroker T5 300 30/44 3.31
1986 TJ-7 Trail Jeep project in the works
2003 Inca Gold TJ Rubicon
only in a jeep cj is online now   Reply With Quote Quick reply to this message
Unread 03-04-2013, 04:03 PM   #5
Matt1981CJ7
Web Wheeler

Matt1981CJ7's Avatar
1981 CJ7

Join Date: May 2011
Location: Elbert, CO
Posts: 10,488
Quote:
Originally Posted by OutoOfMyMindCJ View Post
I have tried google, all i can seem to find is a cj7 and for the 8 they only stretch it in one place which I know is incorrect.
The frame specs are all over the internet.
Click to View Search Results for Take your pick. Take your pick.

And it only took Google Image about a .3 seconds to find them.

Matt
Matt1981CJ7 is online now   Reply With Quote Quick reply to this message
Unread 03-04-2013, 04:23 PM   #6
teh603
Registered User
1963 CJ5

Join Date: Feb 2012
Location: Houston, Texas
Posts: 305
Doesn't TDK make a Scrambler frame?
teh603 is offline   Reply With Quote Quick reply to this message
Unread 03-04-2013, 05:05 PM   #7
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile, Alabama
Posts: 4,174
They do. Very nice, thicker, and stronger than the original factory frames. I have one of their CJ-7 frames. I'd love to have one of the hybrid Scrambler frames with a TJ long arm set up.
__________________
Ed

1975 CJ-6 304 T15 Dana20 30/44 3.73
1983 CJ-8 258 T5 300 30/44 3.31 Looking for full or half hardtop buy or trade
1986 CJ-7 Laredo 4.6 stroker T5 300 30/44 3.31
1986 TJ-7 Trail Jeep project in the works
2003 Inca Gold TJ Rubicon
only in a jeep cj is online now   Reply With Quote Quick reply to this message
Unread 03-06-2013, 08:04 PM   #8
OutoOfMyMindCJ
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: Lexington, Kentucky
Posts: 74
Thanks for the link but those were actually the pictures I was talking about. If you notice in those pictures the "H" dimension is the only one that changes. I know the frame is stretched in two separate places. Only in a Jeep CJ, Do you remember the amount you stretched it in both places? Thanks for the pictures they are helpful. Do you remember where you added the second brace at? Searching around the internet I did find the forum you posted in over at CJ-8.com and didn't see the specific measurements. I also tried to open the picture link that was supposed to have the measurements but I'm not a member there so it won't let me open the file.
http://www.cj-8.com/forum/showthread...mensions/page2
This is the thread I was talking about.
OutoOfMyMindCJ is offline   Reply With Quote Quick reply to this message
Unread 03-06-2013, 08:54 PM   #9
obarrett
Registered User
1973 CJ6

Join Date: Aug 2010
Location: silicon valley
Posts: 44
(pic referenced in the posts above... tossed it in here for ease of viewing...)

obarrett is offline   Reply With Quote Quick reply to this message
Unread 03-06-2013, 09:51 PM   #10
jeepwhore
Hair puller xtraordinaire

jeepwhore's Avatar
1984 CJ7

Join Date: Jun 2006
Location: Kamloops, BC
Posts: 3,127
Wikipedia is your friend.....(if it's accurate):

A CJ7 has a 93.3" wheelbase. A scrambler has 103" wheelbase. So you need to add 9.7" to the straight section ahead of the rear spring hangers. As for the rear, add up dimensions G, H & S from the pic above for both a CJ7 (135.83") and a CJ8 (159.69"). The difference (less 9.7") should be what needs to be added to the rear of the frame (14.16"). not sure how accurate that is though. That pic shows that the distance between the front and rear spring hangers is the same for both models....which can't be true if the CJ8 wheelbase is 10" longer (unless scrambler rear springs are 10" longer?)
__________________
'84 CJ-7: Yota axles (spartan locked front, e-locked rear) 4" BDS, 1" Daystar & 3/8" shackle lifts, 35" X-Terrains on steelies, YJ Tub & family roll bar, heater blower upgrade, 4.2L w/MC2100 & Team Rush, Warn 8274. Rebuilt 4.2/4.0 hybrid, AX15 and twin sticks/clocking ring waiting to go in.

The advertised position for a topless, dirty jeep girl has been filled......by my wife. Thanks to all that applied.
<------------and yes, that is her.
:-D
jeepwhore is offline   Reply With Quote Quick reply to this message
Unread 03-06-2013, 11:46 PM   #11
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile, Alabama
Posts: 4,174
It was the middle of 2009, so I don't remember exact numbers and even if I did, just to tell you stretch it "X" inches here or there is only part of the solution. See the front 4 tub mounts are in the same spot, the next two, by the rear tire are moved from behind the rear main eye to in front of it. The rails on the Scrambler in original form are not CJ-7 parts with just an extension welded on but rather different longer pieces. So that said, the rearmost crossmember is the same on the 7 and 8. On the 7, the gas tank rear edge bolts to it, on the 8 it doesnt as the tank is in close to the axle as in the 7, so there is a second crossmember there (on the 8) that is the same piece, but with the outer parts cut off so it fits inside the frame rails. It is at this point where the next two tub mounts are mounted back a tad as to be different than the CJ7. For the rear rail extensions, I reused the old 8 parts and graphed them in before I welded in the two cross members. I did this to duplicate the way it is originally. I made my own rear crossmember out of a left over section of the tubing. I removed one side to make it a C channel and added the wings for the corner mount holes (not cut out yet in the pics).

If you need an exact number or need an exact picture, TELL ME NOW as I have a bare CJ8 frame and several CJ-7 frames in the back yard now about to go to the sandblaster and then to the galvanizer.
__________________
Ed

1975 CJ-6 304 T15 Dana20 30/44 3.73
1983 CJ-8 258 T5 300 30/44 3.31 Looking for full or half hardtop buy or trade
1986 CJ-7 Laredo 4.6 stroker T5 300 30/44 3.31
1986 TJ-7 Trail Jeep project in the works
2003 Inca Gold TJ Rubicon
only in a jeep cj is online now   Reply With Quote Quick reply to this message
Unread 03-07-2013, 10:22 AM   #12
OutoOfMyMindCJ
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: Lexington, Kentucky
Posts: 74
If you could measure the distances from each of the body mounts front to back and remember how much you stretched in both places would be fantastic. From there I believe i could figure it out and if you could share the pictures you do have of the bare scrambler frame would be great as well. Thanks a ton for all of your help so far.
OutoOfMyMindCJ is offline   Reply With Quote Quick reply to this message
Unread 03-07-2013, 03:10 PM   #13
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile, Alabama
Posts: 4,174

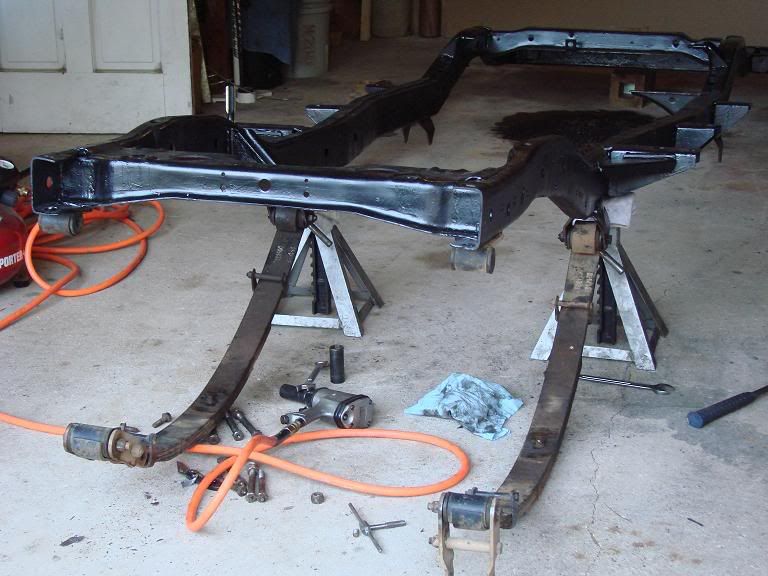

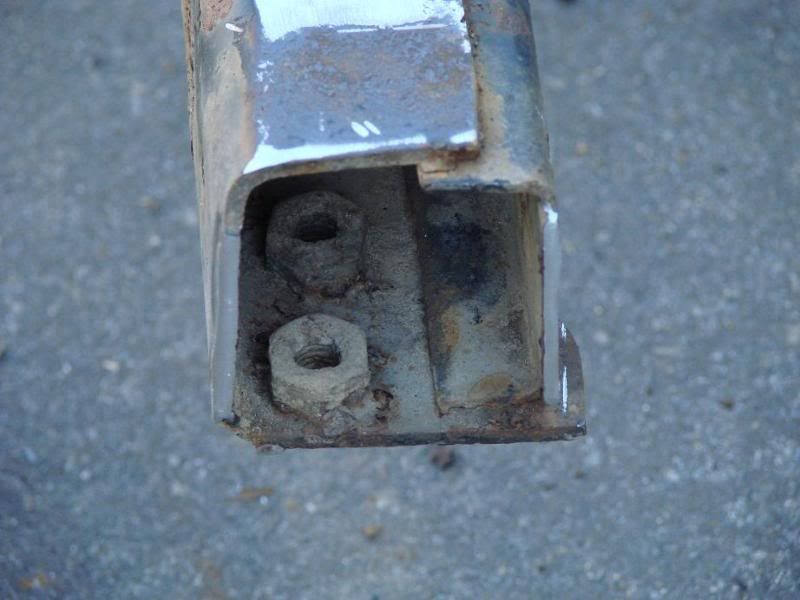

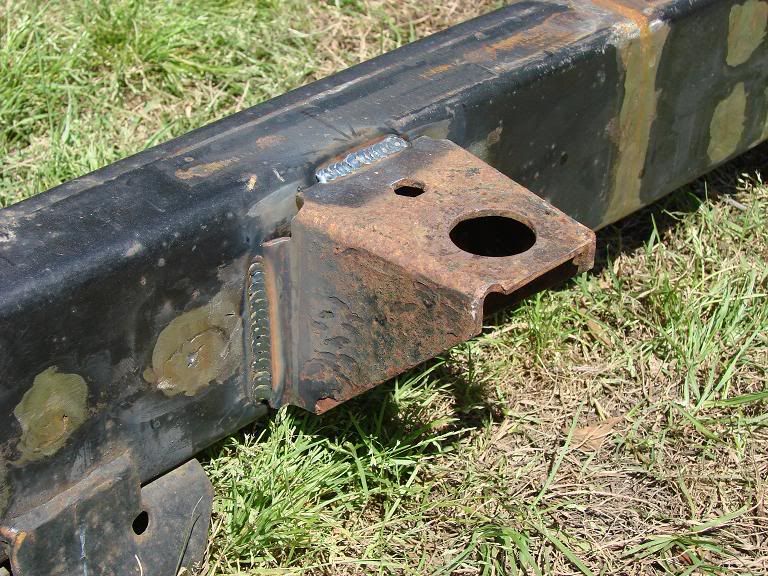

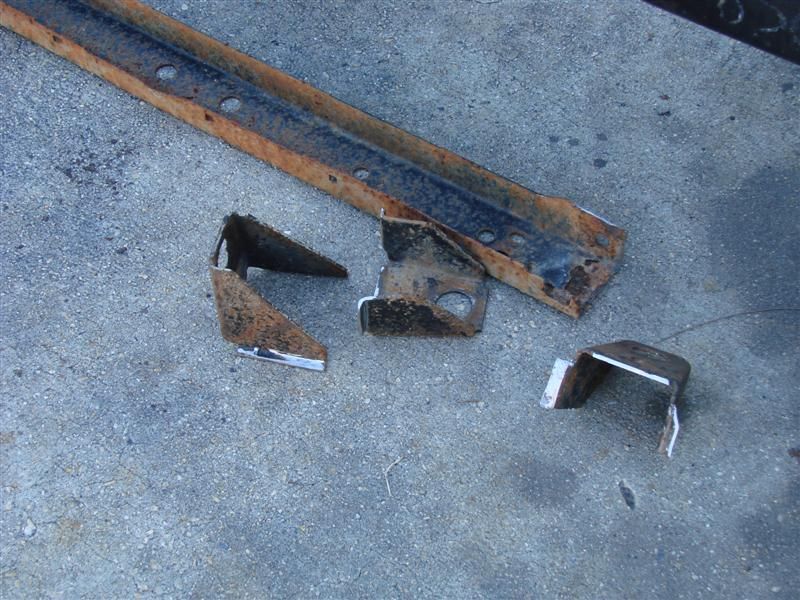

Here's some more pictures till I get some current pics and measurements...













__________________
Ed

1975 CJ-6 304 T15 Dana20 30/44 3.73
1983 CJ-8 258 T5 300 30/44 3.31 Looking for full or half hardtop buy or trade
1986 CJ-7 Laredo 4.6 stroker T5 300 30/44 3.31
1986 TJ-7 Trail Jeep project in the works
2003 Inca Gold TJ Rubicon
only in a jeep cj is online now   Reply With Quote Quick reply to this message
Unread 03-08-2013, 08:24 PM   #14
OutoOfMyMindCJ
Registered User
1997 TJ Wrangler

Join Date: Jan 2012
Location: Lexington, Kentucky
Posts: 74
Thank you so much for the pictures and taking the time to measure everything out for me. Not one of those things I want to just hope wikipedia is right on.
OutoOfMyMindCJ is offline   Reply With Quote Quick reply to this message
Unread 03-09-2013, 09:23 AM   #15
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,442
Wikidpedia isn't exactly right on. The wheelbase difference is 10" to the dot. If it were mine I'd add 10" between the fixed spring hangers to the measurement in the chart above and the difference in measurement H in that same chart. I never noticed in those charts that they only give the one measurement difference and there are two.
