Carter BBD & Start/Carge electrical (double check please)

Ok first I'd like to say thanks for all the help I've gotten from this site. And please Keep in mind that I've built this from almost nothing with out any real help in person.

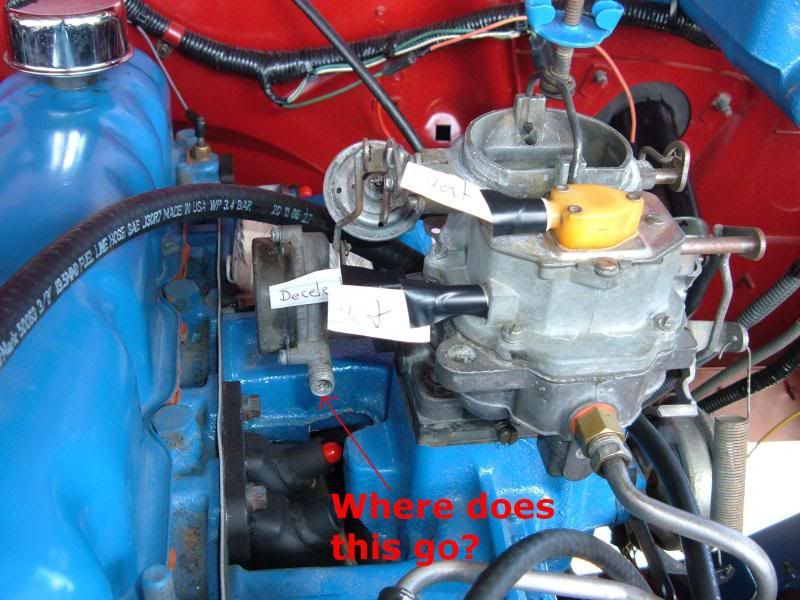

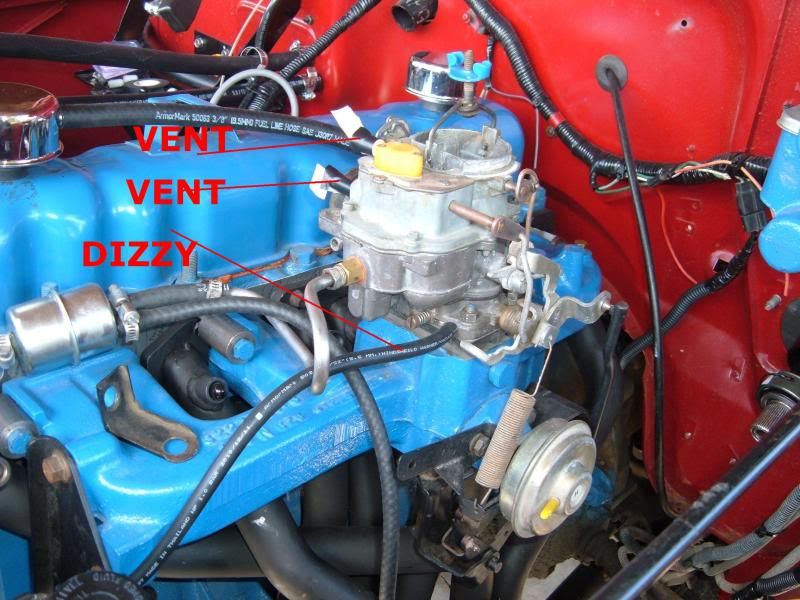

First are the Carb pix I know that the choke needs to connect to SOMETING, I just dont know what or how.


I labeled stuff as close to I could based on how it looked in the chilton.

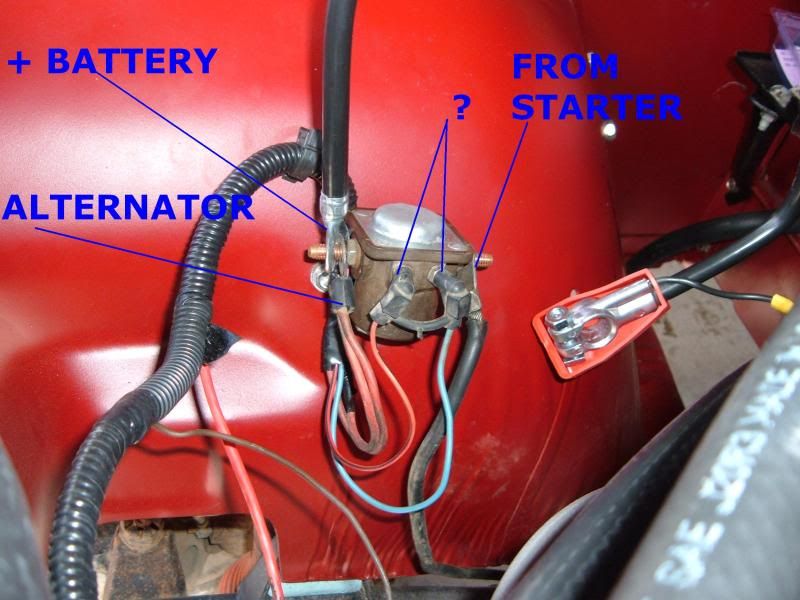

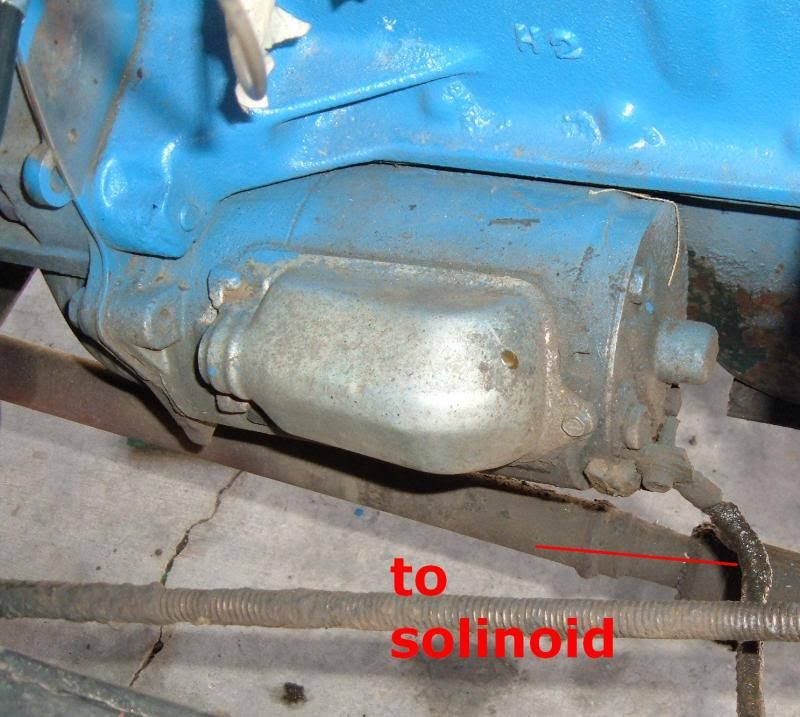

Now the Starting/charging. It is hard to find any thing on line because every body seems to cobel together their own way.




Oh does any one know the thread pitch/size of the nuts for the posts on the solenoid?

Thanks much

spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 05:33 PM   #2
86cj74.2L
Web Wheeler

86cj74.2L's Avatar
2004 WJ

Join Date: Jul 2006
Location: Stouchsburg, PA
Posts: 7,152
Do you have a 1/4 inch tab on choke? I.E. Do you have a electric choke? I kind of remember mine having that and I have a electric choke and it does nothing.
86cj74.2L is online now   Reply With Quote Quick reply to this message
Unread 09-17-2011, 06:03 PM   #3
spottedfrog
Registered User
1979 CJ5

Join Date: Sep 2010
Location: Grand Junction, Colorado
Posts: 833
No '79 isn't electric. I had a carb from an '80s? that had electric choke and the threaded part on this one was closed off on that one. and the electric one had pigtails coming from the back. All I can thin is it is Vac from some where and I need a threaded fitting?

Thanks though.

How does the electric look?
spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 06:50 PM   #4
86cj74.2L
Web Wheeler

86cj74.2L's Avatar
2004 WJ

Join Date: Jul 2006
Location: Stouchsburg, PA
Posts: 7,152
Just like yours. With a brass tab at the top for 12v power fed through the oil pressure switch.

The non electric like your set up may have exhaust piped to it to warm up the spring under the black cover. That was a type of choke control back in the day.......
86cj74.2L is online now   Reply With Quote Quick reply to this message
Unread 09-17-2011, 07:08 PM   #5
spottedfrog
Registered User
1979 CJ5

Join Date: Sep 2010
Location: Grand Junction, Colorado
Posts: 833
Cool. all my carb tags look right?
spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 07:37 PM   #6
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,248
They look right to me. But you need to spin your fuel filter so the vent tube is on top at 12 o'clock. Other then that it looks good.
waterdowg is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 08:21 PM   #7
spottedfrog
Registered User
1979 CJ5

Join Date: Sep 2010
Location: Grand Junction, Colorado
Posts: 833

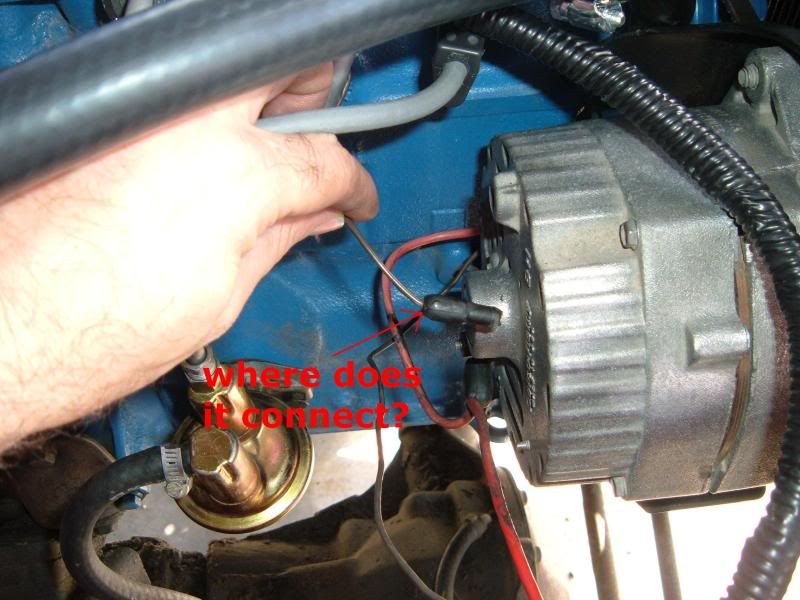

One other question the wire by the alternator, where does that conect? I'm thinking it connects on the alternator.
spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 10:47 PM   #8
stodg73
Registered User
1979 CJ5

Join Date: Sep 2011
Location: , CO
Posts: 135

In the pic, you can see that the choke connects into the exhaust manifold for heat to operate the choke.

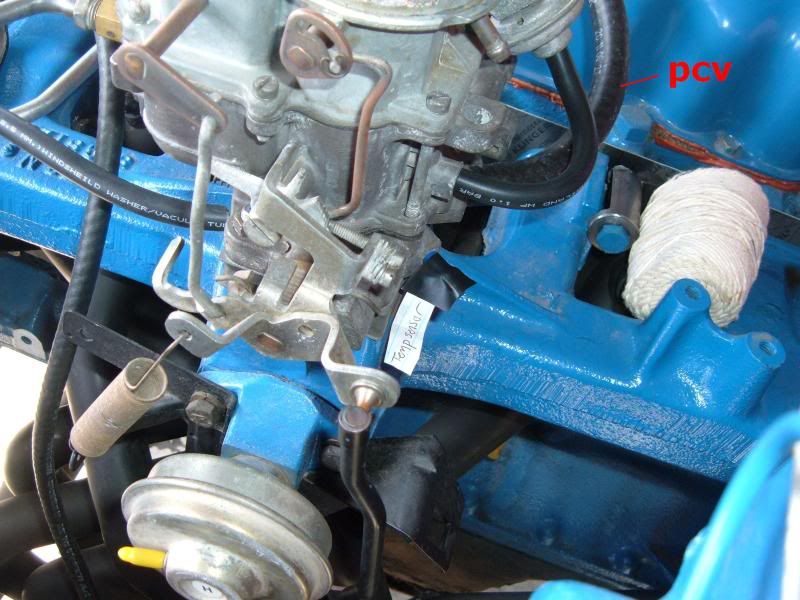

Your second pic, the pcv is on the correct position.


Third pic of yours, the top vent goes to the charcoal cannister for venting the fumes from the carburetor.

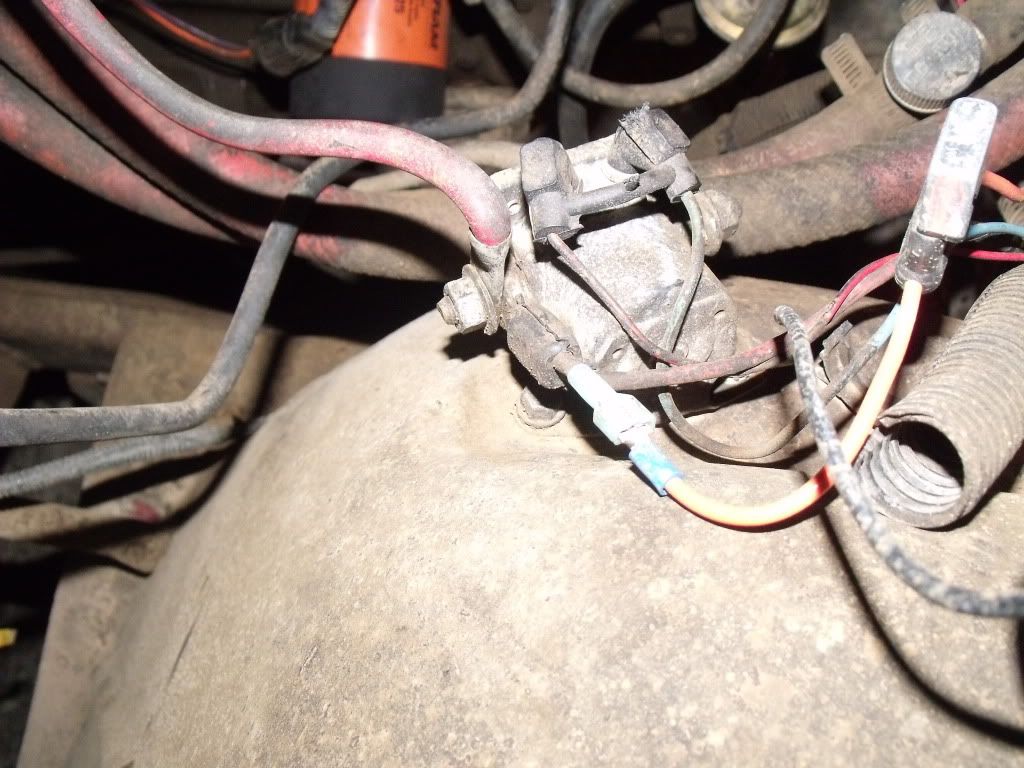

On the solenoid on the firewall, those connect to the ignition switch and power the starter/ignition circuit.

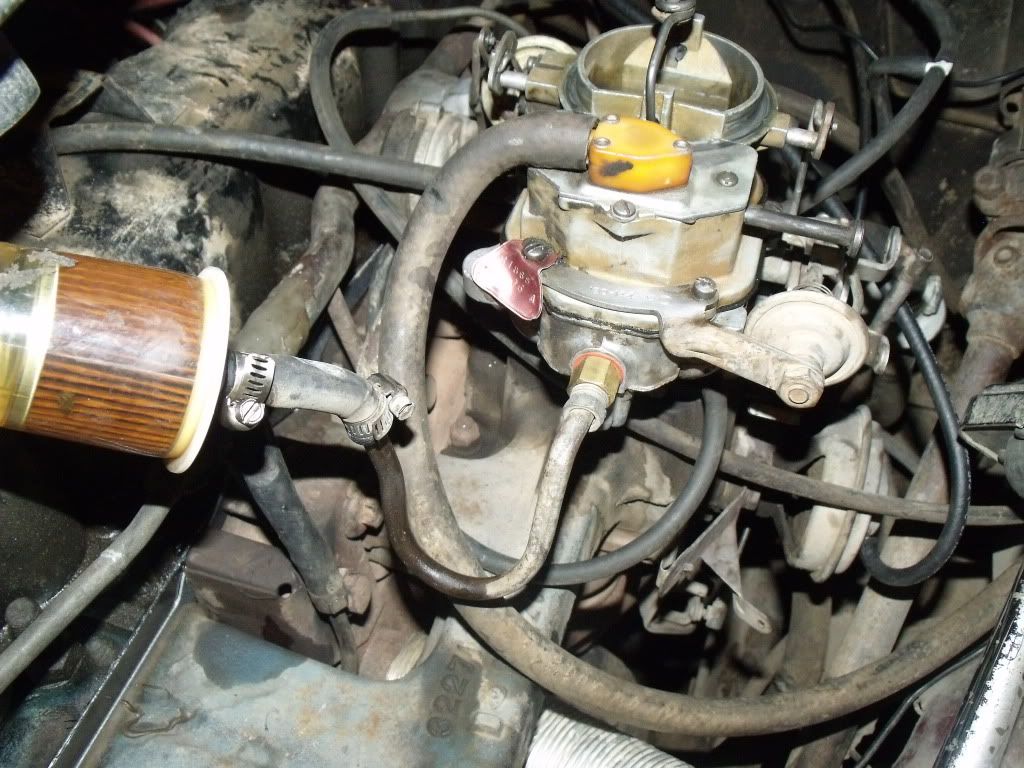

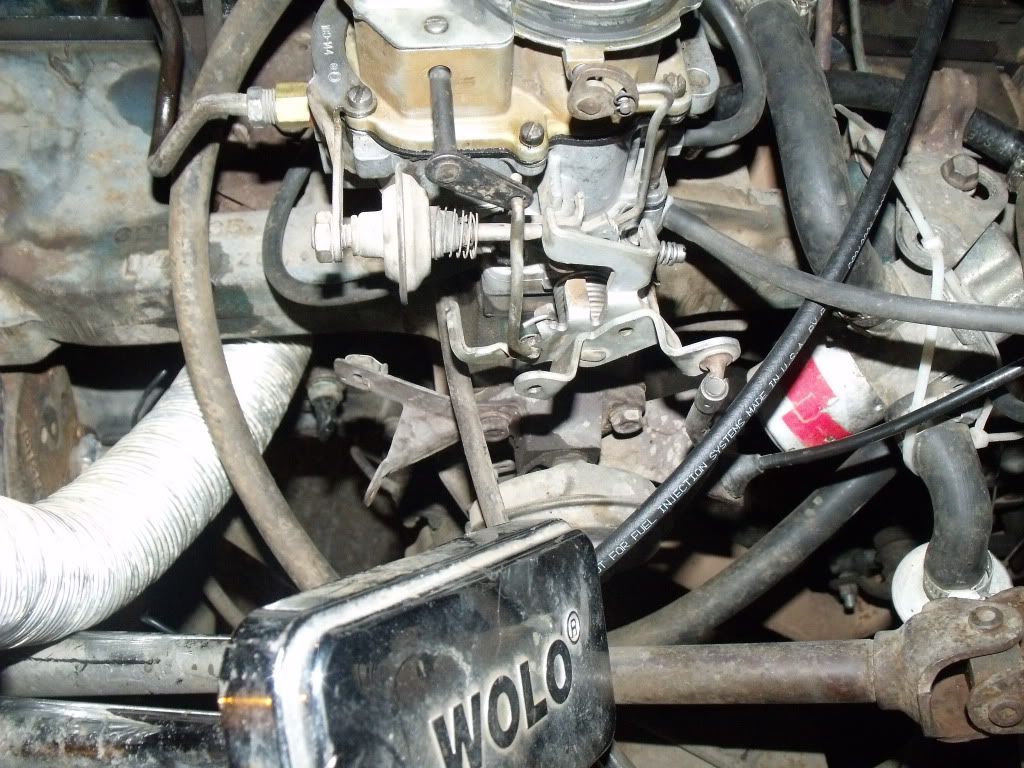

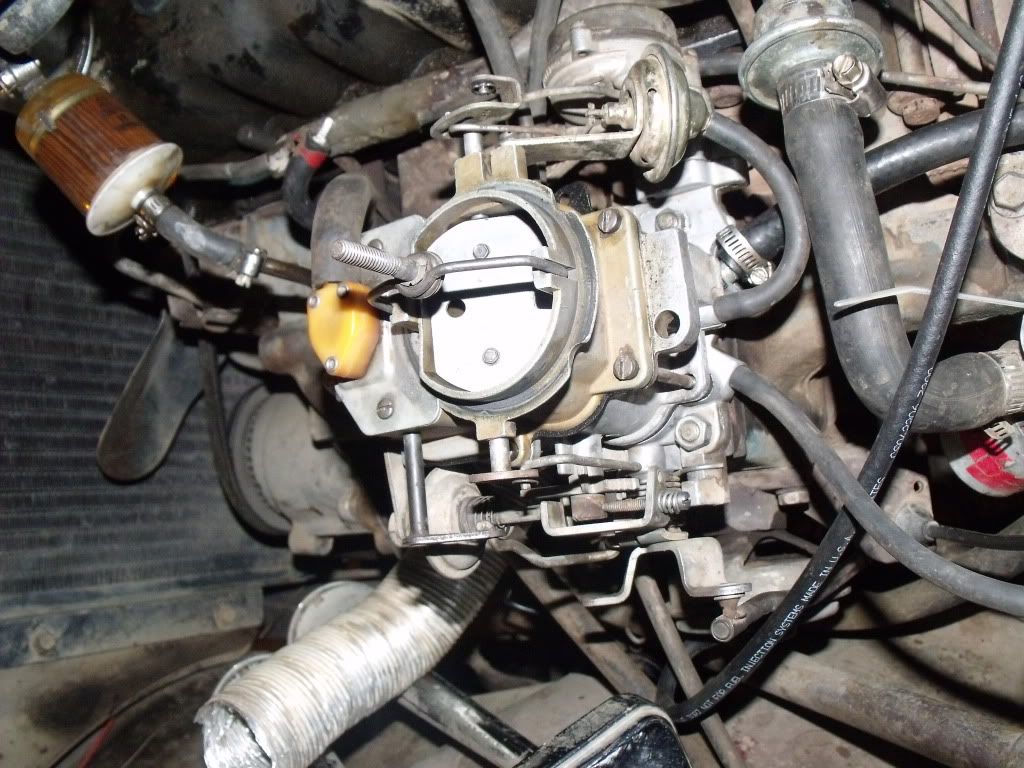

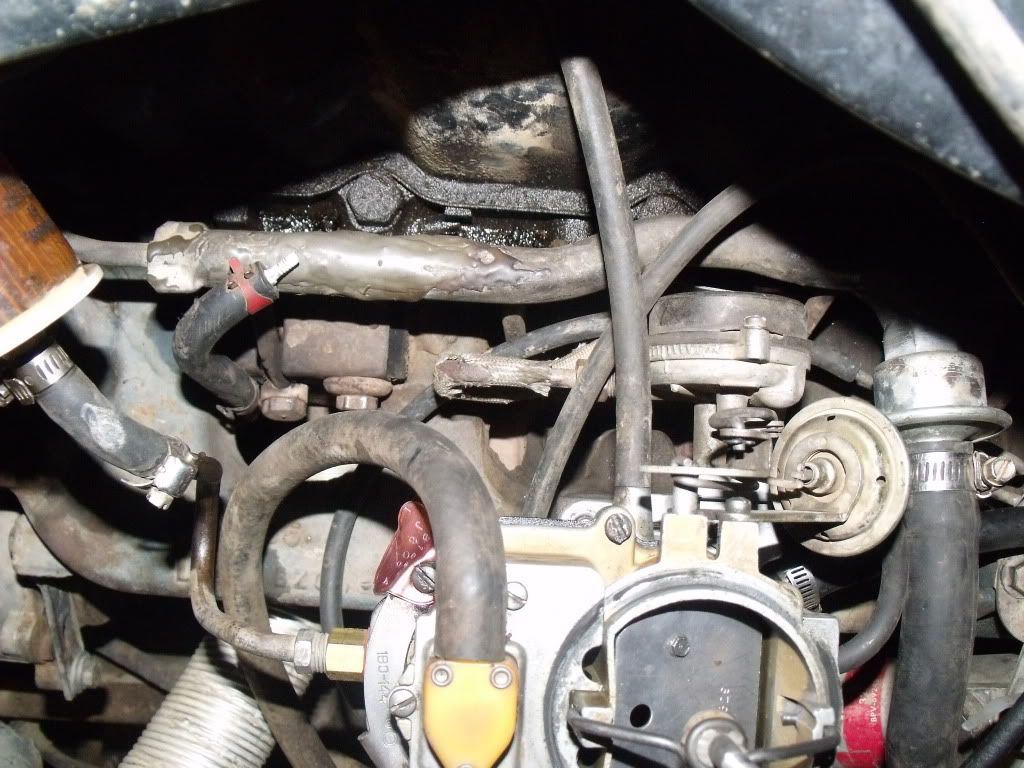

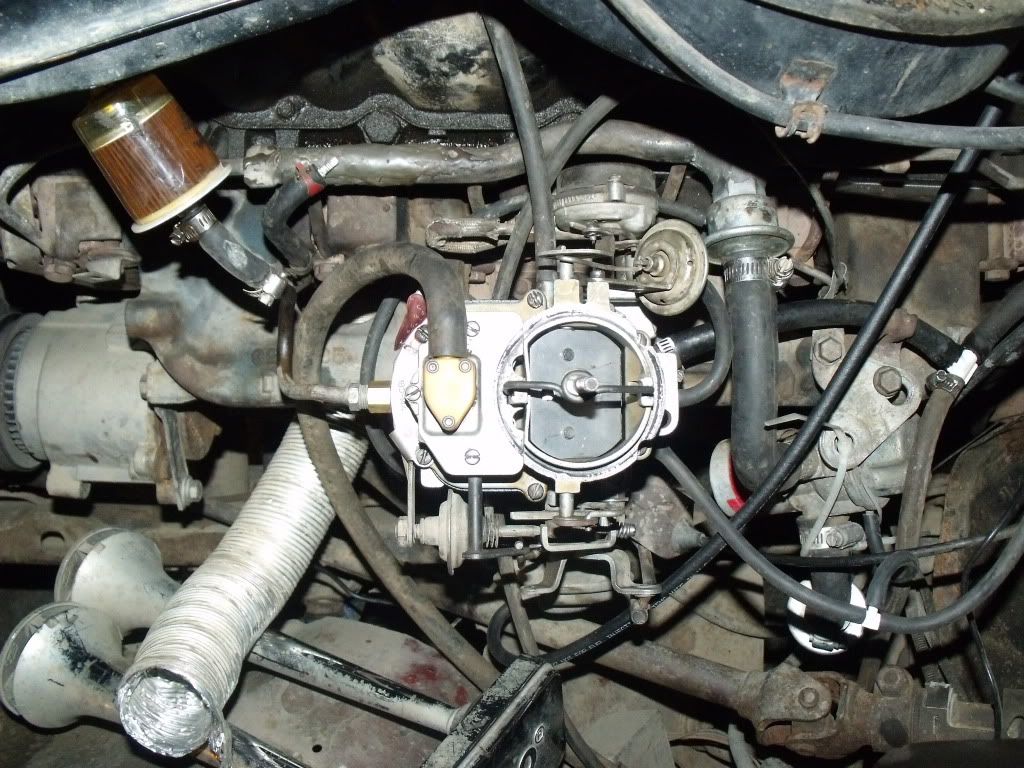

More carb pics of mine. Sorry about the dirtyness of the engine and the incorrect fuel filter.

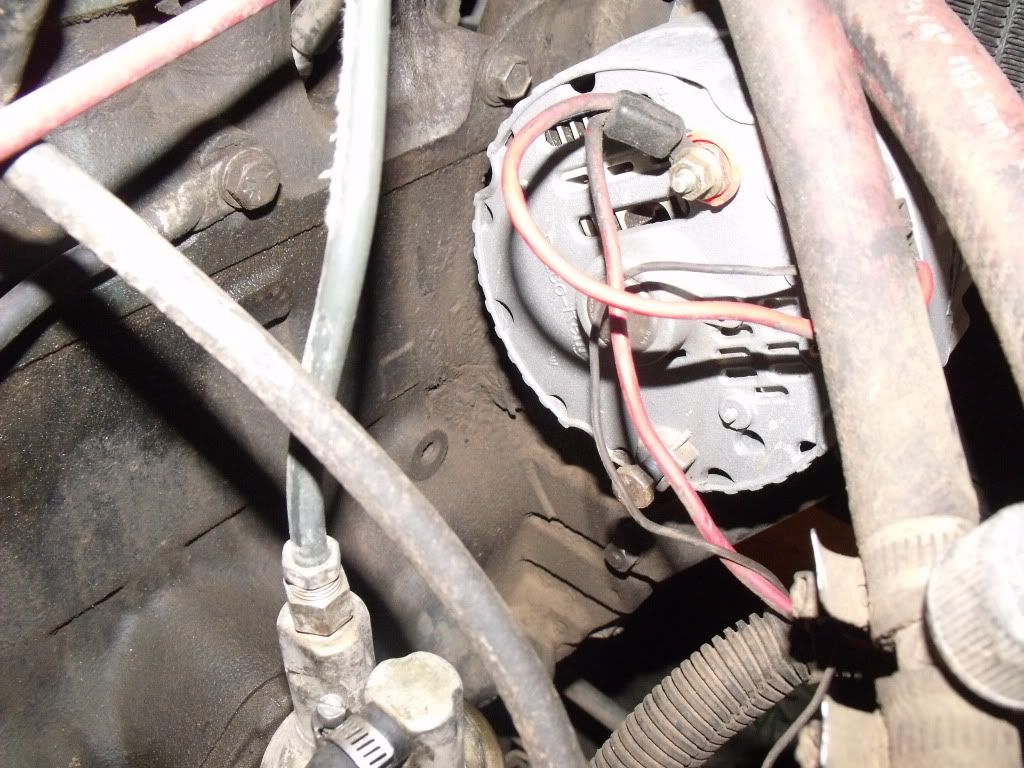

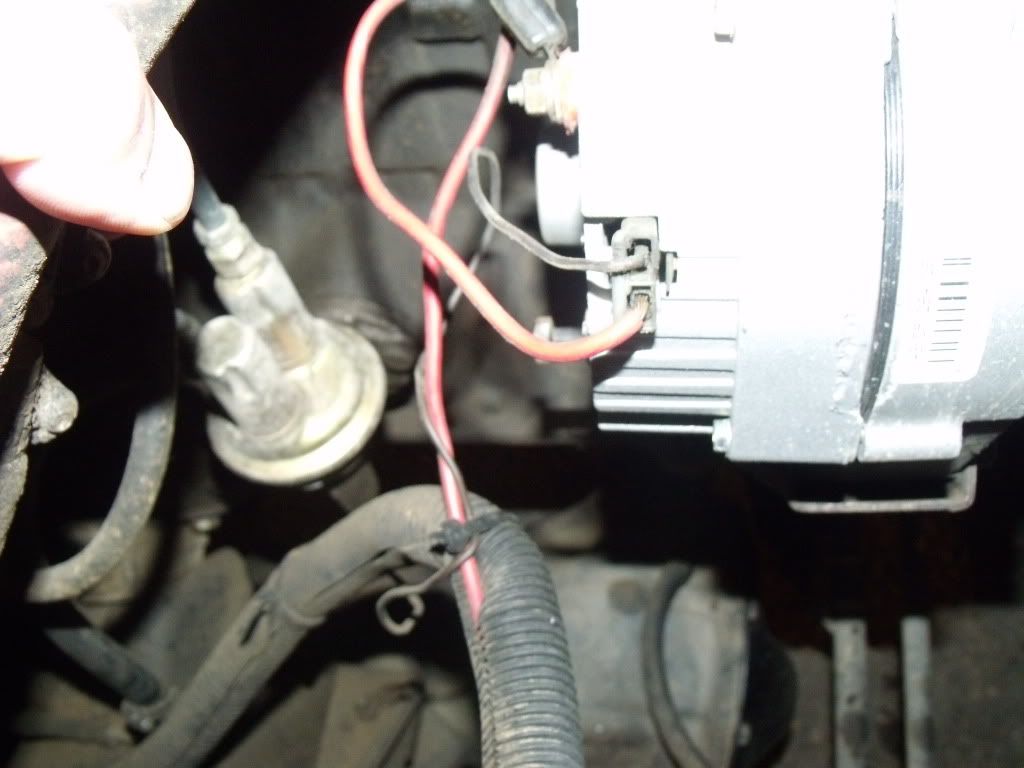

Pic of the back of the alternator.
__________________
'79 CJ5, 258 c.i., Carter BBD, T-150, Dana 20, Dana 30, AMC 20, 33x12.50x15, 3" body lift, taking it back to stock, then tearing it apart and putting it back together again!
stodg73 is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 10:55 PM   #9
spottedfrog
Registered User
1979 CJ5

Join Date: Sep 2010
Location: Grand Junction, Colorado
Posts: 833
Quote:
Originally Posted by stodg73 View Post

In the pic, you can see that the choke connects into the exhaust manifold for heat to operate the choke.

Your second pic, the pcv is on the correct position.


Third pic of yours, the top vent goes to the charcoal cannister for venting the fumes from the carburetor.


On the solenoid on the firewall, those connect to the ignition switch and power the starter/ignition circuit.

More carb pics of mine. Sorry about the dirtyness of the engine and the incorrect fuel filter.




Pic of the back of the alternator.
Very very help full. Any more pix of the alternator?
spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 10:58 PM   #10
stodg73
Registered User
1979 CJ5

Join Date: Sep 2011
Location: , CO
Posts: 135


I have only 3 wires on the alternator, and you can see them in this pic.
__________________
'79 CJ5, 258 c.i., Carter BBD, T-150, Dana 20, Dana 30, AMC 20, 33x12.50x15, 3" body lift, taking it back to stock, then tearing it apart and putting it back together again!
stodg73 is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 11:09 PM   #11
spottedfrog
Registered User
1979 CJ5

Join Date: Sep 2010
Location: Grand Junction, Colorado
Posts: 833
Where on the exhaust manifold does the choke terminate? what kind of fitting is it?
Thanks
spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 11:11 PM   #12
stodg73
Registered User
1979 CJ5

Join Date: Sep 2011
Location: , CO
Posts: 135
It is a zee shape and it goes into a hole in the top of the OEM exhaust manifold. I will see if I can get a better picture soon.
__________________
'79 CJ5, 258 c.i., Carter BBD, T-150, Dana 20, Dana 30, AMC 20, 33x12.50x15, 3" body lift, taking it back to stock, then tearing it apart and putting it back together again!
stodg73 is offline   Reply With Quote Quick reply to this message
Unread 09-17-2011, 11:27 PM   #13
spottedfrog
Registered User
1979 CJ5

Join Date: Sep 2010
Location: Grand Junction, Colorado
Posts: 833
Quote:
Originally Posted by stodg73 View Post
It is a zee shape and it goes into a hole in the top of the OEM exhaust manifold. I will see if I can get a better picture soon.
Thank you so much. It looks like that wire doesn't go to the Alternator. Nay idea what it goes to?
spottedfrog is offline   Reply With Quote Quick reply to this message
Unread 09-18-2011, 07:04 AM   #14
stodg73
Registered User
1979 CJ5

Join Date: Sep 2011
Location: , CO
Posts: 135
Not sure where the wire goes. Where does it start from?



In this pic, you can see where the choke heater tube goes.
__________________
'79 CJ5, 258 c.i., Carter BBD, T-150, Dana 20, Dana 30, AMC 20, 33x12.50x15, 3" body lift, taking it back to stock, then tearing it apart and putting it back together again!
stodg73 is offline   Reply With Quote Quick reply to this message
Unread 09-18-2011, 10:42 AM   #15
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 13,230


Quote:
Originally Posted by spottedfrog View Post
Thank you so much. It looks like that wire doesn't go to the Alternator. Nay idea what it goes to?
Quote:
Originally Posted by spottedfrog View Post
One other question the wire by the alternator, where does that conect? I'm thinking it connects on the alternator.
Air conditioner compressor if you have one.

Seriously, they put it in all the harnesses even if you don't have AC
