Bolt holding transmission in place????

I have an '86 CJ7 and when I bought it the PO said that this nut had fallen off and I should probably replace it soon with a slip resistant nut because he said it just fell off while driving his. Its a big bolt that goes through the transmission and then down through a cross member hold the transmission in place...without it, its hard to slide it into gear sometimes.

Can anyone tell me what size this nut is and if i can get it at just a random hardware store. ~Thanks

Here's a picture of the bolt.
http://i60.photobucket.com/albums/h2...y/IMG_0208.jpg


2004 WJ freedom edition - DD
Throttle body spacer, K&N air filter, rusty's intake system, 2" spacer, 31"s, and all kinds of Thule crap!
1986 CJ7
work in progress!
TophCasey is offline
Sponsored Links
Advertisement

post #2 of 11 Old 10-16-2009, 02:56 PM
JonB-CJ7
Registered User
1984 CJ7

Join Date: Jul 2008
Location: Alexandria, VA
Posts: 91
This is the bolt that is sticking down:

Transmission Stabilizer Stud and Other Jeep Parts and Jeep Accessories by 4 Wheel Drive Hardware

The threads on this stud are 3/8 by 24 thread - easily found at a hardware store

Jon B
1984 CJ-7, Howell fuel injection, D-44 front 4:11 Detroit Electrac,D-44 rear Detroit 4:11, T-19 trans, D-300/4:1 Lo-max gears, 33x12.5 SSRs, Full cage, Warn XDi 9000

2006 Jeep Rubicon (stock, but not for long)
JonB-CJ7 is offline
post #3 of 11 Old 10-16-2009, 03:13 PM
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile
Posts: 5,145
I use a large washer on either side of the pan as well. It helps strengthen it. Also check the condition of the bushings and top nut/washer combo.

Ed
1975 CJ-6 1983 CJ-8
1986 CJ-7 Laredo 1986 TJ-7 Trail Jeep
2003 Inca Gold TJ Rubicon
only in a jeep cj is offline
post #4 of 11 Old 10-17-2009, 04:31 PM
Pumpman
Registered User
1986 CJ7

Join Date: Sep 2008
Location: Burns, TN
Posts: 112
Also, this bolt doesn't hold the tranny in place. It is my understanding that it helps keep the tranny lined up under high torque conditions like hard acceleration, off-roading, etc. It does need to be anchored down so you don't accidentally tear up something else, but the actual bolts holding the tranny in place are the two bolts placed close together in the center of the skid plate.

Joe the pumpman

- Once you've changed every single wear part, it really runs pretty doggone good!
Pumpman is offline
post #5 of 11 Old 10-17-2009, 04:37 PM
Kdozier
Registered User
1982 CJ7

Join Date: Jan 2009
Location: Houston
Posts: 109
anybody have a pic of it installed. I took it apart a while back I that is one thing that is not clear in my pics of teardown.
Kdozier is offline
post #6 of 11 Old 10-17-2009, 05:23 PM
Fatman
Registered User

Fatman's Avatar
2008 CJ7

Join Date: May 2006
Location: Raleigh
Posts: 2,434

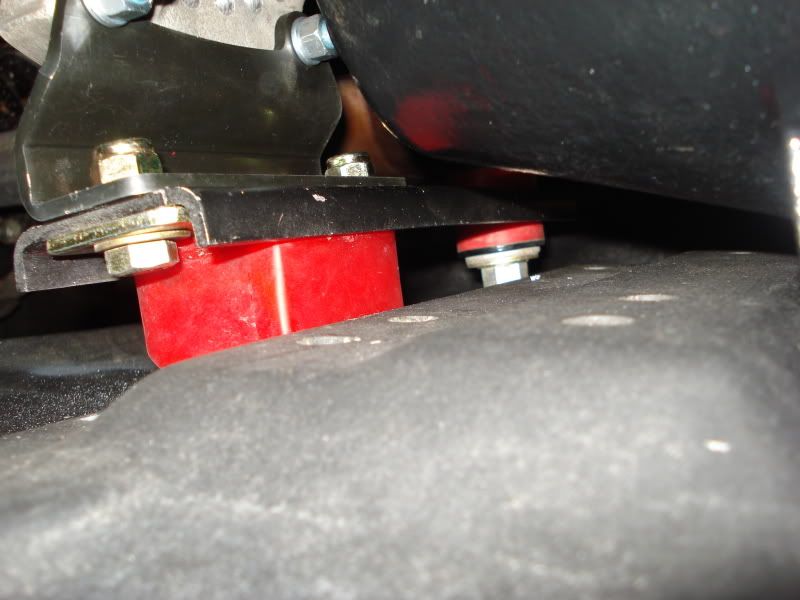

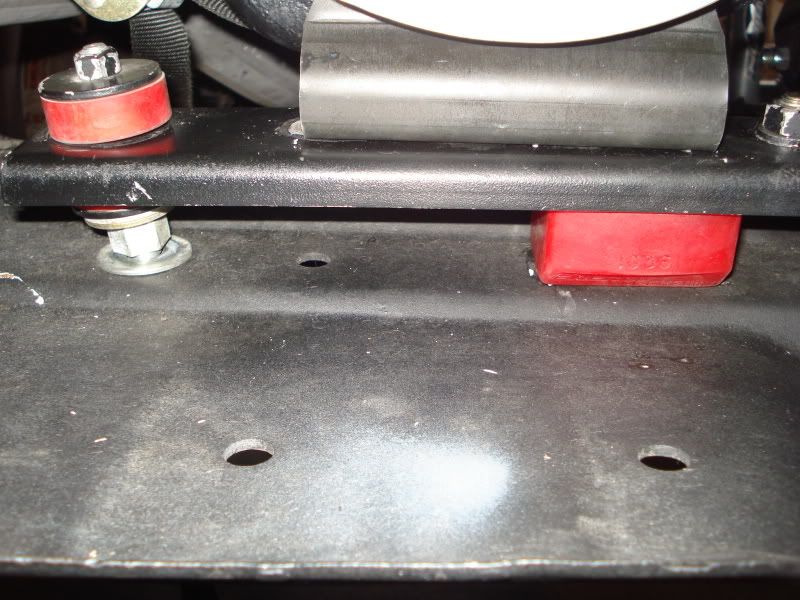

This is the basics of it.
W/O the T-case in the way:



Fatman is offline
post #7 of 11 Old 10-18-2009, 07:32 PM Thread Starter
TophCasey
Registered User

TophCasey's Avatar
1986 CJ7

Join Date: Jul 2006
Location: Alabama
Posts: 62
Ok so I got a nut with a nylon washer in it and a locking washer so that maybe it doesn't fall off again, but it doesn't seem to be tightening down all the way. It threads all the way up and then I thighten more nd it never hits a stopping point. Is it suppose to be like this or is it supposed to be tight as I can get it?

2004 WJ freedom edition - DD
Throttle body spacer, K&N air filter, rusty's intake system, 2" spacer, 31"s, and all kinds of Thule crap!
1986 CJ7
work in progress!
TophCasey is offline
post #8 of 11 Old 10-18-2009, 08:06 PM
illinicj
Registered User
1979 CJ7

Join Date: Nov 2007
Location: Lake Zurich, IL
Posts: 423
Its probably spinning the bolt. Grab it on the other side with a wrench.
illinicj is offline
post #9 of 11 Old 10-18-2009, 10:01 PM
only in a jeep cj
Registered User
1986 CJ7

Join Date: Jun 2001
Location: Mobile
Posts: 5,145
The stud should be straight up and down (not leaning as in the pic above). It should be tightened to the belly pan. Any play should be in the bushings above. IF the bottom nut is spinning, use a box end wrench to hold the stud be reaching in on top of the pan to hold it.

Ed
1975 CJ-6 1983 CJ-8
1986 CJ-7 Laredo 1986 TJ-7 Trail Jeep
2003 Inca Gold TJ Rubicon
only in a jeep cj is offline
post #10 of 11 Old 10-19-2009, 07:53 PM Thread Starter
TophCasey
Registered User

TophCasey's Avatar
1986 CJ7

Join Date: Jul 2006
Location: Alabama
Posts: 62
Ok yeah I had a wrench holding the top of the bolt and it was still spinning, but not real tight like I was about to torque it off....?

2004 WJ freedom edition - DD
Throttle body spacer, K&N air filter, rusty's intake system, 2" spacer, 31"s, and all kinds of Thule crap!
1986 CJ7
work in progress!
TophCasey is offline
post #11 of 11 Old 10-19-2009, 08:16 PM
shok47
Registered User
1983 CJ7

Join Date: May 2009
Posts: 396
I to was curious about this bolt. I took it off but never put it on since the bushings where gone and the bolt rusted. I guess I will get one of these. Any Ideas in making one??
