post #46 of 137 Old 03-27-2012, 11:05 PM
Fins
Registered User
1980 CJ7

Join Date: Dec 2008
Posts: 174
Thank you JH!

Fins is offline
Sponsored Links
Advertisement

post #47 of 137 Old 03-27-2012, 11:21 PM
jeepcliffband
Registered User
1977 CJ5

Join Date: Jan 2012
Location: Boulder
Posts: 143
Thank you sir!
jeepcliffband is offline
post #48 of 137 Old 04-08-2012, 06:38 PM
iluvcowjuice
Registered User
1979 CJ7

Join Date: May 2010
Location: Olney, MD
Posts: 514
JH, I've seen you mention the water proof relays you get out of cadillacs such as in this post, do you have anymore info on these? Year/model, amp rating?
iluvcowjuice is offline
post #49 of 137 Old 04-10-2012, 09:34 AM
kracktech
Registered User
1976 CJ5

Join Date: Apr 2012
Location: Madison
Posts: 3
Thank you JH for an excellent thread!

subscribed!!
kracktech is offline
post #50 of 137 Old 04-10-2012, 01:59 PM
TWolff5050
Registered User
1983 CJ7

Join Date: Oct 2011
Location: Tacoma
Posts: 49
Thanks JH this one is a keeper Thanks again
TWolff5050 is offline
post #51 of 137 Old 04-11-2012, 02:43 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 15,268
Don't know if anyone posted these yet but these are all NAPA parts you can get.

Got it off a van site.

Quote:
I'll add some more pictures of the MOPAR bulkhead connector terminals and their NAPA and MOPAR part numbers to this thread to get them all in one place. Credit - these pictures are from the NAPA catalog. BTW, NAPA also has multiple versions of Ford &amp; GM terminals if anyone needs them!<br /><br />These items are all located in NAPA's Product Line NAPA Wire Products

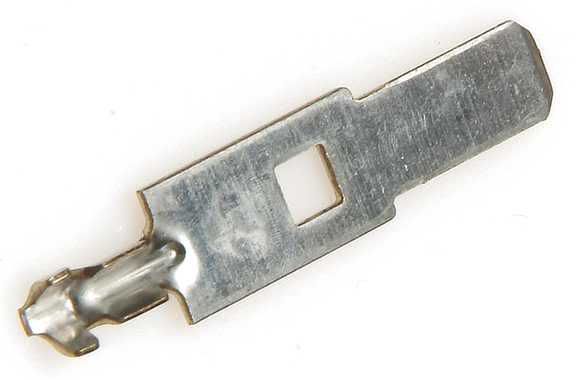

Wire Terminal, Chrysler OEM Terminal; 18 to 20 Gauge NAPA Part: NW 725167 MOPAR OEM # 3843601


Wire Terminal, Chrysler OEM Terminal; 18 to 20 Gauge NAPA Part: NW 725166 MOPAR OEM # 3843386

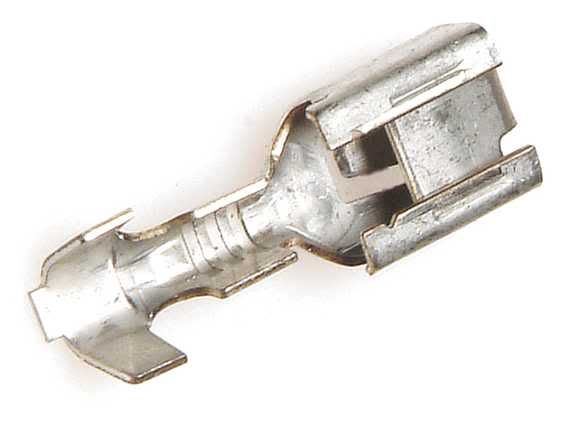

As a service to those who are wiring up some heavier current or more vibration prone connections, there is a type of quick-connect terminal I discovered a while back which is generically referred to as a "Headlight" terminal, for it's ability to withstand the higher current draw of headlights. It's notable feature is the addition of a wide, flat spring tab inside the female terminal's contact area which adds additional force to the male terminal to keep it firmly in good contact. BTW, these are GM terminals: Wire Terminal, GM Metri-Pack 630 OEM Series; 14 to 16 gauge NAPA Part: NW 725194


Wire Terminal, GM Metri-Pack 480 Series; 14 to 16 Gauge NAPA Part: NW 725193

These are the GM bulkhead connector terminals. I've been told they might fit in a MOPAR, but your mileage may vary!

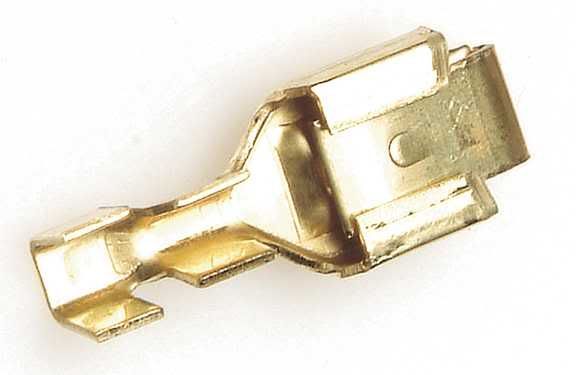

Wire Terminal, GM56 Series OEM Terminal; 14 to 16 Gauge NAPA Part: NW 725147


Wire Terminal, GM56 Series OEM Terminal; 14 to 16 Gauge NAPA Part: NW 725145


And here's several especially useful wiring related items, which may help keep the barn from burning down:
Fuse Tap, Fuse Taps For AGC Round Glass Fuses NAPA Part: NW 785131


Battery Cable End Tap NAPA Part: NW 785124

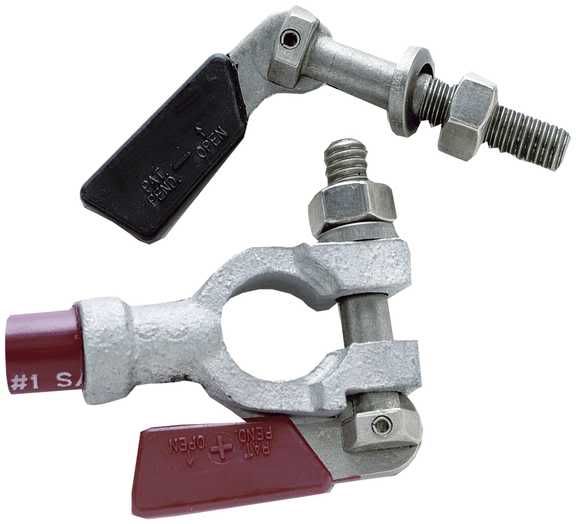

Battery Terminal Bolt - Quick Clamp NAPA Part: NW 785123


Hope this helps out someone. It sure took a while to put together.
And remember, Rich found the terminal numbers which made this all possible. Hats off to you Rich!!<br /><br />Clear skies!</div>
John Strenk is online now
post #52 of 137 Old 04-12-2012, 08:29 AM
STResort
Registered User
1984 CJ7

Join Date: Mar 2012
Location: Sugar Land
Posts: 65
Thank you for the information
STResort is offline
post #53 of 137 Old 04-12-2012, 10:29 AM
LostJeeper
Registered User
1999 TJ Wrangler

Join Date: Feb 2009
Location: Clackamas
Posts: 471
Glad this came along but this still my weakness on my jeep....

Armed Forces Jeeps
MT WAVE SAR
KF7IRO
LostJeeper is offline
post #54 of 137 Old 04-16-2012, 07:27 PM
crunk7
Registered User
1987 YJ Wrangler

Join Date: Feb 2012
Location: lenoir
Posts: 23
JH, this is the most awesome thread I have read!! Thank you sir from the electronically challenged.
crunk7 is offline
post #55 of 137 Old 04-17-2012, 11:13 AM
FluffyThunder
Registered User

Join Date: Feb 2012
Location: Casper
Posts: 16
Thanks for all the info I stole it and posted away at a different forum I belong to your info shall help MILLIONS!
FluffyThunder is offline
post #56 of 137 Old 04-18-2012, 12:45 PM
mjcother
Registered User
2000 TJ Wrangler

Join Date: Nov 2008
Location: Clearwater, FL
Posts: 108
Place that I source round connectors from, and mainly older Japanese motorcycle stuff, but they have other things also, like ratcheting crimpers and accessory die sets for them...

http://www.vintageconnections.com/
mjcother is offline
post #57 of 137 Old 04-19-2012, 10:44 AM
yeaitsalex
Registered User

Join Date: Mar 2012
Location: kensington
Posts: 5
very helpful
yeaitsalex is offline
post #58 of 137 Old 05-05-2012, 08:45 AM
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 628
Hello,

IMHO, this thread must be in the STICKIES !!!

Thank you JeepHammer !

Regards,

Gilles

FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
post #59 of 137 Old 05-09-2012, 05:49 AM
davidbar
Registered User
1983 CJ7

Join Date: Aug 2011
Location: Frisco
Posts: 37
Subscribed....thanks, JH.
davidbar is offline
post #60 of 137 Old 05-09-2012, 05:25 PM
Sundowner
Registered User
2003 TJ Wrangler

Join Date: May 2009
Location: The Republic of Dave
Posts: 6,408
Excellent thread. This will be of immeasurable assistance when assembling my off-road electrical kit.

If it's worth doing, then it's worth overdoing.

The Republic of Dave: Bringing you the finest in simian testing supplies.

The build, the gear, and the mileage: The Wasteland Survival Guide
Sundowner is offline
