AMC 20 truss

Hi all. Looking to start planning an axle housing truss for my 20 and am wondering if there is a need to attach the truss on to the differential housing. I have things figured out on the outboard attachment, just if it is necessary for the center. Thanks in advance.


1978 CJ5, let the mods begin.
Carmell CJ is offline
Sponsored Links
Advertisement

post #2 of 24 Old 01-23-2007, 09:20 AM
molsenice
Registered User
1964 CJ5

Join Date: Dec 2006
Location: Glens Falls, NY
Posts: 1,284
yesterday and for the last few days I looked into trussing the AMC 20 I have. By all accounts, most trusses do not attach to the housing since the tube are welded to the housing - top, bottom front and back, not completely around as this would lead to cracks since the casting flexes differently than the steel in the tubes. There is one I saw that attached to the Differential cover and to the tubes via U bolts.

my AMC 20 IMO was too rusted to put major effort into trussing it, also, I had a D44 available, so I went with it
molsenice is offline
post #3 of 24 Old 01-23-2007, 10:35 AM
bdmonist
WTF is that?

bdmonist's Avatar
1984 CJ7

Join Date: May 2006
Location: Brandon, MS
Posts: 1,441
Does anyone have some pictures of an AMC 20 trussed they could post for reference? Thanks!

1984 CJ 7, SBC 350TBI, 700R4, D 300, AMC 20, D30, 35" Mickeys, 3.54 Gears, 4" susp. Lift, 2" body lift.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

In Progress - 4.56 gears, Aussie Rear Locker, Moser 1 Piece Axles
Coming Soon - CV Shafts, Welded Tubes, trusses
bdmonist is offline
post #4 of 24 Old 01-23-2007, 11:43 AM
Later_THANKS
Registered User

Later_THANKS's Avatar

Join Date: Jun 2003
Location: llllll, CA
Posts: 488
Email me at Schretter.works@gmail.com and I will send you a picture.

Bascially I bent a pipe and welded it to the tubes.

My 350HP engine was twisting my tubes on my axles and causing my u-joints to go bad.

Basically make a bar about (guessing, since I do not have the measures with me) 28" long, bend it to about 30 degress, cut a 65 degress on the tube and weld the he ll out of it.
Later_THANKS is offline
post #5 of 24 Old 01-23-2007, 12:04 PM
jeepin in maine
Registered User

Join Date: Dec 2006
Location: maine
Posts: 162
jeepin in maine is offline
post #6 of 24 Old 01-23-2007, 06:41 PM Thread Starter
Carmell CJ
Registered User

Carmell CJ's Avatar
1978 CJ5

Join Date: Nov 2006
Location: Beaumont, CA
Posts: 218
Thanks guys for the input, much appreciated.

1978 CJ5, let the mods begin.
Carmell CJ is offline
post #7 of 24 Old 01-23-2007, 07:02 PM
GPER
Registered User
1979 CJ7

Join Date: Oct 2005
Location: Dayton, Ohio
Posts: 1,826

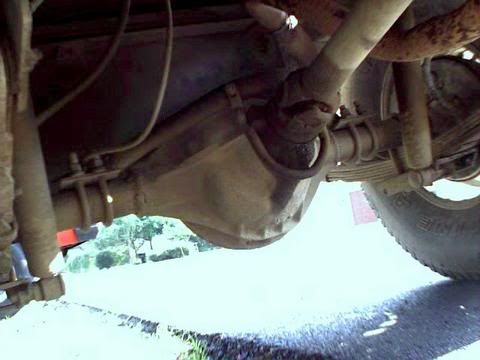

I didn't want to heat my tubes that much so I made this one that uses U bolts.
GPER is offline
post #8 of 24 Old 01-23-2007, 07:25 PM
bdmonist
WTF is that?

bdmonist's Avatar
1984 CJ7

Join Date: May 2006
Location: Brandon, MS
Posts: 1,441
Quote:
Originally Posted by jeepin in maine
Is that just 1/4 inch plate all the way around??? If so, that doesn't look too difficult

1984 CJ 7, SBC 350TBI, 700R4, D 300, AMC 20, D30, 35" Mickeys, 3.54 Gears, 4" susp. Lift, 2" body lift.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

In Progress - 4.56 gears, Aussie Rear Locker, Moser 1 Piece Axles
Coming Soon - CV Shafts, Welded Tubes, trusses
bdmonist is offline
post #9 of 24 Old 01-23-2007, 08:19 PM
gumby
Registered User

gumby's Avatar

Join Date: Nov 2002
Location: I am at your girlfriends house
Posts: 463
welded mine amc 20 1.5 inch tube 3-4 inchs from each end of the pumpkin
bullet proof

1984 CJ-7 offroad special loves to get dirty and play rough. unlike the girls I meet
258 rebuilt with torquer cam/ weber 32/36 carb, HEI ignition ,headers 4 in lift AMC 20 detroit rear locked and trussed / tru trax front 4:56 Gears ,solid axles on 35's

"Two roads diverged in a wood and I - I took the one less traveled by, and that has made all the difference."-
Robert Frost
gumby is offline
post #10 of 24 Old 01-23-2007, 09:04 PM Thread Starter
Carmell CJ
Registered User

Carmell CJ's Avatar
1978 CJ5

Join Date: Nov 2006
Location: Beaumont, CA
Posts: 218
With an SOA setup, is there any reason why you couldnt make a plate with the same footprint as the u-bolt plate for the springs, then span a piece of tubing from one to the other and weld it to the plates. That way it could be removed if necessary and you wouldnt have to weld on to the axle tubes ?

1978 CJ5, let the mods begin.
Carmell CJ is offline
post #11 of 24 Old 01-23-2007, 09:14 PM
bdmonist
WTF is that?

bdmonist's Avatar
1984 CJ7

Join Date: May 2006
Location: Brandon, MS
Posts: 1,441
Quote:
Originally Posted by Carmell CJ
With an SOA setup, is there any reason why you couldnt make a plate with the same footprint as the u-bolt plate for the springs, then span a piece of tubing from one to the other and weld it to the plates. That way it could be removed if necessary and you wouldnt have to weld on to the axle tubes ?
I think the setup would work, but I'm not sure how much that would keep your axles from twisting since you have that long span of tubing, if that's the issue. I'm new to the whole truss thing so take that with a grain of salt, but from an engineering standpoint, the longer the span of the truss, the less it will reduce twisting.
EDIT - You could add two more plates on each side of the pumpkin as well that could be removed, that would certainly help with twisting.

The pic posted above with the solid plate welded along the axle, with another 1/4" plate welded all the way around that plate to help reduce twisting seems like a good fix. But I would like to see some pics of some tubing trusses to compare. Again, I'm new to trusses, so I would like to see what has already been done!

1984 CJ 7, SBC 350TBI, 700R4, D 300, AMC 20, D30, 35" Mickeys, 3.54 Gears, 4" susp. Lift, 2" body lift.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

In Progress - 4.56 gears, Aussie Rear Locker, Moser 1 Piece Axles
Coming Soon - CV Shafts, Welded Tubes, trusses
bdmonist is offline
post #12 of 24 Old 01-23-2007, 09:34 PM Thread Starter
Carmell CJ
Registered User

Carmell CJ's Avatar
1978 CJ5

Join Date: Nov 2006
Location: Beaumont, CA
Posts: 218
I agree, the concept would not be totally effective for a twisting motion, but from the standpoint of trying to keep the tubes from bending/flexing, being further out towards the wheels would that enhance the leverage of the truss ? I thought what I would do to stop the twisting would be to weld the tubes to the housing.

1978 CJ5, let the mods begin.
Carmell CJ is offline
post #13 of 24 Old 01-23-2007, 10:06 PM
kaibab
Member

Join Date: Sep 2005
Location: Cave Creek, AZ
Posts: 122
quick question, do you guys recommend removing all interals before welding or just try and minimize heat?
kaibab is offline
post #14 of 24 Old 01-23-2007, 10:14 PM
jeepin in maine
Registered User

Join Date: Dec 2006
Location: maine
Posts: 162
Quote:
Originally Posted by bdmonist
Is that just 1/4 inch plate all the way around??? If so, that doesn't look too difficult
link to the article.i didn't build it but i'm going to copt his design.
http://www.cjoffroad.com/forums/topic.asp?TOPIC_ID=9116
jeepin in maine is offline
post #15 of 24 Old 01-24-2007, 08:58 AM
twmattox
Registered User

Join Date: Mar 2002
Location: Indianapolis
Posts: 1,324
Quote:
Originally Posted by GPER
I didn't want to heat my tubes that much so I made this one that uses U bolts.

I like this, simple yet effective. Did you make it? Any tips???
twmattox is offline
