AM / FM Stereo radio conversation to AM /FM / CB radio / wiring questions

Ok, I have looked closer and the only plug that is different (other than the CB antenna and Mike cord appears to be the power cord.

I have reviewed the wiring diagram for the 1984 CJ-7 and the only radios on the diagram are the AM / FM, and the AM / FM / Cassette radios.

Was the CB radio offered in 84?

The power cord for the AM / FM / CB has three wires, Brown with a fuse, orange, and black. The plug that plugs into the power wires only has two wires out, the orange and brown. I’m thinking the brown is power as it has a fuse and the orange might be dash lights.

The radio I have is complete with the matching transformer for the AM / FM / CB antennas, and also the mike.

So to install I need to know;

1) The power wires (orange dash lights, brown to power????)

2) Original location of the mike jack on the dash.

Pictures of the radio in the dash with the mike jack location would be great.

Wiring diagram for the AM / FM / CB wiring would be great.

Advice would be great


Attached Thumbnails
DSC_0805.JPG   DSC_0806.JPG   Radio wire.jpg

Glenn R. Lever
Rochester, New York 14617-2012
My Web Site http://www.lever-family-racing.com

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/
GlennLever is offline
Sponsored Links
Advertisement

post #2 of 12 Old 04-01-2012, 05:27 PM Thread Starter
GlennLever
Web Wheeler

GlennLever's Avatar
1984 CJ7

Join Date: Sep 2011
Location: Rochester
Posts: 2,243
Do you have an AM / FM / CB radio in your CJ?

Can you post a picture of the dash showing the mike and where it plugs in?

Glenn R. Lever
Rochester, New York 14617-2012
My Web Site http://www.lever-family-racing.com

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/
GlennLever is offline
post #3 of 12 Old 04-02-2012, 04:39 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,395
The photos below are of the CB/Radio and shows where the mike attached to the dash on the Jeep Jamboree model from the factory. Both pictures are from my 1984 Accessory Catalog.

PM me and I can send you a PDF file from the 1978 FSM that has instructions on the CB Radio control functions.




.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is offline
post #4 of 12 Old 04-02-2012, 07:26 AM Thread Starter
GlennLever
Web Wheeler

GlennLever's Avatar
1984 CJ7

Join Date: Sep 2011
Location: Rochester
Posts: 2,243
Below are posted pictures of the mike connection out of the radio. The cable from the radio appears to be a panel mount. Does anyone know where the factory put the JACK for the mike in the CJ (stock location)
Attached Thumbnails
DSC_0807.JPG   DSC_0809.JPG   DSC_0810.JPG

Glenn R. Lever
Rochester, New York 14617-2012
My Web Site http://www.lever-family-racing.com

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/
GlennLever is offline
post #5 of 12 Old 04-02-2012, 07:53 AM Thread Starter
GlennLever
Web Wheeler

GlennLever's Avatar
1984 CJ7

Join Date: Sep 2011
Location: Rochester
Posts: 2,243
For anyone following this I did get a PM that pointed me to the following link.

http://www.jeepforum.com/forum/f8/am...wiring-581998/

I am following up on it as it does not quite fit the wiring I have.

Still looking for pictures of the original mike JACK location.

Glenn R. Lever
Rochester, New York 14617-2012
My Web Site http://www.lever-family-racing.com

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/
GlennLever is offline
post #6 of 12 Old 04-02-2012, 09:36 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,395
Quote:
Originally Posted by GlennLever View Post
Still looking for pictures of the original mike JACK location.

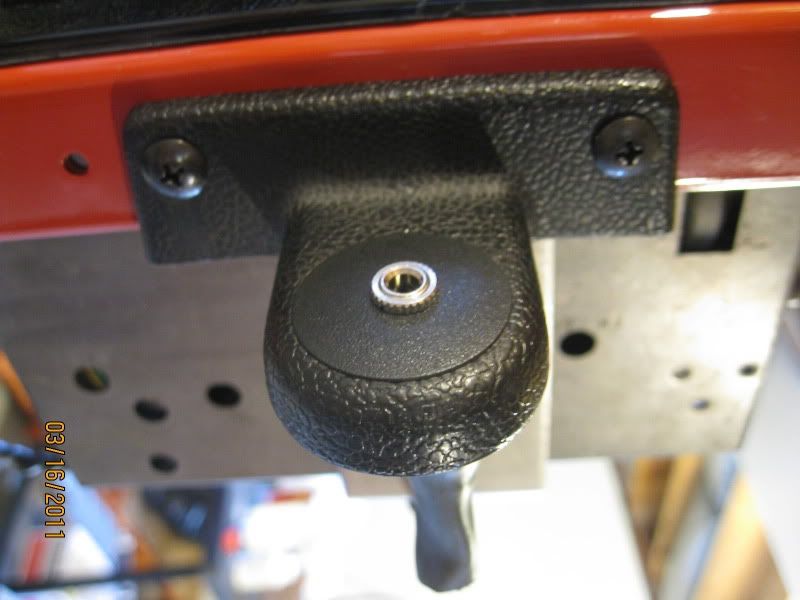

If it were me, and no one posted a picture of the mike jack location, I would find another Cig Lighter OEM bracket and add a snap in plug that could be drilled to accept the mike jack. You could mount it just below the radio as there are two threaded factory holes that will match the bracket holes.
I used one for my aux jack for an iPhone, iPod, MP3 player pictured below.




.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is offline
post #7 of 12 Old 04-02-2012, 10:13 AM Thread Starter
GlennLever
Web Wheeler

GlennLever's Avatar
1984 CJ7

Join Date: Sep 2011
Location: Rochester
Posts: 2,243
Quote:
Originally Posted by keith460 View Post
If it were me, and no one posted a picture of the mike jack location, I would find another Cig Lighter OEM bracket and add a snap in plug that could be drilled to accept the mike jack. You could mount it just below the radio as there are two threaded factory holes that will match the bracket holes.
I used one for my aux jack for an iPhone, iPod, MP3 player pictured below.



Excellent idea

Glenn R. Lever
Rochester, New York 14617-2012
My Web Site http://www.lever-family-racing.com

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/
GlennLever is offline
post #8 of 12 Old 04-02-2012, 10:27 AM
wm69
Registered User
1985 CJ7

Join Date: Jun 2003
Posts: 3,990
Quote:
Originally Posted by keith460 View Post
If it were me, and no one posted a picture of the mike jack location, I would find another Cig Lighter OEM bracket and add a snap in plug that could be drilled to accept the mike jack. You could mount it just below the radio as there are two threaded factory holes that will match the bracket holes.
I used one for my aux jack for an iPhone, iPod, MP3 player pictured below.




This is what I did to mine. Haven't gotten around to installing it yet, but it works. IIRC I had to wallow out the cig lighter bracket a bit to get a grommet that would fit the mic plug, but I did get it to fit.

85 CJ7 258, borla header, Team Rush, MC2100 ,optima batt, Warn 8274, agr super box 2 & pump, T5 w/ B&M shifter, centerforce 2, superior 1 piece axles, warn hubs 2.5 in lift, 31" BFG MT

85 CJ7 258, A/C, T176, MC2100, Team Rush, Warn XD8000i, superwinch hubs, 3in lift 31" BFG AT/KO
wm69 is offline
post #9 of 12 Old 07-08-2015, 07:41 PM
Rmccann79
Registered User
1982 CJ7

Join Date: Feb 2014
Location: Pembroke pines
Posts: 27
How did you make that bracket? Having some trouble trying to mount mine.
Rmccann79 is offline
post #10 of 12 Old 07-09-2015, 03:48 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,395
What bracket? The one that supports the radio or the OEM Cigar Lighter bracket?

.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is offline
post #11 of 12 Old 07-10-2015, 10:42 AM
Rmccann79
Registered User
1982 CJ7

Join Date: Feb 2014
Location: Pembroke pines
Posts: 27
I figured it out. Used yours as a template. The bracket for the radio was what I was referring to. What a pain to do while working under the dash though lol. It was a mission but I got it to work. I really like the idea of the cigarette bracket for the iPod hookup. If I can find one I might do the same thing.
Rmccann79 is offline
post #12 of 12 Old 07-14-2015, 08:22 PM
Rmccann79
Registered User
1982 CJ7

Join Date: Feb 2014
Location: Pembroke pines
Posts: 27
Hey Keith,
Just had one more quick question? Do you know how many watts that original radio pushes? Just trying to figure out what kind of speaker setup I need. I have the same radio you have.
