Unread 08-19-2010, 07:01 AM   #31
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,435
Quote:
Originally Posted by Exposed View Post
It was the factory clutch cable from 93 Mustang 5.0.. I did replace with a new one...
Thank you.

__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 08-19-2010, 08:00 AM   #32
CJ7ROB
Registered User
1986 CJ7

Join Date: Apr 2010
Location: Warren,NJ
Posts: 1,384
Quote:
Originally Posted by JeremyJames View Post
When I changed mine over, I stayed with the T176 tranny. With that tranny, I used a Jeep disc with a Ford pressure plate that goes with your engine application. I later changed out the T176 with a NP435 Ford tran. All my parts are from late 70-early80's applications. The starter escapes me at the moment. The last time I replaced it, we just cross-referenced the part number on the old starter to get the new one. If I remember correctly, I did not have to shorten the driveshaft with the initial swap, but later had it shortened when I installed the NP435.

Hope this helps, and good luck with the swap. I think you'll love it!
Thanks Jeremy and Exposed for the info. I am most likely going with a pressure plate from an '80 f-150 302 with 11'' clutch and a disc from an '84 GMC 1500 305 motor with 11'' clutch 1 1/8 10 spline. So for the flywheel, should I look for one from an '80 f-150 302 just as long as it is 11"? thanks
CJ7ROB is offline   Reply With Quote
Unread 08-19-2010, 09:15 AM   #33
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493, Katy, Texas
Posts: 587
If I am not mistaken, you will use the late model 5.0 flywheel because the 5.0 is externally balanced. I had to buy an early flywheel (internally balanced) because the stroker crank was internal balance. It should match whatever was on the motor side.....
__________________
****************************
Calvin
Follow My CJ5 Build
81 CJ5, Ford 331 EFI, AX15, D-300, Dana 44 (Detroit Locker)....

When there are more people voting for a living than working for a living,
We are DONE as a Country!!!!!!

Newly Acquired 2014 Grand Cherokee Summit
****************************
Exposed is offline   Reply With Quote
Unread 08-19-2010, 09:53 AM   #34
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,158

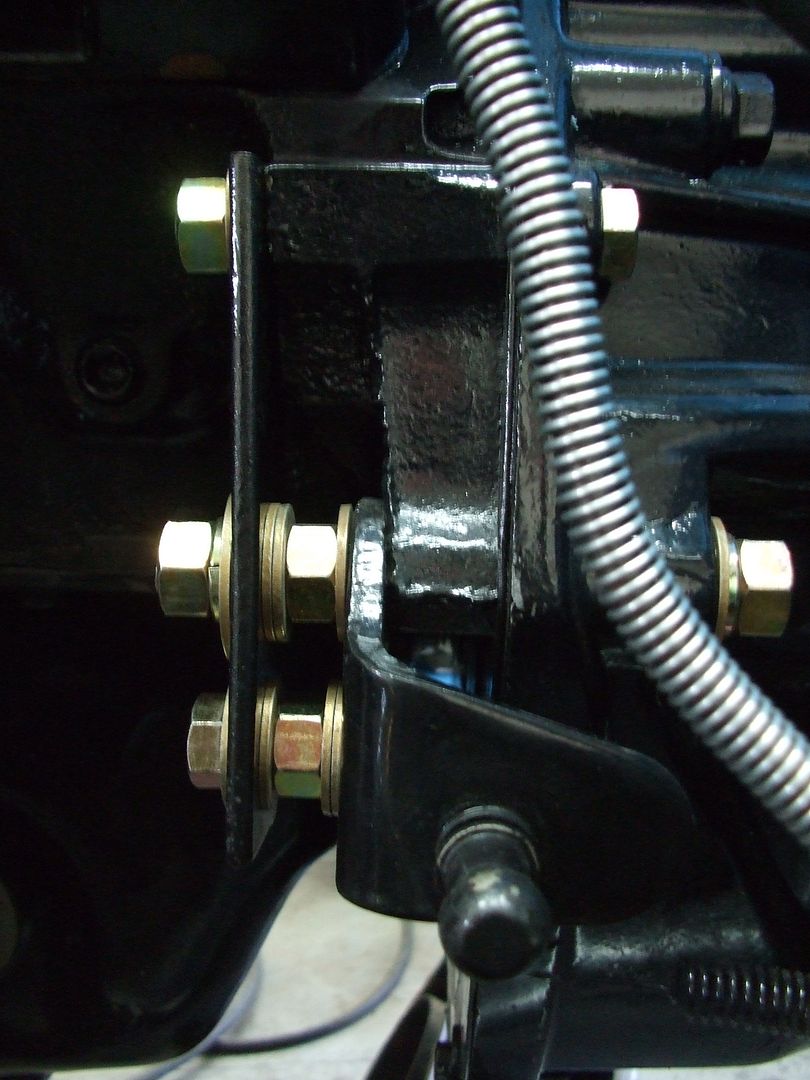

I also stuck with the mechanical linkage but used all the stock Jeep parts. The pivot that bolts to the bell housing only has the top hole directly line up so I used a piece of 1/4" bar stock to support/brace the lower hole. The top bolt is a straight pass through on the bellhousing and block. The middle bolt is threaded on the block but not the bellhousing so I used a piece of all thread through the block and a nut on the bellhousing side to secure the two together. Then I used the washer and nut to get the correct spacing to my reinforcement bar. The bottom bolt is to tie the bellcrank pivot to the reinforcement bar. Again, I used the washers and a nut to keep my correct spacing between the two. This was the cheap and easy route to be able to use the stock Jeep parts and the pivot is mounted rock solid. I could have used a piece of angle to make it stronger but I don't think it will flex. Calvin's solution is a work of art but a lot more fabing involved.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.

Last edited by Coiz; 08-19-2010 at 10:12 AM..
Coiz is offline   Reply With Quote
Unread 08-19-2010, 10:26 AM   #35
bsutton
Registered User
1983 CJ7

Join Date: Feb 2008
Location: charlotte, nc
Posts: 203
Quote:
Originally Posted by Exposed View Post
I did pretty much like Jeremy above, 331 SBF with T176 and D300....
Very nice combination....
you built a beautiful CJ!!
wish i saw that Pirate thread before i put the 302 in mine!!
bsutton is offline   Reply With Quote
Unread 08-19-2010, 10:35 AM   #36
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,435
On the subject of the clutch linkage. From what I've read some of what people haven't liked with using the factory linkage is the the flexing between the frame, body and transmission and the affects that has on the overall use of the clutch linkage. I didn't have any problems with mine when it had the 258 but now that I'm changing engines and tranny, 302 H.O. and T-18, I will need to come up with a linkage. That makes me ask a question that I need some advice on. What if the entire linkage was made so that it wasn't mounted to the frame at all? I'm not sure if there's room enough, but would it work to make a bracket that bolted to the bellhousing that didn't rely on the frame for a mounting point? It would have to be made and mounted more rigid. What's your alls thoughts?
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 08-19-2010, 10:40 AM   #37
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,158
The stock linkage was never mounted to the frame. One side is on the bellhousing/block and the other is attached to the tub. There is enough slop designed into the stock bellcrank setup to allow for the minor movements of the engine/tub.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 08-19-2010, 10:43 AM   #38
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,435
Quote:
Originally Posted by Coiz View Post
The stock linkage was never mounted to the frame. One side is on the bellhousing/block and the other is attached to the tub. There is enough slop designed into the stock bellcrank setup to allow for the minor movements of the engine/tub.
Thanks for the correction Mike.
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 08-19-2010, 10:44 AM   #39
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,158
Quote:
Originally Posted by Jim1611 View Post
Thanks for the correction Mike.
No problem but does that help you with your question?

I should be able to get mine permanently mounted this weekend. I can post up pictures if you think it will help. There is always more than one way to skin a cat.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 08-19-2010, 11:19 AM   #40
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,435
Yes. I'm more or less fishing for ideas on the other ways to skin a cat. I've thought about going the cable route and Advance, and others, sell a version of their linkage too. I'm not that far along in mine to start building it yet but I've found that for me it's easier to jump in here while other folks are on the subject than it is to start a new thread. I've also found that I can avoid lots of backtracking by reading what others have done that works. Do I ever wish I'd have joined this forum before starting my own project. Also I'm the stuborn type Mike. I know I could buy all of the mounts and such to get the motor and tranny where they belong but I want to make it all myself. I'm also going to try and have cad drawings of what I've made so they can be added to 3D CJ Files? that has been started on here.

And again I thank you and all of the other folks that have taken the time to post what you've done. I hope I can be as helpful to somebody as you have my friend.
__________________
www.crabtreetool.com (Crabtree Shackle Hangers)

My build thread
http://www.jeepforum.com/forum/f8/ji...build-1093702/
Jim1611 is offline   Reply With Quote
Unread 08-19-2010, 02:43 PM   #41
CJ7ROB
Registered User
1986 CJ7

Join Date: Apr 2010
Location: Warren,NJ
Posts: 1,384
Quote:
Originally Posted by Exposed View Post
If I am not mistaken, you will use the late model 5.0 flywheel because the 5.0 is externally balanced.
I have the flywheel from the '88 motor that I am using, if I use this flywheel, will I be able to use the '88 Mustang's pressure plate as well? If so, can I just use the CJ's clutch disc since it is 10.5in..just like the Mustang's flywheel and pressure plate? Thanks
CJ7ROB is offline   Reply With Quote
Unread 08-19-2010, 03:22 PM   #42
petey156
Registered User
1977 CJ5

Join Date: Sep 2005
Posts: 868
yes since both are 10.5'' should work fine, corrected thanks!! from what i have seen the t-5 looked like the butterfly pattern

Last edited by petey156; 08-19-2010 at 03:42 PM..
petey156 is offline   Reply With Quote
Unread 08-19-2010, 03:30 PM   #43
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493, Katy, Texas
Posts: 587
The factory Mustang T-5 Bell Housing WILL NOT fit the T176..... Been there and found out the hard way.. It uses a pattern similiar but no way bolt up. The other problem is on the Mustang bell housing, the fork pivots from the passenger side where as the truck bell pivots from drivers... That also causes the direction of the fork to be different. Normally on Jeep and truck, fork moves to rear but on the Mustang fork moves to the front of vehicle (cable pulls)...
__________________
****************************
Calvin
Follow My CJ5 Build
81 CJ5, Ford 331 EFI, AX15, D-300, Dana 44 (Detroit Locker)....

When there are more people voting for a living than working for a living,
We are DONE as a Country!!!!!!

Newly Acquired 2014 Grand Cherokee Summit
****************************
Exposed is offline   Reply With Quote
Unread 08-19-2010, 06:03 PM   #44
CJ7ROB
Registered User
1986 CJ7

Join Date: Apr 2010
Location: Warren,NJ
Posts: 1,384
Ok so just to sum this up, I can use the '83 F-150 bellhousing & fork, the speedwaymotors pilot bearing, the '88 Mustang flywheel, the '88 Mustang pressure plate, and the CJ clutch/TO bearing correct? thanks

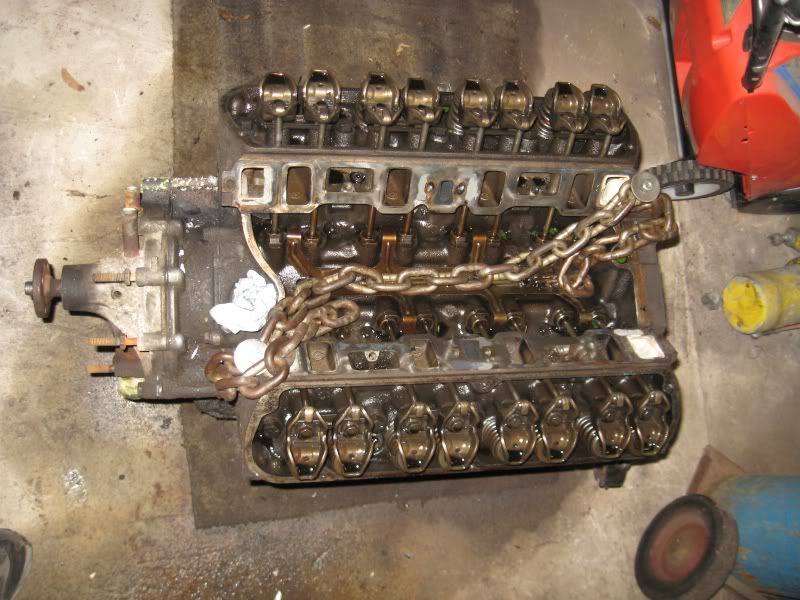

Here is the motor I have out of the '88 Stang. Yea its a little greasy, but I am changing all the seals and it will be getting freshened up. I have all the top end parts to go with it.




Here is the 347 stroker motor my friend put in, in its place.

Last edited by CJ7ROB; 08-19-2010 at 07:35 PM.. Reason: Added pic
CJ7ROB is offline   Reply With Quote
Unread 08-20-2010, 04:49 AM   #45
Exposed
Senior Member

Exposed's Avatar
1981 CJ5

Join Date: Nov 2008
Location: Katy, Texas 77493, Katy, Texas
Posts: 587
Only thing I would do different is throw out bearing. It should be for the clutch you use (Ford). Basically I used everything Ford except the clutch disc which is Jeep or GM...
If you are going to rebuilt and go completely through this motor, you might want to consider buying an unassembled stroker short block. When I figured all the block boring, crank work, block prep and then parts, it was cheaper to buy the forged stroker kit (331). I think I paid $1799 for complete setup. That was balancer to flywheel painted, freeze plugs and ready to assemble.. If need more information, let me know. I ended up selling my 5.0 short block for $200... Just a thought if you are going that route... Here is coupe shots of it...
