It's ALIVE!!! Last night was very intersesting. Found problems yet found loads of satisfaction. First of all, I was using I think it was JeepHammer's wiring schematic from some other thread on the ignition wiring...basically how to wire up the starting solenoid, battery, coil, & alternator and in the schematic, it indicated you had to use a diode or resistor on terminal #1 (the "excite" terminal) on the alternator.

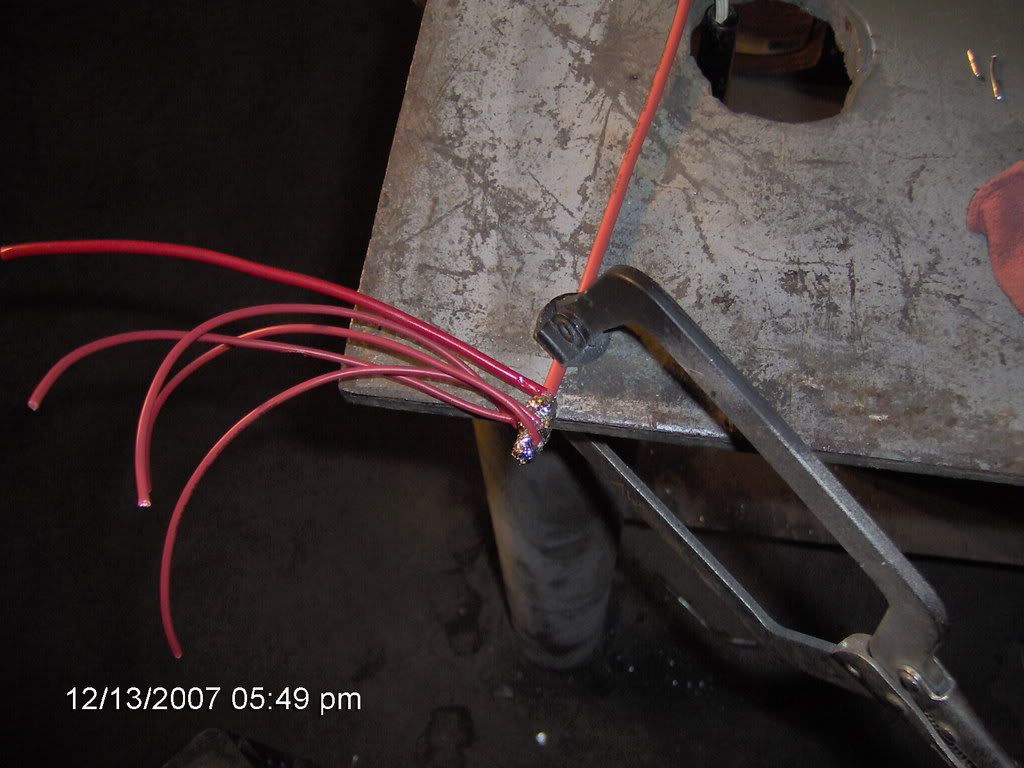

Well.....i didn't do that and I think I found out why i should. Once I got the engine running, that wire was glowin red...then I tried to shut the engine off & it kept running. Additionally, the computer fried. I had a backup computer so I unplugged the alternator & plugged in the new computer & it runs fine!

Can anybody tell me what exactly was happening there?

Also, tied into the coil cap is a wire that is supposed to go to the "capacitor jumper".....i don't know what to do with this wire...can somebody help?

Last question, the hose that goes to the advance on the distributor...where does it go?

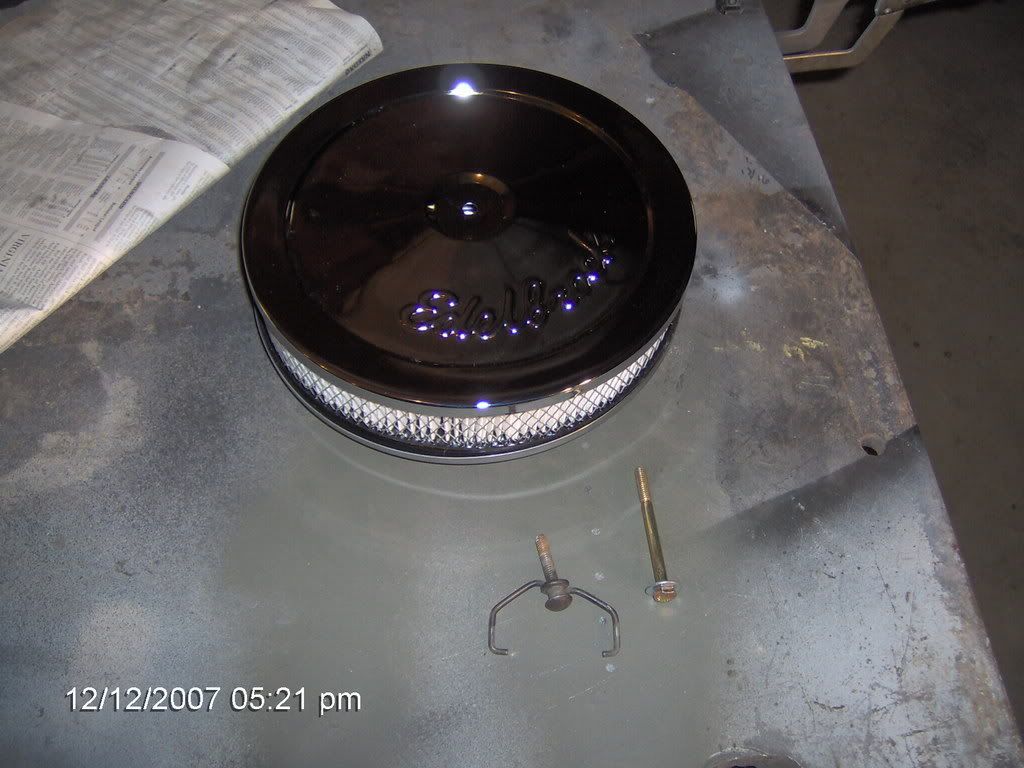

New air cleaner is goin to require a longer bolt....

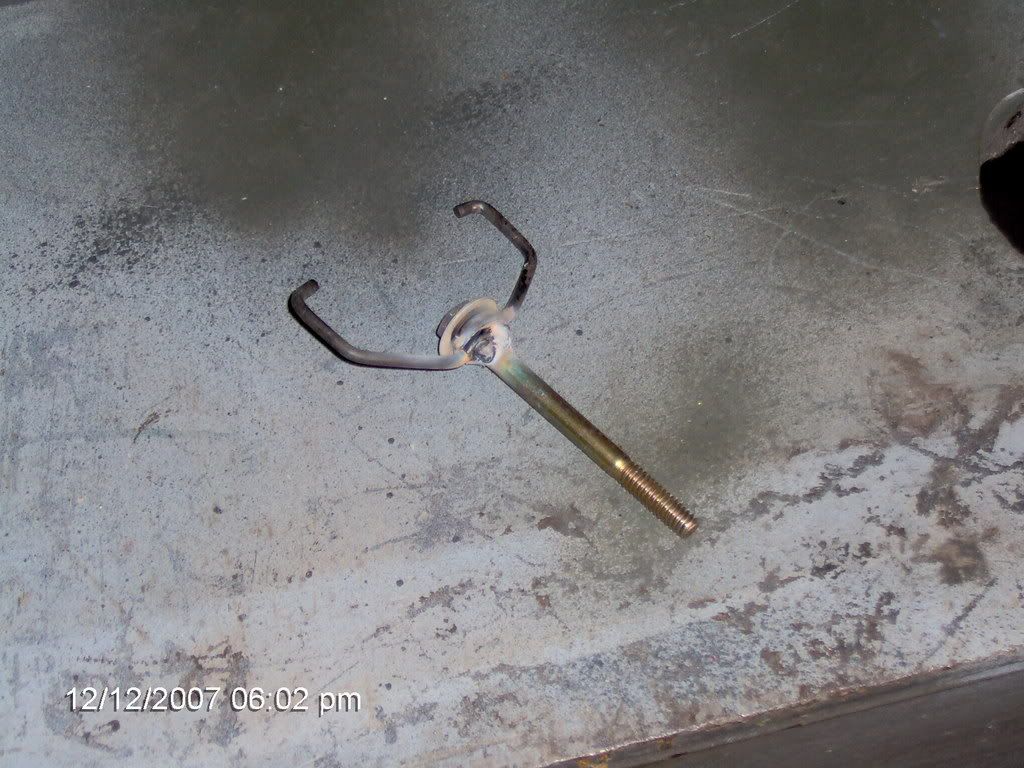

New bolt welded on:





Painless wiring is jealous of this!!!

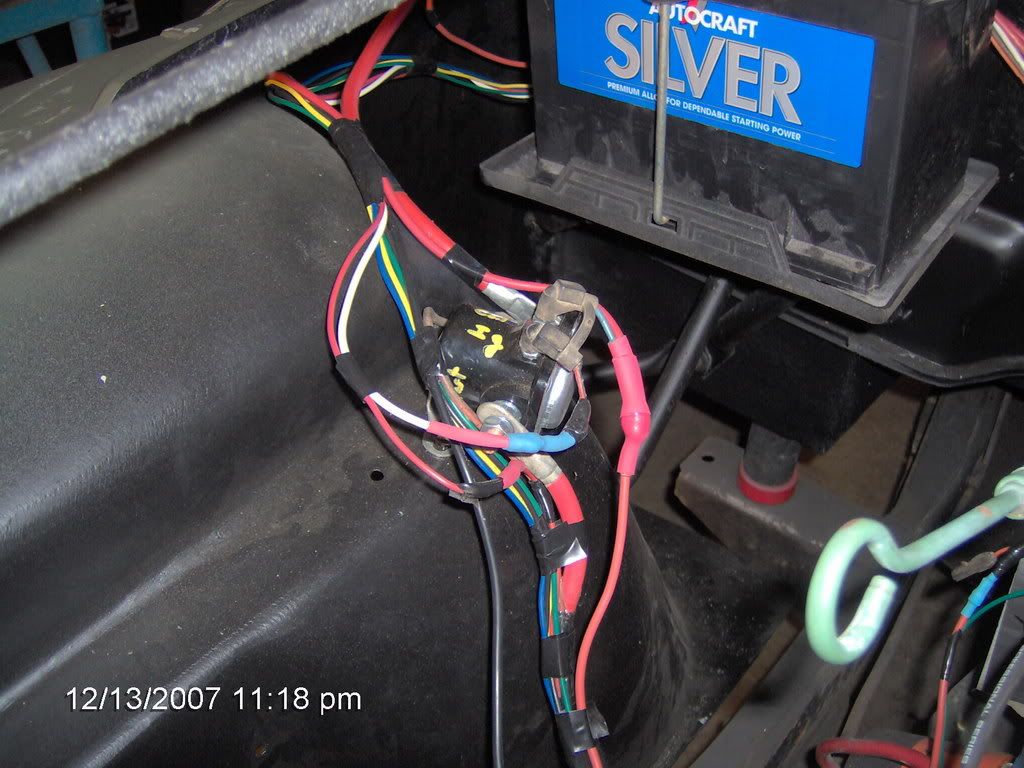

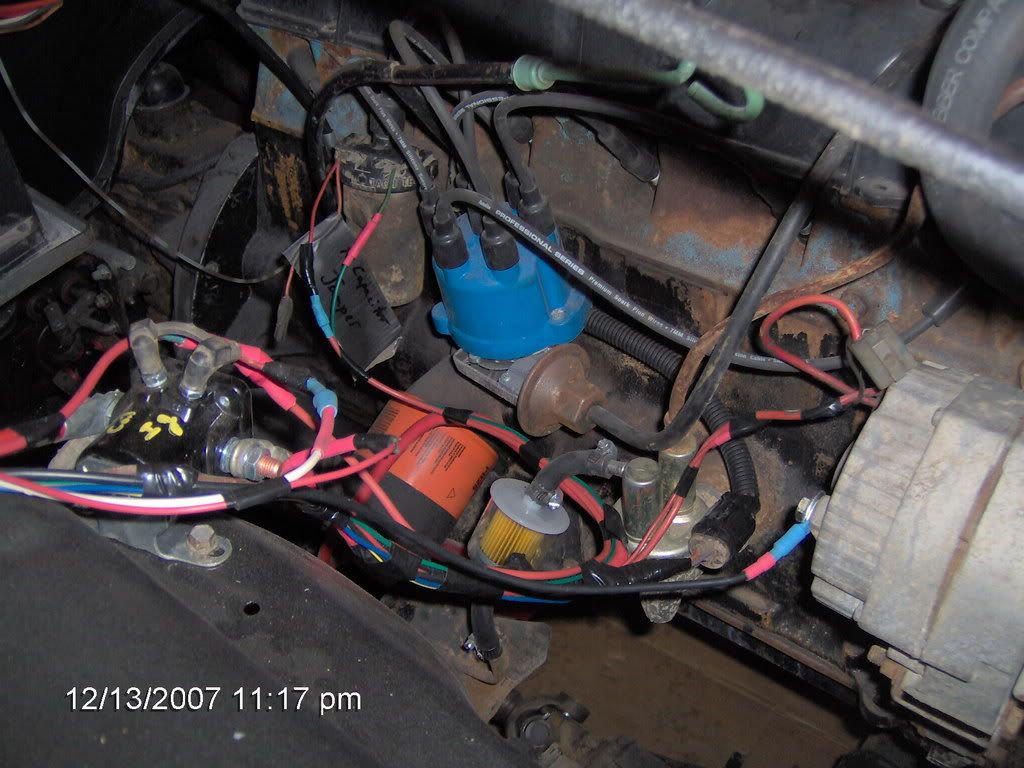

You can see that "capacitor jumper" wire in this picture...I don't know where it goes?

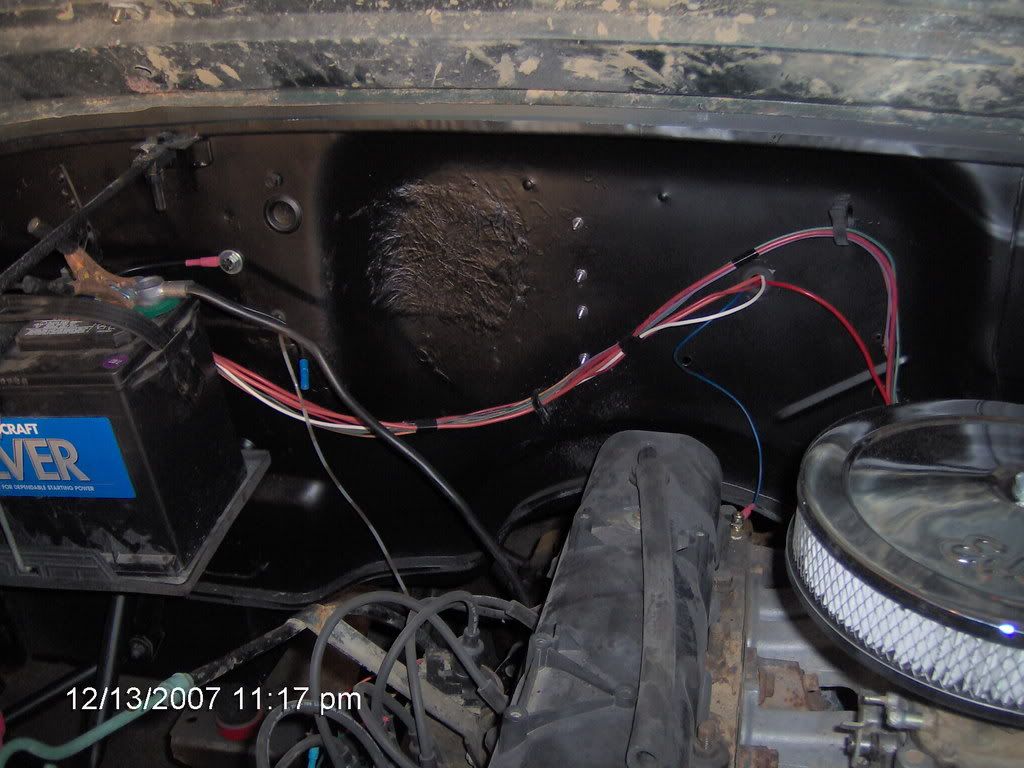

Don't have the looms installed yet, but you get the idea:

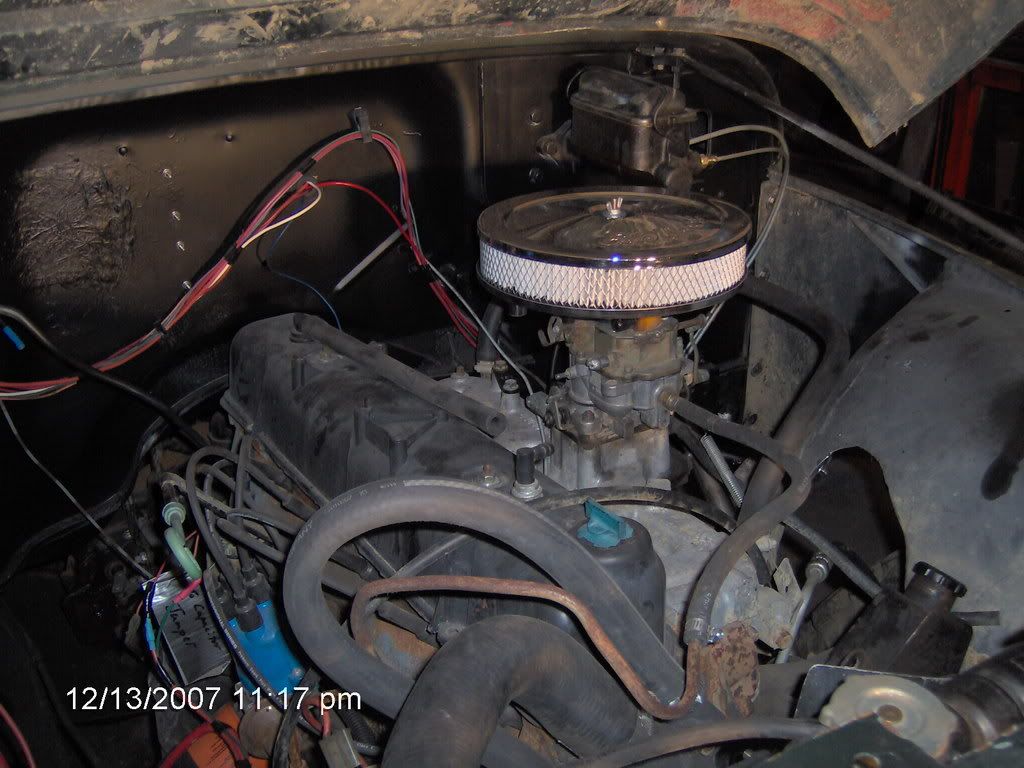

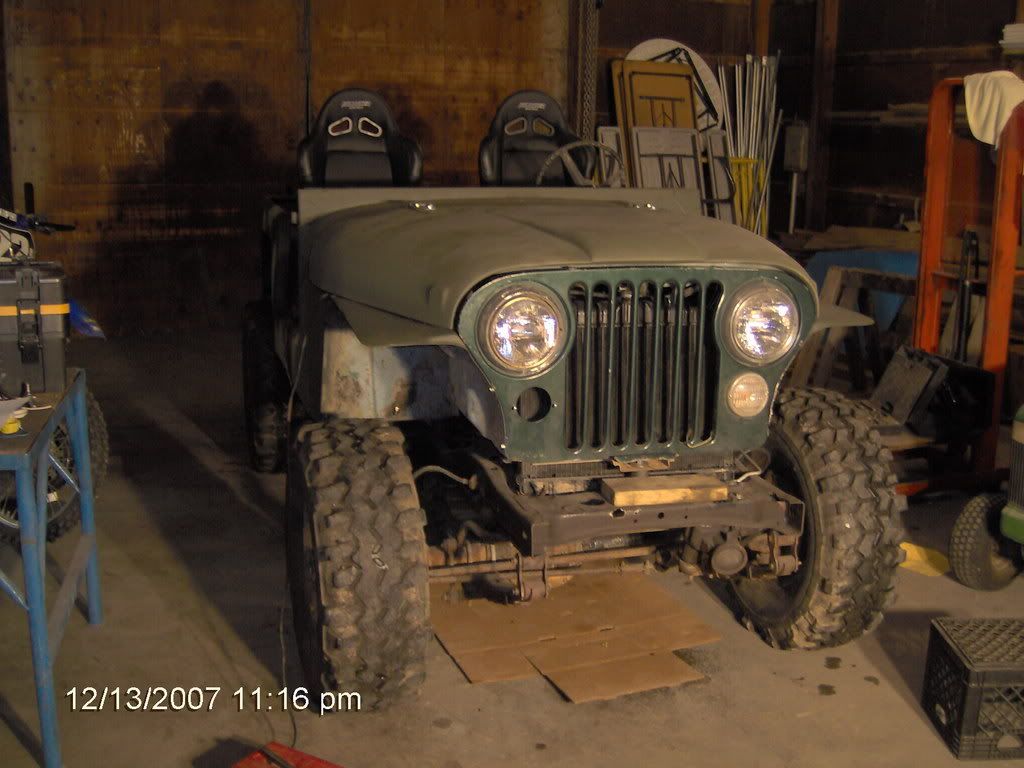

Engine bay:





Still need to finish the paint job & paint the grill:

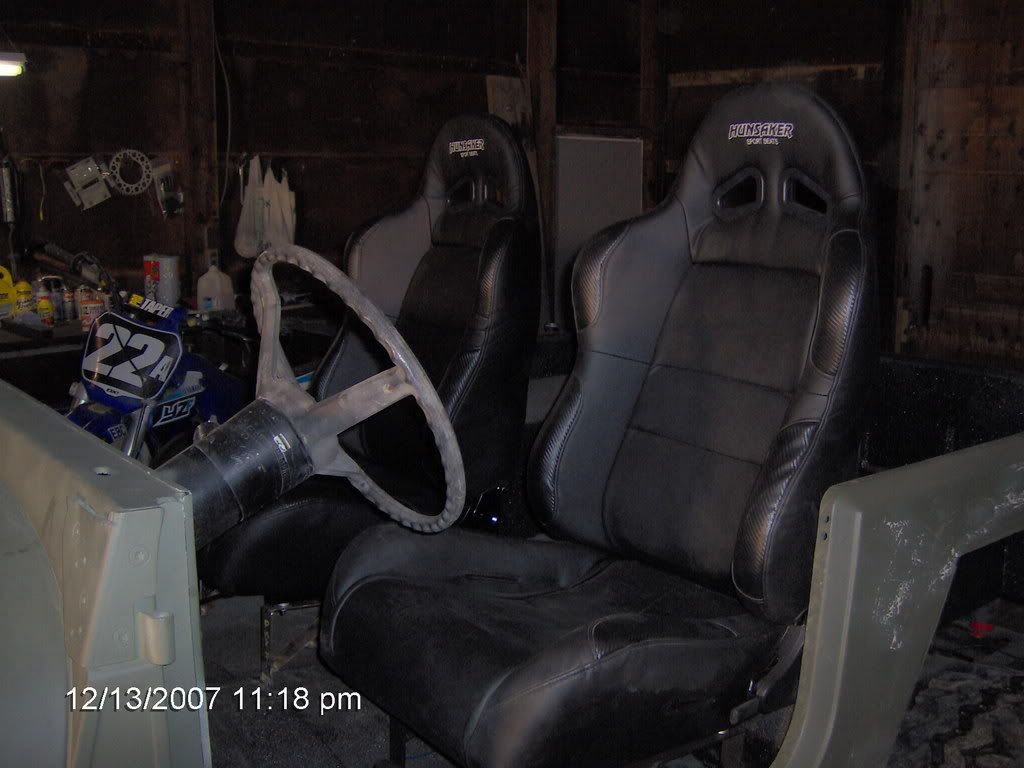

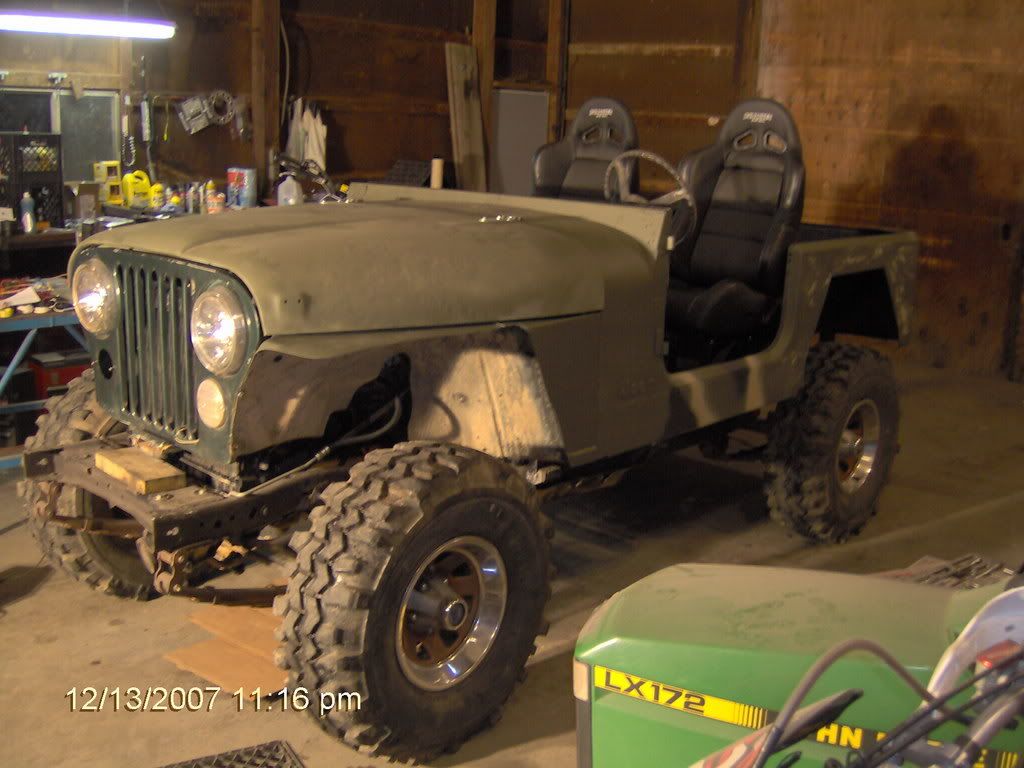

Seats installed...still need to drill holes & install seat belts:



__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-13-2007, 05:59 AM   #62
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149

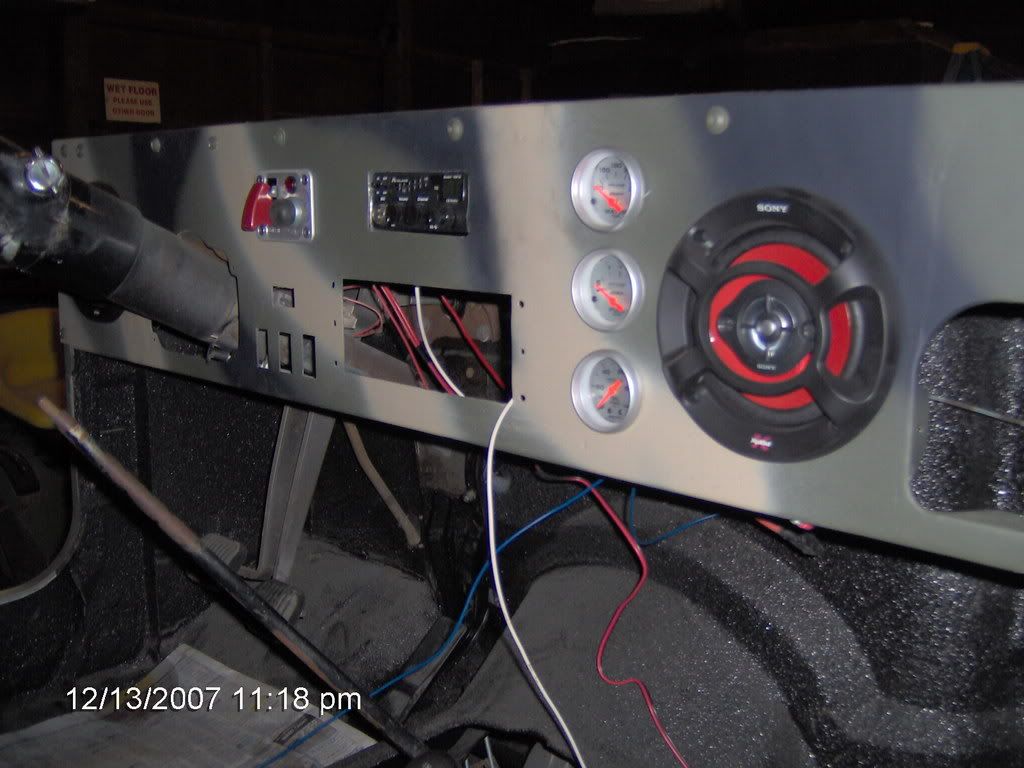

Dash so far...still have to wire up radio, CB, & speakers along with head/tailights:





Rear end:

__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-13-2007, 09:52 AM   #63
badge1236
Registered User
1978 CJ7

Join Date: Aug 2006
Location: MI
Posts: 125
Sounds great. Thanks for the response on the wiring. I can see your points. When I get to that point I will have more wiring because I want to be able to use it as a weekend driver and trail rig. Again looks great.
__________________
'78 cj-7, 258, twin stick dana 300 transfer case, NV3550 transmission, scout d44 axles with detroit truetrac, 4.09 gears, black diamond 3.5 inch lift. The rest is yet to come.
badge1236 is offline   Reply With Quote
Unread 12-17-2007, 06:46 AM   #64
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149

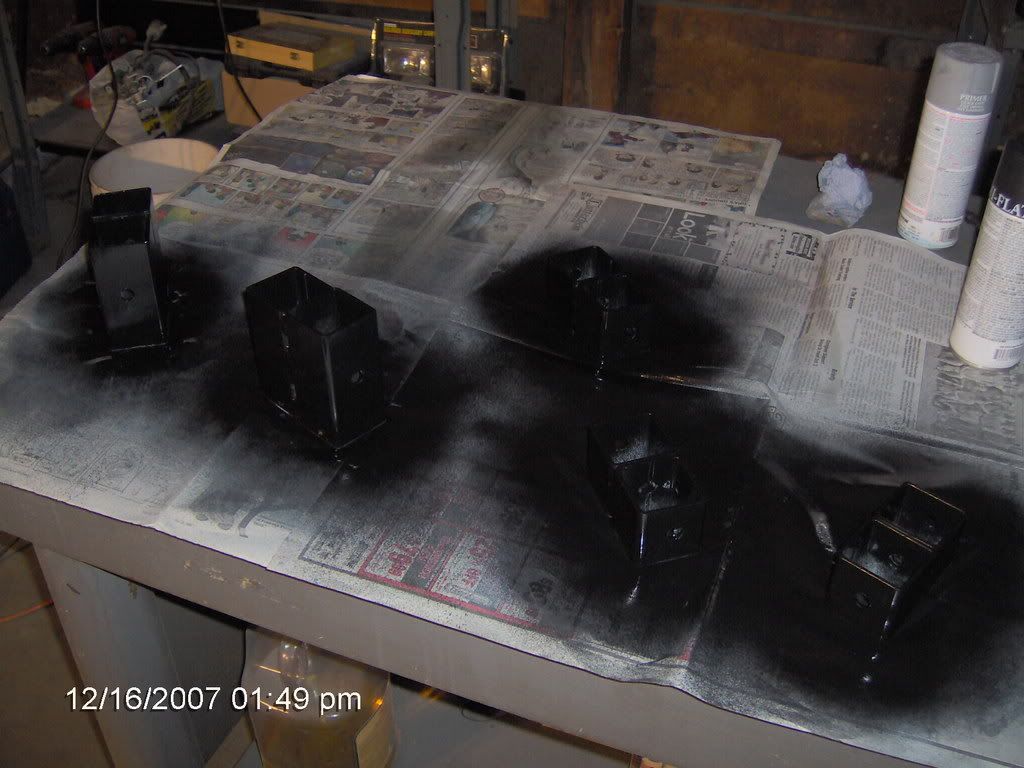

Progress is still being made although there aren't a lot of pictures to prove it. It's mostly a lot of little stuff that takes time. Been spending a lot of time wiring the dash. Radio, CB, rocker switches, gauges. About got er whipped though. Still have to do lights.



Can anybody guess what these will be used for?




Some buddies talked me into building the rollcage now. We have 3 days to do it....think it can be done??? We have a mechanical bender that has been proven to work. That's 6 21' sticks of 1.5" HREW .125 wall. Will also be using 3/16 plate to attach to the body and maybe doing frame tie ins if we have time. Never bent tube let alone made a rollcage before so add it to the list of things learned during this project!

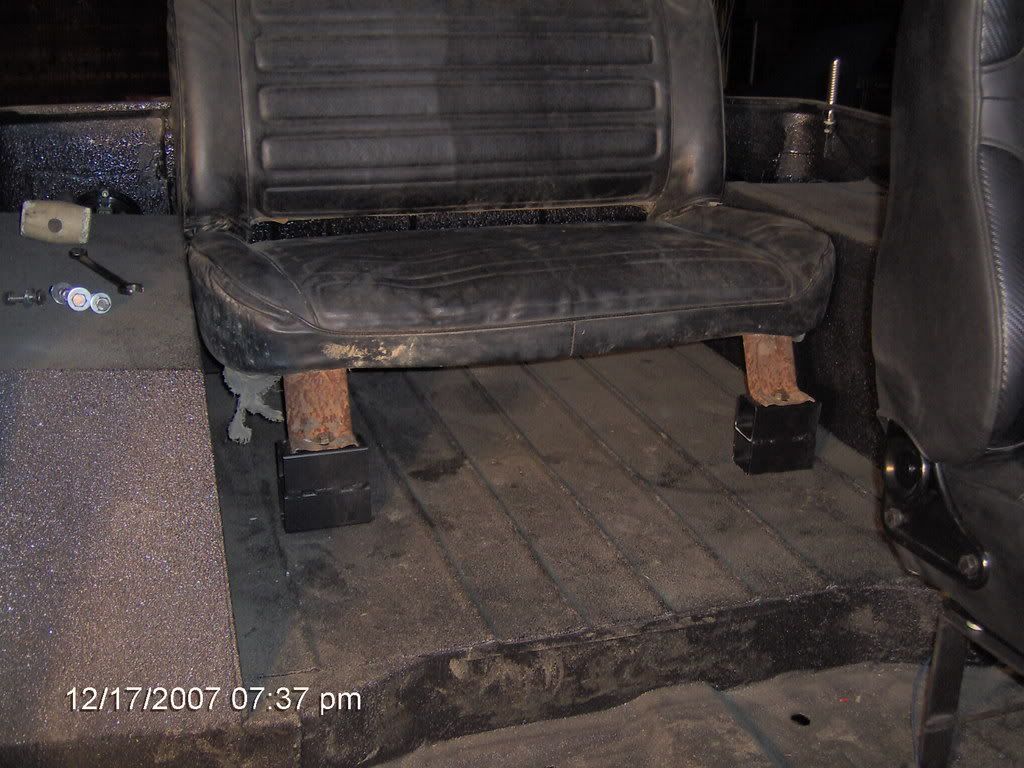

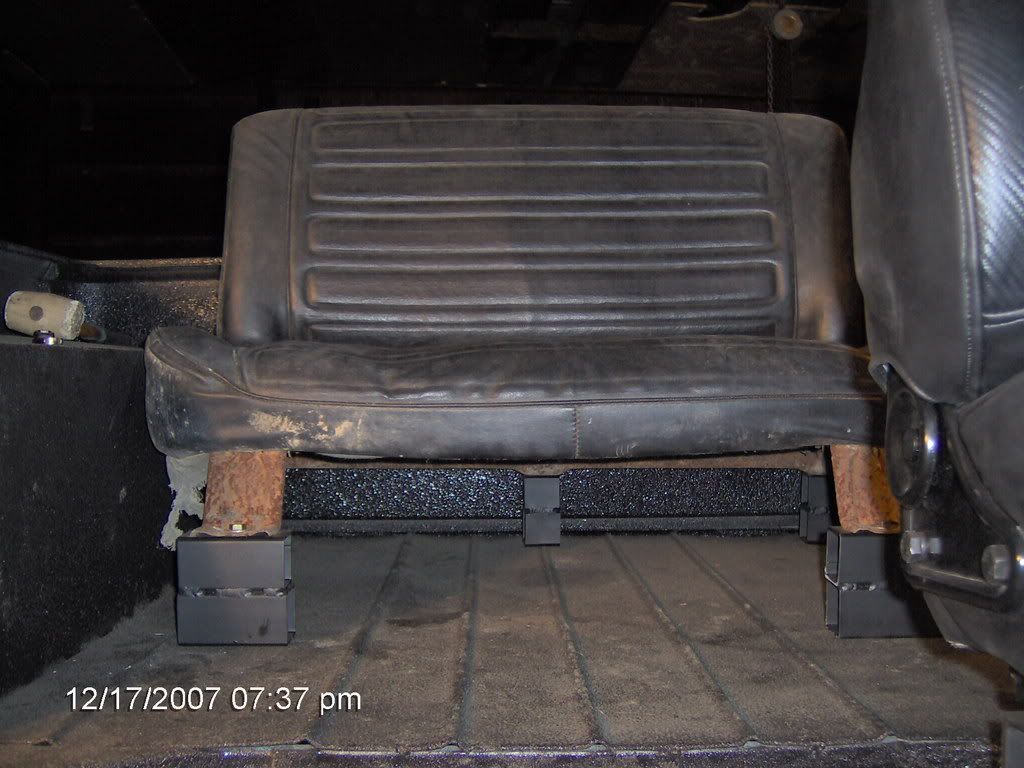

Got the rear seat brackets done. Had to raise the rear seat so people back there could see b/c the front seats are so high. Raisin it 4" so they'll have a good view. Plus, it makes room to store stuff underneath the seat.





All it is is 2X2 square tubing cut to length & welded together for 4" of lift:












Starting on the rollcage tonight so we'll see how that goes. I read through the entire sticky on rollcages at the top of the Fabrication forum but any additional help/advice will be much appreciated!
__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-17-2007, 10:12 AM   #65
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149
This is what I'm thinkin for the roll cage. The top X's aren't drawn in cuz you couldnt' see them anyway...and neither is the dash bar. Any other suggestions?


__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-17-2007, 10:42 AM   #66
LSUtiger
Registered User
1980 CJ5

Join Date: Nov 2006
Location: Shreveport, La.
Posts: 1,133
http://www.jeepforum.com/forum/f37/official-cage-idea-pic-discussion-thread-128237/ See if this gives you any ideas. Lookin great so far. I am very impressed.
__________________
1980 cj5 401, t-176, p/s., YJ p/b, tfi/hei hybrid, 3.73 30/44
LSUtiger is offline   Reply With Quote
Unread 12-17-2007, 12:21 PM   #67
badge1236
Registered User
1978 CJ7

Join Date: Aug 2006
Location: MI
Posts: 125
I would take the shop vac out before you road test it. They do not offer much in the way of support in a roll over. Looks great.
__________________
'78 cj-7, 258, twin stick dana 300 transfer case, NV3550 transmission, scout d44 axles with detroit truetrac, 4.09 gears, black diamond 3.5 inch lift. The rest is yet to come.
badge1236 is offline   Reply With Quote
Unread 12-17-2007, 01:01 PM   #68
molsenice
Registered User
1964 CJ5

Join Date: Dec 2006
Location: Glens Falls, NY
Posts: 1,272
Quote:
Originally Posted by badge1236
I would take the shop vac out before you road test it. They do not offer much in the way of support in a roll over. Looks great.

BWAAAAAaaaaaahahahahahahahah

looks great
molsenice is offline   Reply With Quote
Unread 12-18-2007, 06:09 AM   #69
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149
Quote:
http://www.jeepforum.com/forum/showthread.php?t=128237 See if this gives you any ideas. Lookin great so far. I am very impressed.

I've read every post of that sticky at LEAST 8 times.



Quote:
I would take the shop vac out before you road test it. They do not offer much in the way of support in a roll over. Looks great.
The shop vac needs to be in there for the road test b/c it's gonna make a large pile when all the bondo falls off & onto the ground!!!

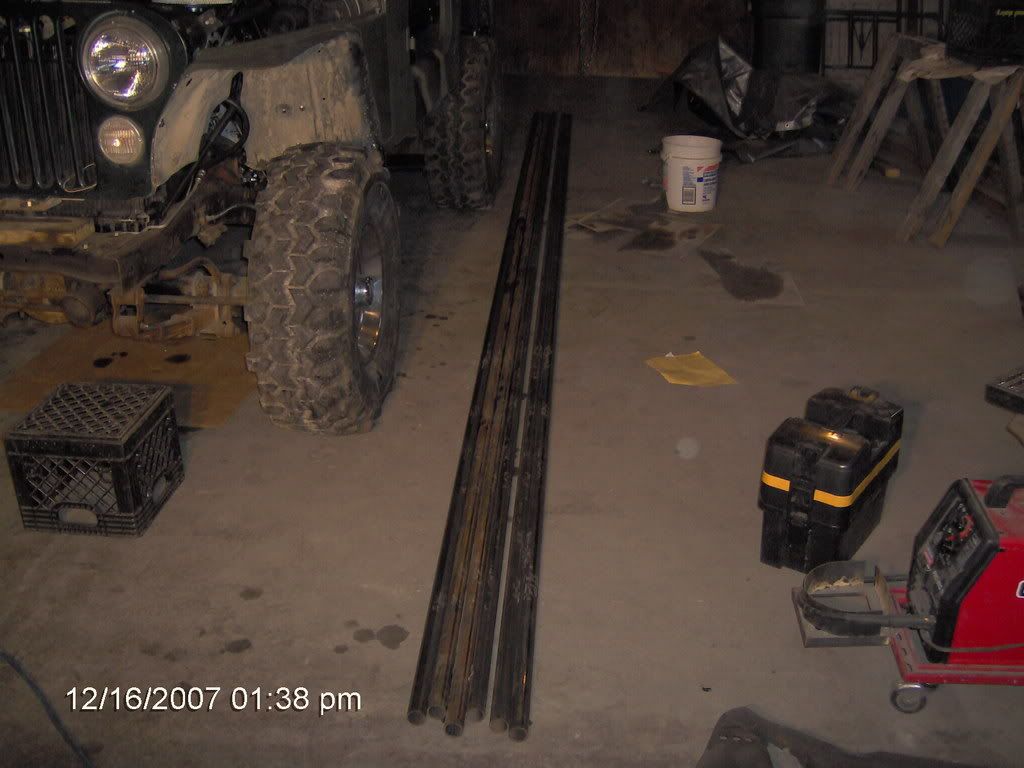

Well, we started makin the rollcage last night. I had to recruit a couple friends for this one....Those 21 footers are hard to maneuver in a barn & would be impossible to get in the bender by yourself! It was a blast though. It took us 3 tries to get a 90 deg. bend in the spot that we wanted....but we got er dun.

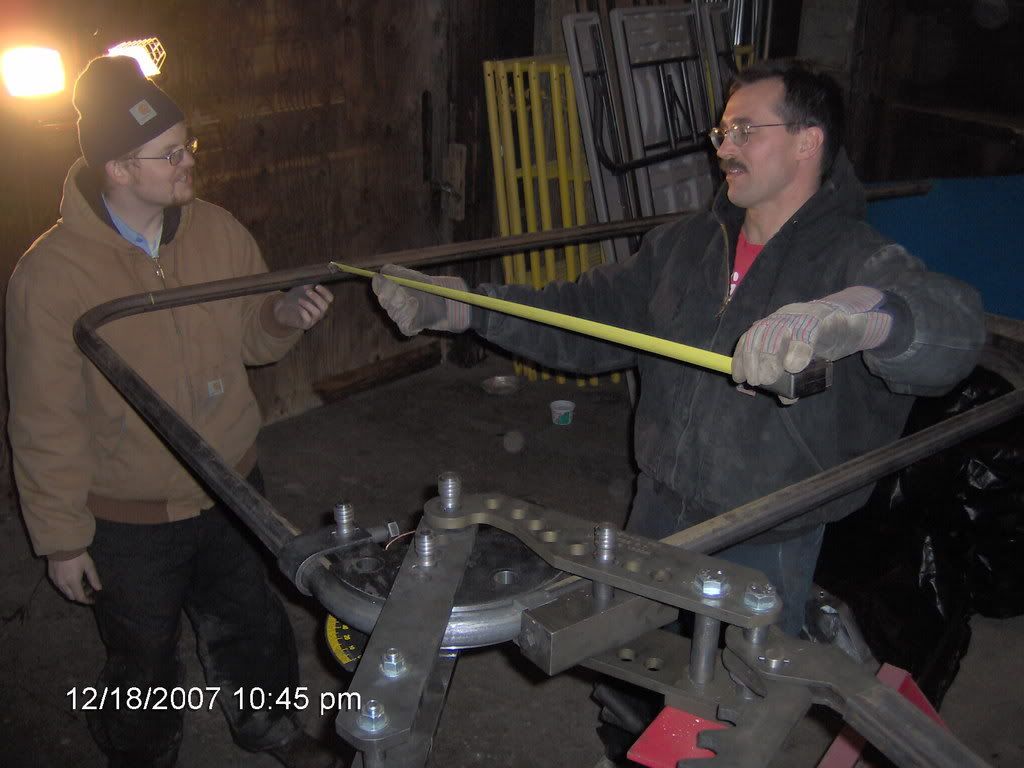

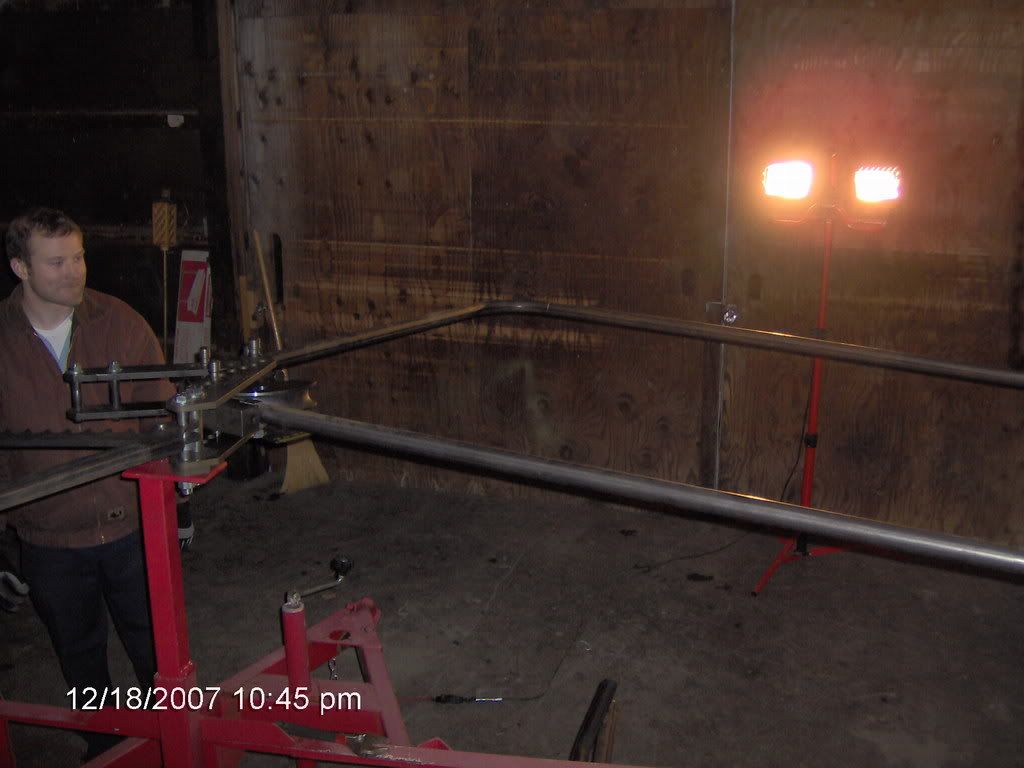

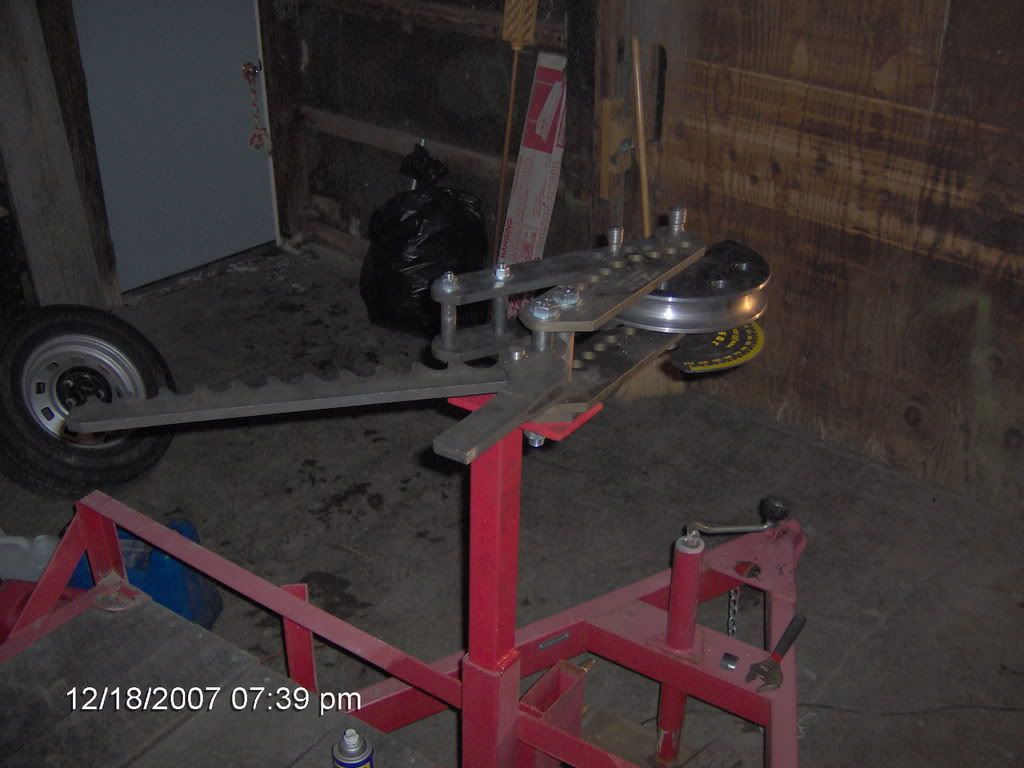

The bender....a Model 3. Mechanical but works plenty well:





Our first 90* bend where we wanted it!

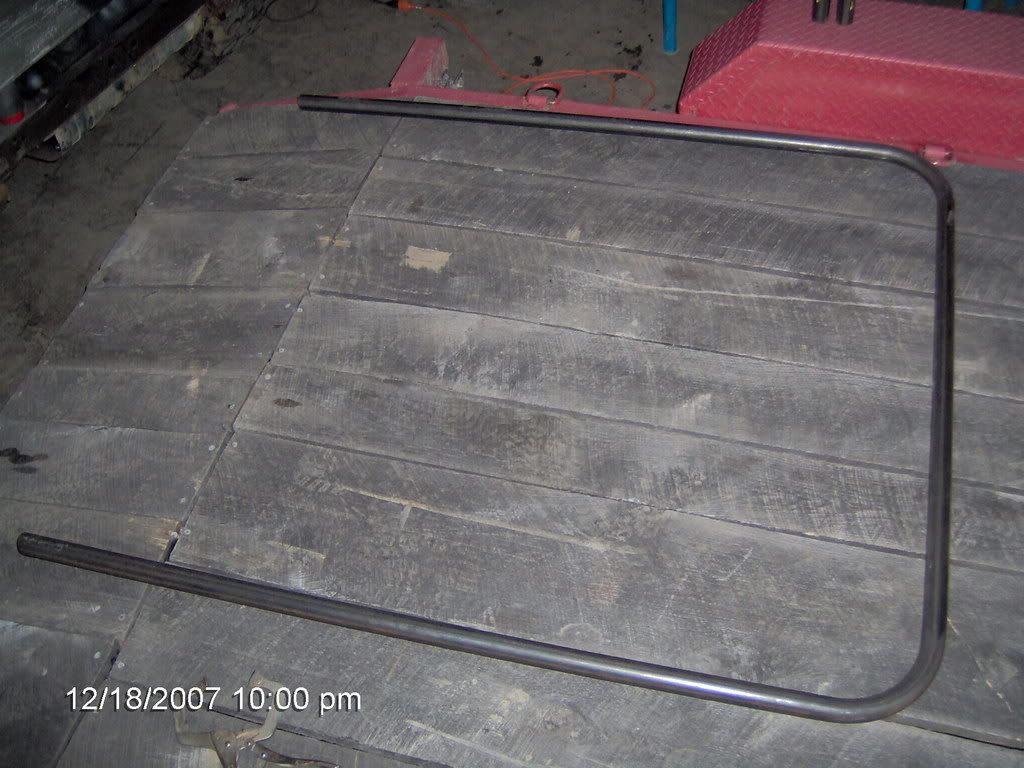

The first hoop....it'll be the middle hoop (right behind the front seats). Nice & square and within 1/4" of the outside width we were shootin for:

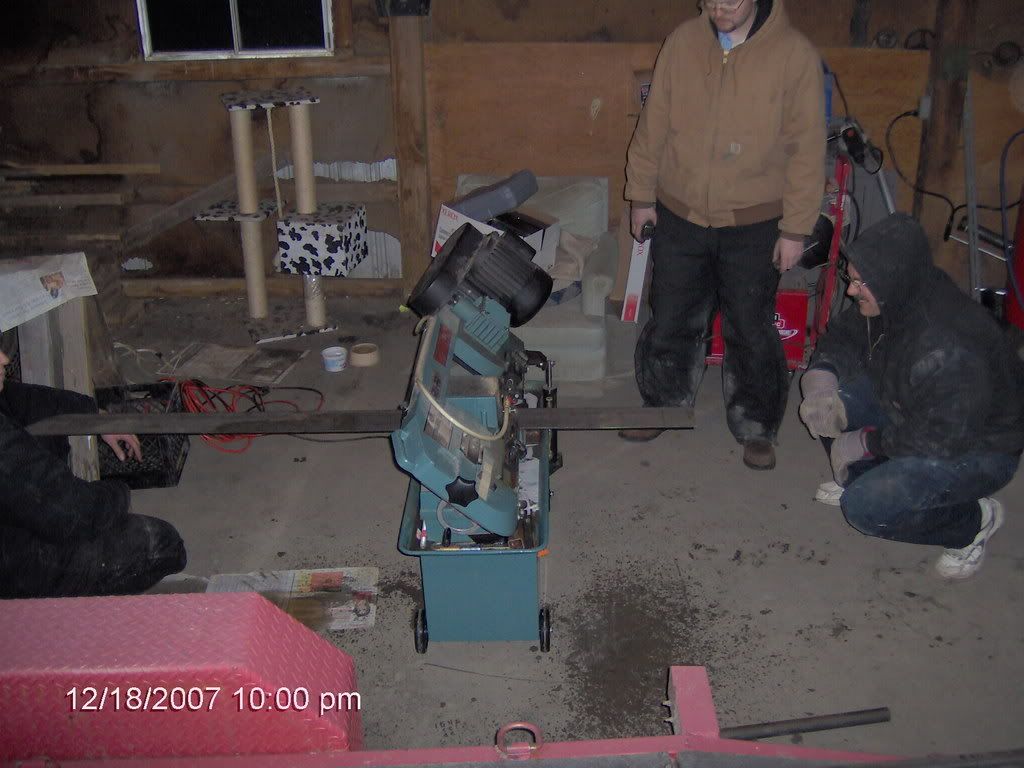

Usin this nifty little tool to cut the base at an angle where it will be mounted to the base plate:

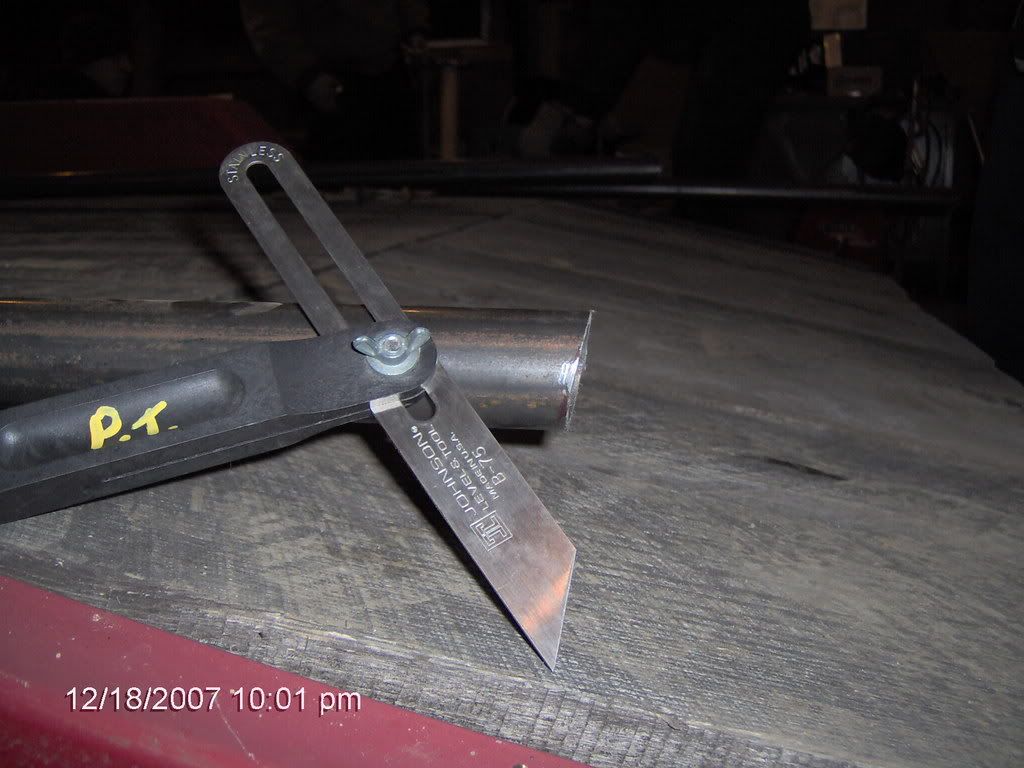

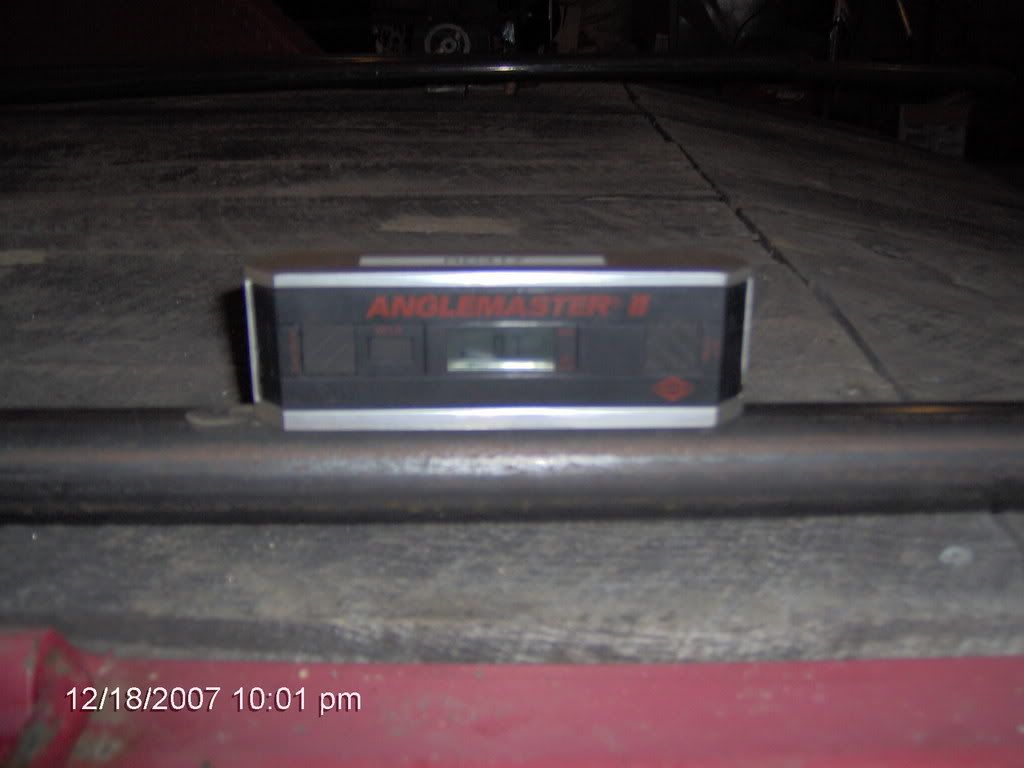

This tool is VERY helpful. It's an angle finder that you can zero whereever you want. Worked best when were bending perpendicular to the hoop (i.e. windshield hoop)





Cuttin the 3/16 plate for base plates:





Hoop up in the bender:





Makin sure it's square:

__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-18-2007, 06:12 AM   #70
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149
Puttin the 3rd & 4th bends in the hoop...this is where it got interesting!!!





4 bends done, 2 to go:






That's as far as we got last night but that's a huge step of progress there. To get all the calculations done of the angles of the hoops & determine the heights of the hoops and where the bends needed to be, etc, etc, etc is very tedious and time consuming but will hopefully be well worth it!

We'll be at it again tonight.....then Wed. night....and hopefully have it done by Thursday night. That's the absolute deadline..Thurs. night. Feels like we're on Overhaulin' or somethin where they have those deadlines they have to meet.
__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-18-2007, 09:05 PM   #71
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Austin,
I was supposed to get you some pics of the manifold or carb, sorry been busy as heck and don't rem what you needed, let me know & I'll provide links or shoot pics tomorrow or when I get back.

BTW, nice 4 thumper. I'm more of a 2 smoke -r:
__________________
Fatman is offline   Reply With Quote
Unread 12-18-2007, 10:04 PM   #72
Pacfanweb
Go Wolfpack

Pacfanweb's Avatar
1981 CJ7

Join Date: Jan 2005
Location: Wake Forest, NC
Posts: 2,547
Nice job you're doing there. About the only thing I could think of to help is (and it's too late now anyway) to have had the tub sandblasted before you did the bodywork. Would have saved lots of grinding.

You'll have a very unique Jeep when you're done. I like the storage cubbies behind the wheelwells, too.
Pacfanweb is offline   Reply With Quote
Unread 12-19-2007, 06:29 AM   #73
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149
Quote:
I was supposed to get you some pics of the manifold or carb, sorry been busy as heck and don't rem what you needed, let me know & I'll provide links or shoot pics tomorrow or when I get back.
Hey Dave, I need pictures or information on all the vacuum lines. Particularly the vacuum advance for the carb & also where the PCV hose is supposed to go. ALSO, I don't know where the wire goes that comes off the one side of the coil. On the schematic, it says it goes to the "Capacitor Jumper". I have no idea what that is or where it is.

Nice bike by the way! Glad to see a fellow Yamaha rider! I try to stay close to the ground though....that motocross stuff will get you messed up in a hurry. Harescrambles are a good time & definitely physically challenging!!







Quote:
About the only thing I could think of to help is (and it's too late now anyway) to have had the tub sandblasted before you did the bodywork. Would have saved lots of grinding.

You couldn't be more right!!! That would've saved me a TON of time! If only I would've know there was gonna be THAT much bondo underneath that pretty paint....... oh well, lesson learned.



Roll cage day 2 went pretty well. It's actually starting to look like a cage now. The windshield hoop turned out really well...we were shocked we got it as square & level as we did. We were off 1/2* here. and 1/8" there but nothing you can't tweak by pullin on it just a little bit.



Windshield hoop done:

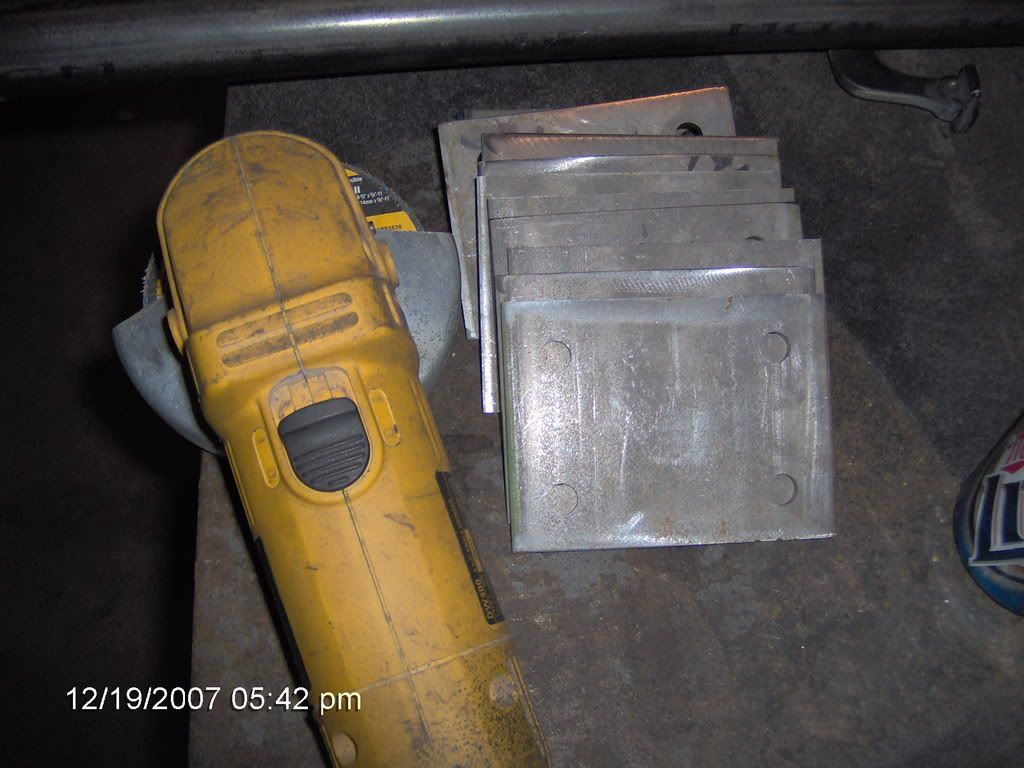

12 base plates....6 on the top & 6 on the bottom for frame tie ins:

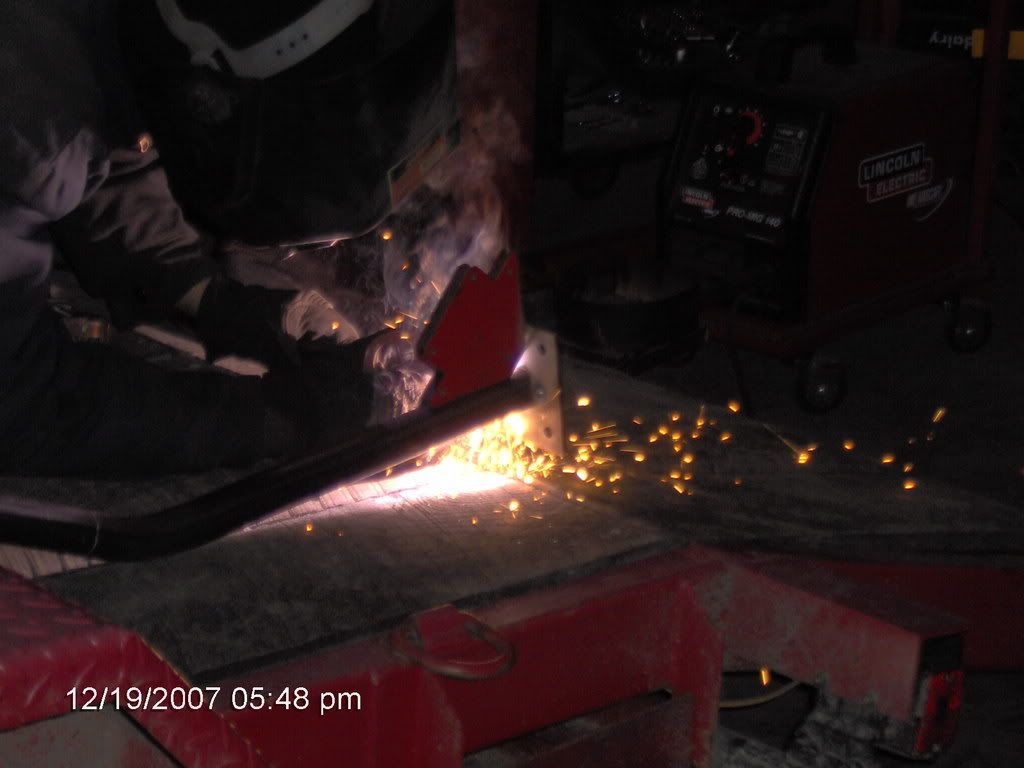

Tackin the base plates to the windshield hoop:

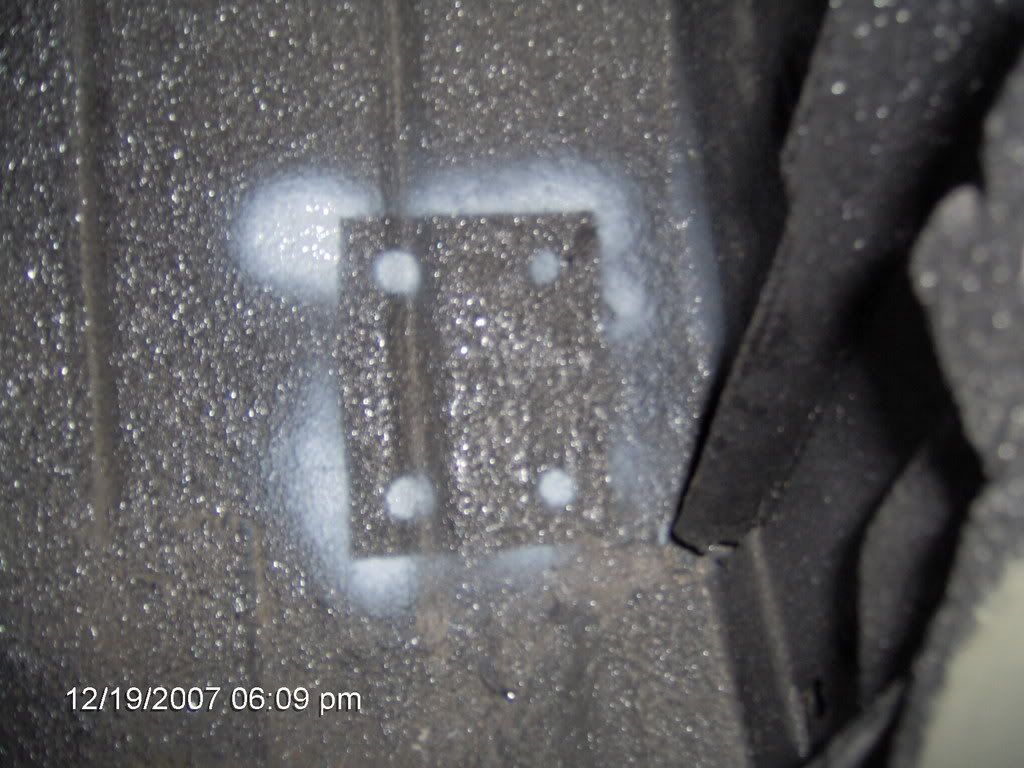

Got the windshield hoop where we wanted then marked the holes to be drilled by using spray paint:





Windshield hoop bolted down:





Still makes me smile:





Middle hoop installed. We wanted a 4" rise to the middle hoop...and we were pretty darn close:

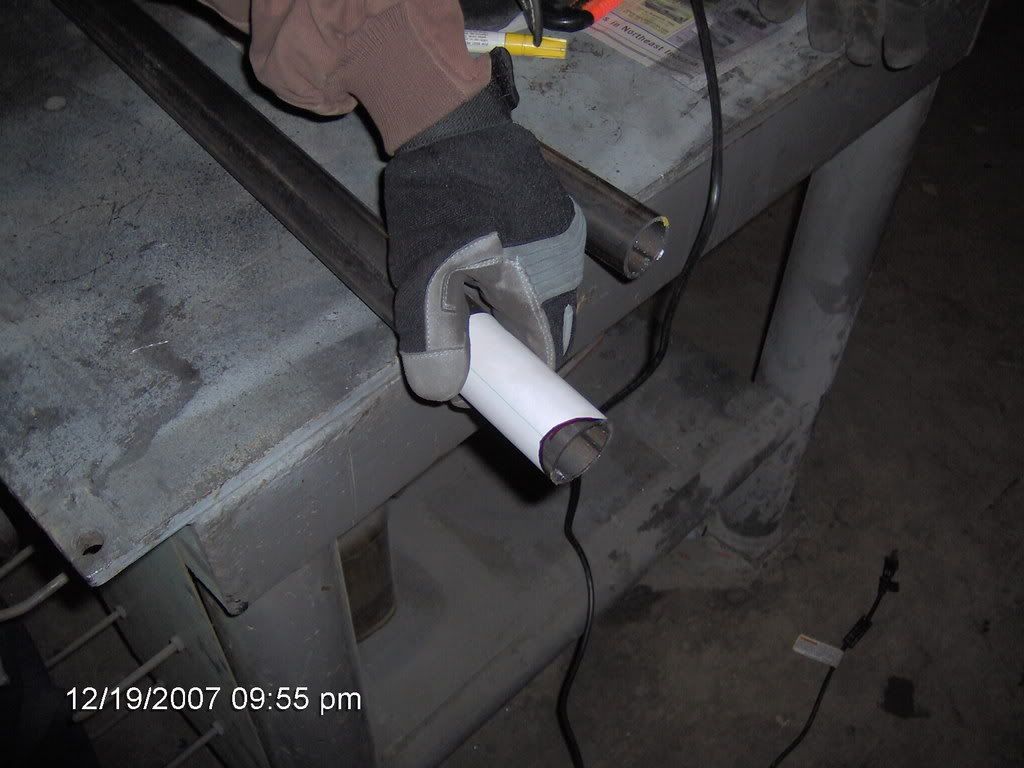

Notchin some tube:





We were shootin for 6" of head clearance and got 5.5"....I'll take it!

__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-19-2007, 06:32 AM   #74
biker250
Registered User
1979 CJ7

Join Date: Sep 2007
Location: Indiana
Posts: 149

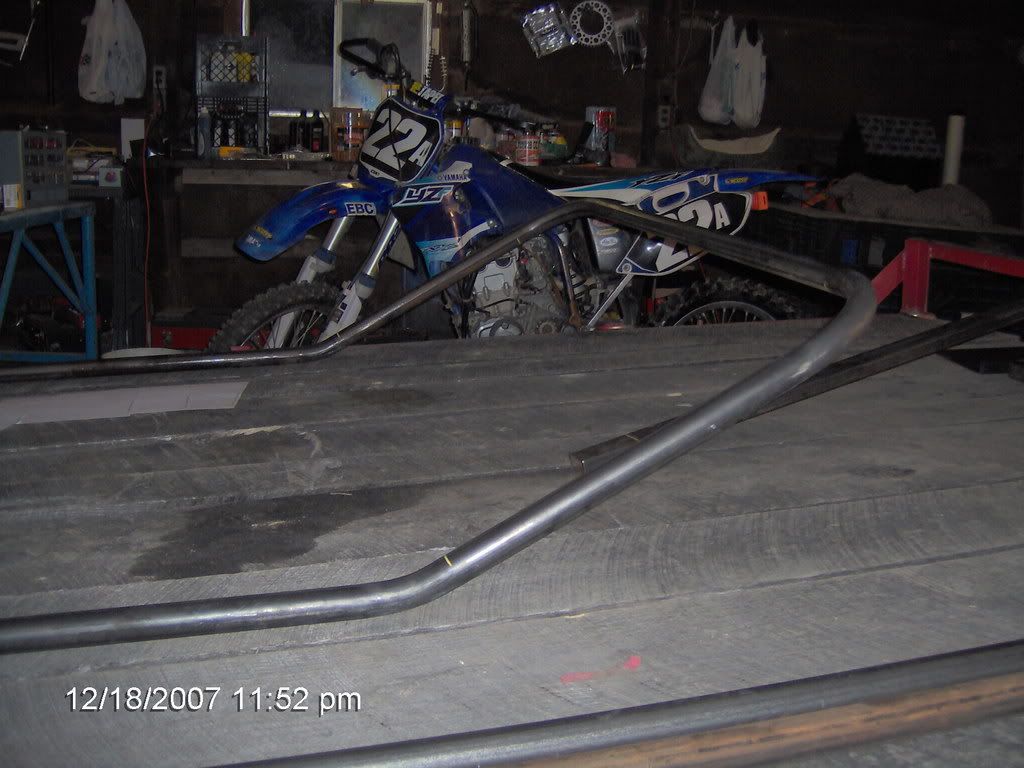

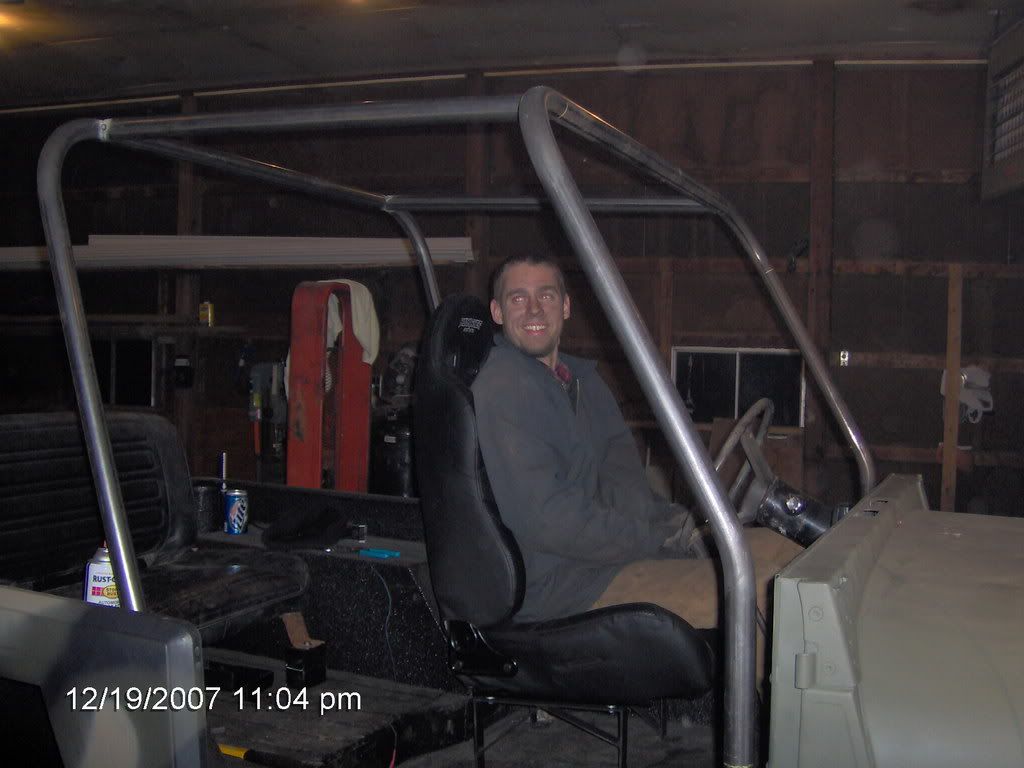

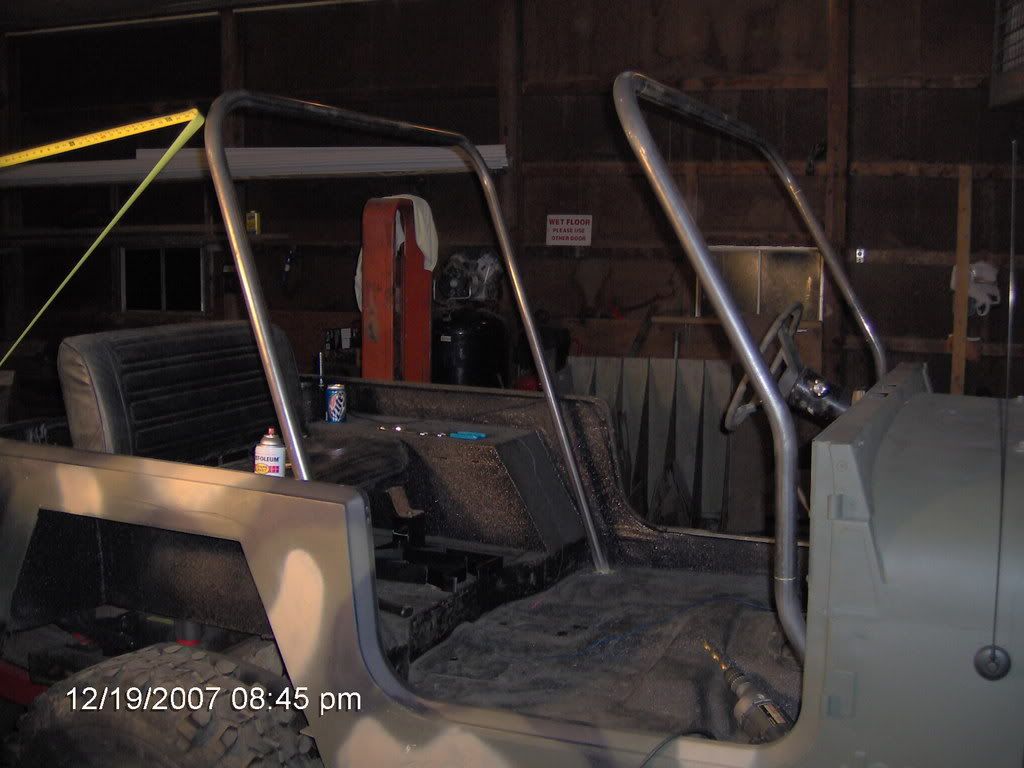

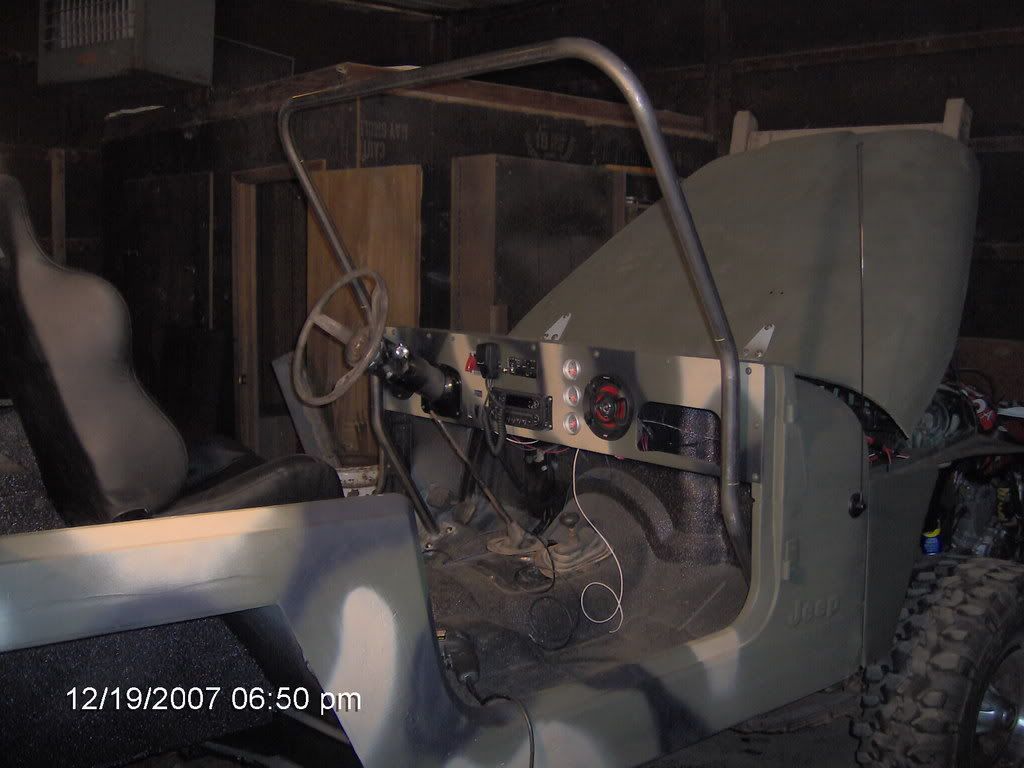

Startin to look like a cage:

__________________
'79 CJ7 lifted 4" suspension, 3" body.....trying to remove enough rust so the body stays in one piece
biker250 is offline   Reply With Quote
Unread 12-19-2007, 07:31 AM   #75
aero mech
Registered User
1980 CJ7

Join Date: Aug 2007
Location: Northeast, MS
Posts: 667
Looking good, I searched for the parking light, and only came up with two very used covers with part of the chrome ring inside. we must have tossed the assemblies when we finsished my dad's 5. Anyway looking good. JC
__________________
80 CJ-7 Straight six,comp cam,4.0 head, cherokee header, DUI distributor, Affordable FI TBI ,4.10's wide track amc 20 aussie locked and trussed, Dana 30 aussie locked, PSC steering box, 4.5 RE lift, twin sticked dana 300 with Lo max 4to1 35"STT'S ON DC-1 "It's getting there"
aero mech is offline   Reply With Quote
