WK CRD Custom Turbo Resonator Delete Pipe

I had some free time last night to remove the turbo resonator and replace it with an aluminum 2.5" mandrel bent 90 tube.

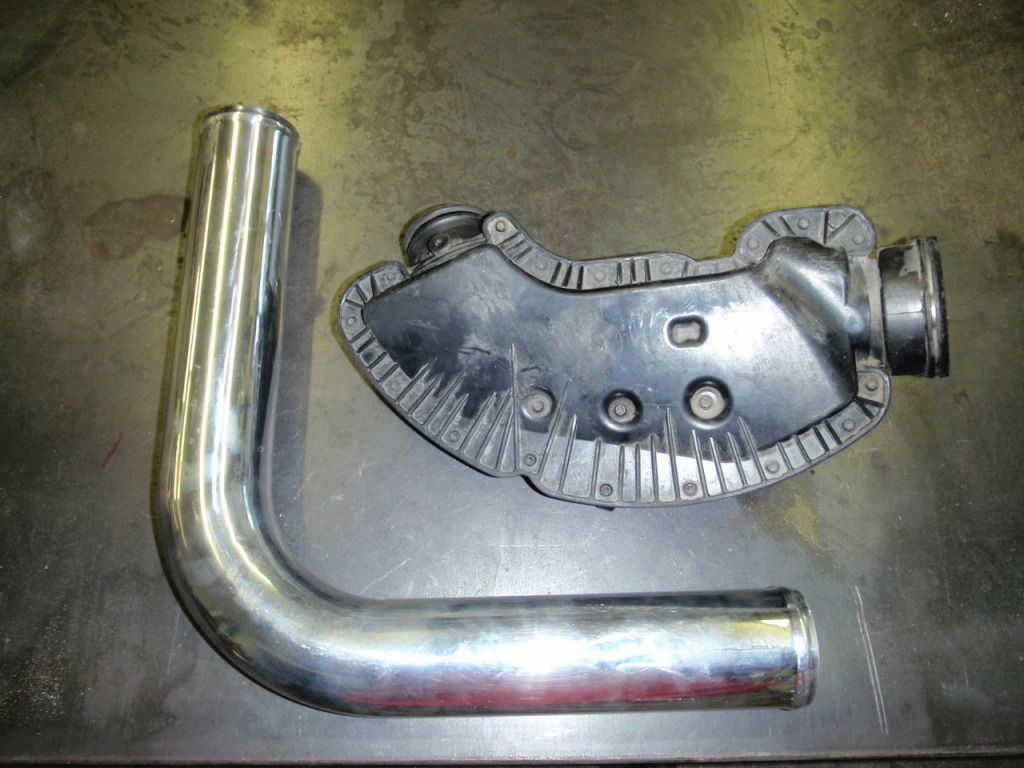

Started with resonator out and aluminum tube.

Cut tube to length and removed end of silicone connector from resonator.

Cut end off of compressor outlet tube and attached silicone connector. Resonator delete installed.

Modified silicone connector to delete pipe.

Very tight area to work in. I couldn't get many good pictures. I painted it black like the turbo intake. Took me about 3-4 hrs.
Impressions, even quicker spool up. With the tune, intake tube, and resonator delete I have about zero lag accelerating from a stop. I couldn't notice any difference in NVH.

__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote
Unread 08-08-2012, 08:09 PM   #2
TurboDiesel
Registered User
2008 WK

Join Date: Apr 2011
Location: langley, BC
Posts: 1,902
nice i gutted mine awhile ago
will never go thru that again, such a pain in the *** LOL
__________________
[B]-]All Blacked Out[-[/B]
2008 Jeep Grand Cherokee 3.0 CRD
2" RC lift
255/75R17 BFG KM1's
17" ion alloy rims
15" kicker solo baric L7 w/ Alpine m1000 amp
aftermarket headlights w/5000k HIDs
Red interior LEDs and Red license plate LED
Tinted tails
5% tint over the rear windows
more to come....
TurboDiesel is offline   Reply With Quote
Unread 08-09-2012, 05:45 AM   #3
BAH101
Registered User
2008 WK

Join Date: Jan 2009
Location: Thunder Bay, Ontario
Posts: 732
Well, looks like I will copy your design and of course, call it mine
__________________
2008 CRD QDII, OME HD, Pintlers wheels with 265/70/17 Goodyear Silent Armour's, Jeepinbyal UCA's. 4XGuard Front guard, Side Guard, belly guard, Matrix HC. GDE ECO Tune w/ delete.
BAH101 is offline   Reply With Quote
Unread 08-09-2012, 08:59 AM   #4
jediknight
Registered User
2008 WK

Join Date: Oct 2011
Location: Montreal, Qc
Posts: 426
Quote:
Originally Posted by tnadanzig
I had some free time last night to remove the turbo resonator and replace it with an aluminum 2.5" mandrel bent 90 tube.
Started with resonator out and aluminum tube.

Cut tube to length and removed end of silicone connector from resonator.

Cut end off of compressor outlet tube and attached silicone connector. Resonator delete installed.

Modified silicone connector to delete pipe.

Very tight area to work in. I couldn't get many good pictures. I painted it black like the turbo intake. Took me about 3-4 hrs.
Impressions, even quicker spool up. With the tune, intake tube, and resonator delete I have about zero lag accelerating from a stop. I couldn't notice any difference in NVH.
Wow!!! ... Well done again.
Did you figure a way of bolting the moded pipe on the engine block or its light enough to move freely in the engine bay?
__________________
2008 WK CRD Blue, QD II, Startech SD6 mod.
jediknight is offline   Reply With Quote
Unread 08-09-2012, 09:22 AM   #5
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 552
Quote:
Originally Posted by TurboDiesel View Post
nice i gutted mine awhile ago
will never go thru that again, such a pain in the *** LOL
Thanks. It was a pain to get the resonator out and even harder to get this one in. I had to install and remove a few times to make sure everything lined up and fit correctly. I got pretty good at it in the end, but my arms have quite a few new scratches.

Quote:
Originally Posted by BAH101 View Post
Well, looks like I will copy your design and of course, call it mine
Feel free to copy. Maybe give me a little bit of credit. JK

Quote:
Originally Posted by jediknight View Post
Wow!!! ... Well done again.
Did you figure a way of bolting the moded pipe on the engine block or its light enough to move freely in the engine bay?
Thanks. I have a bracket made up in case I want to bolt it to the engine block like the resonator, but I did not weld it on. It would of been even harder to wiggle that pipe in to place. Plus, the delete pipe weighs about nothing and the silicone connectors are up to the task of holding it in place. It barely moves when I grab a hold of it. I got it to max boost several times and holding strong. Time will tell. I will the add bracket if necessary, but I don't think it's needed.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote
Unread 08-09-2012, 09:58 AM   #6
baggee
Registered User
2007 WK

Join Date: May 2012
Location: Bihać, Bosnia & Herzegovina
Posts: 68
@ tnadanzig:

Change yours ribbed v belt man,it's gone...
baggee is offline   Reply With Quote
Unread 08-09-2012, 10:51 AM   #7
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 552
Quote:
Originally Posted by baggee View Post
@ tnadanzig:

Change yours ribbed v belt man,it's gone...
I know, you like that. I got a new one on order.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote
Unread 08-09-2012, 10:57 AM   #8
BAH101
Registered User
2008 WK

Join Date: Jan 2009
Location: Thunder Bay, Ontario
Posts: 732
Quote:
Originally Posted by tnadanzig
Thanks. It was a pain to get the resonator out and even harder to get this one in. I had to install and remove a few times to make sure everything lined up and fit correctly. I got pretty good at it in the end, but my arms have quite a few new scratches.
I filed and sanded the corners of the fan shroud before going in to gut my resonator. Saved a lot of skin.

Quote:
Originally Posted by tnadanzig
Feel free to copy. Maybe give me a little bit of credit. JK
Ok, but just a little
__________________
2008 CRD QDII, OME HD, Pintlers wheels with 265/70/17 Goodyear Silent Armour's, Jeepinbyal UCA's. 4XGuard Front guard, Side Guard, belly guard, Matrix HC. GDE ECO Tune w/ delete.
BAH101 is offline   Reply With Quote
Unread 08-09-2012, 03:39 PM   #9
terrasmak
Registered User
2007 WK

Join Date: Jan 2012
Location: South Korea, Osan AB
Posts: 504
Hmmmm , I think I need to do this
__________________
"Racing makes Heroin addiction look like a vague wish for something salty." -- Peter Egan
terrasmak is offline   Reply With Quote
Unread 08-09-2012, 09:14 PM   #10
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 552
Do it. It's actually a pretty cheap mod. I think I spent less than $40 on the whole thing. Well worth the money and time.

The resonator has been sitting on my bench for the last day or so and I can't believe the puddle of oil that has leaked out. The elephant mod has been on for quite some time. Anyone want a resonator?
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote
Unread 08-10-2012, 05:07 AM   #11
jediknight
Registered User
2008 WK

Join Date: Oct 2011
Location: Montreal, Qc
Posts: 426
Hum ! Are you saying you found a puddle of oil in the res eventhou you had ehm ?!
__________________
2008 WK CRD Blue, QD II, Startech SD6 mod.
jediknight is offline   Reply With Quote
Unread 08-10-2012, 08:46 AM   #12
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 552
Yes, but that is very typical with CCV gases getting compressed and pumped through the intercooler system. I had the same issue on my F250 before I rerouted the CCV system. The Jeep ran almost 40k with the CCV system hooked up. There will be a lot of oil left over from those 40k miles that is in no hurry to get pumped through the system. Pull the intercooler and let it drain, you would be surprised by the amount of oil that would come out of it. The resonator is filled with little hooks and crannies that hold lots of oil. Or pull the resonator and let it hang for a day or two and record the amount of oil leaked out. This is why you reroute this stuff and delete egr and dpf. Pull the intake manifolds and look at all the stuff that has accumulated. Imagine what that does for efficiency.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote
Unread 02-15-2013, 01:40 PM   #13
flacrd
Registered User
2007 WK

Join Date: May 2007
Location: CENTRAL WEST COAST, FLORIDA
Posts: 31
Quote:
Originally Posted by tnadanzig View Post
Thanks. It was a pain to get the resonator out and even harder to get this one in. I had to install and remove a few times to make sure everything lined up and fit correctly. I got pretty good at it in the end, but my arms have quite a few new scratches.


Feel free to copy. Maybe give me a little bit of credit. JK


Thanks. I have a bracket made up in case I want to bolt it to the engine block like the resonator, but I did not weld it on. It would of been even harder to wiggle that pipe in to place. Plus, the delete pipe weighs about nothing and the silicone connectors are up to the task of holding it in place. It barely moves when I grab a hold of it. I got it to max boost several times and holding strong. Time will tell. I will the add bracket if necessary, but I don't think it's needed.
Please excuse all the questions, I'm trying to learn about this.
What was the reason to service the turbo resonator to start with? How much oil is normal in the turbo outlet? Can the resonator get clogged with oil and waste? Mine appears to be leaking more and more oil when under pressure
and be dry after not running for days. Would you replace it, bypass it or look for another problem ie the turbo leaking?
__________________
2007 GRAND CHEROKEE LTD Q2 CRD GREYSTONE/L GREYSTONE
2006 MAGNUM HEMI COOL VANILLA
2006 JETTA TDI
2005 LIBERTY LTD CRD (LEMON LAWED)
flacrd is offline   Reply With Quote
Unread 02-15-2013, 01:49 PM   #14
Radcrd
Registered User
2007 WK

Join Date: Oct 2012
Location: Montreal, QC
Posts: 348
No reason to service it. He choose to remove it to allow more airflow as he is heavily modded. It does not get clogged. It is simply there to reduce airflow noise. Your turbo is not leaking. The design of the intake allows for oil to be sucked through the intake system. Personally I would bypass with a pipe like tnadanzig did and never worry about it again. He was considering making and selling some bypass pipes.
__________________
2007 WK CRD QDII, GDE HOT tune. 275/55/18'' on Sahara's, SRT8 suspension.
2000 Jetta TDI (hers)
2006 Liberty CRD (sold)
3 VW TDI's (sold)
Radcrd is offline   Reply With Quote
Unread 02-15-2013, 02:20 PM   #15
flacrd
Registered User
2007 WK

Join Date: May 2007
Location: CENTRAL WEST COAST, FLORIDA
Posts: 31
Thanks

Quote:
Originally Posted by Radcrd View Post
No reason to service it. He choose to remove it to allow more airflow as he is heavily modded. It does not get clogged. It is simply there to reduce airflow noise. Your turbo is not leaking. The design of the intake allows for oil to be sucked through the intake system. Personally I would bypass with a pipe like tnadanzig did and never worry about it again. He was considering making and selling some bypass pipes.
Thanks for the info and advice. Maybe I need to look around for another source for the oil? It sure looked like it was coming from that resonator or maybe just hoping it was instead of something else bad. Bypass sounds like a winner to me. I will let him know of my interest.
__________________
2007 GRAND CHEROKEE LTD Q2 CRD GREYSTONE/L GREYSTONE
2006 MAGNUM HEMI COOL VANILLA
2006 JETTA TDI
2005 LIBERTY LTD CRD (LEMON LAWED)
flacrd is offline   Reply With Quote
