Transmission Fluid Level Sanity Check

Sorry for the dumb question but I'm having a problem understanding my dip stick fluid readings.

2006 4.7 545RFE.

Changed my fluids last week and am still having an issue where I don't know if I have too little or too much transmission fluid.

Took it out for a 15 mile trip, found a level spot and checked the fluid level. I can never get the fluid to fill the bottom "hot hole" on the stick like it does the "cold holes."

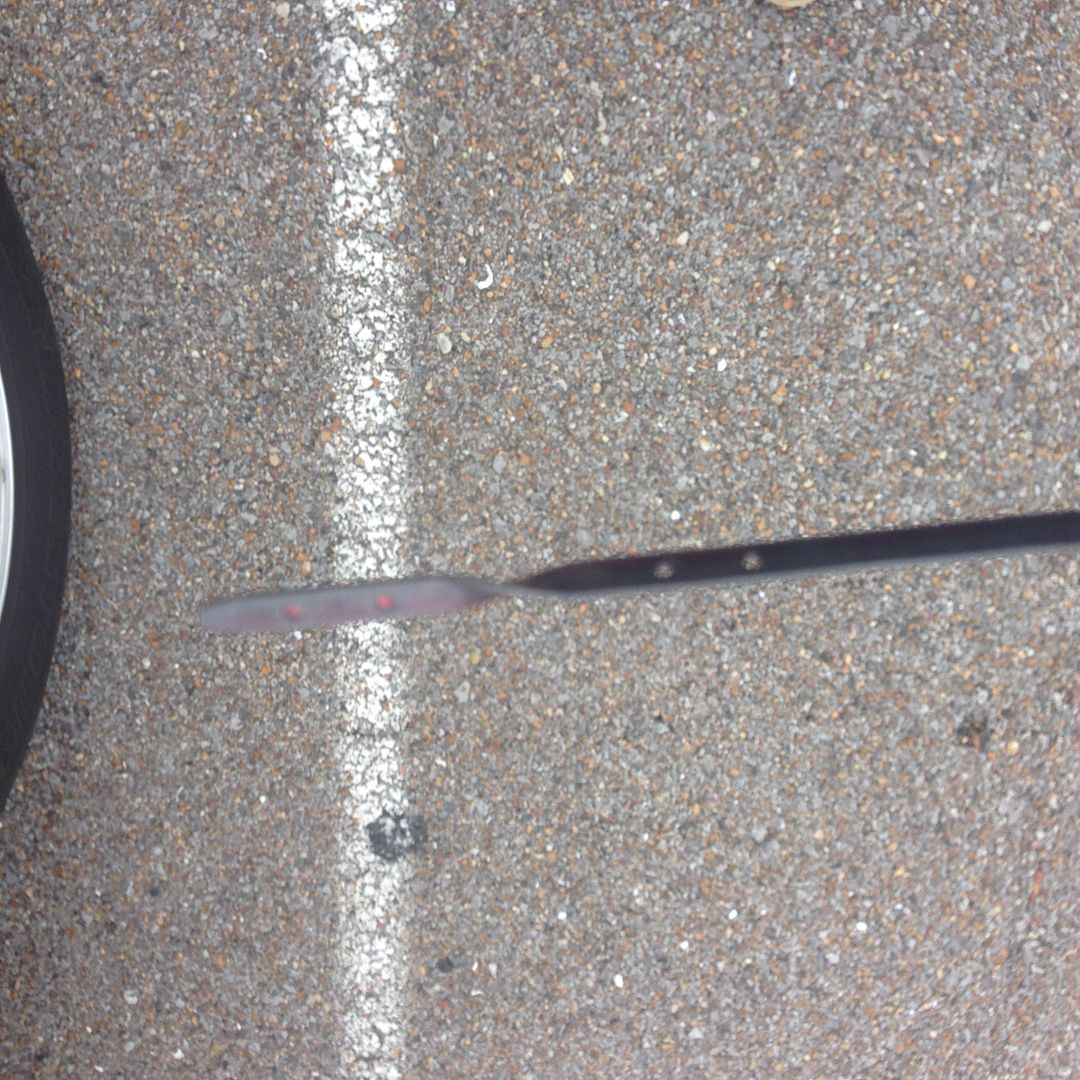

The picture above is an anomaly, as that bottom hot hole was clear when I first pulled the stick out.

It usually looks like this, sorry it's blurry:



So I guess my question is, is my true level at the blue line in the first picture?

Thanks!

T1m is offline
Sponsored Links
Advertisement

post #2 of 24 Old 04-22-2016, 06:27 PM
tom19511
Registered User
2014 WK

Join Date: Mar 2009
Location: Sheffield Lake
Posts: 1,045
IMO, it should be between the holes that say hot

Tom

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
tom19511 is offline
post #3 of 24 Old 04-22-2016, 06:59 PM
CavallinoRed
Registered User
2006 WK

Join Date: Oct 2013
Location: Arvada
Posts: 747
How are you checking your fluid level? Should be up to operating temp, on a level surface with engine running. Set service brake and run through the gears. Then let idle for a few minutes and set to park. Then with engine running check the level.
CavallinoRed is online now
post #4 of 24 Old 04-22-2016, 07:18 PM
Bchain5
Registered User
2007 WK

Join Date: May 2014
Location: Delaware
Posts: 207
I was just about to post the same thread. Having the hardest time finding my level.. I'll try using parking brake and moving through gears


Sent from my iPhone using Tapatalk

My 7th Jeep, 07 Grand Cherokee QTII 4.7L
#164 of the Silver WK Club
My build http://goo.gl/sr5m5f
Bchain5 is offline
post #5 of 24 Old 04-22-2016, 07:30 PM
caulk04
Registered User
2008 WK

Join Date: Jan 2013
Location: Greenville
Posts: 2,488
If you read the stick, it states to check fluid with engine running and trans in neutral.

08 Limited Hemi - wheels, tires, springs...ya know, stuff
caulk04 is offline
post #6 of 24 Old 04-22-2016, 07:34 PM
CavallinoRed
Registered User
2006 WK

Join Date: Oct 2013
Location: Arvada
Posts: 747
Quote:
Originally Posted by caulk04 View Post
If you read the stick, it states to check fluid with engine running and trans in neutral.
Good to know.
CavallinoRed is online now
post #7 of 24 Old 04-22-2016, 07:44 PM
Sneaky2Toes
Registered User
2005 WK

Join Date: Dec 2011
Location: Logan
Posts: 230
Was just going to say that. Make sure it is in neutral.
Sneaky2Toes is online now
post #8 of 24 Old 04-23-2016, 07:57 AM Thread Starter
T1m
Registered User
2006 WK

Join Date: Jun 2012
Location: Kenner
Posts: 197
The 545RFE should be in park when reading the stick.



I think I have mine sorted out, I had too much fluid and I believe that gave me my inconsistent readings. Once I pumped out almost a quart, it now reads where it should.
Bchain5 likes this.
T1m is offline
post #9 of 24 Old 04-23-2016, 09:26 AM
caulk04
Registered User
2008 WK

Join Date: Jan 2013
Location: Greenville
Posts: 2,488
I don't care what the service manual states, it's not unusual for them to be wrong.

My stick clearly reads "-IDLE IN NEUTRAL-". My old truck with the same trans was the same way.

08 Limited Hemi - wheels, tires, springs...ya know, stuff
caulk04 is offline
post #10 of 24 Old 04-23-2016, 02:32 PM Thread Starter
T1m
Registered User
2006 WK

Join Date: Jun 2012
Location: Kenner
Posts: 197
Quote:
Originally Posted by caulk04 View Post
If you read the stick, it states to check fluid with engine running and trans in neutral.
Could we both be right and that you can check the fluid in both Park and Neutral?

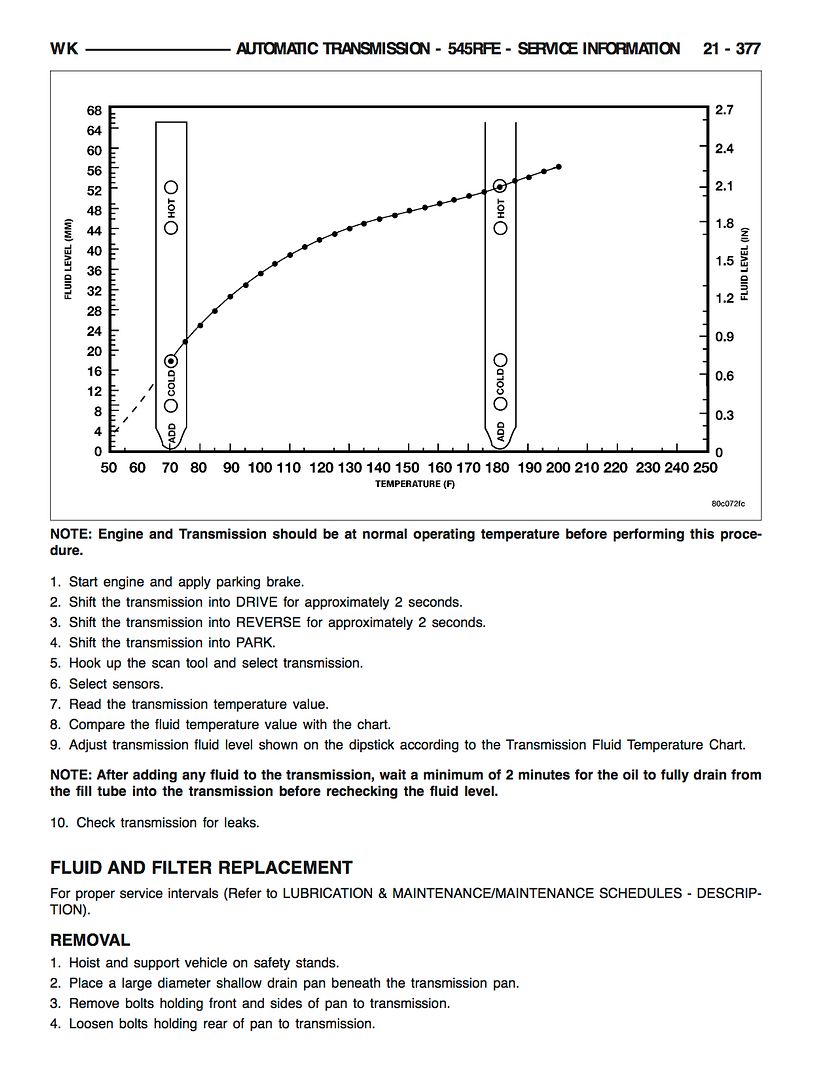

This, again, from the service manual:

"The torque converter fills in both the P (PARK) and N (NEUTRAL) positions. Place the selector lever in P (PARK) to be sure that the fluid level check is accurate. The engine should be running at idle speed for at least one minute, with the vehicle on level ground. At normal operating temperature (approximately 82 C. or 180 F.), the fluid level is correct if it is in the HOT region (cross-hatched area) on the oil level indicator. The fluid level will be approximately at the upper COLD hole of the dipstick at 70 F fluid temperature."

I tested this today after driving 15 miles with a mix of highway and street driving.

In Park - I had a clean line on the stick, right around where it was supposed to be. I measured it a few times.

In Neutral - I did not have a clean line on the stick, which made the readings vague. Again, I measured it a few times and there was not as clean a line on the stick as it was while in Park.

Cheers!
T1m is offline
post #11 of 24 Old 04-23-2016, 03:38 PM
CavallinoRed
Registered User
2006 WK

Join Date: Oct 2013
Location: Arvada
Posts: 747
Quote:
Originally Posted by T1m View Post
Could we both be right and that you can check the fluid in both Park and Neutral?
I know on older vehicles should be checked in neutral but wkjeeps says park. Wonder if there might be some splashing going on.

But here is the procedure they have that says in park and do trust this site

CHECKING THE TRANSMISSION FLUID LEVEL:
NOTE:
If equipped with a dipstick, use the following procedure. If your vehicle has a capped dipstick tube, it is sealed and should not be tampered with. Your authorized dealer has the proper tools to ensure that the fluid level is set properly.

Check the fluid level while the transmission is at normal operating temperature. This occurs after at least 15 miles (25 km) of driving. At normal operating temperature the fluid cannot be held comfortably between the fingertips.

To check the automatic transmission fluid level properly, the following procedure must be used:

1. Operate the engine at idle speed and normal operating temperature.
2. The vehicle must be on level ground.
3. Fully apply the parking brake and press the brake pedal.
4. Place the gear selector momentarily in each gear position ending with the lever in P (Park).
5. Remove the dipstick, wipe it clean and reinsert it until seated.
6. Remove the dipstick again and note the fluid level on both sides. The fluid level should he between the "HOT" (upper) reference holes on the dipstick at normal operating temperature. The fluid level is only valid if there is a solid coating of oil is seen on both sides of the dipstick. If the fluid is low, add as required into the dipstick tube. Do not overfill. After adding any quantity of oil through the oil fill tube, wait a minimum of two (2) minutes for the oil to fully drain into the transmission before rechecking the fluid level.
CavallinoRed is online now
post #12 of 24 Old 04-24-2016, 08:13 AM
caulk04
Registered User
2008 WK

Join Date: Jan 2013
Location: Greenville
Posts: 2,488
I recall seeing in the hydraulic diagrams that the pump isn't circulating fluid when in park. They also tell you to raise idle with trans in neutral to ease overheating. If you've ever had the filter drainback problem causing delayed engagement, shifting to neutral for a moment takes care of it.

I honestly don't feel like looking through the manual to find those fluid circuits and confirm, but I've never had a problem checking level in neutral.

08 Limited Hemi - wheels, tires, springs...ya know, stuff
caulk04 is offline
post #13 of 24 Old 04-24-2016, 09:40 AM
DRAX392
Registered User
2006 WK

Join Date: Apr 2016
Location: Monticello
Posts: 65
The 545RFE flows in both park and neutral, the older RE transmissions (42RE, etc) only flow in neutral.


Sent from my iPhone using Tapatalk
Bchain5 likes this.

2006 Jeep Grand Cherokee Laredo (WK), 4.7L V8, QTII
2016 Dodge Challenger R/T Scat Pack
DRAX392 is offline
post #14 of 24 Old 04-28-2016, 05:16 PM
charanga
Registered User

Join Date: Apr 2016
Posts: 1
Fluid level will be the same in park or nuetral....does mot make a difference...looks like a tad over not enough to hurt



Sent from my iPad using Tapatalk
charanga is offline
post #15 of 24 Old 04-29-2016, 10:32 PM
Penguin_Jeep
Registered User
2006 WK

Join Date: Feb 2009
Location: UK
Posts: 104
Mine doesn't have a dipstick...
