Tranny Leak - Connector Bushing

2005 GC Laredo, 3.7L V6

I've gotten the "transmission fluid leak" that seems to be rampant on the wk NAG trannys. The part is approximately $15 as has been noted. However, the TSB says the new center brass screw needs to be tightened to 22in/lbs. I dont have a torque wrench that measures that - for you guys that have changed yours, is that the equivalent of getting it snug by hand?

Stealership wanted $160 to change it - just couldn't justify that for a $15 part.

lambo05grand is offline
Sponsored Links
Advertisement

post #2 of 8 Old 02-19-2013, 10:05 AM
marko138
Registered User
2011 WK

Join Date: Jul 2011
Location: Harrisburg
Posts: 165

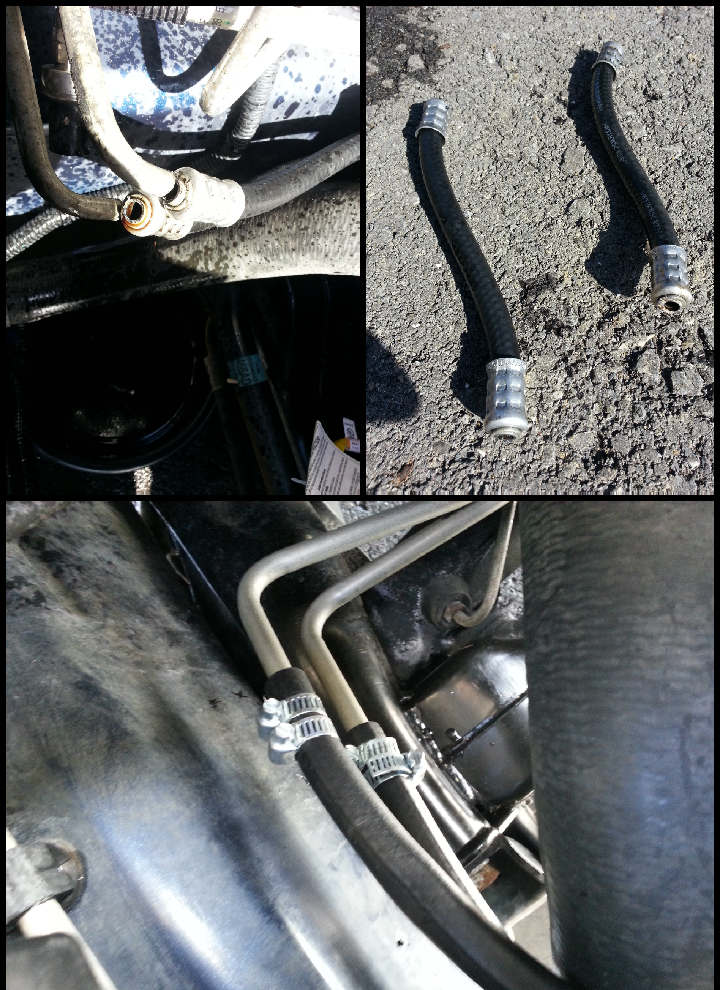

Do you have pics of this leak? I've got a 3.7. I just changed the cooler hoses on mine yesterday.

marko138 is offline
post #3 of 8 Old 02-19-2013, 10:24 AM Thread Starter
lambo05grand
Registered User

Join Date: Jul 2012
Posts: 22
I do not have a pic of the leak (it was dark last night and raining today). However, they did show me while it was on the lift this morning - it did appear to be coming from the connector bushing. For $15 I don't mind replacing.

However, my hoses may be leaking as well. Couldn't see much fresh 'wet' residue on the hoses but it did look like it had been wet at some point in time.

The leak is dripping from the bottom of the pan - where was the leak ultimately falling to the ground in your situation? Was it running down the lines all th way to the pan?
lambo05grand is offline
post #4 of 8 Old 02-19-2013, 10:37 AM
marko138
Registered User
2011 WK

Join Date: Jul 2011
Location: Harrisburg
Posts: 165
Quote:
Originally Posted by lambo05grand View Post
I do not have a pic of the leak (it was dark last night and raining today). However, they did show me while it was on the lift this morning - it did appear to be coming from the connector bushing. For $15 I don't mind replacing.

However, my hoses may be leaking as well. Couldn't see much fresh 'wet' residue on the hoses but it did look like it had been wet at some point in time.

The leak is dripping from the bottom of the pan - where was the leak ultimately falling to the ground in your situation? Was it running down the lines all th way to the pan?
No, mine was running down the radiator hose on the passenger side and dripping to the ground there.
marko138 is offline
post #5 of 8 Old 02-19-2013, 05:58 PM
Nejeep
Registered User

Join Date: Jun 2006
Location: Lincoln, NE
Posts: 844
I just snugged up the 7mm bolt by hand. Here is a link to my write up
http://www.jeepforum.com/forum/f67/t...umber-1456947/

There are some you-tube videos showing this connector replacement also, heres one.

06 Laredo - 4x4 V6 - Stone White - Custom LED Cargo Area Lights, Lighted Visors Added - now at 49k miles

97 Laredo - 4.0 4x4 Daily driver for 8 years then relocated to Arizona for 6 more years with the relatives
Nejeep is offline
post #6 of 8 Old 02-19-2013, 06:55 PM Thread Starter
lambo05grand
Registered User

Join Date: Jul 2012
Posts: 22
Good write up. I actually pulled out the plug last night before I got on here and realized it was a dealer only part. Picked one up today. One thing I noticed is that it's a pain to get the plug all the way back down in the hole and there's no room. Other than that, I think I'll save my $150 for dealer labor! And luckily I have a dipstick!

Did you use a 7mm deep socket with an extension? Seemed to be the only way I could get it to work.
lambo05grand is offline
post #7 of 8 Old 02-20-2013, 02:27 PM
Nejeep
Registered User

Join Date: Jun 2006
Location: Lincoln, NE
Posts: 844
Yes thats what I used for the 7mm bolt along with a real short ratchet.
I didnt get a factory dipstick but made my own from a length of poly tube and mm scale to measure the wet end. I see Dorman now sells one for about $20.

06 Laredo - 4x4 V6 - Stone White - Custom LED Cargo Area Lights, Lighted Visors Added - now at 49k miles

97 Laredo - 4.0 4x4 Daily driver for 8 years then relocated to Arizona for 6 more years with the relatives
Nejeep is offline
post #8 of 8 Old 04-14-2013, 08:33 PM
AlannaVic
Registered User
2005 WK

Join Date: Apr 2013
Location: Stoneham
Posts: 3
My husband just changed that part and now my tranny wont shift. stuck in 1st gear. any suggestions. good news is my leak stopped
