post #316 of 341 Old 10-17-2013, 10:22 PM
robrilla
Registered User
2004 WJ

Join Date: Mar 2013
Location: Tigard
Posts: 94
Quote:
Originally Posted by snobrdrkid07 View Post
My relay that I have in there "buzzes" as the interior lights dim as they go out, like they normally do. The relay just doesn't snap off. It is more like, "oh power dimming, don't know what to do, going to make noise and make the LED's flicker... Any way to fix this?
I'm having this buzzing as well from my relay. I have my setup like the image below. Any way to get rid of the buzzing???

Thanks,
-Rob

Attached Images

robrilla is offline
Sponsored Links
Advertisement

post #317 of 341 Old 10-19-2013, 09:19 PM
robrilla
Registered User
2004 WJ

Join Date: Mar 2013
Location: Tigard
Posts: 94
Quote:
Originally Posted by robrilla View Post
I'm having this buzzing as well from my relay. I have my setup like the image below. Any way to get rid of the buzzing???

Thanks,
-Rob
Alright. I got it figured out. Well, mostly figured out. I still get a very minor buzz but nothing that I can't handle.

I used a 1000uf 35v capacitor that was bridged between 85 and 86 on the relay.

Thanks a bunch guys! Couldn't have done it without you!
-Rob

This was the final output for my WJ under mirror lights -
Attached Images

robrilla is offline
post #318 of 341 Old 10-27-2013, 09:59 PM
Etanthegreat138
Registered User
2001 XJ Cherokee

Join Date: Oct 2013
Location: Cleveland
Posts: 1
I did the same on my xj, two switches one for the white and one for the red. Red in the interior under the dash and seats. And a set of three leds in the trim under the radio hooked up to the sub. Replaced the dome lights with white led panels I made and hooked up some whites to the hood switch. I never need a flashlight working on or under it again.
Etanthegreat138 is offline
post #319 of 341 Old 05-24-2014, 10:26 PM
askbob
Registered User

Join Date: Nov 2013
Location: Shelbyville
Posts: 16
Another mod to add to the list!
askbob is offline
post #320 of 341 Old 05-24-2014, 10:53 PM
robrilla
Registered User
2004 WJ

Join Date: Mar 2013
Location: Tigard
Posts: 94
Quote:
Originally Posted by askbob View Post
Another mod to add to the list!
This is on the top of my favorite mods list, right next to the carbon fiber trim mod. I didn't do all around the Jeep though, just under the mirrors.
robrilla is offline
post #321 of 341 Old 06-21-2014, 03:11 PM
its-me-B
Registered User
2002 WJ

Join Date: Jul 2012
Location: milwaukee
Posts: 643
update on mine, the Wisconsin winters weren't nice to the side lights on mine so I had to buy another roll to replace those. I ended up taking Two 6 inch strips and adding them to the rear axle one on each side of the drive shaft. I plan to add another eight inch LED strip on the front axle. All of the axle lights are facing inward towards the center of the vehicle so I have lights all the way around the outside and when I'm done I'll have lights facing inside as well. I'll post up pictures once I get the front axle done and taken care of

Do the world a favor, hurt a honda...
Iro 3" lift with pro comp 9000es shocks, adjustable trackbar, led rock lights, all interior lights converted to leds, two 10" kicker comp with Kenwood 600 watt amp
Zombie Outbreak Response Unit #396
its-me-B is offline
post #322 of 341 Old 07-26-2014, 06:46 AM
its-me-B
Registered User
2002 WJ

Join Date: Jul 2012
Location: milwaukee
Posts: 643
I need help I have run into a few issues with mine. I added rear axle lights tap those into other lights that were already on the vehicle and now the and fuse keeps popping, and what I put a slightly larger fuse in it melted my power wire from the battery to the relay. Why would adding two more lights cause this to happen any ideas would be very helpful. I am using the same power for the four underbody lights as I am for the two axle lights that I had added.

Do the world a favor, hurt a honda...
Iro 3" lift with pro comp 9000es shocks, adjustable trackbar, led rock lights, all interior lights converted to leds, two 10" kicker comp with Kenwood 600 watt amp
Zombie Outbreak Response Unit #396
its-me-B is offline
post #323 of 341 Old 07-27-2014, 09:19 AM
Budasac
Registered User
2005 WK

Join Date: Nov 2010
Location: Woodbridge
Posts: 3,170
Quote:
Originally Posted by its-me-B View Post
I need help I have run into a few issues with mine. I added rear axle lights tap those into other lights that were already on the vehicle and now the and fuse keeps popping, and what I put a slightly larger fuse in it melted my power wire from the battery to the relay. Why would adding two more lights cause this to happen any ideas would be very helpful. I am using the same power for the four underbody lights as I am for the two axle lights that I had added.
Never put a larger fuse in unless the wire is rated for it. (You already know why). Are you using the same type of led strips? It sounds like you have a short somewhere. I would go back and disconnect the new lights, test to make sure the old lights work, then connect the new lights one at a time. And see what happens. That will help you isolate the issue and let you know where you should be looking.
Budasac is offline
post #324 of 341 Old 07-27-2014, 04:56 PM
its-me-B
Registered User
2002 WJ

Join Date: Jul 2012
Location: milwaukee
Posts: 643
I think I got it sorted out. The wire from the fuse was smaller speaker wire. I replaced it with a thicker heavy wire and all is well again. I also added a 8 inch led on the front axle, I'll get some pics once it gets dark.

Do the world a favor, hurt a honda...
Iro 3" lift with pro comp 9000es shocks, adjustable trackbar, led rock lights, all interior lights converted to leds, two 10" kicker comp with Kenwood 600 watt amp
Zombie Outbreak Response Unit #396
its-me-B is offline
post #325 of 341 Old 07-27-2014, 07:50 PM
its-me-B
Registered User
2002 WJ

Join Date: Jul 2012
Location: milwaukee
Posts: 643

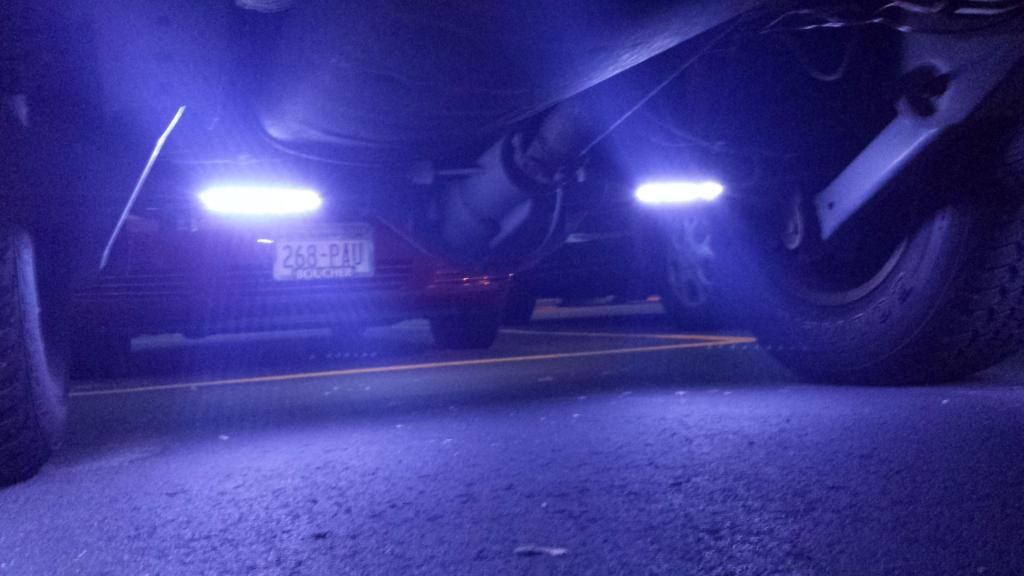

so I finally got around to taking some pictures as promised. here's a picture of the rear axle

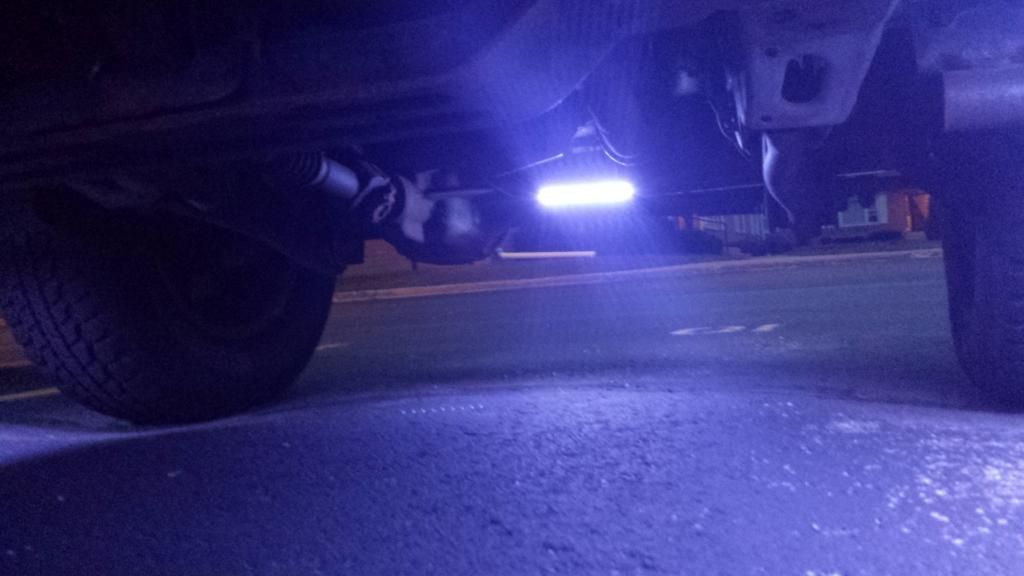

And the front axle

Do the world a favor, hurt a honda...
Iro 3" lift with pro comp 9000es shocks, adjustable trackbar, led rock lights, all interior lights converted to leds, two 10" kicker comp with Kenwood 600 watt amp
Zombie Outbreak Response Unit #396
its-me-B is offline
post #326 of 341 Old 07-30-2014, 07:46 AM
jeremyc653
Registered User
2005 WK

Join Date: Jun 2009
Location: St pete
Posts: 652
I had my rear light mounted to track bar with a little slack in wireing the other day I noticed the wire was ripped out of the leds anyone have that issue ?

Build Thread: http://www.jeepforum.com/forum/f67/jeremyc653-build-thread-1423295/#post14245927
jeremyc653 is offline
post #327 of 341 Old 08-15-2014, 10:58 AM
WKColoradoWK
Registered User
2006 WK

Join Date: Aug 2014
Location: Greeley
Posts: 9
I just got my lights in, and waiting on my switches. I have never done any car wiring before. I have a few questions. 1. Is an additional fuse box required to hook up the lights? 2. I have a couple open relay spots in my current electrical boxes, can I wire up to one of those, or do I wire to the relay switch already controlling the interior lights? (I want the rock lights to turn on with the interior lights and also have a switch to turn them on manually). I have read though a lot of this forum and I just can't fully wrap my head around how the wiring is done. I understand that I need to go to a fuse, then a relay, but 3. where are you grounding the lights too? Just to the body of the Jeep where the lights are being placed? or do you run the + and - wires up to the engine compartment and ground there? Any help would be greatly appreciated, sorry I am new to a lot of this but I want to do a lot of mods to my Jeep, figured lights was a good, cheap place to start.
WKColoradoWK is offline
post #328 of 341 Old 08-17-2014, 06:10 AM
Budasac
Registered User
2005 WK

Join Date: Nov 2010
Location: Woodbridge
Posts: 3,170
Quote:
Originally Posted by WKColoradoWK View Post
I just got my lights in, and waiting on my switches. I have never done any car wiring before. I have a few questions. 1. Is an additional fuse box required to hook up the lights? 2. I have a couple open relay spots in my current electrical boxes, can I wire up to one of those, or do I wire to the relay switch already controlling the interior lights? (I want the rock lights to turn on with the interior lights and also have a switch to turn them on manually). I have read though a lot of this forum and I just can't fully wrap my head around how the wiring is done. I understand that I need to go to a fuse, then a relay, but 3. where are you grounding the lights too? Just to the body of the Jeep where the lights are being placed? or do you run the + and - wires up to the engine compartment and ground there? Any help would be greatly appreciated, sorry I am new to a lot of this but I want to do a lot of mods to my Jeep, figured lights was a good, cheap place to start.
Check out the diagram in post #167.
http://www.jeepforum.com/forum/f67/o...l#post12539046
Budasac is offline
post #329 of 341 Old 08-17-2014, 09:47 AM
WKColoradoWK
Registered User
2006 WK

Join Date: Aug 2014
Location: Greeley
Posts: 9
Quote:
Originally Posted by Budasac View Post

Check out the diagram in post #167.
http://www.jeepforum.com/forum/f67/o...l#post12539046
Thanks for that, knowing that I can use and inline fuse helps. I'll post pictures once I have it completed.
WKColoradoWK is offline
post #330 of 341 Old 08-17-2014, 10:11 AM
WKColoradoWK
Registered User
2006 WK

Join Date: Aug 2014
Location: Greeley
Posts: 9
Quote:
Originally Posted by Budasac View Post
That looks good except the relay is wired wrong. (wires on the wrong terminals) other then that it looks good. You can grab the keyed power from the acc. port in the center consol. The WK has two (I think my WJ did also but I can't remember) But one should be keyed and the other constant. And yeah, I'd grab the courtesy feed from the footwell lamp on the drivers side.

I wrote up a thread a while back with wiring diagrams for relays and circuits. Check it out. May help you.
Electric 101- Wiring relays

PS. Zed, there are pics and diagrams for ya.lol
The electric 101 was also really helpful! I just couldn't wrap my head around how to hook to to the interior lights relay. After seeing how you have your relays in the electric 101 I have a better understanding! Thanks again!
WKColoradoWK is offline
