post #91 of 129 Old 06-01-2012, 07:33 PM
BobG97
Registered User
2005 WK

Join Date: Dec 2010
Location: Piedmont
Posts: 496
That's what I ended up doing. I noticed that the bottom of the plate was against the bumper just above the opening on the bottom, I didn't end up using the 1/4" spacer plates, I fear that will push it too far down.

I just finished adjusting the angle for the fair lead mount and will bet it welded in the morning then it's time to bold it all in for good!

The specs were spot on, it went really quick!

BobG97 is offline
Sponsored Links
Advertisement

post #92 of 129 Old 06-01-2012, 08:01 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
Glad to hear! It's always easier and faster when it is all mapped out already. It took me forever to build

I would suggest using the 1/4" spacers to lower it a tad. It really depends on the winch you go with, but I needed that extra clearance over the top.

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #93 of 129 Old 06-01-2012, 08:08 PM
BobG97
Registered User
2005 WK

Join Date: Dec 2010
Location: Piedmont
Posts: 496
Yeah I really appreciate all of your hard work! Lol

As for the spacers, I have them made but won't make the final call until I install the winch. I'll post up a few pics once I have it all in place!
BobG97 is offline
post #94 of 129 Old 06-01-2012, 08:11 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
Sweet man! Can't wait!

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #95 of 129 Old 06-01-2012, 09:08 PM
BobG97
Registered User
2005 WK

Join Date: Dec 2010
Location: Piedmont
Posts: 496

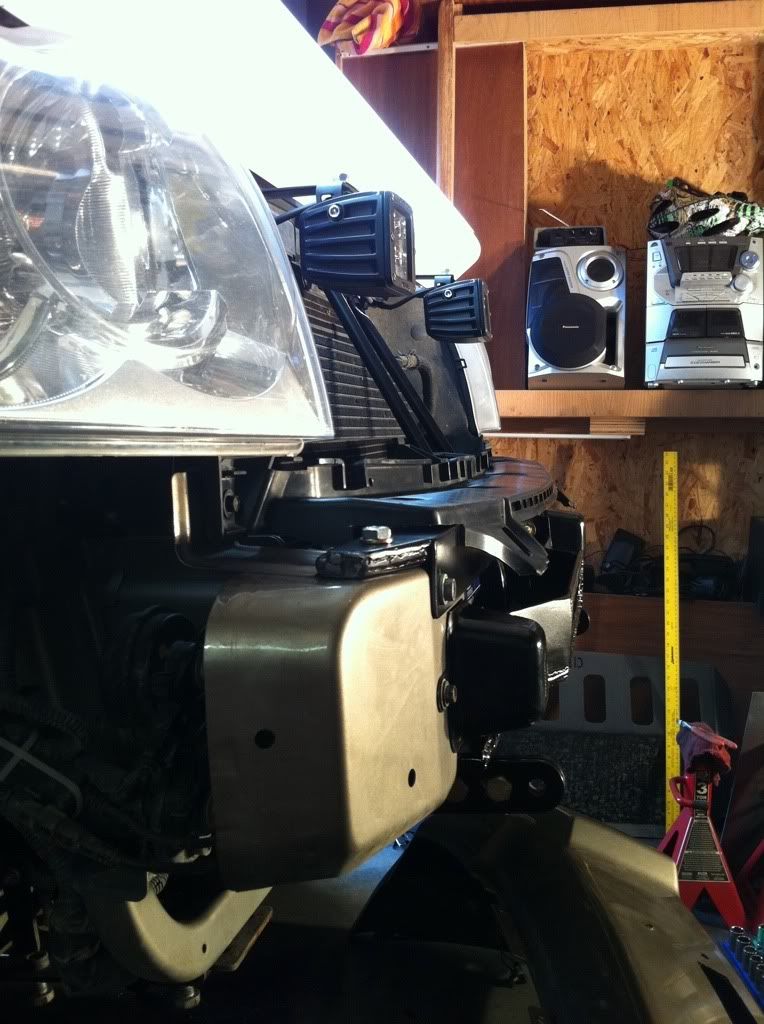

Here is the last pic I took today. It's a little further now, but that should bring back a few memories! Lol
Attached Thumbnails
BobG97 is offline
post #96 of 129 Old 06-01-2012, 09:36 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
Oh yes! Good times

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #97 of 129 Old 06-02-2012, 05:35 PM
BobG97
Registered User
2005 WK

Join Date: Dec 2010
Location: Piedmont
Posts: 496
I finished phase one, now I need to get the winch in and install it. All I have left is the fair lead holes and mounting holes.

I did modify your design a hair. I didn't want to use the angle iron for the hood support so I made tabs on the back of the mount and straightened the support bars, then relocated them to the sides. It's very strong and does not move any.

I have to give you props, your detailed specs made it a breeze!
Attached Thumbnails
image-2354670994.jpg   image-3364386197.jpg
BobG97 is offline
post #98 of 129 Old 06-02-2012, 09:39 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
Awesome man! Looks great so far, now it just needs a winch

That is a fine addition you made, a little simpler. It probably doesn't need the angle iron, but I added it to give extra structural support. It wasn't just there for the hood latch/radiator support.

So I am curious, did you notice any improvement in handling? I could have sworn it felt more stiff and more responsive after the mod. I wouldn't be surprised since we replaced the flimsy stamped steel crossmember with a 1/4" plate steel one

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #99 of 129 Old 06-02-2012, 10:40 PM
BobG97
Registered User
2005 WK

Join Date: Dec 2010
Location: Piedmont
Posts: 496
I thought about the extra support but once the mount was fully bolted in place it felt really solid and like you said, going from the paper thin factory crossmember to the 1/4" monster, I feel confident it will hold!

As for the handling I haven't driven but about 3 miles and so far I didn't notice a change but I will keep an eye on it to see if it feels more responsive.

I'm stalking a few winches now, I'm sure I will have one bought in the next week or two.
BobG97 is offline
post #100 of 129 Old 11-26-2013, 05:17 AM
94jeepman
Registered User
2005 WK

Join Date: Apr 2011
Location: rapid city
Posts: 778
Do the black hole cover things match up with the front of the winch plate? And did you angle it out to match up with the factory bumper or for the winch? I plan on doing this before I build my new bumper
94jeepman is offline
post #101 of 129 Old 11-26-2013, 09:38 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
The black caps don't come out quite as far as the cradle, but that's only because the bumper cover curves and sticks out farthest in the middle. They are both right behind the bumper cover though. The front of the cradle where the fairlead mounts is angled to mate up with the back of the bumper. The face of the bumper isn't exactly perpendicular with the frame rails, so you have to angle the front to make up the difference.


See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #102 of 129 Old 12-09-2013, 12:09 PM
ttusqrl
Registered User
2005 WK

Join Date: Oct 2007
Location: Dallas
Posts: 492
Hey Nathan, quick question for you on your winch wiring. I read through your build thread a while ago, but I can't remember if you are running a dual battery setup, and if so, if you tried your winch on a single battery first. How was the pull? Did you notice any ill effects?

2005 WK 5.7 ORT | Mod SL (OME struts & 990s) | JBA UCAs & Discos | Saguaro Front Bumper | Warn Zeon 10s | 285/70/17 BFG TA KO | AIRAID CAI | Gibson 3" Exhaust | DiabloSport Intune | JL Stealthbox
ttusqrl is offline
post #103 of 129 Old 12-09-2013, 01:44 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
No I'm running just a single Yellow Top 34/78. This was one reason for getting the EP9 as it has such a low draw while pulling. Last time I used it I have lights on, AC blasting, and it pulled very smooth, not even skipping a beat.

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #104 of 129 Old 12-09-2013, 01:54 PM
ttusqrl
Registered User
2005 WK

Join Date: Oct 2007
Location: Dallas
Posts: 492
Quote:
Originally Posted by Omelet View Post
No I'm running just a single Yellow Top 34/78. This was one reason for getting the EP9 as it has such a low draw while pulling. Last time I used it I have lights on, AC blasting, and it pulled very smooth, not even skipping a beat.
Good to know, thanks for the quick update (and not making me search through all of your build pages!).

We'll see if my current battery can handle it, and if not, I'll be replacing with a Sears Diehard Platinum most likely.

2005 WK 5.7 ORT | Mod SL (OME struts & 990s) | JBA UCAs & Discos | Saguaro Front Bumper | Warn Zeon 10s | 285/70/17 BFG TA KO | AIRAID CAI | Gibson 3" Exhaust | DiabloSport Intune | JL Stealthbox
ttusqrl is offline
post #105 of 129 Old 02-21-2014, 07:41 PM
CamelMikeWK
Registered User
2005 WK

Join Date: Oct 2013
Location: winchester
Posts: 103
Nate, Im planning on starting this in the near future. do you think diamond plating would work ok? it is .25" steel. im not too savvy with welding and fabbing (yet) but im going to be making it with a buddy who is, just thought id ask because i found a pretty big sheet (36" x 48" x 1/4") for 75 bucks.

2005 WK - Metallic Blue - HEMI - 2" RC BB - Rola Rack - 32" Tough Light in front - 10" Led Bar in the back - 245-70-17 Goodyear Wrangler's with Kevlar
"The Camel"
Looking for Front Tow Hooks or shackle mounts
CamelMikeWK is offline
