post #1757 of 2481 Old 03-23-2013, 11:48 AM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
Quote:
Originally Posted by jeremyc653 View Post
Looks good. Is the tire grocer just a hot knife?
Pretty much! Without the blade the end just get really hot and works greats for melting.


Quote:
Originally Posted by LilOmelet View Post
Looks good brother! I will need to do this sooner or later, I keep getting nervous that all this salt in the winter will start corroding my engine bay a lot quicker.
Thanks bro! I finally got the motivation to put some back in after driving on a road that was covered with little rocks coated in fresh tar. Those little guys flung EVERYWHERE!!!

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #1758 of 2481 Old 03-23-2013, 08:44 PM Thread Starter
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,363
Yesterday I finally got around to installing the new rear LCAs I have had sitting around for the past month! I have been wanting some better arms with quality rubber bushings on the frame end and flex joints on the axle end. I did some measuring and browsing on Rusty's site, then placed a custom order for these:

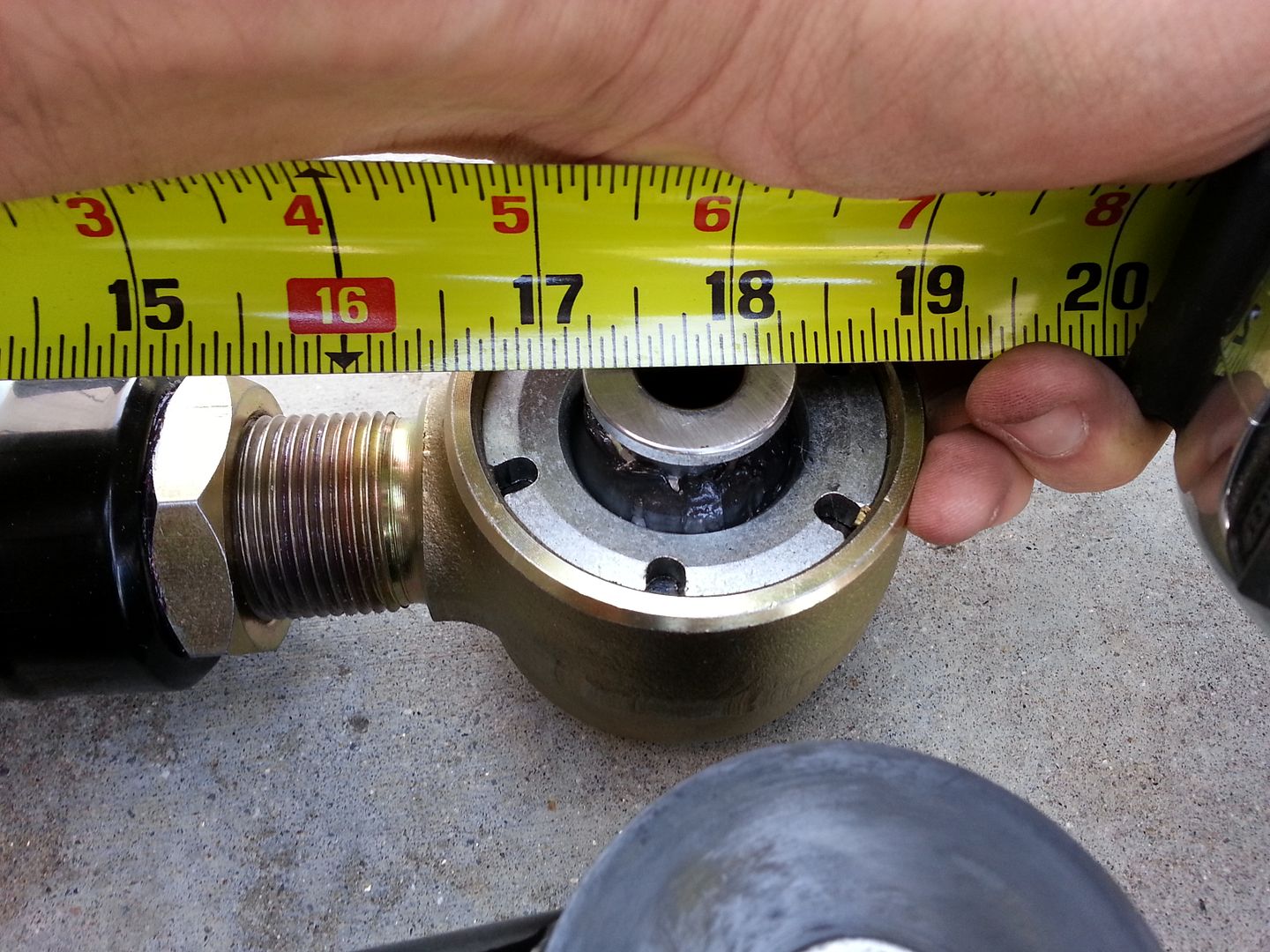

The frame end is a OEM rubber bushing and the axle end is their 2.5" forged flex joint, exactly what I was looking for! Now the stock arm measures 17.25" from eye to eye.

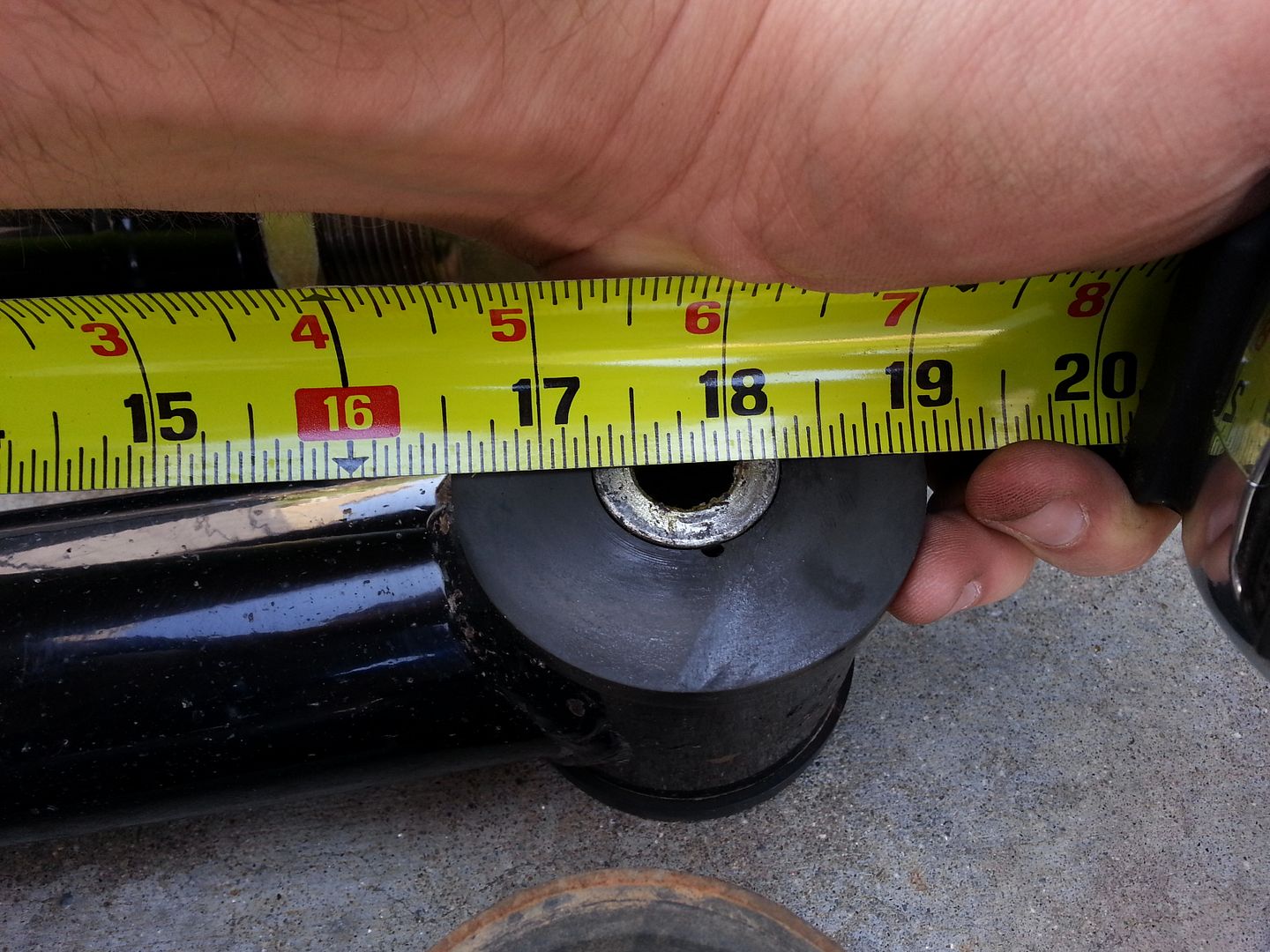

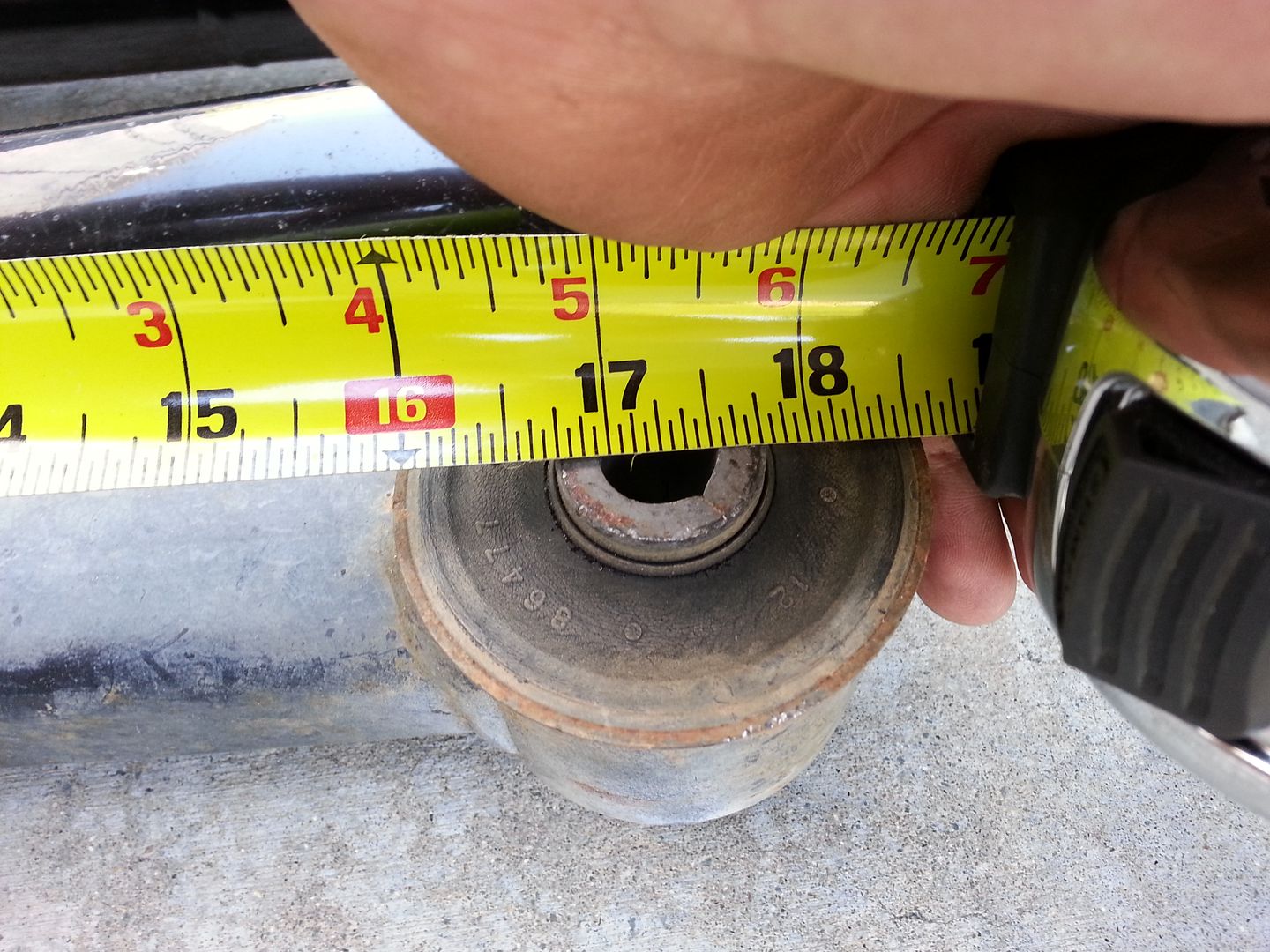

And the SL arm measures 17.75" from eye to eye.




So the SL arms are fixed at .5" longer than stock. I decided to have my arms made at 17" eye to eye when fully collapsed for plenty of adjustability.

For the instal I like to use a ratchet strap to keep the axle from moving around on me. I planned to adjust these to 17.75" just like the SL arms I was removing. So if I could keep the axle from moving around it was going to be as simple as unbolting and removing the SL arms, then positioning and bolting in the new arms. I removed and installed one arm at a time, not removing both arms at the same time

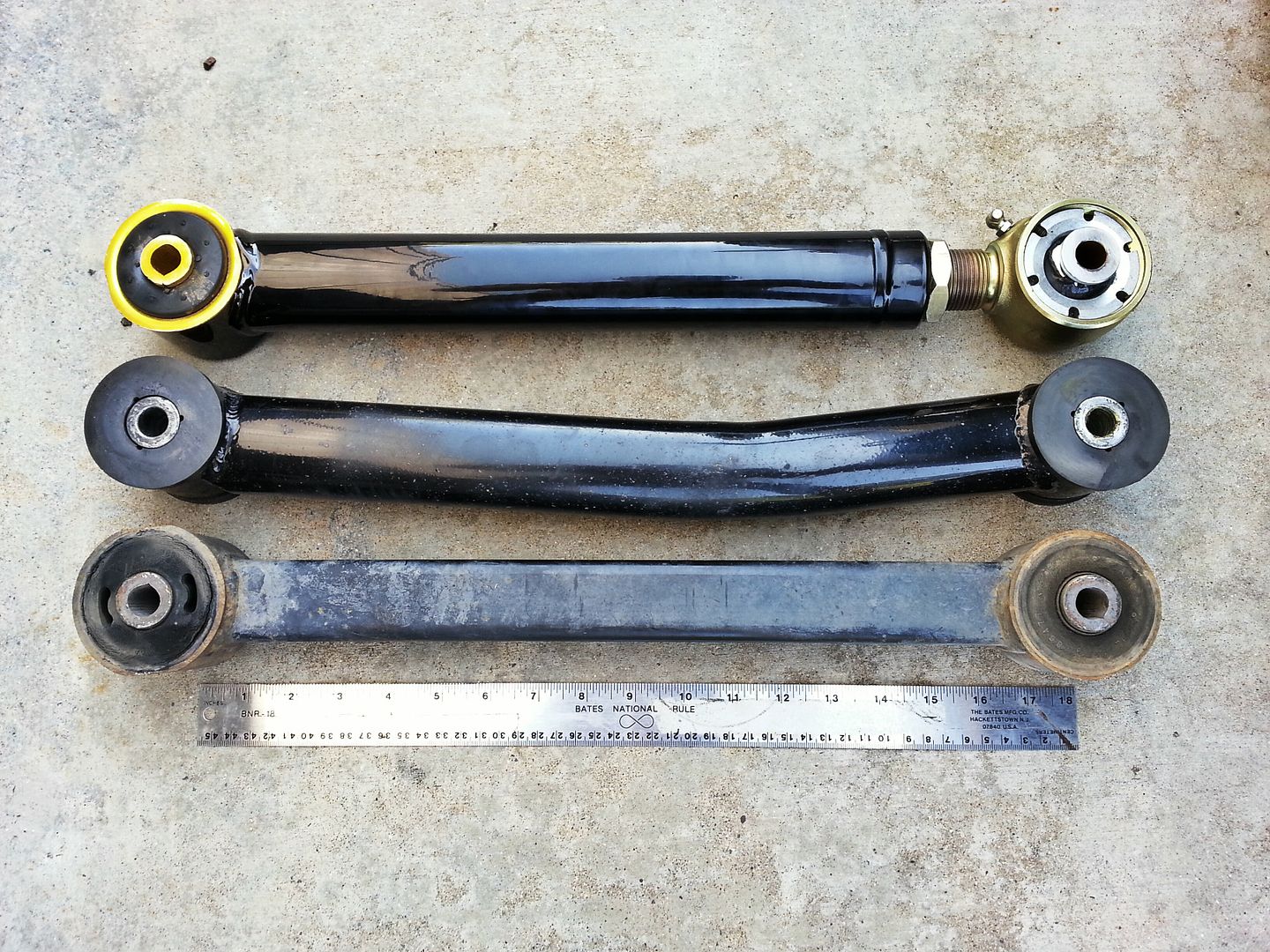

With the SL arm out I was able to get a good side by side shot of all of them.




You will notice how the SL arm is bent, that is so the sway bar link doesn't contact the arms while flexing. I plan to disconnect whenever I go wheeling so by using a straight arm I will gain a little of ground clearance. I adjusted the new arm to 17.75" and got it positioned in the brackets.

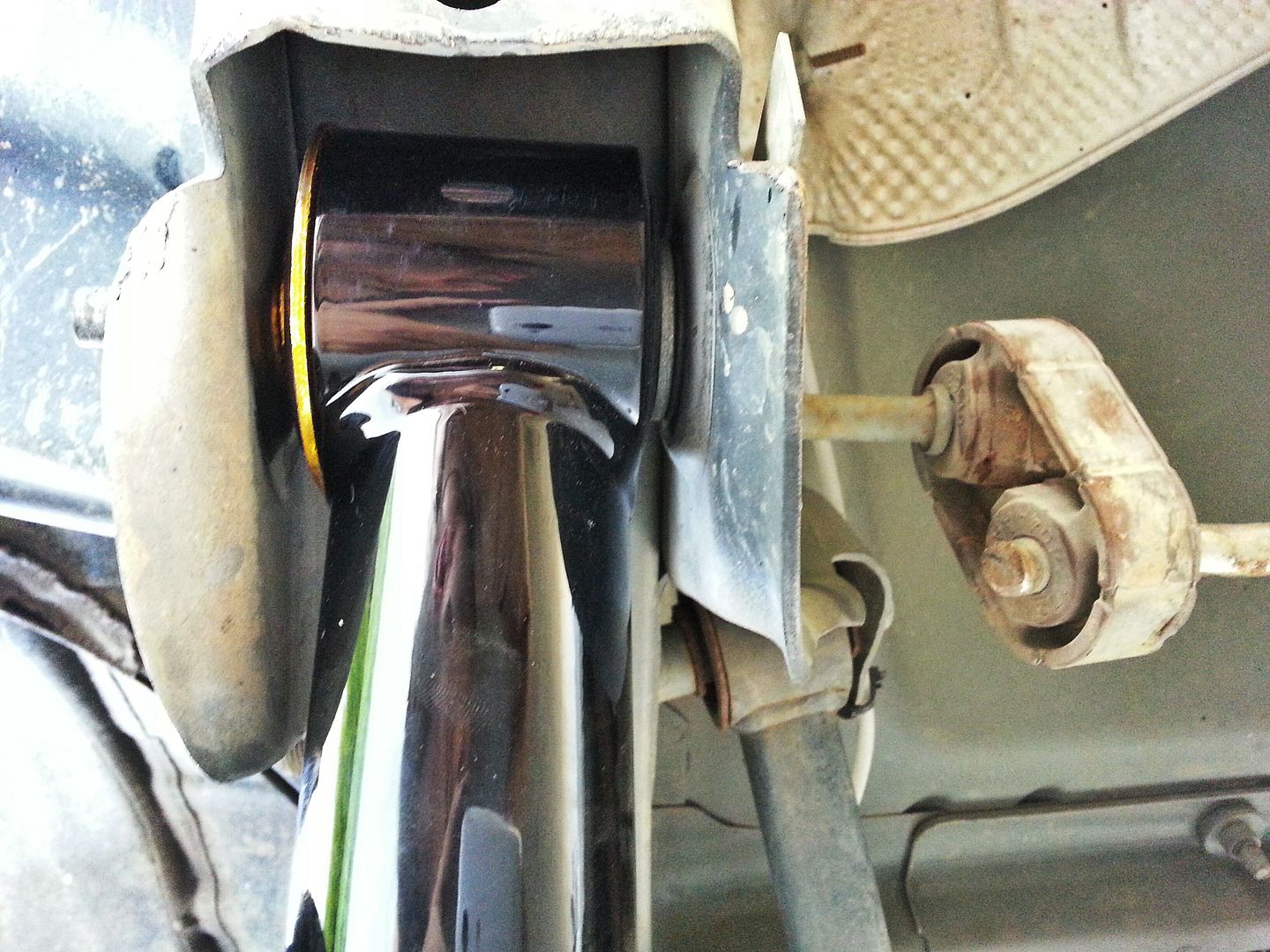

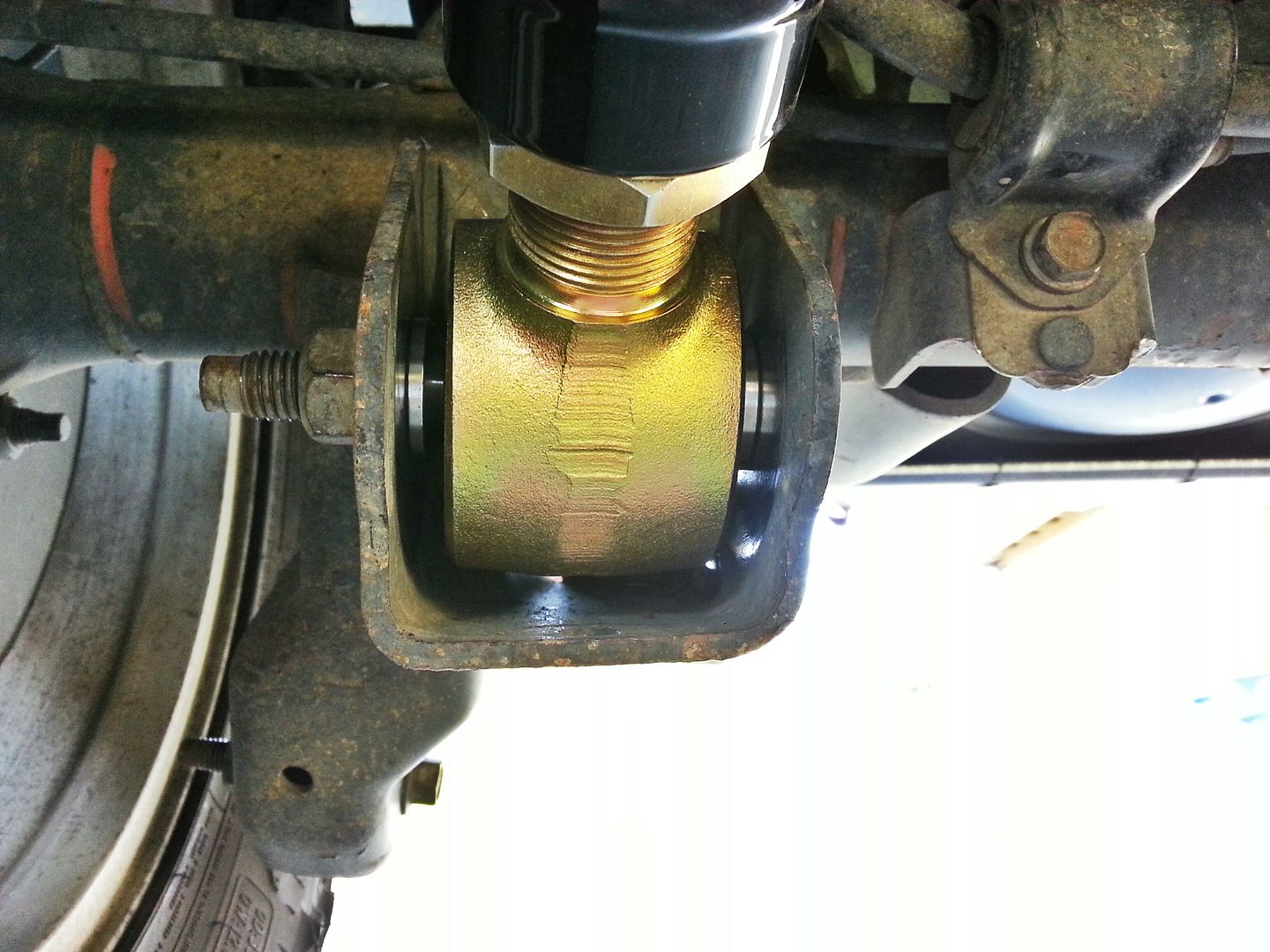

The 2.5" forged flex joint fit like a glove in the axle mount!




The rubber end was slightly loose so I added a 1/8" washer on one side to make it fit good and tight.

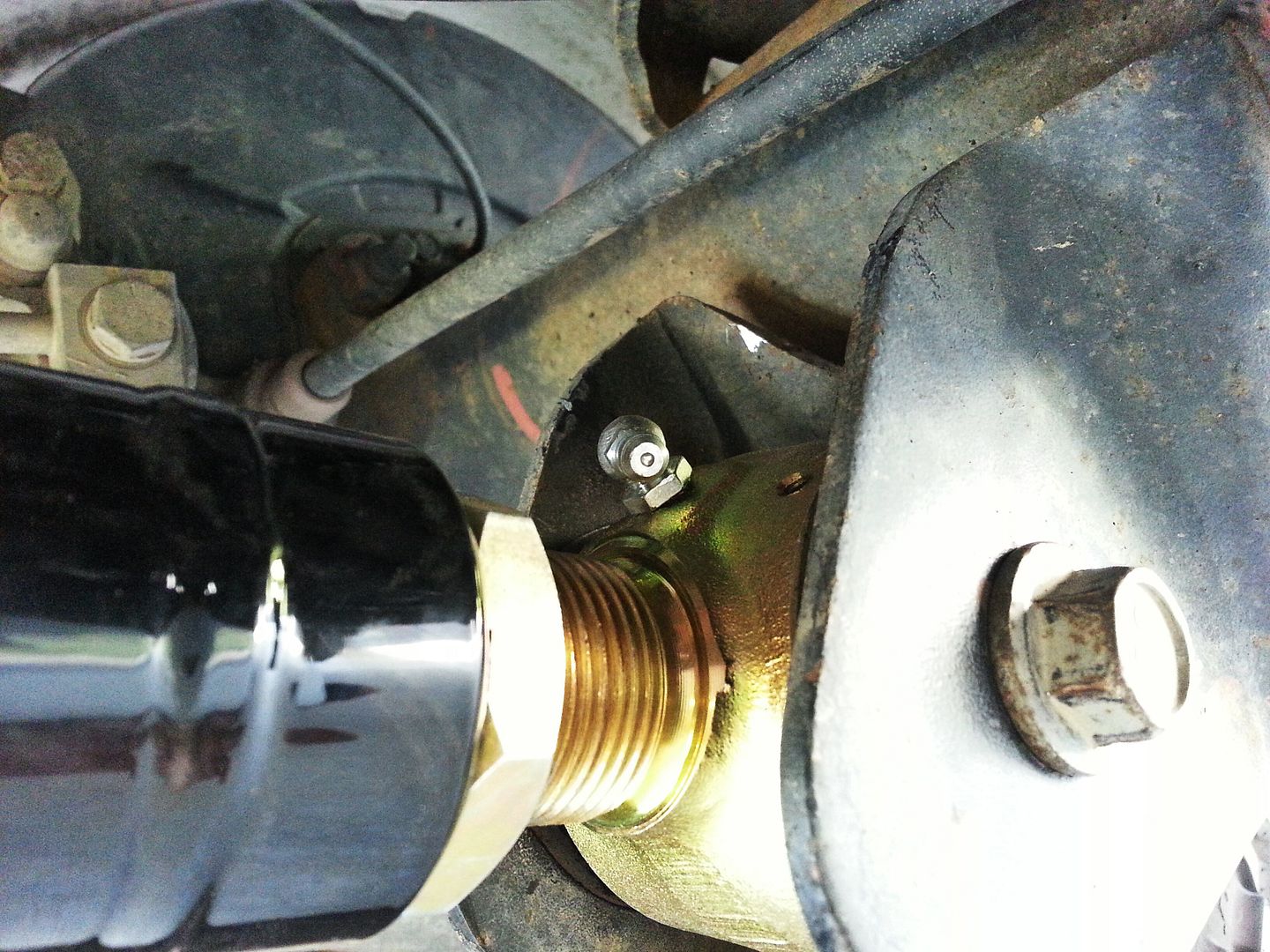

The flex end is equipped with a zerk fitting to keep it well greased. I was about to position the joint with the zerk on top out of harms way, and rotate the zerk so it was easy to get the gun on it while bolted in place.

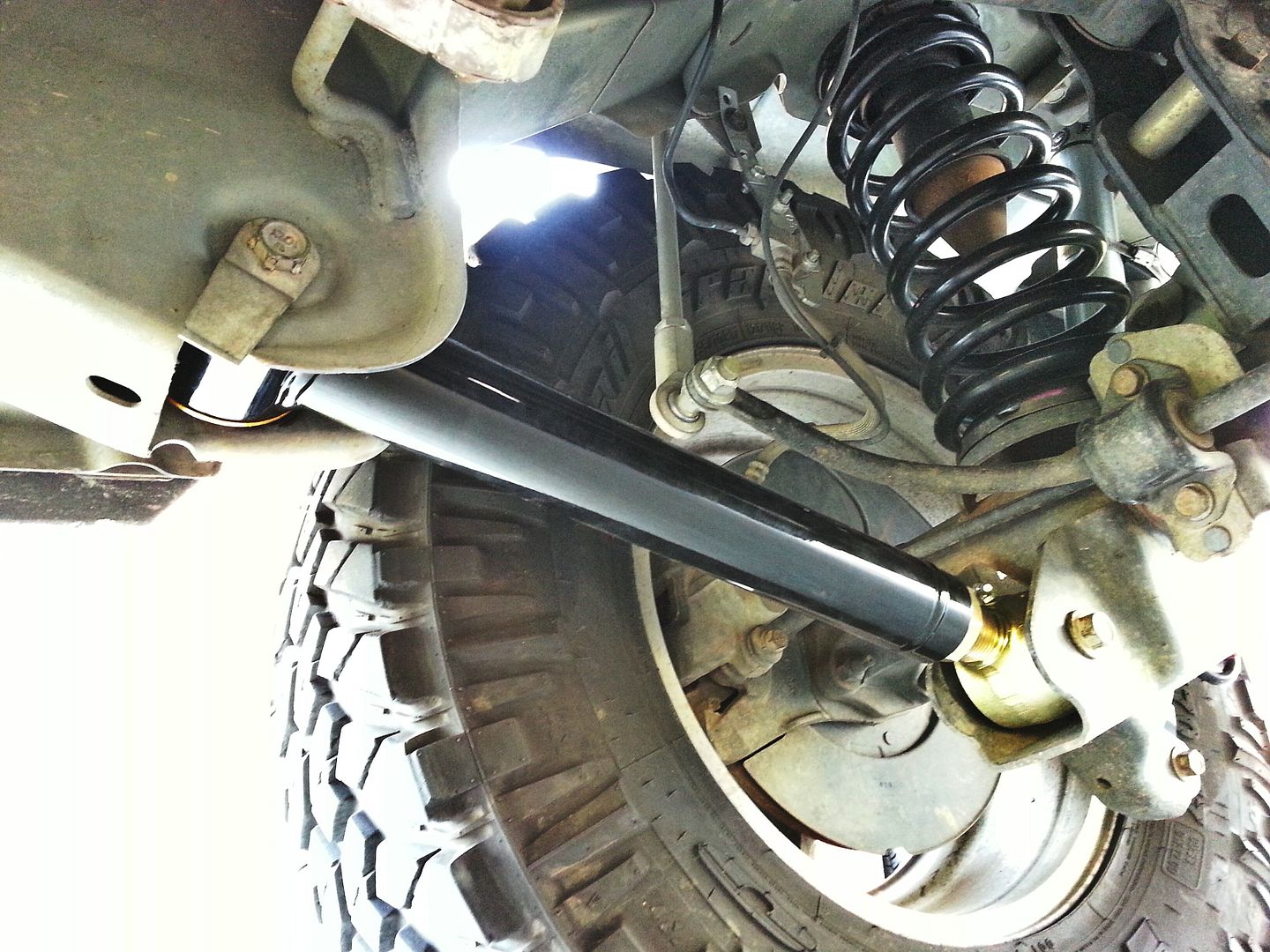

And there we have it! Shiny new and flexy arms






After seeing just how beautiful these things turned out I am thinking of getting a pair of upper ones made to match! I want to go out and test flex this thing first though. If it flexes good enough then I might wait, but if it could still do better then the uppers will get swapped too

See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
