post #453 of 591 Old 09-09-2013, 09:06 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by VegasGT View Post
Love the WK man, first time Ive ever really popped over to this side of the forum. Very nice rig.

Oh, and I ran a set a GY Wrangler Authorities in the past, and I dont give a damn if they came from Wally World, they were excellent tires, I would have bought them again if they made them in bigger sizes.
It's a good place to hang out - the WK side...........and yeah, the GY AT's are without a doubt a solid tire all around.



So - today the red Jeep took a drive to bring something home:



Got a steal of a deal on a trailer off Craigslist - finally! Been on the hunt for quite some time now and my persistence paid off.



The blue Jeep will fit on this nicely and all in I should be about 1500 lbs under the 4.7's max pull.

Got some work to do on both the WK and the trailer/hitch set-up. Rear axle has brakes but the front will get them as well, need to solidify my hitch configuration, and of course install a brake controller - most likely the Tekonsha Prodigy P2............but I'll see what my research turns up.

Until next time.........................

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is offline
post #454 of 591 Old 09-11-2013, 07:52 AM
Clirry
Registered User
2014 WK

Join Date: Aug 2013
Location: Smithfield
Posts: 213
Nice trailer!
Clirry is offline
post #455 of 591 Old 09-11-2013, 11:20 AM
VegasGT
Registered User
1988 MJ Comanche

Join Date: Nov 2009
Location: Leitchfield, KY
Posts: 5,395
Jealous of the trailer, thats my next big purchase on down the road. Looks like itll do its job nicely!

- '88 MJ Pioneer -
Build In Progress
- '04 Sierra Z71 Crew Cab -
Daily/TowPig
VegasGT is offline
post #456 of 591 Old 09-13-2013, 04:51 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by Clirry View Post
Nice trailer!
Quote:
Originally Posted by VegasGT View Post
Jealous of the trailer, thats my next big purchase on down the road. Looks like itll do its job nicely!
Yeah thanks - glad I found one.

Speaking of which I built some stepblocks for 35 bucks:





but as far as the WK I was able to get the Tekonsha Prodigy P2 installed today.

Very easy - just a couple more wires than a cb install.

First you need an assortment of tools and supplies:




Start by disco'ing the battery.


Little trick I use to fish the wire through the fire wall is to snip a piece of bailing wire (((longer than this pic))) and tape it to the end of your wires. I used two 5 foot 12g wires and taped the ground side with black tape at both ends to know which was which. Punch the wire tip through the rubber grommet up under the dash and grab from under the hood. If you can keep a long screwdriver pushed aginst the grommet as you pull the wire through - otherwise your grommet will unseat like mine.



Once it pulled through and length is estimated - splice in the inline 20amp fuse - I used buttend connectors on everything and ran 12g wire for power/ground:




I grounded at the chassis just forward of the fuse and connected to the hot side terminal - tidy'd everything up with conduit, electrical tape, and zip ties:



Then under the dash...............

Very gently twist the brake controller switch to unseat it:




.........and take the #2 position wire (white/tan)



.....use a scotchlock to splice into the brake switch wire with the corresponding wire from the controller harness:




I forgot to take pics but if you have the tow package you will see a green wire hanging up under the dash to the outboard side of the brake switch. That is the wire that gets spliced with the corresponding wire from your harness.

Use zip ties to tidy up behind the panel and mount the controller. I used washers on the one side to keep the controller level on the horizontal as per instructions:




Back under the hood to reconnect the battery and tuck everything in:



.......and powah:





Take it out for a spin with a trailer/trailer brakes and set up the controller.

Easy cheezy.

......until next time...............

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is offline
post #457 of 591 Old 09-13-2013, 05:20 PM
bhawks28
Registered User
2014 JK Wrangler

Join Date: Jun 2012
Location: chicago
Posts: 811
nice clean work. I'm going to be following your CB install this weekend

2014 JKU Rubicon
bhawks28 is offline
post #458 of 591 Old 09-13-2013, 07:53 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by bhawks28 View Post
nice clean work. I'm going to be following your CB install this weekend
^^^ it's an install that is fairly intuitive. Run the wires, dress/conceal the wires, mounts, power, tune it in.

Not sure I like the location of the brake controller though. It's convenient as far as reaching it for controls but my right leg grazes it just below bent knee getting in/out and I don't like it. Dunno, prob just live with it.

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is offline
post #459 of 591 Old 09-13-2013, 10:07 PM
05SilVer
Registered User
2005 WK

Join Date: Sep 2013
Location: Poway
Posts: 90
Your WK is looking great! Gives me hope to work on my WK. Keep up the good work!

Zak

05 Grand cherokee limited
OME 2" lift.
265/70r17
1.5 wheel spacers
Max Energy Hypertech
05SilVer is offline
post #460 of 591 Old 09-14-2013, 05:45 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by 05SilVer View Post
Your WK is looking great! Gives me hope to work on my WK. Keep up the good work!
With a Jeep there's always hope..............


Got the red Jeep set-up to pull today.

Rough estimate is the XJ, trailer, and gear comes in at around 5600lbs - so not the 1500 under rated capacity I originally thought but after careful tallying - still well within the 4.7's limitations.

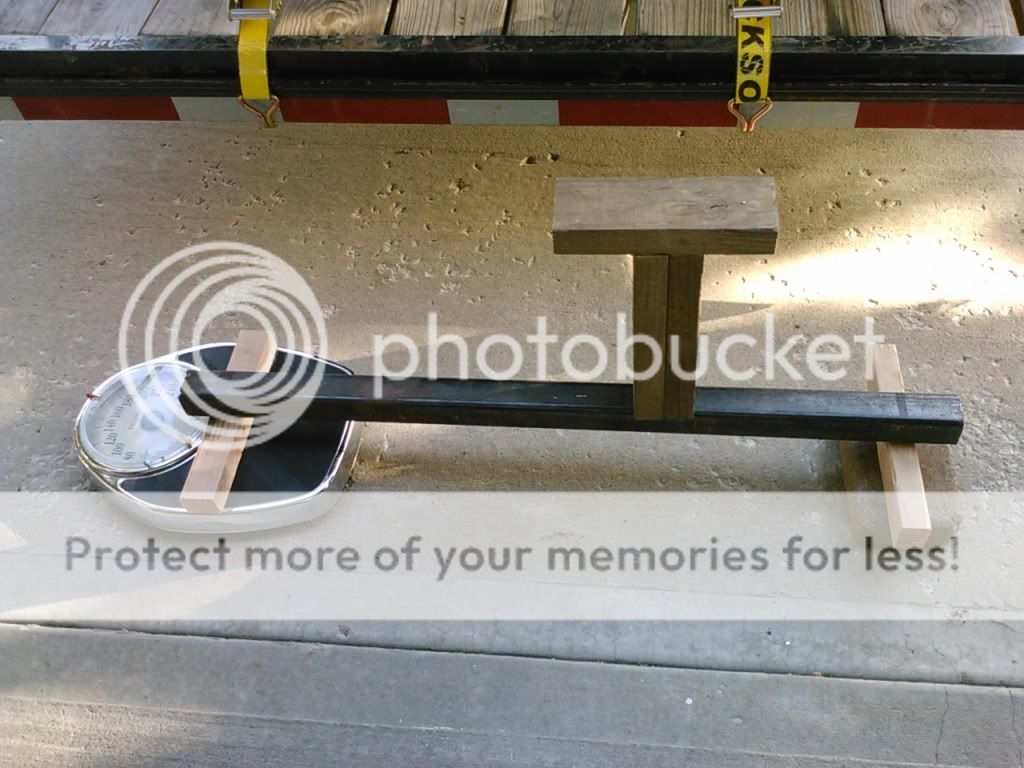

Used the bathroom scale method to get my tongue weight dialed in. Pretty handy thing if you have a few of the necessary things laying around the garage - I used a 2x2 box tube that was about 3.5' long and used a 3:1 ratio to calculate my tongue weight.



Weight on the scale hit 180 when I really found a sweet spot for the XJ on the trailer so roundabout 540 lbs tongue weight.



Drove it around to set the brake controller to the load and hit some curves, hills, highway, on/off ramps, stop and go. Pulls like a champ and with the tandem brake axles and Prodigy, stopping is not an issue at all.



It squats the back some when loaded but it pulls straight and smooth and is under the tongue weight, GTW, and GCVWR. So, now the only thing left to do is hit the road for some wheelin.....

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is offline
post #461 of 591 Old 09-15-2013, 10:13 AM
bhawks28
Registered User
2014 JK Wrangler

Join Date: Jun 2012
Location: chicago
Posts: 811
that is AWESOME. I've been looking at a few XJ's recently. Boy would I love to have one. I love the look of Jeep towing Jeep!

2014 JKU Rubicon
bhawks28 is offline
post #462 of 591 Old 09-15-2013, 10:28 AM
BoraBora
Registered User
2015 JK Wrangler

Join Date: Apr 2013
Location: McLean
Posts: 777
WOW that is one SWEET XJ man.

'15 JK 2.5" lift on 35's
'06 WK 3.5" lift on 33's (Sold)
BoraBora is offline
post #463 of 591 Old 09-15-2013, 04:41 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by bhawks28 View Post
that is AWESOME. I've been looking at a few XJ's recently. Boy would I love to have one. I love the look of Jeep towing Jeep!
Quote:
Originally Posted by BoraBora View Post
WOW that is one SWEET XJ man.

I gotta say I like my XJ - a lot. In the end it's just a street legal beater with poor road manners that can wheel like mad! :-P








Today I did another test run with the tow set up but used my 6 inch drop instead of the 10 inch I had in there - felt a little more stable, if not the same, but I'm really thinkin an 8 inch drop is gonna be the perfect inbetween.

Btw -

GO CHIEFS!!!

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is offline
post #464 of 591 Old 09-16-2013, 03:28 PM
Cherokee30D
Registered User
2007 WK

Join Date: Dec 2012
Location: Mount Martha
Posts: 157
Quote:
Originally Posted by JeepN4KC View Post
Today I did another test run with the tow set up but used my 6 inch drop instead of the 10 inch I had in there - felt a little more stable, if not the same, but I'm really thinkin an 8 inch drop is gonna be the perfect inbetween.
Hi JeepN4KC, I am interested to know the height of the top of the tow tongue to the ground.
Mine is 420mm in metric.

Cheers, Craig
Cherokee30D is offline
post #465 of 591 Old 09-16-2013, 04:08 PM Thread Starter
JeepN4KC
Keep on Jeepin on........

JeepN4KC's Avatar

Join Date: Jul 2011
Location: Blue Springs
Posts: 7,034
Quote:
Originally Posted by Cherokee30D View Post
Hi JeepN4KC, I am interested to know the height of the top of the tow tongue to the ground.
Mine is 420mm in metric.

Cheers, Craig
I'm not sure exactly what you're asking.

Do you want to know my ground to factory hitch measurement or ground to top of ball for the 6" and/or 10" drops?

~Mike~


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
WK

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
XJ
Sept '13/Jan '15/Jun '16 COTM
JeepN4KC is offline
