Unread 10-19-2014, 03:30 PM   #1
DarthJeep
Registered User
2005 WK

Join Date: Apr 2011
Location: Boston, Massachusetts
Posts: 249
LED Trunk Mod

So let me just say this first, I AM NOT THE FIRST TO DO THIS MOD. I followed Omelet's Build Thread. However, I will write up my own thread in hopes to help others who want to do this helpful mod. Basically, I put a LED strip inside of the rear vent (on the roof) so I can see at night. The little bulb that was already in the hatch is useless.



First:
I picked up a generic 8' LED Ribbon Light Kit from my local Home Depot for ~$60.

Originally, these lights were designed for cabinetry so I discarded the adapter and plug the kit came with.


Next:
You'll need to remove the vent fascia from the roof. It is held in with a few clips that pry right out. Start at one end by wedging a finger behind it and pry it down. Go from right to left or vise versa, but go clip by clip. The vent fascia will look like this once its out.


Next:
After you pull off the vent fascia, there will be 3 or 4 black plastic rivets holding in the headliner. Pry a flathead scewdriver or chisel and pop them out being careful not to break or bend them as you will need to pop them back in after. Once the headliner is free, you'll see the wire harness that goes from the roof into the trunk, take off the cover and you'll see the wires.

Next:
I cut the LED strip to the length of the vent fascia and layed in between one of the slats.

I cut off a small portion of the plastic clip so the LED strip would sit flush as Omelet suggested. I just used wire cutters to trim the plastic.

Then, I grabbed my hot glue gun and set the LED strip in place. Make sure you get the ends as well.

Next:
The (+) wire is the RED wire with a WHITE stripe. The (-) wire is the YELLOW wire with an ORANGE stripe. I spliced into each wire and added the LED strip.

Make sure you don't have any exposed wires. I taped and capped off the ends.


Finally, pop the vent fascia back in and test it out! The LED's should turn on/off with the cabin lights.



__________________
Build Thread - http://www.jeepforum.com/forum/f67/darthjeep-build-thread-2842722/
Black Wk Club 166
DarthJeep is offline   Reply With Quote Quick reply to this message
Unread 10-19-2014, 04:34 PM   #2
caddydaddy
Registered User
2007 WK

Join Date: Dec 2013
Location: Gales Ferry, Connecticut
Posts: 546
Nice! I too was shocked at how worthless the small light on only one side of the hatch was.
__________________
2007 CRD Grand Cherokee Limited 4x4
GDE ECO Tune, Turbo Resonator Delete, EHM
170,000+ miles!
caddydaddy is offline   Reply With Quote Quick reply to this message
Unread 10-19-2014, 07:07 PM   #3
BlackPrintz
Registered User
2005 WK

Join Date: Jan 2013
Location: Canning, NS
Posts: 107
I bought one of those 10 light LED packs for a WK off eBay and the difference is amazing. That one little light in the cargo area actually lights up the whole area now.
__________________
Black WK #139
05 WK, 5.7 Hemi, 2" R.C. lift, 32s, K&N, MagnaFlow, 4xGuard Skids, Custom Rock Rails
BlackPrintz is offline   Reply With Quote Quick reply to this message
Unread 10-19-2014, 07:16 PM   #4
DarthJeep
Registered User
2005 WK

Join Date: Apr 2011
Location: Boston, Massachusetts
Posts: 249
Quote:
Originally Posted by BlackPrintz View Post
I bought one of those 10 light LED packs for a WK off eBay and the difference is amazing. That one little light in the cargo area actually lights up the whole area now.
I got that pack too. But I wanted more haha
__________________
Build Thread - http://www.jeepforum.com/forum/f67/darthjeep-build-thread-2842722/
Black Wk Club 166
DarthJeep is offline   Reply With Quote Quick reply to this message
Unread 10-20-2014, 02:23 PM   #5
luckyse7ens
Registered User
2010 XK Commander

Join Date: Jun 2014
Location: concord, ca
Posts: 1,034
Trim to fit Light strips without the adapter and plug are available in 16 foot lengths for ~$15 on amazon and ebay
__________________
Black WK Club #152
luckyse7ens is offline   Reply With Quote Quick reply to this message
Unread 10-21-2014, 04:15 AM   #6
Blatt
Registered User
2007 WK

Join Date: Sep 2014
Location: Pretoria, South Africa
Posts: 28
I still need to do this, bought the LED's 4 months ago and have not yet done it.

Looks good
Blatt is offline   Reply With Quote Quick reply to this message
Unread 10-22-2014, 12:35 PM   #7
C.Semprini
Registered User
2005 WK

Join Date: Nov 2007
Location: Philadephia, Pennsylvania
Posts: 102

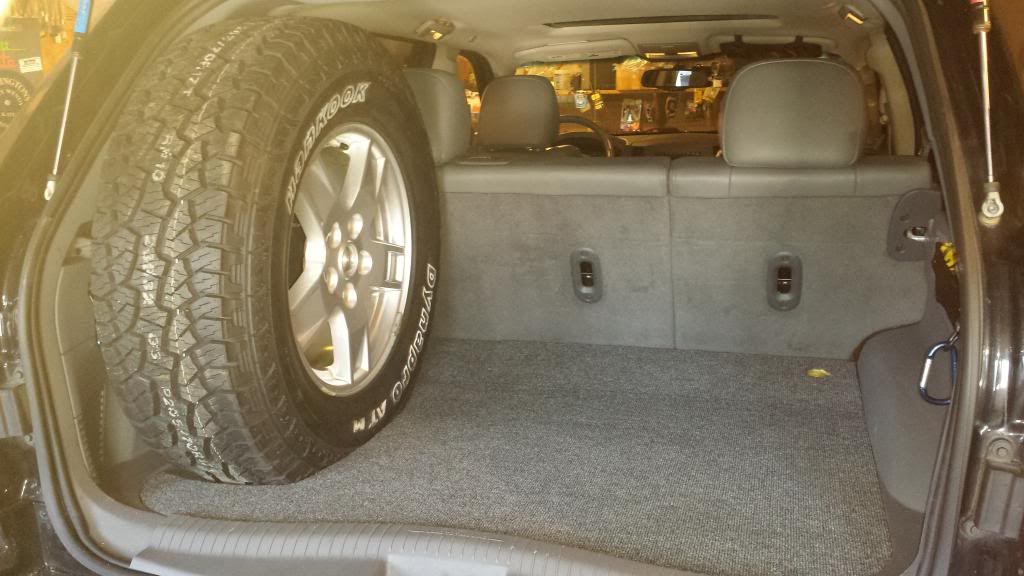

Sorry for going off topic but how do you have that spare mounted??
C.Semprini is offline   Reply With Quote Quick reply to this message
Unread 10-22-2014, 03:40 PM   #8
luckyse7ens
Registered User
2010 XK Commander

Join Date: Jun 2014
Location: concord, ca
Posts: 1,034
Quote:
Originally Posted by C.Semprini View Post
Sorry for going off topic but how do you have that spare mounted??
He modified the trunk

http://www.jeepforum.com/forum/f67/t...-tire-2143905/



__________________
Black WK Club #152
luckyse7ens is offline   Reply With Quote Quick reply to this message
Unread 10-22-2014, 07:48 PM   #9
DarthJeep
Registered User
2005 WK

Join Date: Apr 2011
Location: Boston, Massachusetts
Posts: 249

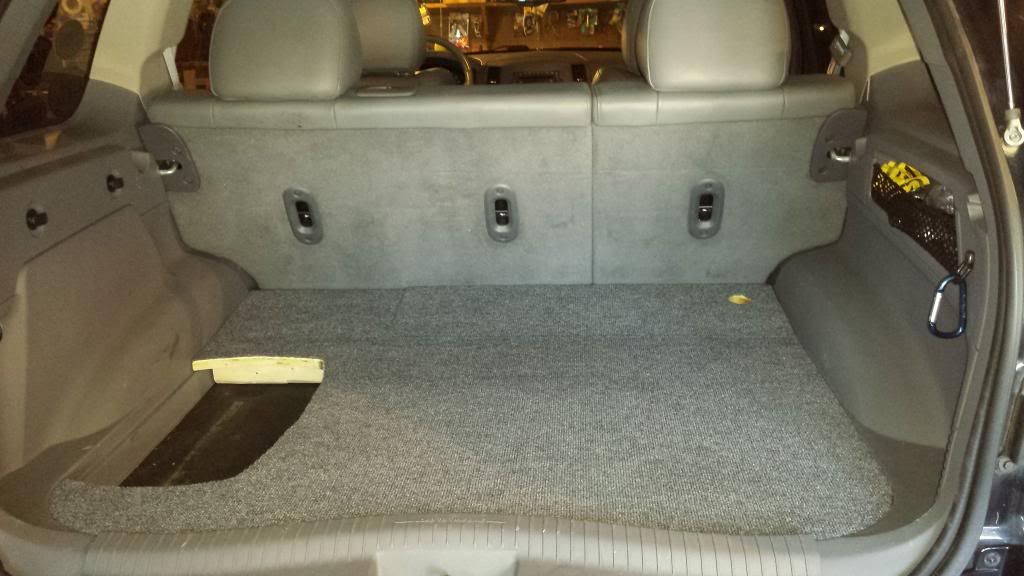

Ya that's my write up for a "ZJ" or "XJ" style spare location. I've been messing around with other ideas for the trunk to add more storage beneath, but we'll see.
__________________
Build Thread - http://www.jeepforum.com/forum/f67/darthjeep-build-thread-2842722/
Black Wk Club 166
DarthJeep is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 04:32 PM   #10
T1m
Registered User
2006 WK

Join Date: Jun 2012
Location: Kenner, Louisiana
Posts: 65
Sorry for my possibly dumb questions, but did you just snip the wires to the liftgate light, so there are no series/parallel things going on? Also, did you snip the strip between LED's lengthwise and all was good?

Really wanting to do something like this, thanks!

Edited to add that the light strip from the Home Depot product description states "Can be cut every 2 in. for customized length".

Last edited by T1m; 12-03-2014 at 04:44 PM.. Reason: Oops...
T1m is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 06:15 PM   #11
DarthJeep
Registered User
2005 WK

Join Date: Apr 2011
Location: Boston, Massachusetts
Posts: 249
Not sure what you mean by "snip the wires in the trunk" but I didn't cut the led strip I layed. Alot of people have, but I didn't. It works great.
__________________
Build Thread - http://www.jeepforum.com/forum/f67/darthjeep-build-thread-2842722/
Black Wk Club 166
DarthJeep is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 08:05 PM   #12
luckyse7ens
Registered User
2010 XK Commander

Join Date: Jun 2014
Location: concord, ca
Posts: 1,034
Quote:
Originally Posted by DarthJeep View Post
Not sure what you mean by "snip the wires in the trunk" but I didn't cut the led strip I layed. Alot of people have, but I didn't. It works great.
The ones you find on ebay/amazon are cut to length (every 3rd led) and come in 16' lengths.

I think he is trying to understand how you tied them in to the stock wiring.
__________________
Black WK Club #152
luckyse7ens is offline   Reply With Quote Quick reply to this message
Unread 12-03-2014, 08:30 PM   #13
Aclow33
Registered User
2006 WK

Join Date: Dec 2013
Location: Sault, Mi
Posts: 241
Best way to connect them to the existing wires is a T Tap connector
__________________
06 WK-5.7L-Modified OME HD Lift-SRT8 Volant Intake-1.5 Spacers-2014 Rubicon Wheels-22" Magnaflow
Aclow33 is offline   Reply With Quote Quick reply to this message
Unread 12-04-2014, 08:13 AM   #14
DarthJeep
Registered User
2005 WK

Join Date: Apr 2011
Location: Boston, Massachusetts
Posts: 249
Ahh, I spliced right into the existing cabin lighting in the trunk, it's in the write-up. As far as the LED'S go, they are made the cut to length.
__________________
Build Thread - http://www.jeepforum.com/forum/f67/darthjeep-build-thread-2842722/
Black Wk Club 166
DarthJeep is offline   Reply With Quote Quick reply to this message
