Unread 07-17-2014, 11:33 AM   #106
zeds_dead
Registered User
2005 WK

Join Date: Sep 2011
Posts: 375
Quote:
Originally Posted by tnadanzig View Post
Some updates, haven't had a ton of time lately, but taking a couple days off from work to get a few things done. Was up till 4 am this morning working on things. Hope to get a bit more done today and tomorrow. I really miss driving this thing.

Finishing up the front suspension, everything is painted and ready to be installed for the last time.


Close up of the front control arms.


Pics of the rear control arms.



Heim Steering Arms, I do like how they turned out. Plenty of travel left even with the maxing out the CV's and upper control arm.



Rear Control arms in and axle pushed back 1" to allow tires to better fit in the wheel arch. Still need to cut the fenders to allow the tires to hit the bumps. I have about 2.5" of material to cut away.





Rear cantilever arm tacked together



Some pics of other work being done, notching some tubes for the rear cradle assembly, sawing some tube caps, and making some chips for some other parts.

Just got done using both of those machines like 30 minutes ago.

__________________
Everyday, something new you want to do. Disease of Jeeps.
zeds_dead is offline   Reply With Quote Quick reply to this message
Unread 07-17-2014, 02:25 PM   #107
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 596
Quote:
Originally Posted by strokendiesel View Post
Alright!!! Very Exciting!
Thanks. It's getting there.

Quote:
Originally Posted by 08hemi View Post

So much win in here. I would very much appreciate it if you would just stop the rest of your life and just work on the WK porn... all the time...
Thanks and for the pic, I had a good laugh. I wish I could do nothing, but build WK stuff. My wife is pretty understanding as it is, but she would probably kill me.

Quote:
Originally Posted by zeds_dead View Post
Just got done using both of those machines like 30 minutes ago.
Ya, they are awesome, I couldn't live without them. I really want a HAAS SL20 lathe. Hopefully in a year or so.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 07-17-2014, 02:50 PM   #108
BAH101
Registered User
2008 WK

Join Date: Jan 2009
Location: Thunder Bay, Ontario
Posts: 766
Quote:
Originally Posted by tnadanzig
Ya, they are awesome, I couldn't live without them. I really want a HAAS SL20 lathe. Hopefully in a year or so.
I wish I had a shop for these sized tools, all mine are bench top sized. They do great, just limited in size.
__________________
2008 CRD QDII, OME HD, Pintlers wheels with 265/70/17 Goodyear Silent Armour's, Jeepinbyal UCA's. 4XGuard Front guard, Side Guard, belly guard, Matrix HC. GDE ECO Tune w/ delete.
BAH101 is offline   Reply With Quote Quick reply to this message
Unread 07-17-2014, 02:59 PM   #109
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 596
Mock up of cantilever location

__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 07-18-2014, 02:49 AM   #110
07GCLIMITED
Registered User
2007 WK

Join Date: Jul 2014
Location: Anchorage, Alaska
Posts: 8
I was looking for prerunner wk thread, this is exactly what I've been planning on doing. I will be following your work closely. Impressive sir
07GCLIMITED is offline   Reply With Quote Quick reply to this message
Unread 07-20-2014, 06:20 PM   #111
ggrassmid
Registered User

Join Date: Apr 2014
Location: Grand Rapids, Michigan
Posts: 87
Quote:
Originally Posted by tnadanzig View Post
Custom Coilover suspension using 2.0 Fox 6.5" coilover shock, custom aluminum mounts and eibach springs
Whats the main difference between your custom coil over versus using the modified OME that is popular (OME springs with 5100s)
Crawl also offers Icon and King front coilovers.

Last edited by ggrassmid; 07-20-2014 at 09:11 PM..
ggrassmid is offline   Reply With Quote Quick reply to this message
Unread 07-21-2014, 10:59 AM   #112
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 596
Quote:
Originally Posted by BAH101 View Post
I wish I had a shop for these sized tools, all mine are bench top sized. They do great, just limited in size.
Thanks, I feel your pain. I had a pretty small shop for quite awhile, but upgraded then last year wife wanted a new house in the worst way so had to do a small down grade, but trying to get a full size shop with a lift soon.

Quote:
Originally Posted by 07GCLIMITED View Post
I was looking for prerunner wk thread, this is exactly what I've been planning on doing. I will be following your work closely. Impressive sir
Thanks, I wanted a prerunner style WK for a long time and now it is slowly becoming a reality.

Quote:
Originally Posted by ggrassmid View Post
Whats the main difference between your custom coil over versus using the modified OME that is popular (OME springs with 5100s)
Crawl also offers Icon and King front coilovers.
My coilover setup is quite a bit different than the modified OME setup. 1st like any true coilover mine can be infinitely adjustable for your end use. We can change valving, spring rate, lift height, and preload for your particular setup. This way you can get a lift, but have full control over your handling characteristics.

I see that they do, but I have only ever seen one person run each one. You can't actually go to ICON or King's website and get any info on it so I am not sure how much they support those products. Plus they don't give any info on spring rates or stroke so you don't really know what you are getting.
However, mine don't have a ton of miles on them and I still have some fine tuning to do. I will probably be putting the Fox's on my wife's Jeep shortly to get more testing and upgrade mine to a more aggressive setup. I will setup my shocks for whatever use you want. Being a simple lift 0-3" lift or running it with a modified SL setup. I have been playing with these shocks for a number of years and can do a full rebuild on them. I have all the tools to change valving and set them up.
It's still baby steps on hardcore suspension setups on the WK, but we will get there slowly and next thing you know the WK will be considered a much more hardcore rig in a few years.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 07-21-2014, 11:25 AM   #113
sshaughn
Registered User
2008 WK

Join Date: Nov 2011
Location: Roseville, CA
Posts: 138
When you start making your cold air intake will there be an option to have the crank case ventilation inlet on the intake pipe? Since I live in CA I can't remove or relocate that portion because of emissions.
__________________
2008 WK Overland 4WD CRD 3.0L, QD2, Green Diesel Engineering Hot-Tune, MBRP Exhaust, CB Engineering Turbo Resonator Delete Pipe, Kolak Addco Rear Sway Bar, K&N Air Filter, Propel Fuels B20 Biodiesel
sshaughn is offline   Reply With Quote Quick reply to this message
Unread 07-23-2014, 10:20 AM   #114
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 596
Quote:
Originally Posted by sshaughn View Post
When you start making your cold air intake will there be an option to have the crank case ventilation inlet on the intake pipe? Since I live in CA I can't remove or relocate that portion because of emissions.
It will be an option I will have. I will probably have to add an adapter to the stock hose as intake location will probably have to move.

Not much for updates, but got a few things. Just trying to get a few orders taken care of and work on the rear suspension.

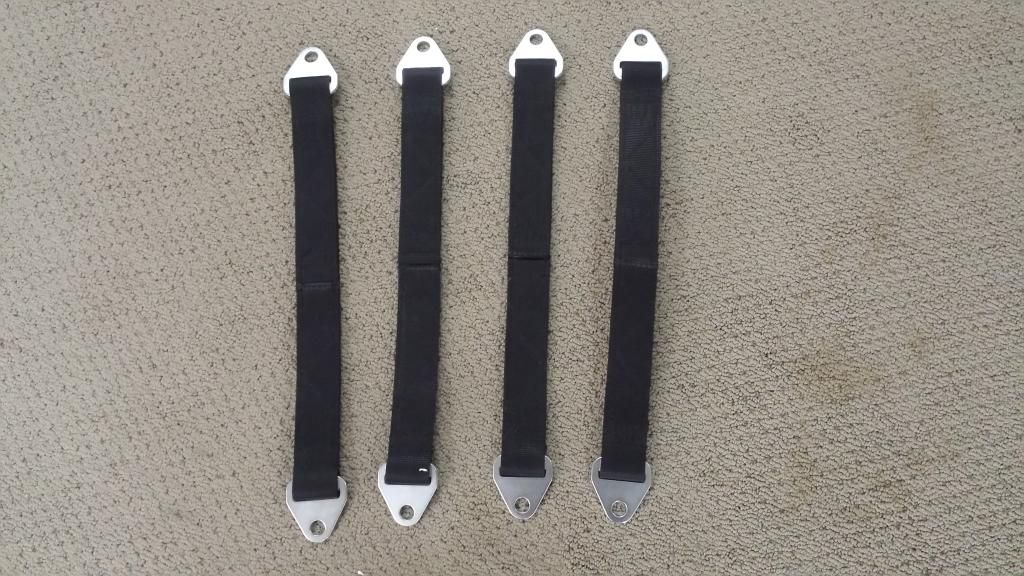

Got my limit straps in.

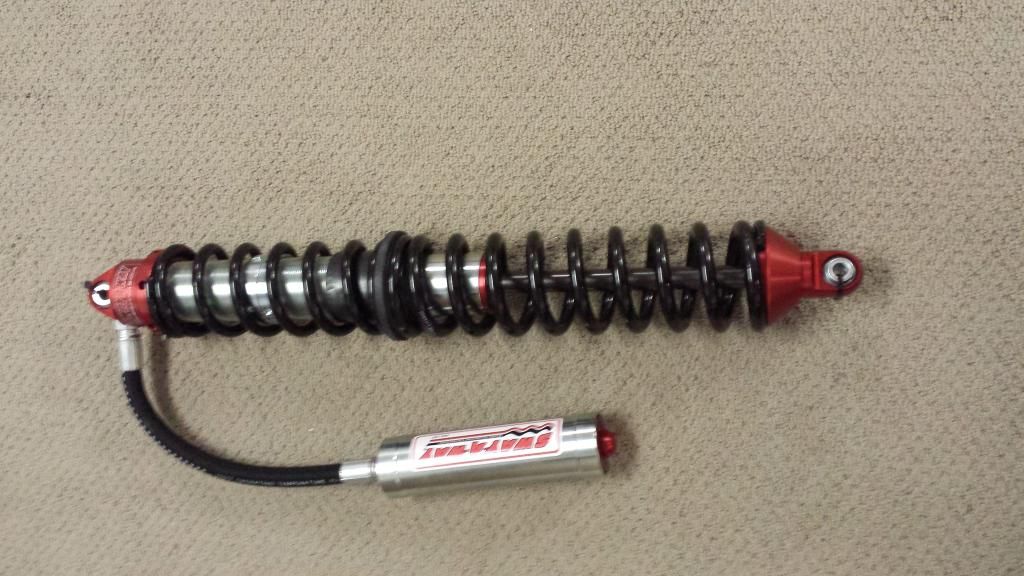

Got my coils for the rear coilovers.


Trying to build a rear extended SS braided brake lines. The stock lines are way to short and I want to have braided lines. These should work just need to get a t-fitting to make it all work. Right now the limit is the speed sensor lines. Pulling about 14.5 - 15" of rear travel.

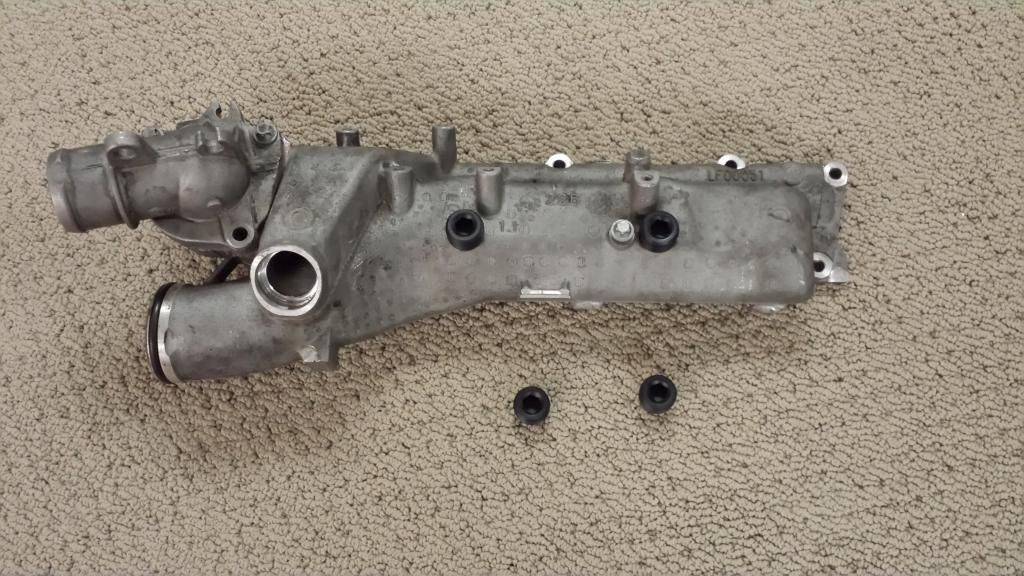

Got my plugs for the intake manifolds so I can finish those. The swirl valve holes are welded up and now I just need to make and weld up some fittings for the plugs to go in. So the internal posts in the intake manifold won't restrict the flow going to the rear cylinders.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 07-23-2014, 02:44 PM   #115
Rob_S
Registered User
2006 WK

Join Date: Sep 2013
Location: West Jordan, UT
Posts: 24
I can't wait to see how this rear setup turns out!!!

For the front to keep travel moving bind-free are there any high angle ball joints that could replace the lower ball joints? Now that the tie-rod ends and uppers are taken care of it seem the lowers are the last limiting factor, besides the CV's also. I know Kore Performance uses "high-angle" ball joints on there Tactical Dodge Ram front kits instead of the heim joints.

Robbie
Rob_S is offline   Reply With Quote Quick reply to this message
Unread 07-23-2014, 05:51 PM   #116
ca07wk
Crawl-Offroad.com
2007 WK

Join Date: Aug 2012
Location: San Diego, CA
Posts: 1,036
Not sure if you've looked at the driver rear brake line, but it has 3 lines going in. We have a shop building WK braided lines in Arizona using the correct fittings, they can build any length you want.
__________________
Crawl-Offroad.com-Boycott Paved Roads
2006 WK Limited Modified QT2
OME HD/RRO UCA/Wrangler MTRs on Moabs/JKS Rear Discos/Steel Armadillo Skids, Sliders,Front Shackles,Antenna Mount/Crawl Rear Skid
ca07wk is offline   Reply With Quote Quick reply to this message
Unread 07-24-2014, 12:12 PM   #117
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 596
Quote:
Originally Posted by Rob_S View Post
I can't wait to see how this rear setup turns out!!!

For the front to keep travel moving bind-free are there any high angle ball joints that could replace the lower ball joints? Now that the tie-rod ends and uppers are taken care of it seem the lowers are the last limiting factor, besides the CV's also. I know Kore Performance uses "high-angle" ball joints on there Tactical Dodge Ram front kits instead of the heim joints.

Robbie
Thanks, I hope my math is correct. It should be pretty sweet setup once I get it dialed in. Not to worried about the lower ball joints as the upper uniball joint and CV binds & hits the lower control arm well before the ball joint is maxed out. I would have to make new lower control arms to really get any more travel out of this setup and before that I would need RCV axles. When I make new lower control arms I am going to extend them and push the front axle forward 1" and probably run uni balls on the lower axle instead of ball joints.

Quote:
Originally Posted by ca07wk View Post
Not sure if you've looked at the driver rear brake line, but it has 3 lines going in. We have a shop building WK braided lines in Arizona using the correct fittings, they can build any length you want.
Yes, I have seen the rear brake line block. I thought I might get lucky and find a union that would work or just make something up. If you have some pics/info and cost on that I might be interested. However, I searched and never found anything like you mentioned. Anyone running these?
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 07-24-2014, 11:27 PM   #118
ca07wk
Crawl-Offroad.com
2007 WK

Join Date: Aug 2012
Location: San Diego, CA
Posts: 1,036
Here is a comparison between our braided lines and the stockers. We have to reuse the factory fittings because we havent been able to find anything close otherwise. We charge $300 for the set of 4 at any length you need between +2" to +10". We can do longer but there may be an additional charge.
__________________
Crawl-Offroad.com-Boycott Paved Roads
2006 WK Limited Modified QT2
OME HD/RRO UCA/Wrangler MTRs on Moabs/JKS Rear Discos/Steel Armadillo Skids, Sliders,Front Shackles,Antenna Mount/Crawl Rear Skid
ca07wk is offline   Reply With Quote Quick reply to this message
Unread 07-28-2014, 08:11 AM   #119
TurboDiesel
Registered User
2008 WK

Join Date: Apr 2011
Location: langley, BC
Posts: 1,959
so have u installed a cat delete on yours or your wifes jeep yet?
curious on sound and performance, if any

also how was the install?

feel free to PM me a price
__________________
[B]-]All Blacked Out[-[/B]
2008 Jeep Grand Cherokee 3.0 CRD
2" RC lift
255/75R17 BFG KM1's
17" ion alloy rims
15" kicker solo baric L7 w/ Alpine m1000 amp
aftermarket headlights w/5000k HIDs
Red interior LEDs and Red license plate LED
Tinted tails
5% tint over the rear windows
more to come....
TurboDiesel is offline   Reply With Quote Quick reply to this message
Unread 07-30-2014, 03:24 PM   #120
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 596
Quote:
Originally Posted by TurboDiesel View Post
so have u installed a cat delete on yours or your wifes jeep yet?
curious on sound and performance, if any

also how was the install?

feel free to PM me a price
I have not installed it on my wife's Jeep yet. I haven't had the time to tear into that while mine is down. I have it sitting on the shelf ready to go on. I had it on my Jeep for a short time and it does increase the sound a small amount and you do hear the pitch of the turbo as it spools. I didn't really notice much performance improvement with it. I did notice a ~ 75 degree drop in EGT's. I really designed it to get rid of the CAT's and allow for higher HP builds. I believe it will work great with my GTB2260 turbo once it get it put on. The install is not bad as long as you can get the three nuts that hold the flange on the rear of the turbo. They can be quite a pain and might even be seized. I am tweaking the design a bit that will keep the stock elbow out of the turbo, but get rid of the CAT's to make install easier. I had a request for an easier install and will offer both versions. I will send price.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
