Unread 05-15-2014, 09:29 AM   #61
Rob_S
Registered User
2006 WK

Join Date: Sep 2013
Location: West Jordan, UT
Posts: 24
Any more updates?

Robbie

Rob_S is offline   Reply With Quote Quick reply to this message
Unread 05-15-2014, 03:41 PM   #62
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 594
Sorry about no updates in a bit. I am working on it, mostly on stuff that isn't very exciting and hard to take pictures of. The big thing is I am waiting for my shocks. I have ordered them two weeks ago and still haven't arrived. I tried to call and not much of a response yet. So I am hoping before the weekend. I had to pull some favors, but I have all weekend to work on the Jeep. That was one of the reasons for not much updates is trying to get some projects done for the wife so I can have close to 20 hours of time on the Jeep. Also, I am working on building a new turbo pedestal. When I ordered my turbo I paid to get the gasket and the turbo pedestal with it. Well, when I got it over 6 months later, it had no pedestal and the wrong gasket. Trying to get a response from the seller proved in vane. So I am making my own pedestal and cutting a gasket from a sheet of copper.

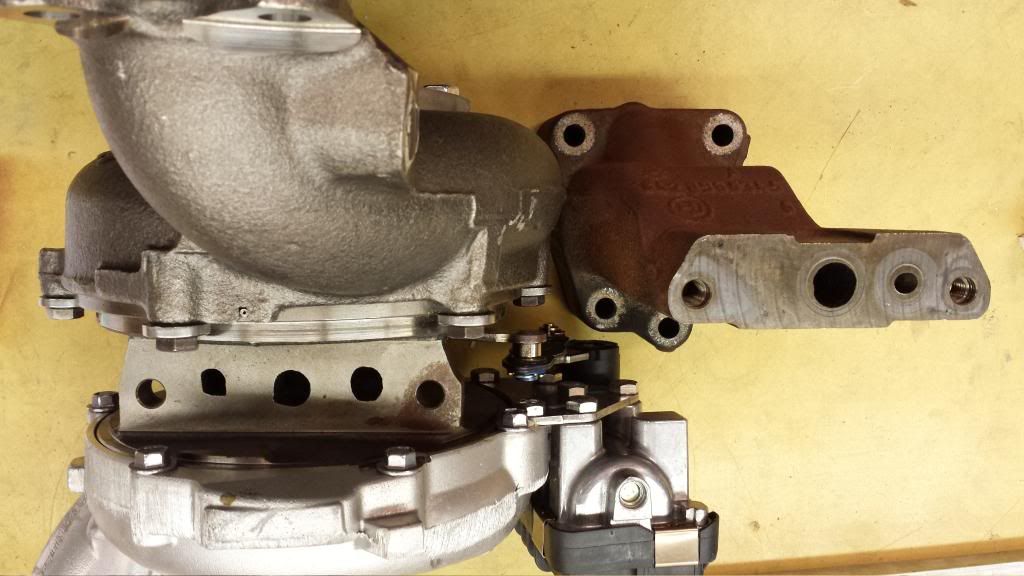

Difference in mounts.

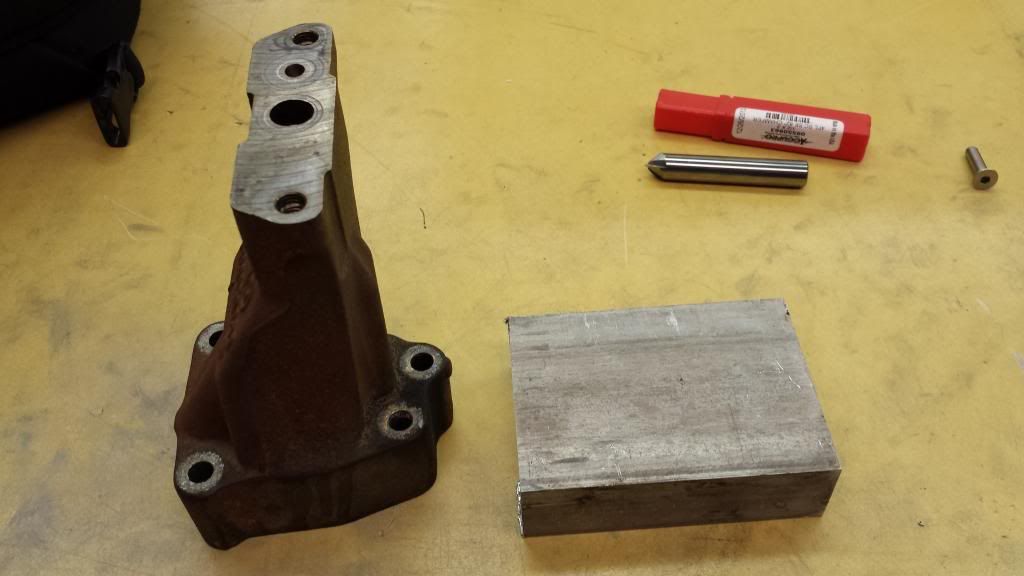

How to make this work.

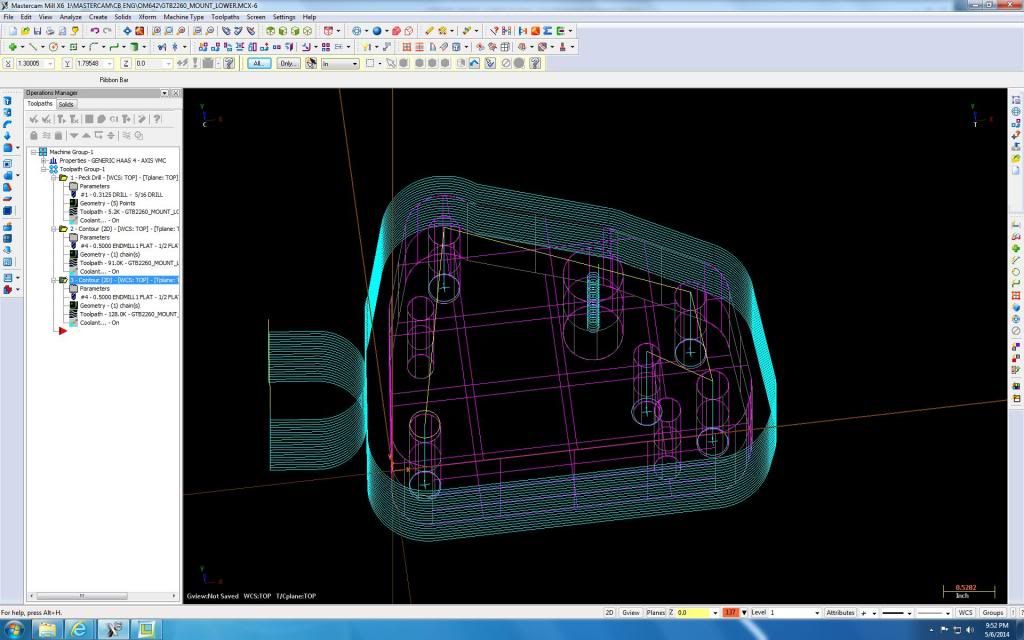

Some CAD and CAM work

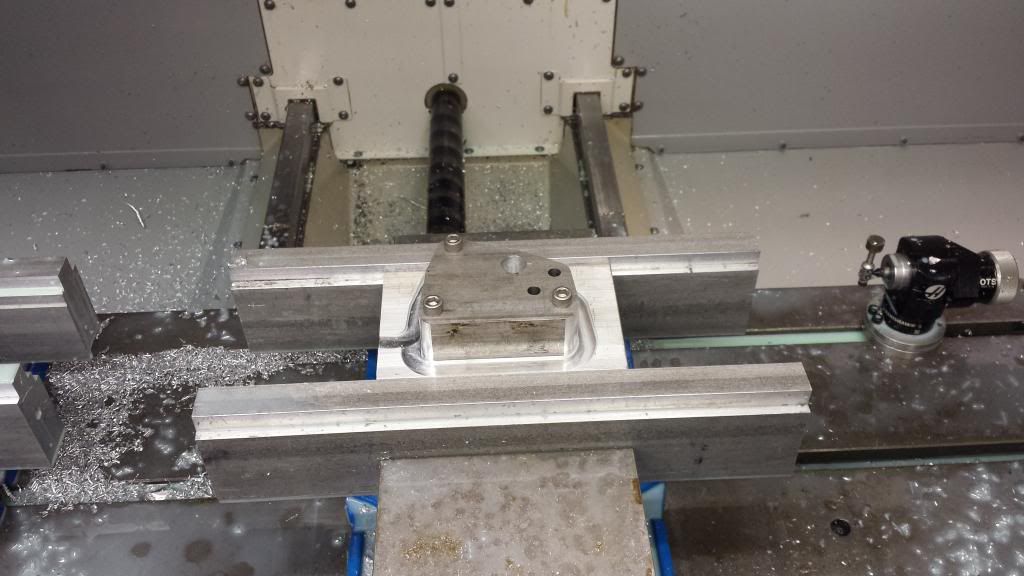

Some CNC time.

I have the base done and the top done just need to connect them. Well gotta run. My ride is here.

Quote:
Originally Posted by Omelet View Post
Excellent work!!! I'm stoked to see your cantilever setup come together. I've been wanting to make one for a long time, but I don't posess the skills (at least not yet) to do it myself. I thought about driving it over to EVO to have them fab one up for me, but that's a lot of $$$! They make some great JK kits.

I'm also very excited to see your fenders you're making. I love glass fender but none makes them for the WK. If your's come out nice (I'm sure they will) and the price is decent, then I'll definitely buy a set from you! I prefer poly flares more for their trail abuse resistance, but I'll take what I can get
Thanks, I can't wait for it to be done, it just takes so much time to get all these little details figured out.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 07:42 AM   #63
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 594
Ok, not as much progress as I would of liked the last couple of days. Man, sick kids are killing me. Two days gone, and then I got sick. I owe PM's so if you read this I will get them out.

Tie rods are out and new tie rod system is going in. All heim joints with aluminum extensions. I will post more when I get some more time to work on them. Stock tie rod limits droop travel. I have shock left, but steering was limiting travel.

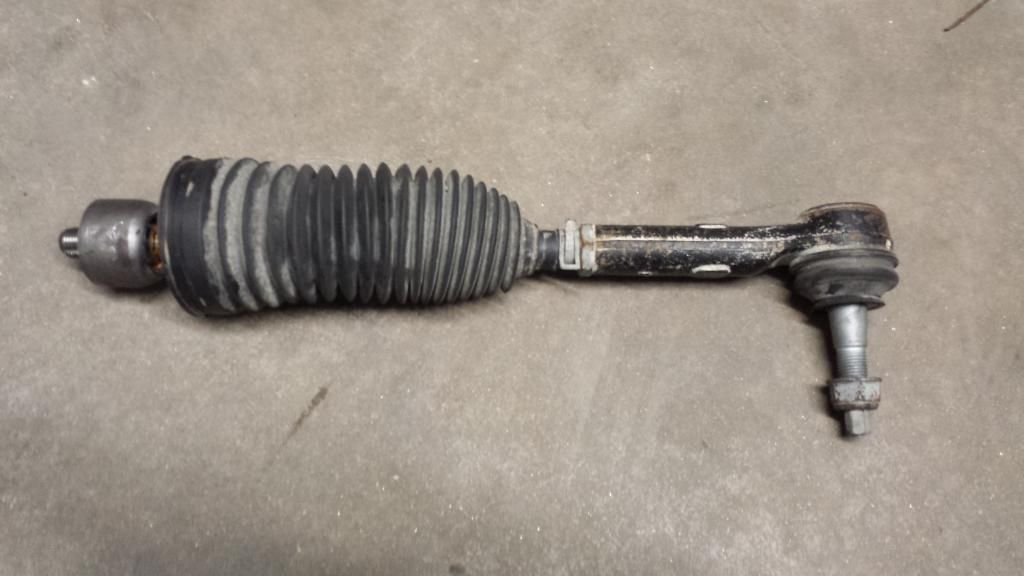

Removed tie rod.

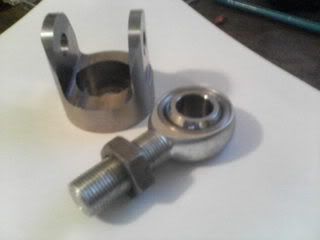

Built tie rod clevis


Pulled out the intake manifolds to clean them up and do full EGR system delete. No more cooler, no more valve, its all going in the garbage. Made some plates to cover everything up. Sorry on CAD pics as I just made them last night and forgot to take pictures. No more swirl motor and valves they are going in the garage as well. I will port match the intake manifolds.
Intakes

No Intakes, what a pain to get these out. The EGR stuff is so much in the way.

Left Intake with EGR Cooler

Right intake

How dirty the intake is. I have been EGR and CCV deleted since about 40K miles so this is how much you get in that time. Also I ran methanol injection for two years and didn't seem like it cleaned it up much or it was worse and this is better.

EGR Cooler Gone

EGR Plates

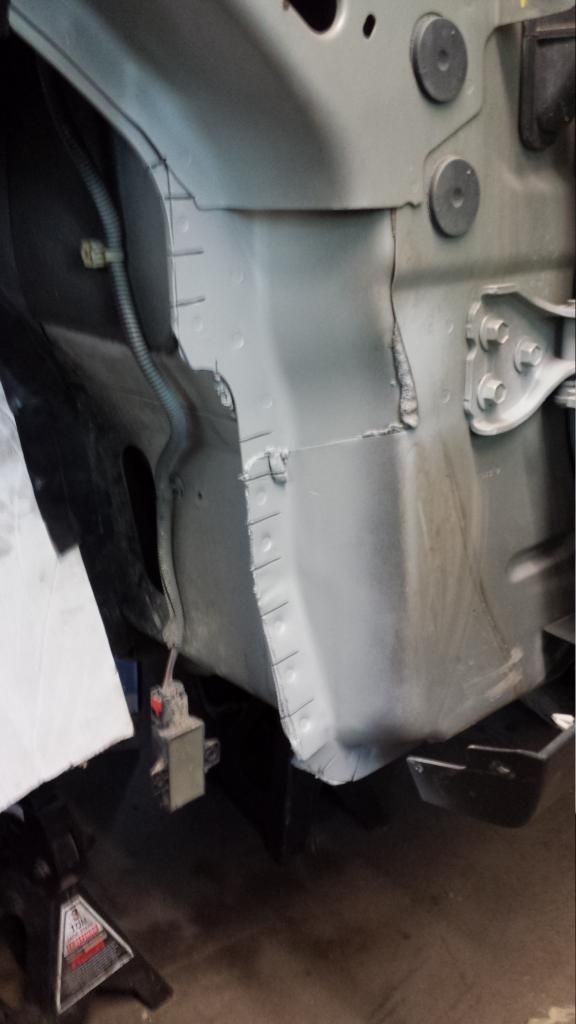

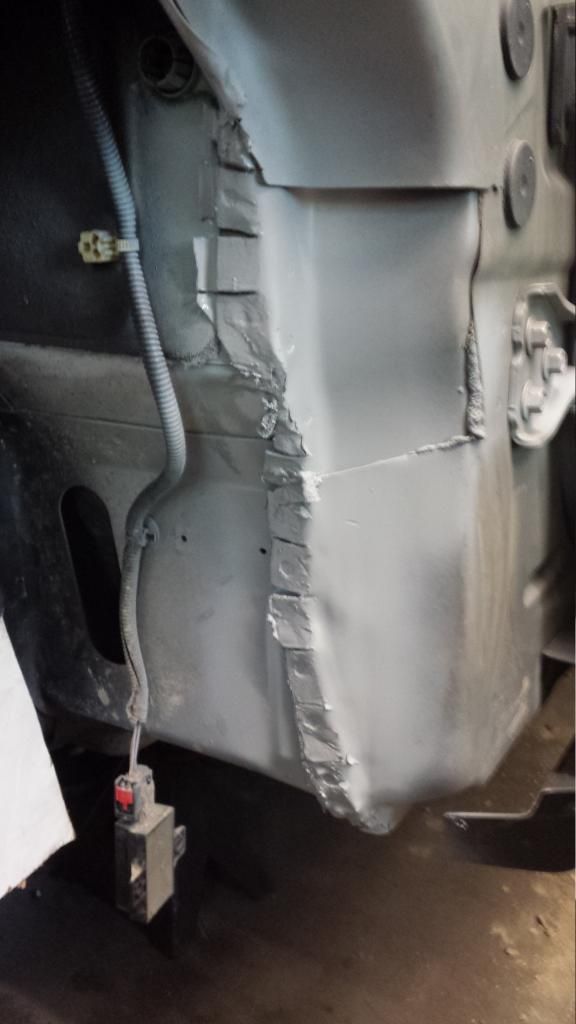

My Pinch weld mod

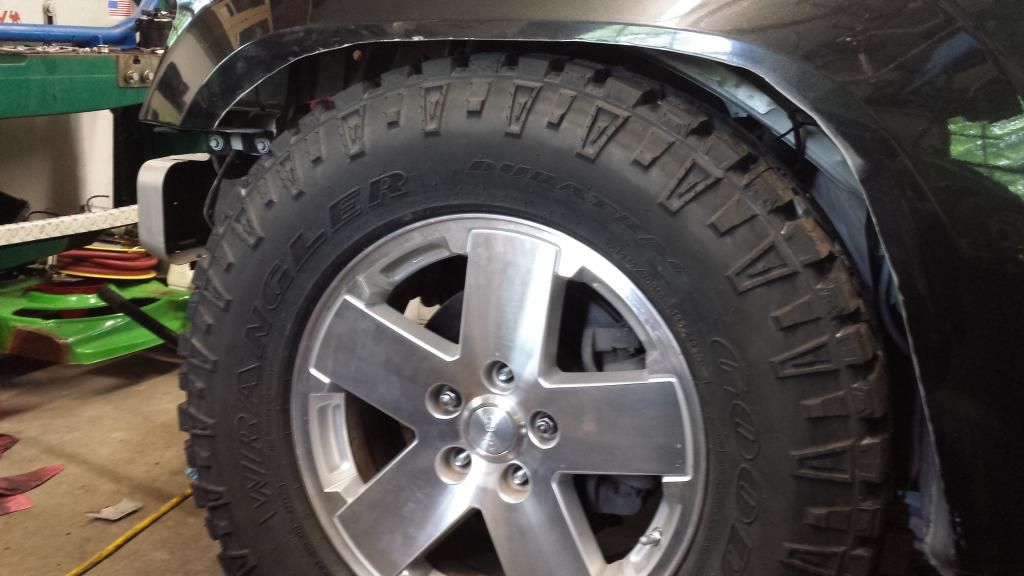

Tire barely clears

Picked up some fenders from the salvage yard. I looked a bit ago and didn't see anything cheap and close and looked this weekend and found some pretty cheap. Going to hack these up to get an idea of clearance and use them for the mold. Want to keep my original fenders in good shape.

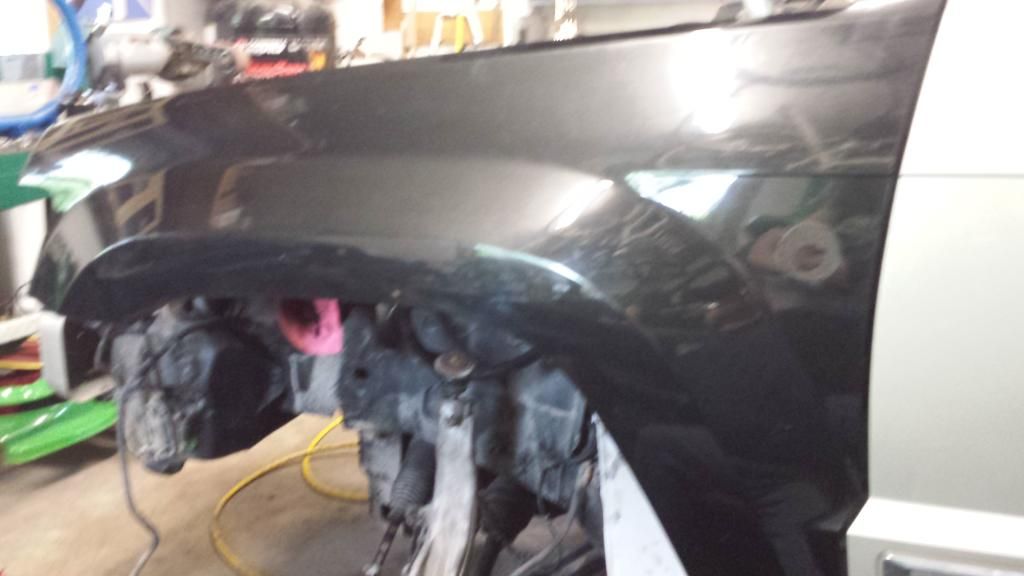

Used fender color doesn't match, but who cares.

Cut fender with 275/70/18 tires fully stuffed. This is why I am doing the battery relocation. Tire hits the battery support.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 08:49 AM   #64
caulk04
Registered User
2008 WK

Join Date: Jan 2013
Location: Greenville, Pennsylvania
Posts: 879
Very fun build to follow!
__________________
Tint, Superchips, SRT intake tube, Gibson catback, catch can. One hardcore DD/kid hauler...yeah.
caulk04 is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 08:58 AM   #65
BAH101
Registered User
2008 WK

Join Date: Jan 2009
Location: Thunder Bay, Ontario
Posts: 761
Very nice.
So, when are you quitting you day job and opening your own fab shop?
__________________
2008 CRD QDII, OME HD, Pintlers wheels with 265/70/17 Goodyear Silent Armour's, Jeepinbyal UCA's. 4XGuard Front guard, Side Guard, belly guard, Matrix HC. GDE ECO Tune w/ delete.
BAH101 is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 09:17 AM   #66
skibum555
Registered User
2005 WK

Join Date: Jul 2013
Location: Amarillo, TEXAS
Posts: 225
Quote:
Originally Posted by bah101 View Post
very nice.
So, when are you quitting you day job and opening your own fab shop?
this....
__________________
Jeepin ain't easy...
Proud Member of the BlAcK wK club
MEMBER #105
skibum555 is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 10:29 AM   #67
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,225
Excellent work! As soon as you have a working prototype of the new tie rods to sell I will buy a set!!! Then the other parts we talked about to follow
__________________
See How It Was Made

HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 10:33 AM   #68
Rob_S
Registered User
2006 WK

Join Date: Sep 2013
Location: West Jordan, UT
Posts: 24
What CAD software are you using?
Rob_S is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 10:59 AM   #69
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 594
Quote:
Originally Posted by BAH101 View Post
Very nice.
So, when are you quitting you day job and opening your own fab shop?
Not sure, maybe next year. I really like my day job, but this is more my passion.

Quote:
Originally Posted by Omelet View Post
Excellent work! As soon as you have a working prototype of the new tie rods to sell I will buy a set!!! Then the other parts we talked about to follow
Thanks, I will get the 1st set working and let you know. I ordered some extra parts so I will have some stuff ready.

Quote:
Originally Posted by Rob_S View Post
What CAD software are you using?
I use PTC Creo 2.0. Its a newer version of Pro/Engineer. I have used Pro/E since college and used it at most jobs I have had since. But have also used Catia and Unigraphics when in the automotive world. I have never used Solidworks and thought of getting it, but there would be a small learning curve, but I really like Creo and I know if very well.
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 11:22 AM   #70
jonjon302
Registered User
2006 WK

Join Date: Oct 2009
Location: Cape Cod, MA
Posts: 34
Put me in line for buying a set of tie rods!
__________________
Rock Krawler 3.5" lift, 1.25" Spidertrax spacers, 265/70/17 GY Duratrac's on Moab wheels, 36" firestik, Bwoody sway bar links,
30% tint on front windows, 6000K Xenondepot HID's
jonjon302 is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 05:30 PM   #71
ca07wk
Crawl-Offroad.com
2007 WK

Join Date: Aug 2012
Location: San Diego, CA
Posts: 1,018
I just contacted bulletproof steering about building us some heim joint tie rods.... definitely interested in these as well as the Coilover mounts and UCAs
__________________
Crawl-Offroad.com-Boycott Paved Roads
2006 WK Limited Modified QT2
OME HD/RRO UCA/Wrangler MTRs on Moabs/JKS Rear Discos/Steel Armadillo Skids, Sliders,Front Shackles,Antenna Mount/Crawl Rear Skid
ca07wk is offline   Reply With Quote Quick reply to this message
Unread 05-21-2014, 09:40 PM   #72
caddydaddy
Registered User
2007 WK

Join Date: Dec 2013
Location: Gales Ferry, Connecticut
Posts: 362
Quote:
Originally Posted by tnadanzig View Post
With the swirl motor disabled with a tune, is that valve on the right defaulted to the open or closed position?
__________________
2007 CRD Grand Cherokee Limited 4x4
GDE ECO Tune, Turbo Resonator Delete, EHM
166,000+ miles!
caddydaddy is offline   Reply With Quote Quick reply to this message
Unread 05-22-2014, 06:27 AM   #73
paroxysym
Registered User
2007 WK

Join Date: Jan 2005
Location: Baltimore, Md.
Posts: 3,933
i have to admit, i never thought a LCOG build was possible with this platform as it would require some serious trimming.... but looks like this may be the first. by LCOG i mean 2" or less of lift and a 33"- at least thats what the TJ guys consider LCOG.

keep up the awesome fab work
__________________
2007.5 WK Laredo 4.7
OEM+
paroxysym is online now   Reply With Quote Quick reply to this message
Unread 05-22-2014, 08:37 AM   #74
tnadanzig
Senior Member

tnadanzig's Avatar
2007 WK

Join Date: Oct 2011
Location: Iowa City, Iowa
Posts: 594
Quote:
Originally Posted by jonjon302 View Post
Put me in line for buying a set of tie rods!
Sounds good. I will post more once they are completed and I have time to build a couple of sets.

Quote:
Originally Posted by ca07wk View Post
I just contacted bulletproof steering about building us some heim joint tie rods.... definitely interested in these as well as the Coilover mounts and UCAs
I will let you as I get closer to getting these ready. Need to get this thing out of my shop.

Quote:
Originally Posted by caddydaddy View Post
With the swirl motor disabled with a tune, is that valve on the right defaulted to the open or closed position?
The swirl motor is defaulted to the open position when off. The motor has a spring return.

Quote:
Originally Posted by paroxysym View Post
i have to admit, i never thought a LCOG build was possible with this platform as it would require some serious trimming.... but looks like this may be the first. by LCOG i mean 2" or less of lift and a 33"- at least thats what the TJ guys consider LCOG.
keep up the awesome fab work
Thanks, I have wanted to do this pretty much since I bought it. I really like the look and driving of a LCOG Jeep. I am not a fan of lift kits, I like to drive hard in the corners and it get scary when you start tipping. I have put a few vehicles on their side when I was young and stupid. My 1st car was a 94 XJ with a mild lift and I put it on its side with minimal damage then before my senior year I rolled it. So pretty much since then I like my vehicles low and stable.

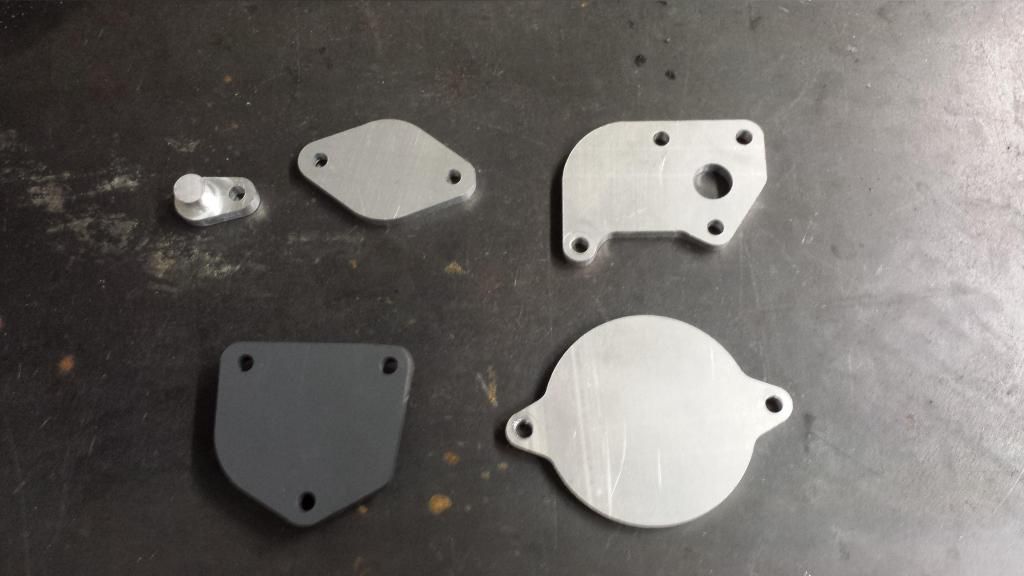

Plates needed to delete EGR, still missing one more coolant plug.

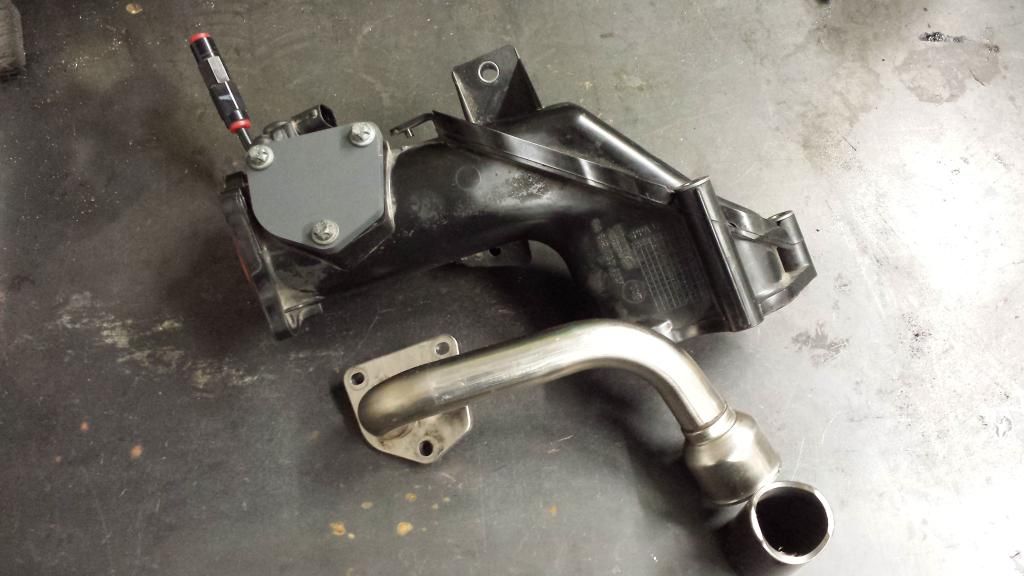

EGR intake plate
__________________
CB Engineering
CB-engineer.com
2008 3.0L CRD WK LTD - Wifes, GDE DPF Delete Tune, Turbo Resonator Delete, 3" Intercooler, Addcoo Rear Sway Bar, 3.07 gears
2007 3.0L CRD WK LTD - Stage 2 Custom Spooling Tune, Go Fast Parts
Pro-lite Build
2003 F250 6.0L CCLB - Gearhead Tunes
tnadanzig is offline   Reply With Quote Quick reply to this message
Unread 05-22-2014, 11:57 AM   #75
HEMI35
Registered User
2007 WK

Join Date: Mar 2012
Posts: 67
excellent build. I like how you are not trying to lift it 10" and trying to stay it close to the road for running.
There is a 05 WK1 Jeepspeed with Dakar specs that might be similar to what you want to build
It is a 2005 Jeep Grand Cherokee 5.7 hemi, quadra trac-II all wheel drive.... Built to OP2 class specs. King shocks, eibach coils, general tires, atx wheels, OMF beadlocks. Baja Designs lights. All stock susp components. it has even won a couple prizes.

http://nismostuff.blogspot.com/2014/...-cherokee.html
http://www.race-dezert.com/forum/thr...-a-jeep.98272/
