post #106 of 246 Old 04-21-2013, 04:19 AM Thread Starter
USN_BlackWK
FLY NAVY

USN_BlackWK's Avatar
2001 XJ Cherokee

Join Date: Mar 2009
Location: Enid America
Posts: 780
Finally after an unscheduled few months overseas, repaint done!





Throwing it back on tomorrow!



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Aug '16 COTM!

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Aug '15 COTM!
2016 GMC Sierra Denali 6.2L The tow rig
USN_BlackWK is offline
Sponsored Links
Advertisement

post #107 of 246 Old 04-21-2013, 07:38 AM
platinum5.9
Registered User
2003 WJ

Join Date: May 2006
Location: Olean
Posts: 2,059
Looks real good..... Love the carbon fiber badges. Post more pictures.

03 Grand/WJ-White 4.7HO/QD/242HD Clayton 6" LA,5100,Clayton skid,Custom Rockers,JK OME SS,17"Rock Monsters 33"Interco Irok ND,Muffler delete/MF cats,SOLID D30/BTF D44a,Fawkes,Projectors/HID
platinum5.9 is offline
post #108 of 246 Old 04-21-2013, 10:44 PM Thread Starter
USN_BlackWK
FLY NAVY

USN_BlackWK's Avatar
2001 XJ Cherokee

Join Date: Mar 2009
Location: Enid America
Posts: 780
Getting there:



Done:







I decided to paint the lower panels black this time. I think it looks much better and blends well with the black skirts:



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Aug '16 COTM!

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Aug '15 COTM!
2016 GMC Sierra Denali 6.2L The tow rig
USN_BlackWK is offline
post #109 of 246 Old 04-21-2013, 11:29 PM
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix
Posts: 3,483
looks good!

Reliability is relative
R.I.P. Ratmonkey
dnuccio is offline
post #110 of 246 Old 04-22-2013, 08:25 PM
squashman702
Registered User
1994 ZJ

Join Date: Aug 2007
Location: Allston
Posts: 4,419
One of the best looking WK's I've seen. Very nice.

Think Twice Garage
"I guess I'd just run it?"
squashman702 is offline
post #111 of 246 Old 05-06-2013, 12:21 AM Thread Starter
USN_BlackWK
FLY NAVY

USN_BlackWK's Avatar
2001 XJ Cherokee

Join Date: Mar 2009
Location: Enid America
Posts: 780
Thanks!

Today I finally fixed my loose fender liner:



I did the Omelet mod to get some of the lack of turn radius after the SL install back:



I ended up taking 1/4" off. I get a little rub at full lock but I can turn on a dime now! Well it feels like it at least:

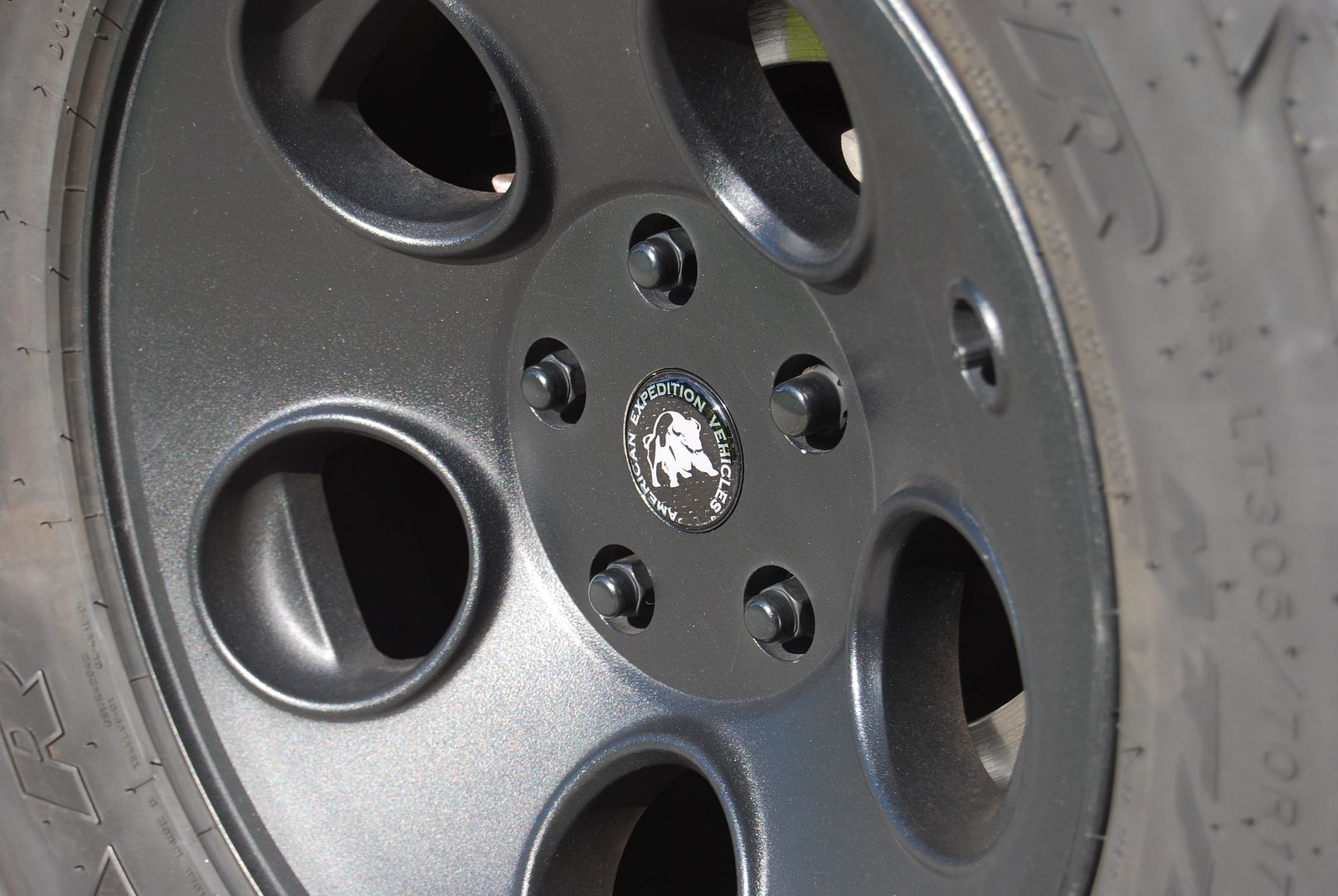

Rebadge sent over some new center cap emblems in the correct size (left wrong size, right one is new):



While I had the caps off I moded the old style AEV caps to accept the spring clip from the new style ones because I've always felt the old ones didn't feel too secure on the wheel. Left: Old style (accepts emblem), Middle: moded, Right new molded style.



I just made a quick pass with the dremel to make the channel:





Did a little buffing on the fender and installed some ORT-8 emblems from rebadge:







And I finally installed my SL Ver. 2 lower control arms and got rid of the drop brackets. Thanks again Omelet! And why did I not invest in air tools before?





Then I Went for a drive in the beautiful weather (well technically I did this before the drop brackets as you can see)!





Now I just need to find some time to instal my CB, ARB OBA system, Omelet style rock lights, and fab some rock rails... Unfortunately that will all come after deployment, hopefully just in time for EJS '14!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Aug '16 COTM!

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Aug '15 COTM!
2016 GMC Sierra Denali 6.2L The tow rig
USN_BlackWK is offline
post #112 of 246 Old 05-06-2013, 09:23 PM
YB Normyl
Registered User

YB Normyl's Avatar
2016 JK Wrangler

Join Date: Nov 2006
Location: Canada
Posts: 479
Great Thread! Where do you get the SL Ver. 2 lower control arms? Are you selling the drop down brackets?
YB Normyl is offline
post #113 of 246 Old 05-07-2013, 03:29 PM
MCObray
Registered User

Join Date: Sep 2010
Location: Orygun
Posts: 1,558
One the classiest vehicles on this forum. I no longer own a Jeep (4Runner now), but i'll always check up on this thread as you have a gem of a vehicle. Excellent work!

1994 Dodge Ram 2500. 12V Cummins Turbo Diesel.
MCObray is offline
post #114 of 246 Old 06-11-2013, 01:02 AM
Grewe02
Guns > Swords

Grewe02's Avatar
1981 CJ5

Join Date: Jul 2006
Location: San Diego
Posts: 5,262
Garage
Quote:
Originally Posted by USN_BlackWK View Post
Done!





Can't say I agree with removing the winch, but it looks amazing!

Andy, KD8EIA
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
Quote:
Originally Posted by Jetscuh
I've had a crush on the Prius since it's debut. I got somethin' wrong upstairs.
Grewe02 is offline
post #115 of 246 Old 06-13-2013, 02:27 PM
Omelet
Evil Overlord!

Omelet's Avatar
2005 WK

Join Date: Mar 2009
Location: San Diego, CA.
Posts: 5,364
Dude Rob, I don't even know you had a build thread on this forum! I will have to add it to the WK/XK list so everyone else can find it too. Glad to see you were able to get those LCAs in before you left. I can't wait until you get back so we can watch this beauty continue!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


HEMI Club Member #31 - - - JEEP Makes It, HEMI Shakes It!!!
Omelet is offline
post #116 of 246 Old 06-14-2013, 12:22 AM
dnuccio
Registered User
1995 ZJ

Join Date: Jul 2012
Location: Phoenix
Posts: 3,483
that thing is beautiful

Reliability is relative
R.I.P. Ratmonkey
dnuccio is offline
post #117 of 246 Old 08-01-2013, 01:16 AM
HEMI35
Registered User
2007 WK

Join Date: Mar 2012
Posts: 85
yae on the 5.9L vents, although I would put them above the high beam lights line (looking to the picture you put, to the right)

HEMI35
HEMI35 is offline
post #118 of 246 Old 09-24-2013, 11:22 AM Thread Starter
USN_BlackWK
FLY NAVY

USN_BlackWK's Avatar
2001 XJ Cherokee

Join Date: Mar 2009
Location: Enid America
Posts: 780
Lots of new stuff!
PIAA LED fog lights:



They are a little small for the opening, but I'm liking it more and more. I may build a filler panel someday.



I painted the rear diff guard black to blend in a little better and switched to black D-rings:



Parts ready to go on:



Getting started:



Bilteisn 5100's:



I decided to add 1" overall (this plus the 4" SL = 5"). I chose the 1.5" lift option and got rid of my rustys .5" spacers that I had previously installed:



Front end done!



This picture shows how far out on the JBA arm I installed the auto-leveling mount for the factory HIDs. I did this to prevent binding at full suspension droop. It seems to be working just fine out there and only required minor re-aiming:



To add 1" to the rear I started with some rustys spacers and cut them down:



Complete:



And finally the much needed solution to the tire not fitting underneath! A custom Detours Knucklebone tire carrier. I somehow managed to not get a picture before installation. Oh well:









The license plate solution is just a AEV license plate relocation bracket installed into the rear bumper trim. Unfortunately it sets off the backup sensors... I may try reaiming them a little bit eventually:



I also have an AEV third brake light that fits through the top wheel opening as its hard to see the brake light now for vehicles low to the ground. I had to redrill the wheel mount (this also allowed me to weld in the wheel bolts so I can just lift the tire into place and bolt up without hassle) as the knucklebone put the inline hole downward.





This is really just a temporary solution. Eventually I'd like to build my own swing away integrated into the rear fascia. But this will more than do for the time being until I have time to design something more substantial.

Also, not really pictured, are the 4xGuard rock rails. I love these things and think they are plenty stout. I may add an additional bar outboard of them similar to the armadillo rails someday.
