Unread 05-06-2014, 06:43 PM   #691
whiskeywiz
Web Wheeler
1989 YJ Wrangler

Join Date: Mar 2012
Location: Buffalo, ny
Posts: 1,047
Nice

Sent from my Nexus 7 using JeepForum

whiskeywiz is offline   Reply With Quote Quick reply to this message
Unread 05-07-2014, 01:23 PM   #692
turpehar
Web Wheeler

turpehar's Avatar
1977 CJ5

Join Date: Apr 2007
Location: Central, IL
Posts: 1,068
Quote:
Originally Posted by bsteele3 View Post

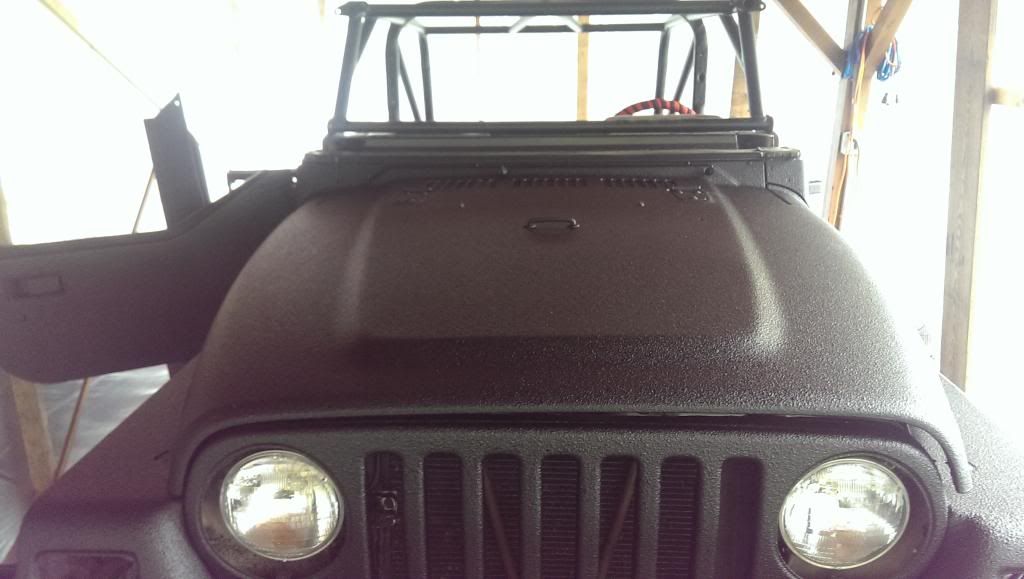

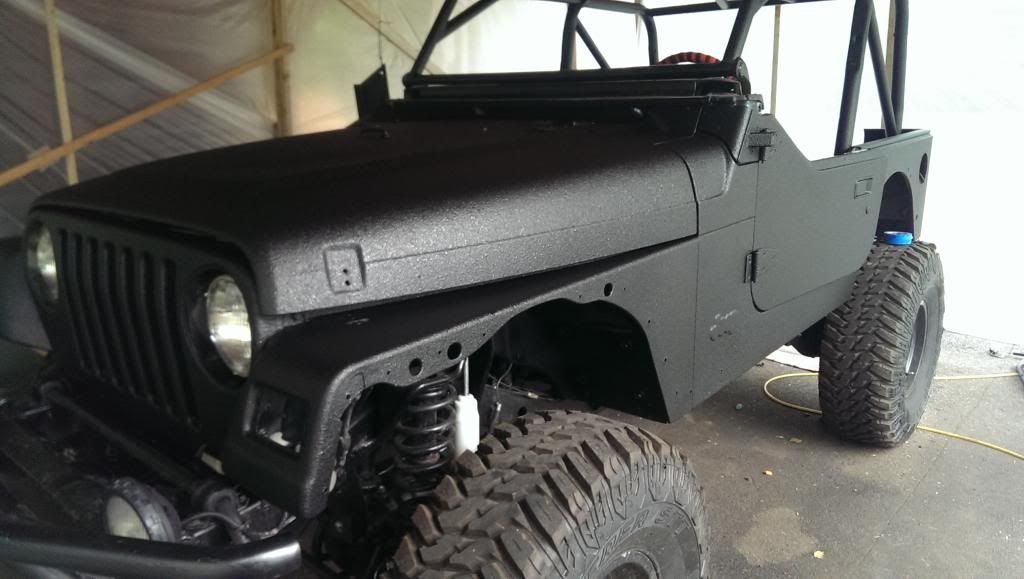

Sprayed on 1 gallon interior and 2 gallons exterior. Used 2 medium coats to cover well and didn't worry about texture and then did 4 very light coats about an hour apart at 85 psi with the economy shutz gun to create a rougher texture. I think the texture turned out perfect for what I wanted. I didn't thin the liner either. I'll post completed pics once it's out of the booth and put back together.

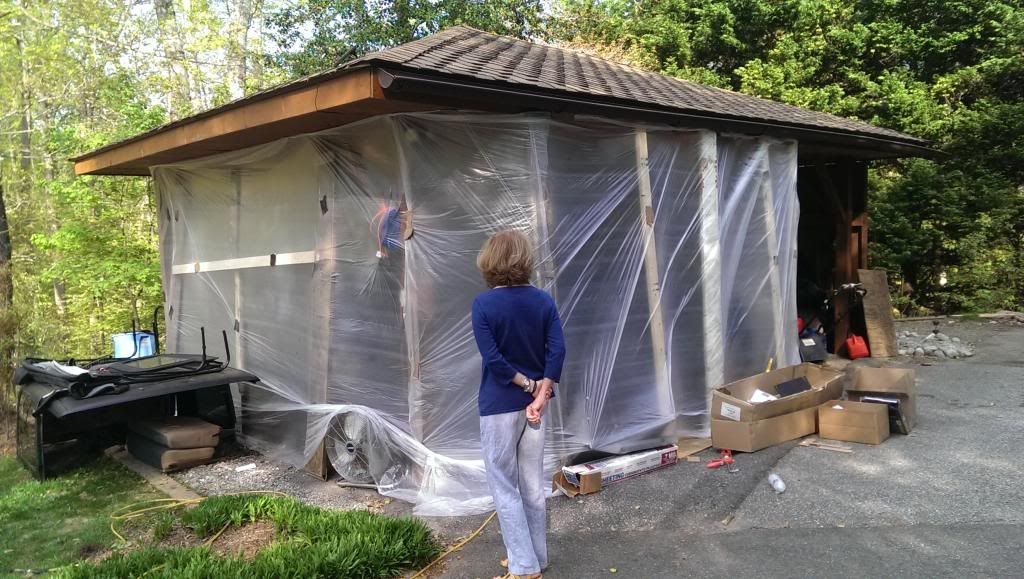

Nice ingenuity on the paint booth. Great for once in a while jobs.

__________________
I've been married so long I don't bother looking
both ways before crossing the road.


(Trial + error)*Upgrades) - $≤ = (mac-n-cheese/hot dogs)+experience

https://www.facebook.com/CentralILOffRoad

http://centraliloffroad.com/
turpehar is offline   Reply With Quote Quick reply to this message
Unread 05-10-2014, 07:23 PM   #693
roughknight69
Registered User
1995 ZJ

Join Date: Jun 2009
Location: Jamestown ny
Posts: 1,846
Monstalined midnight special! this was right after application of a gallon. I have another gallon, but I ran into some issues and had to put the jeep away for the night while I took care of things. I'm suprised on how well the gallon covered the jeep. We'll see how it dries and looks tomorow. If it's good I might just wait till some other time to scuff up and apply the other gallon

Edit: 3/4 back together











__________________
Build thread [url]http://www.jeepforum.com/forum/f197/roughknight69s-95-zj-build-1319907/[/url]
roughknight69 is offline   Reply With Quote Quick reply to this message
Unread 05-11-2014, 01:43 PM   #694
Towny72
Registered User
1994 YJ Wrangler

Join Date: May 2005
Location: , PA
Posts: 452
how is this stuff holding up on floor pans etc? Is it drying out and chipping like some other bed liner kits? I did my YJ in 08 with duplicolor and its horrible. If this stuff is a good product which so far really looks to be I plan to use it when I repaint the jeep this spring. Even using it as a rocker guard on the quarters.
__________________
My jeep hates me, every time I fix something another something breaks...
Towny72 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 07:02 AM   #695
whiskeywiz
Web Wheeler
1989 YJ Wrangler

Join Date: Mar 2012
Location: Buffalo, ny
Posts: 1,047
Should Bondo work be primed before liner application?
whiskeywiz is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 07:09 AM   #696
bsteele3
Registered User

Join Date: Oct 2013
Location: Annapolis, MD
Posts: 39
Quote:
Originally Posted by whiskeywiz View Post
Should Bondo work be primed before liner application?
Yes. This is what I used
http://www.zoro.com/g/00060655/k-G07...FehQOgodlXgAaQ
bsteele3 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 07:33 AM   #697
dukie564
Registered User
1995 XJ Cherokee

Join Date: Jun 2008
Location: Hanover, MD, Maryland
Posts: 2,741
yea an epoxy primer like ^ is what you want.

Has anyone installed this over sound deadening material on the floors?
__________________
1995 XJ Cherokee Sport
4.5" Homebrew Lift, 4.0L HO I-6, AX-15, NP231, D30(Open)/C8.25(Locked)
33x12.5 Mickey Thompson Baja MTZ Tires, 283,000 mi and runnin' strong
http://www.jeepforum.com/forum/f22/project-danger-cart-xj-1297118/
dukie564 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 09:08 AM   #698
roughknight69
Registered User
1995 ZJ

Join Date: Jun 2009
Location: Jamestown ny
Posts: 1,846
Quote:
Originally Posted by dukie564
yea an epoxy primer like ^ is what you want. Has anyone installed this over sound deadening material on the floors?
i have on on my zj and my monstaliner is starting to crack and pull up a bit on the sound deadening meterial. I would sand the deadening down if I were to do it again.

__________________
Build thread [url]http://www.jeepforum.com/forum/f197/roughknight69s-95-zj-build-1319907/[/url]
roughknight69 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 09:36 AM   #699
dukie564
Registered User
1995 XJ Cherokee

Join Date: Jun 2008
Location: Hanover, MD, Maryland
Posts: 2,741
did you put down any sort of epoxy primer? I definitely plan on roughing up the sound deadener itself.
__________________
1995 XJ Cherokee Sport
4.5" Homebrew Lift, 4.0L HO I-6, AX-15, NP231, D30(Open)/C8.25(Locked)
33x12.5 Mickey Thompson Baja MTZ Tires, 283,000 mi and runnin' strong
http://www.jeepforum.com/forum/f22/project-danger-cart-xj-1297118/
dukie564 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 10:16 AM   #700
magnetman
Caveman Chemist
JeepForum 2012 Vendor Giveaway Participate

magnetman's Avatar
2011 JK Wrangler

Join Date: Oct 2009
Location: Amityville, NY
Posts: 10,953
Quote:
Originally Posted by roughknight69 View Post
i have on on my zj and my monstaliner is starting to crack and pull up a bit on the sound deadening meterial. I would sand the deadening down if I were to do it again.
What sound dampening material was used here?
magnetman is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 11:57 AM   #701
lordryan93gt
Registered User
1989 YJ Wrangler

Join Date: Sep 2013
Location: green bay, wisconsin
Posts: 60

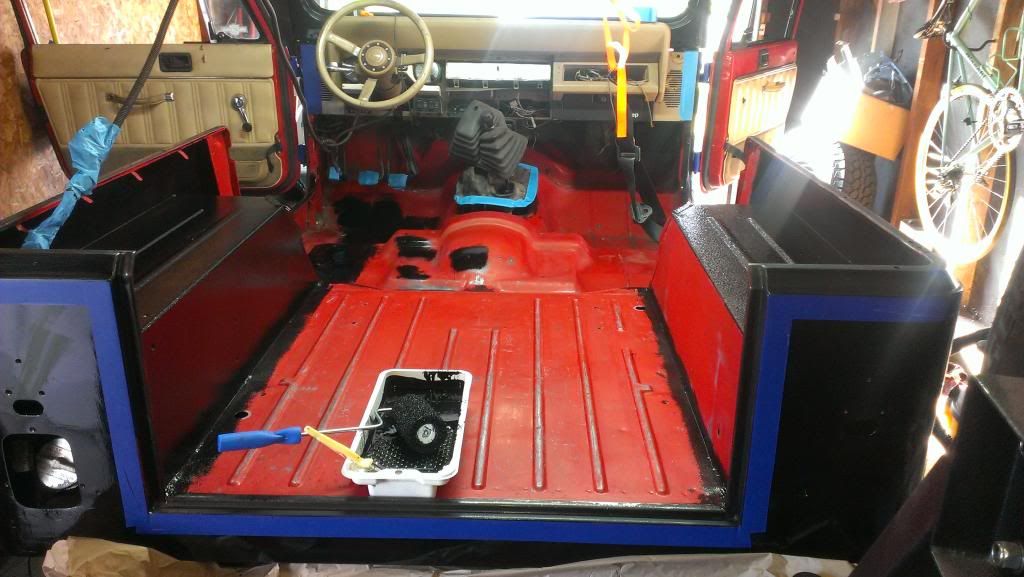

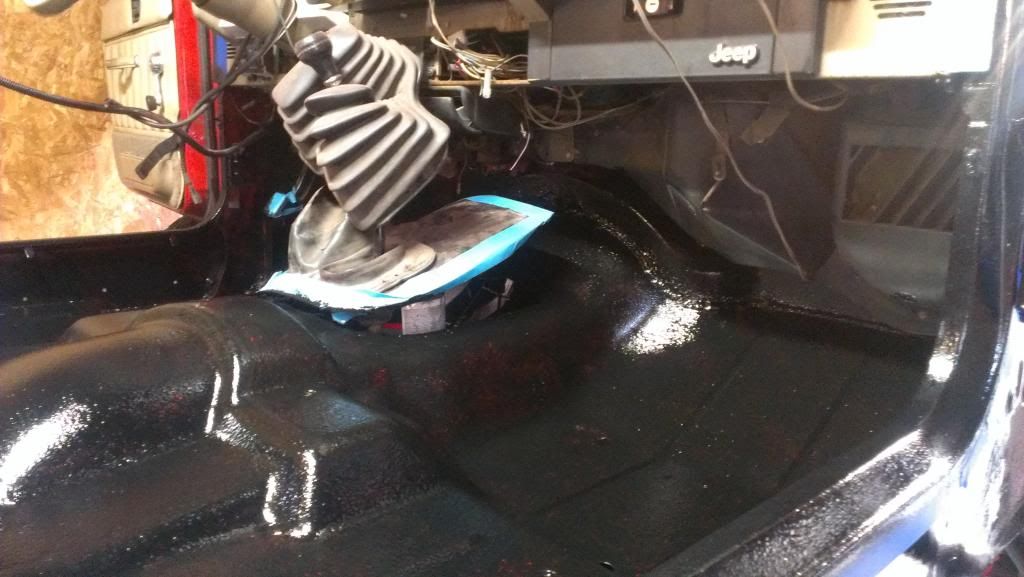

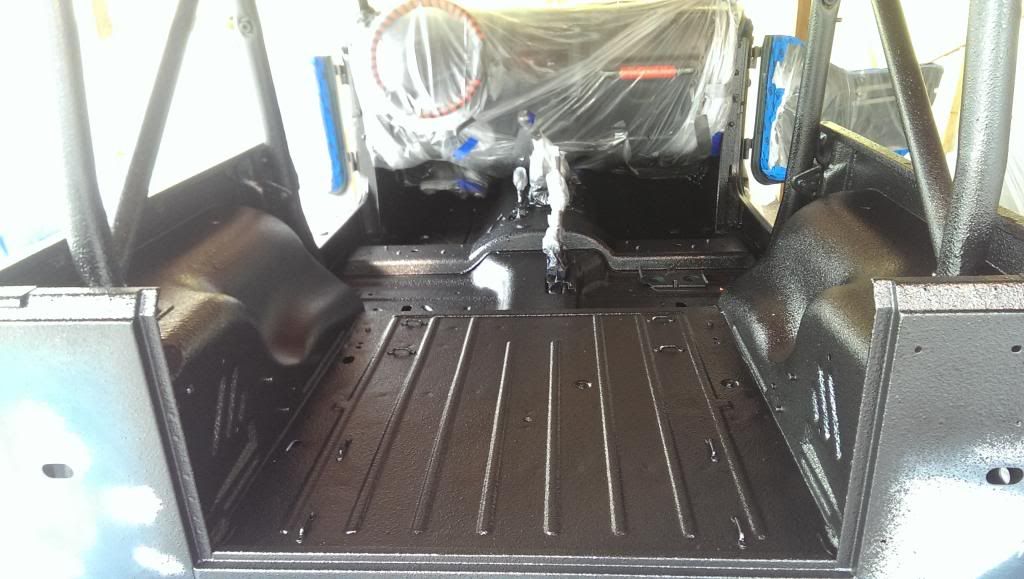

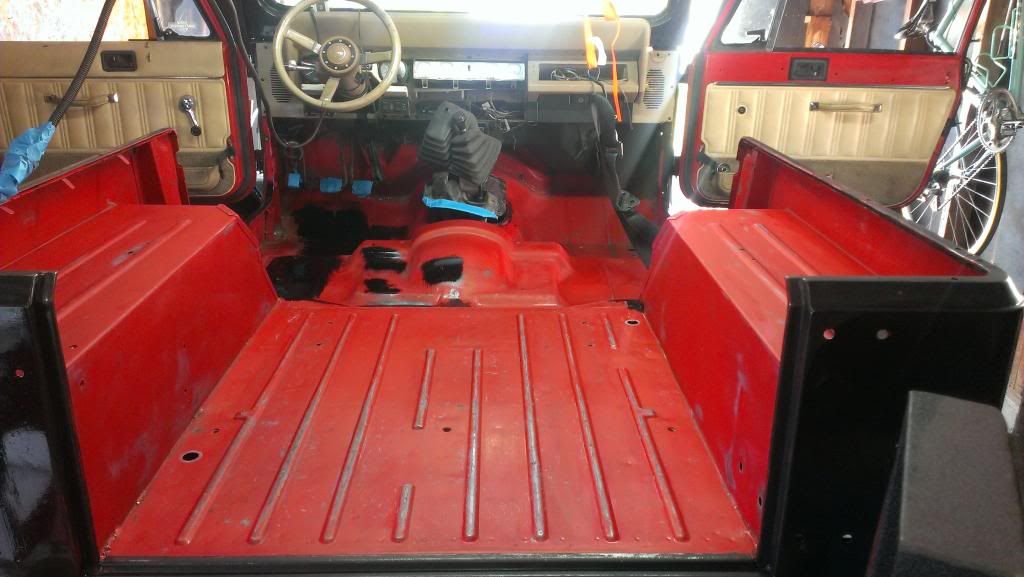

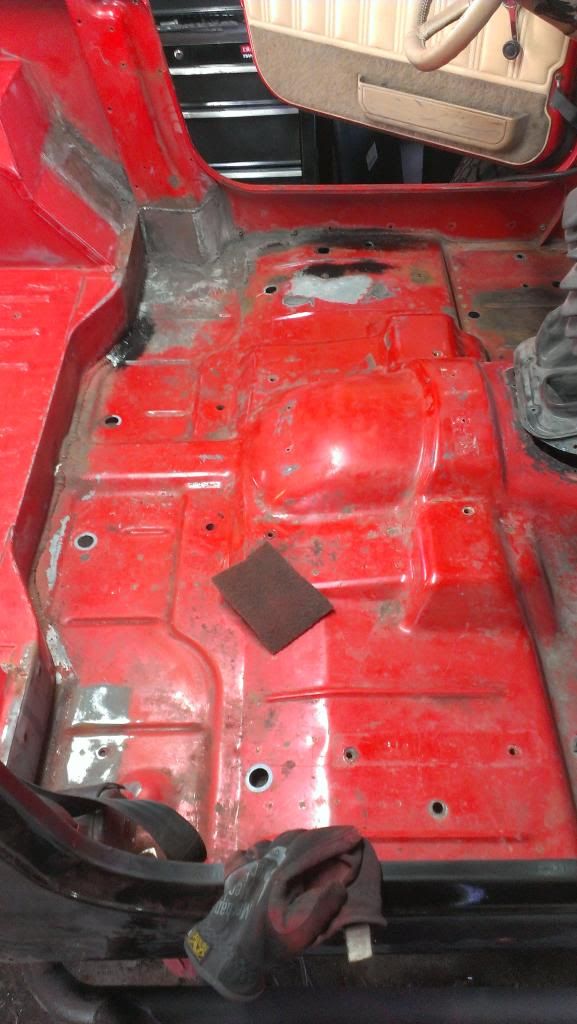

my monstaliner yj project

So i started the interior of my yj a few days ago.. i still need to finish scuffing the exterior before i apply the desert sand. i did 3 coats and had a qt gal left.[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG]
[/IMG]
[IMG][/IMG]
lordryan93gt is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 11:58 AM   #702
roughknight69
Registered User
1995 ZJ

Join Date: Jun 2009
Location: Jamestown ny
Posts: 1,846
Quote:
Originally Posted by magnetman
What sound dampening material was used here?
just the stock material that's in the interior. As you can see.

Edit: this was all pre prep, just got the carpet out.

__________________
Build thread [url]http://www.jeepforum.com/forum/f197/roughknight69s-95-zj-build-1319907/[/url]
roughknight69 is offline   Reply With Quote Quick reply to this message
Unread 05-12-2014, 12:02 PM   #703
lordryan93gt
Registered User
1989 YJ Wrangler

Join Date: Sep 2013
Location: green bay, wisconsin
Posts: 60

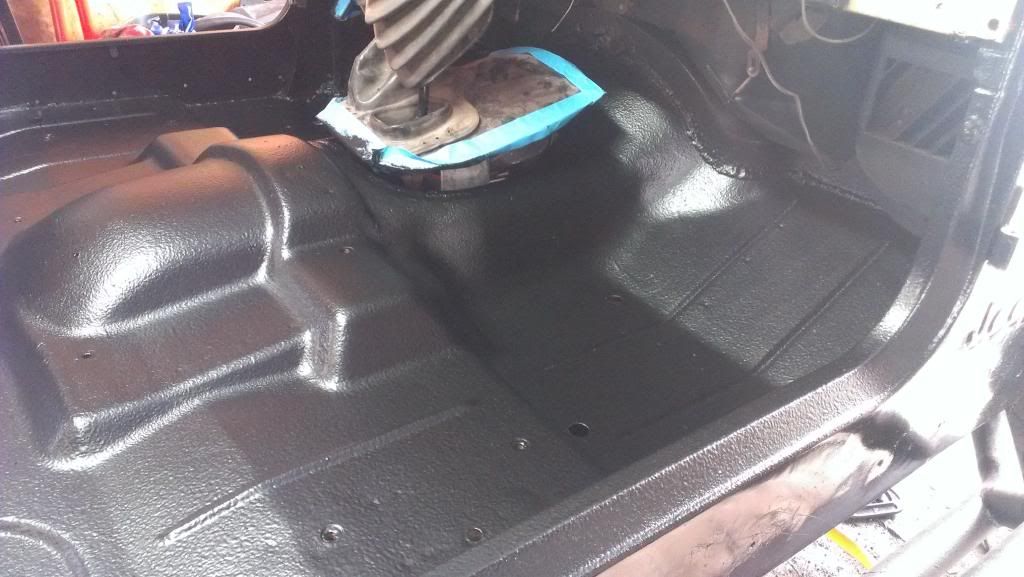

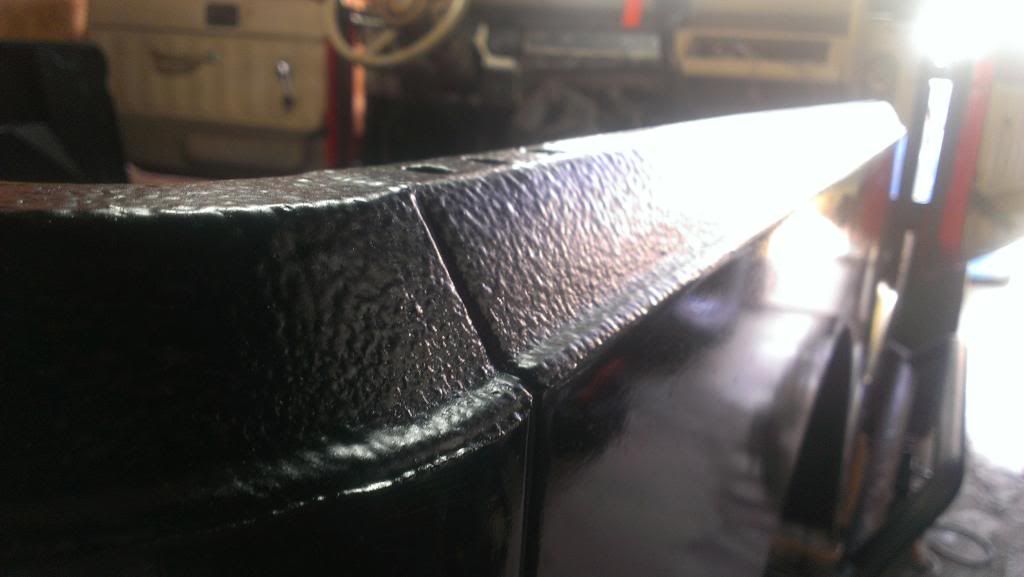

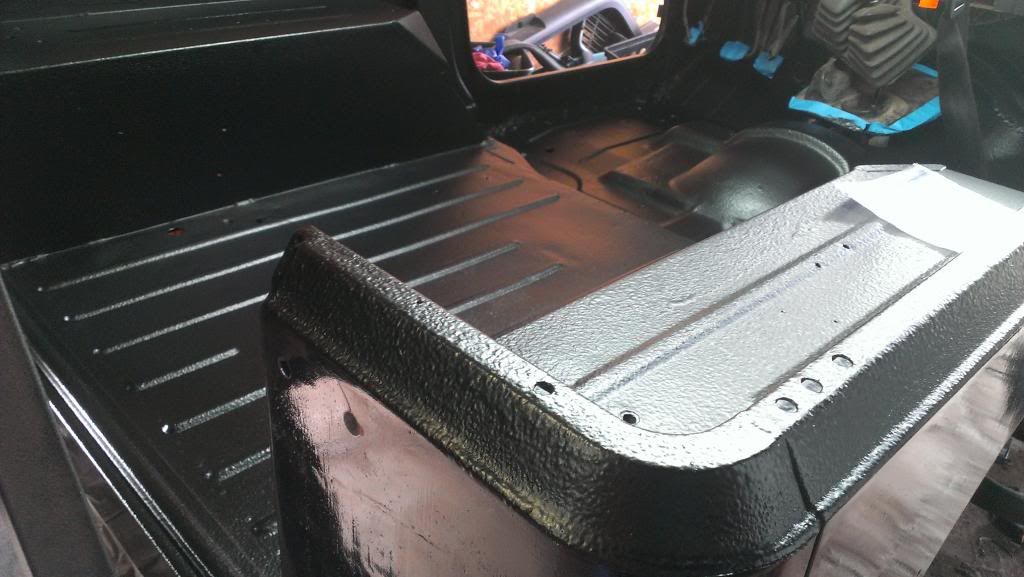

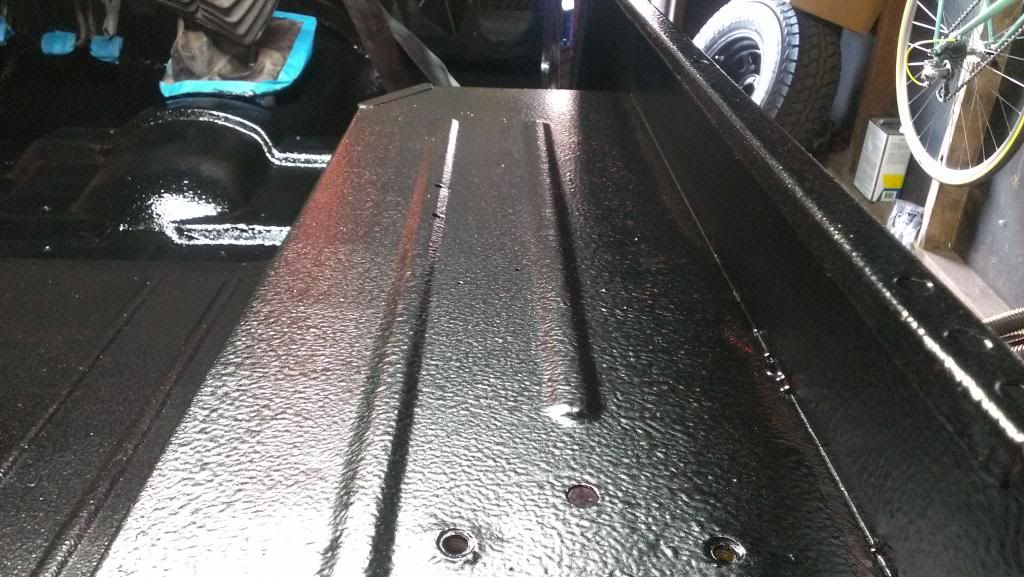

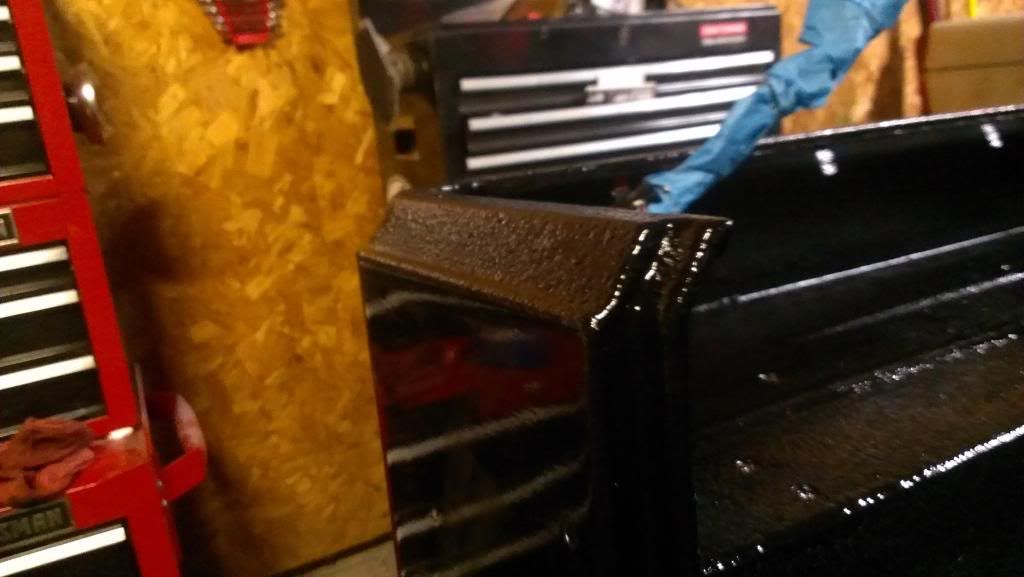

After 3 coats

[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

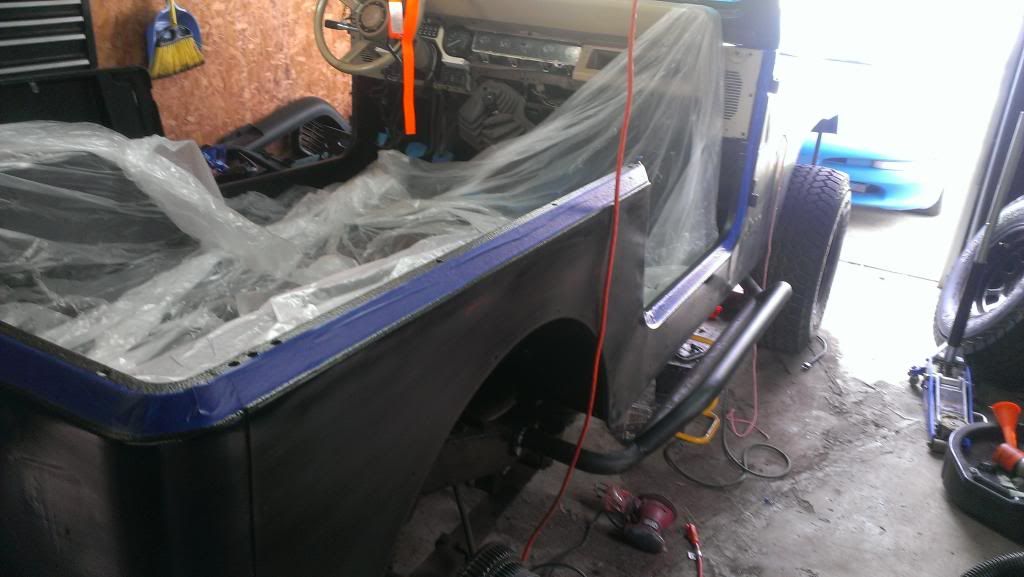

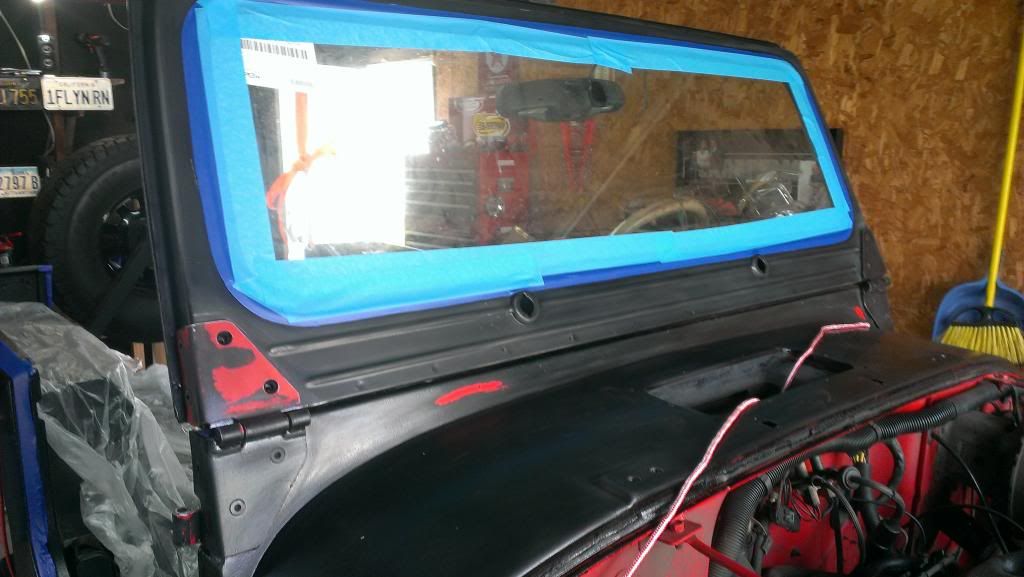

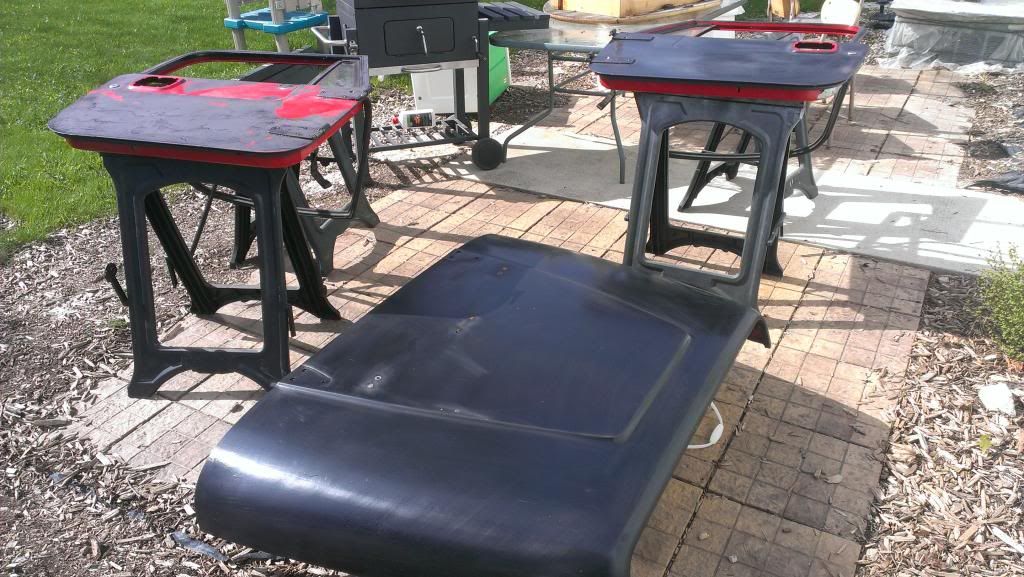

And now just getting ready for the exterior.
[IMG][/IMG]
lordryan93gt is offline   Reply With Quote Quick reply to this message
Unread 05-15-2014, 08:42 AM   #704
lordryan93gt
Registered User
1989 YJ Wrangler

Join Date: Sep 2013
Location: green bay, wisconsin
Posts: 60

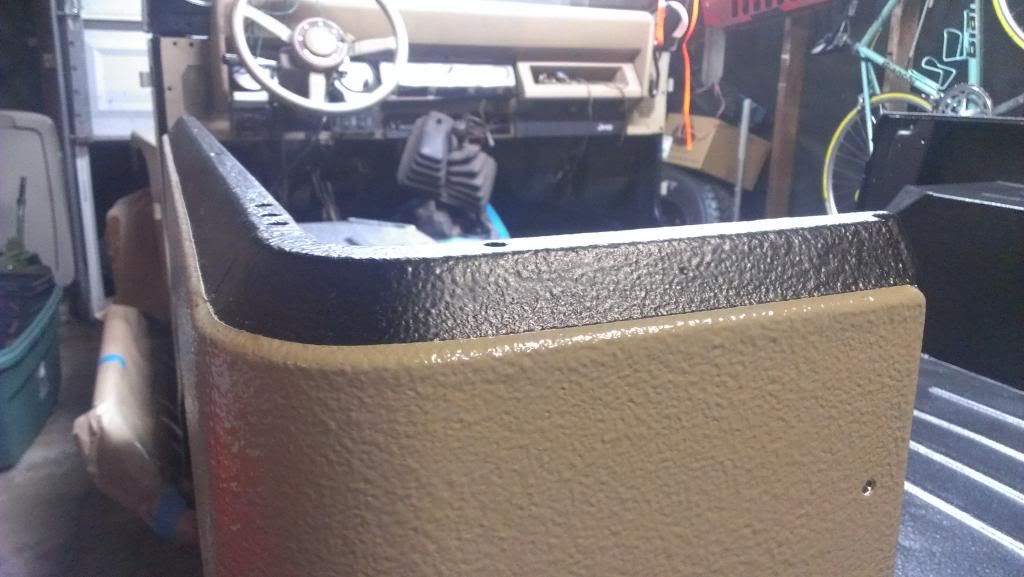

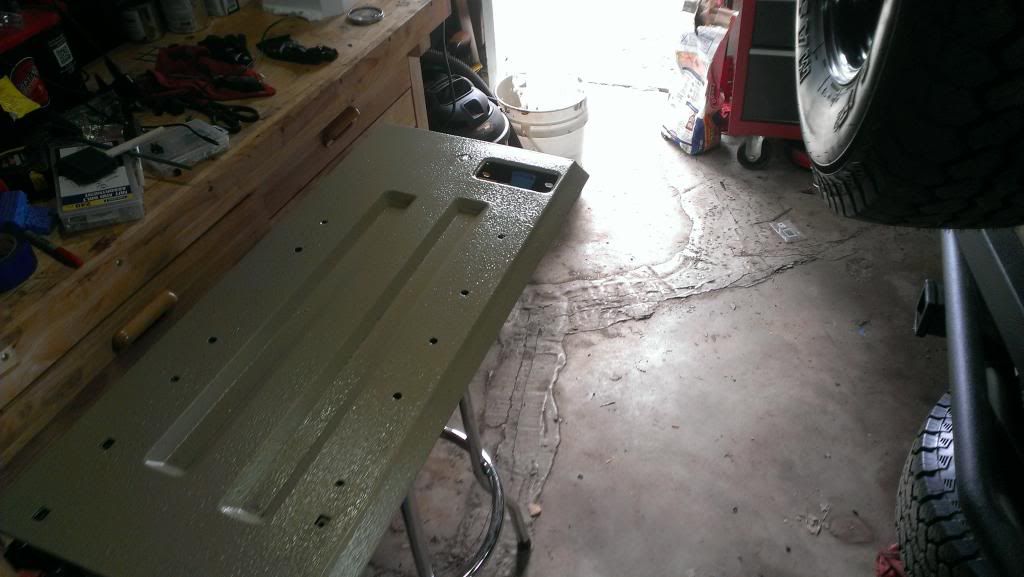

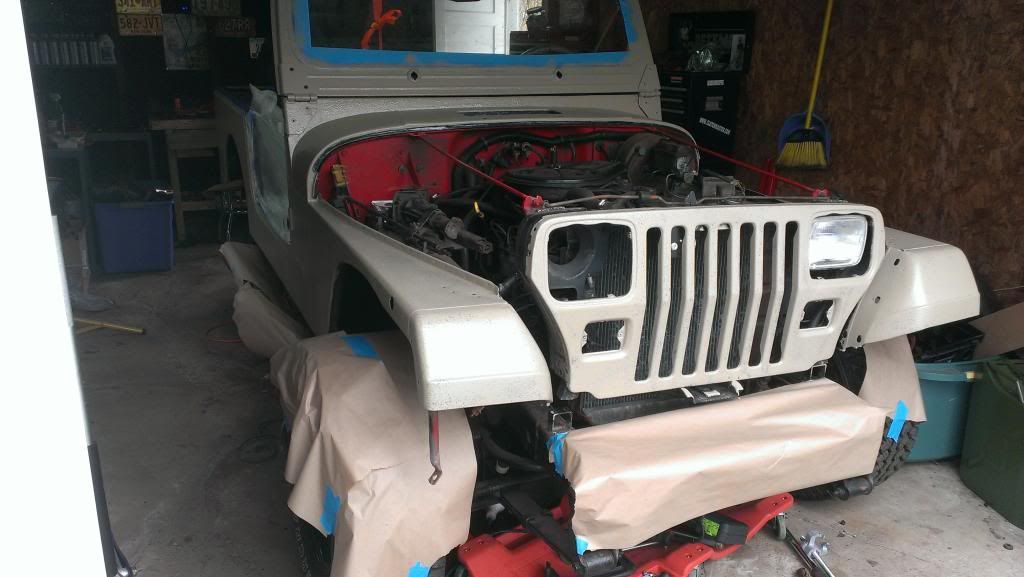

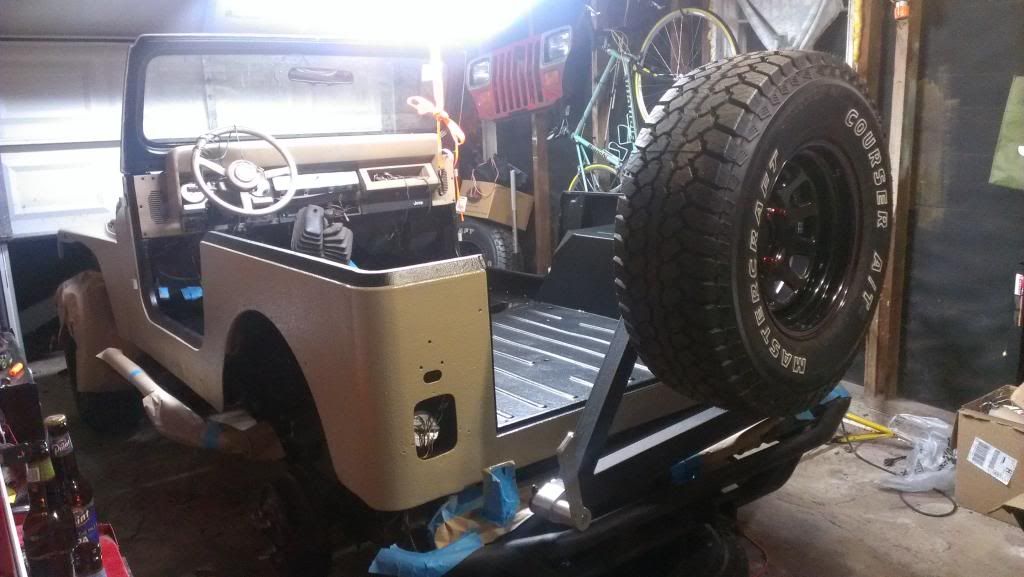

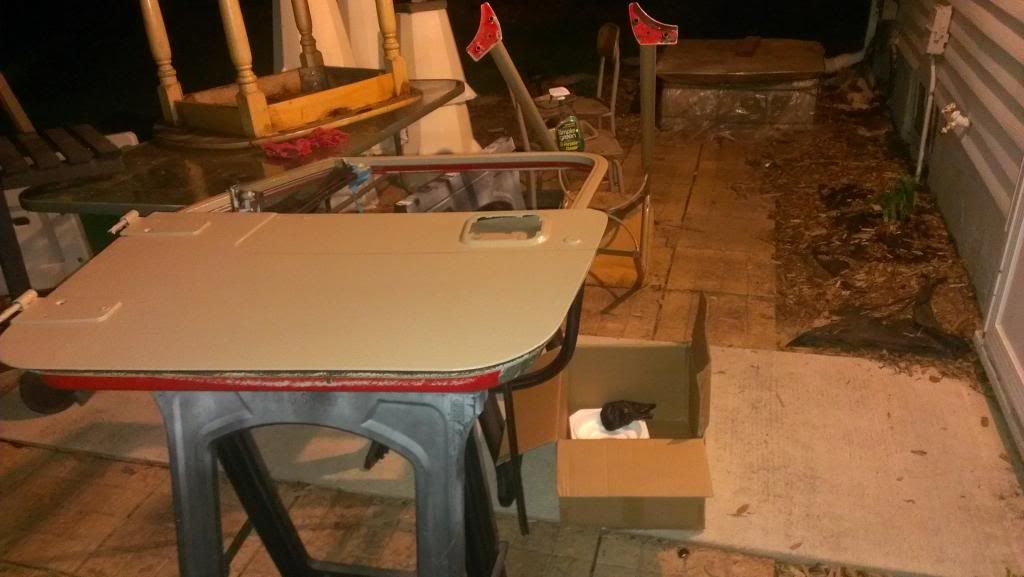

Exterior time..

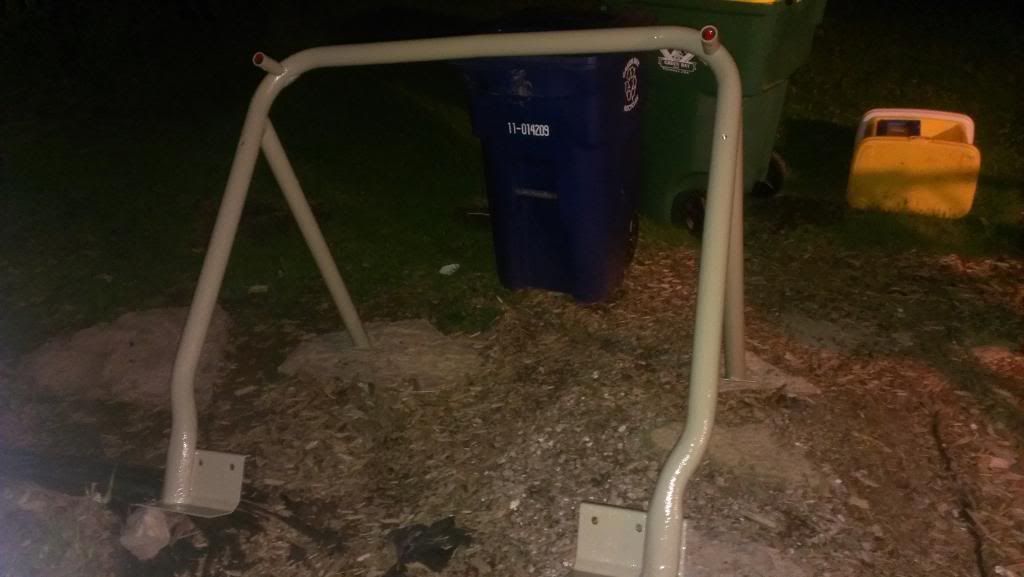

exterior is desert sand, i used the whole 2 gal, but 1 gal gave me 2 coats, so with the 2nd gallon i did 2 more coats and had enough left to do 2 coats on my sport bar. love this color combo, i just hate waiting for this to cure, i just want to put it back together.... So inpatient
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
lordryan93gt is offline   Reply With Quote Quick reply to this message
Unread 05-15-2014, 09:16 AM   #705
bsteele3
Registered User

Join Date: Oct 2013
Location: Annapolis, MD
Posts: 39
Got my decals on. Used a heat gun after then were on to have them conform to the monstaliners texture. Will probably but a light satin clear coat over to prevent any water from getting in.

bsteele3 is offline   Reply With Quote Quick reply to this message
