Home made rear stinger/fold down tire carriers.

I'm about to start on a fold tire carrier for my jeep. I know the big poison spider carrier and it's too busy and massive for my liking. Way too much tube work for me. I'm only running a 35 and won't ever go over 37 so it doesn't have to be huge. I have design in mind but i was just curious to see what others have done.

TechJeeper is offline   Reply With Quote Quick reply to this message
Unread 01-10-2014, 05:27 PM   #2
rdsk8ter
Registered User
1982 CJ7

Join Date: Jan 2011
Location: Northglenn, Colorado
Posts: 573
heres mine

__________________
here is my build threads
http://www.jeepforum.com/forum/f22/randys-long-build-1161262/
http://www.jeepforum.com/forum/f104/randys-offroad-trailer-1164102/
rdsk8ter is offline   Reply With Quote Quick reply to this message
Unread 01-10-2014, 09:53 PM   #3
TechJeeper
Registered User
1998 TJ Wrangler

Join Date: Nov 2011
Location: Midland, Tx
Posts: 299
Looks good! I like the scene in the flat plate. Is that a winch in that bumper I take it.
TechJeeper is offline   Reply With Quote Quick reply to this message
Unread 01-11-2014, 02:25 AM   #4
AZdEvilYJ
Garage Junkie

AZdEvilYJ's Avatar
1995 YJ Wrangler

Join Date: Oct 2011
Location: Phoenix, AZ
Posts: 4,543
Quote:
Originally Posted by rdsk8ter
heres mine
Nice!! Looks like a handy setup!
__________________
'95 YJ 2.5L
March '13 & '14 YJ of the Month!
Exiled Offroad - Arizona

My Build Thread
http://www.jeepforum.com/forum/f22/a...nally-1575209/
AZdEvilYJ is offline   Reply With Quote Quick reply to this message
Unread 01-11-2014, 01:15 PM   #5
Cavasar
No Longer DD

Cavasar's Avatar
1998 TJ Wrangler

Join Date: May 2011
Location: Fort Worth/College Station, Texas
Posts: 2,432
Is it possible to make one that can either drop down, or swing out? Not at the same time, but say pull pin A and B and it drops down or pull pin A and C and it swings out? Maybe not too much stress if you have thick corner armor? I don't know just curious if it could work.

A being top driver of tub
B being top pass of tub
C being bottom driver of tub
__________________
If you can't stand behind our troops feel free to stand in front of them!
Cavasar's TJ
Cavasar is online now   Reply With Quote Quick reply to this message
Unread 01-11-2014, 01:25 PM   #6
rdsk8ter
Registered User
1982 CJ7

Join Date: Jan 2011
Location: Northglenn, Colorado
Posts: 573
yeah I have a winch in the rear or it. As far as swing down or to the side bumpers they do have them I cant remember where I saw them though.
__________________
here is my build threads
http://www.jeepforum.com/forum/f22/randys-long-build-1161262/
http://www.jeepforum.com/forum/f104/randys-offroad-trailer-1164102/
rdsk8ter is offline   Reply With Quote Quick reply to this message
Unread 01-17-2014, 08:38 AM   #7
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,339
Quote:
Originally Posted by Cavasar View Post
Is it possible to make one that can either drop down, or swing out?
Olympic makes something like that for the JK.
TXST8tj is offline   Reply With Quote Quick reply to this message
Unread 01-17-2014, 10:06 AM   #8
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,047
There is a guy who did it over in fab shop it swings out or pull some pins and folds down. my buddy has a home made fold down one also and it gets real old having to pull pins and fold it down just to get in the back of his jeep plus the strain of picking it up and holding it while trying to put the pins back in. its really time consuming. he actually bought an atv winch this week and we are going to make a mount on his tail gate to bolt the winch to and hook it to the tire as a sort of lift assist to get the tire up and hold it in place while put the pins in.
I will admit these sort of tire carriers look cool and serve a good funtion (if tied into the frame properly) but are a real pain to get into the back if you want to, I just know my buddy regrets having his now.
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is online now   Reply With Quote Quick reply to this message
Unread 01-17-2014, 10:29 AM   #9
Cavasar
No Longer DD

Cavasar's Avatar
1998 TJ Wrangler

Join Date: May 2011
Location: Fort Worth/College Station, Texas
Posts: 2,432
I want a "bumper" like Rokmen's with a 2" receiver and a tire carrier
__________________
If you can't stand behind our troops feel free to stand in front of them!
Cavasar's TJ
Cavasar is online now   Reply With Quote Quick reply to this message
Unread 01-17-2014, 02:14 PM   #10
TXST8tj
Registered User
2001 TJ Wrangler

Join Date: Oct 2004
Location: Katy, Texas
Posts: 3,339
Quote:
Originally Posted by Cavasar View Post
I want a "bumper" like Rokmen's with a 2" receiver and a tire carrier

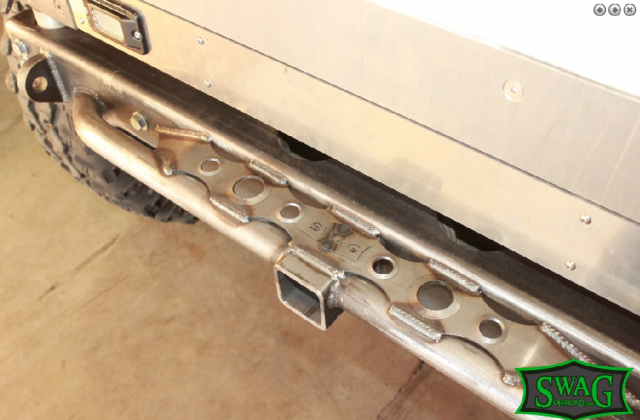

I should have my new Swag Offroad 'Big Hit - V2' rear bumper in a couple days. It doesn't have a tire carrier incorporated, but it does have a 2" receiver.
The tube is necessary to support a receiver hitch with this crossmember hugging style of bumper.
You could build a drop-down carrier off of it.


TXST8tj is offline   Reply With Quote Quick reply to this message
Unread 01-17-2014, 04:27 PM   #11
NashvilleTJ
Member

NashvilleTJ's Avatar
2004 LJ Wrangler

Join Date: Jul 2010
Location: Nashville, TN, Tennessee
Posts: 220
Quote:
Originally Posted by Cavasar View Post
Is it possible to make one that can either drop down, or swing out?
I've built one that does just that. Here is the build thread:

http://www.jeepforum.com/forum/f37/s...rrier-1128388/

Jeff
NashvilleTJ is offline   Reply With Quote Quick reply to this message
Unread 01-17-2014, 05:39 PM   #12
skyj
Registered User
1990 YJ Wrangler

Join Date: Jan 2011
Location: Helena, MT
Posts: 3,047
Quote:
Originally Posted by NashvilleTJ View Post

I've built one that does just that. Here is the build thread:

http://www.jeepforum.com/forum/f37/s...rrier-1128388/

Jeff
You are the one I was thinking of
__________________
build thread: http://www.jeepforum.com/forum/f22/skyj-eccentric-build-1467426/ '90 YJ 5.2 magnum MPI, AX15, NP231 SYE, Dana 30 4.56 open/ 8.8 4.56 detriot locker. 1" shackles
2" BL, 4" stretch all on saggy waggy springs.
skyj is online now   Reply With Quote Quick reply to this message
Unread 01-17-2014, 06:21 PM   #13
Cavasar
No Longer DD

Cavasar's Avatar
1998 TJ Wrangler

Join Date: May 2011
Location: Fort Worth/College Station, Texas
Posts: 2,432
Quote:
Originally Posted by NashvilleTJ
I've built one that does just that. Here is the build thread: http://www.jeepforum.com/forum/f37/s...rrier-1128388/ Jeff
I've seen that before buried couldn't remember where. I also have zero fab skills.
__________________
If you can't stand behind our troops feel free to stand in front of them!
Cavasar's TJ
Cavasar is online now   Reply With Quote Quick reply to this message
Unread 01-18-2014, 02:11 PM   #14
TechJeeper
Registered User
1998 TJ Wrangler

Join Date: Nov 2011
Location: Midland, Tx
Posts: 299
Folding it down is way better than my current situation of I ratchet strapping it and setting it on the ground. I want my tire as low as possible and as close as possible. Maybe fold down isn't the best way. I don't know still trying to get ideas. That carrier in the link is awesome but way too much going on for me.
TechJeeper is offline   Reply With Quote Quick reply to this message
Unread 01-18-2014, 03:37 PM   #15
try2holdmywheel
Registered User
1966

Join Date: Dec 2012
Location: Here and there, WA, WA
Posts: 219
Here's the idea I've had in my head for quite a while now. Just took 2 min to throw it on paper. Take it easy on my drawing, I'm terrible at it. I'm also not claiming the drawing is even remotely close to scale or even proportionately accurate. It probably would be best to tie it into some armor or a cage, which is what I would plan on. I run heavy 37's, but maybe someone could get away with just a tub mount using a smaller/lighter tire/wheel combo. Also, I intentionally am having the upper tubes/supports horizontal, as I've noticed not many manufactures of rear stingers do this, so I can incorporate modular mounts for stuff like fuel cans or small storage.
Unpin 1 and 2: fold down
Unpin 1 and 3: swings to the passenger side
Unpin 2 and 4: swings to the driver side

Let me know what you think.


__________________
'69 Bronco
try2holdmywheel is offline   Reply With Quote Quick reply to this message
