Detailed Homemade Front Bumper Pics!

I am going to be building a new front bumper. What I need to see is how people have done it before. I am unsure whether it should be a 2x4 or 2x5. What I am looking for picture wise is how each look and how you mounted it to the frame? I want to keep it simple in design that is why I am not looking at some of the more advanced designs.
Any and all pics would be great!

rikkards is online now
Sponsored Links
Advertisement

post #2 of 11 Old 10-09-2011, 06:57 PM
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights
Posts: 723

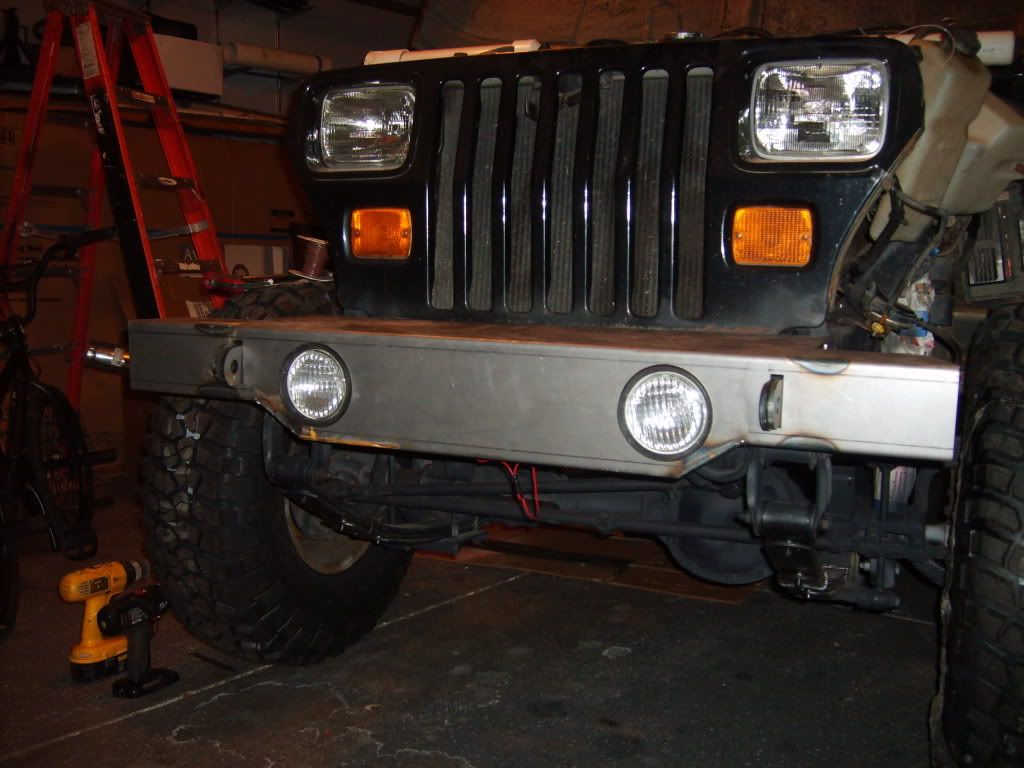

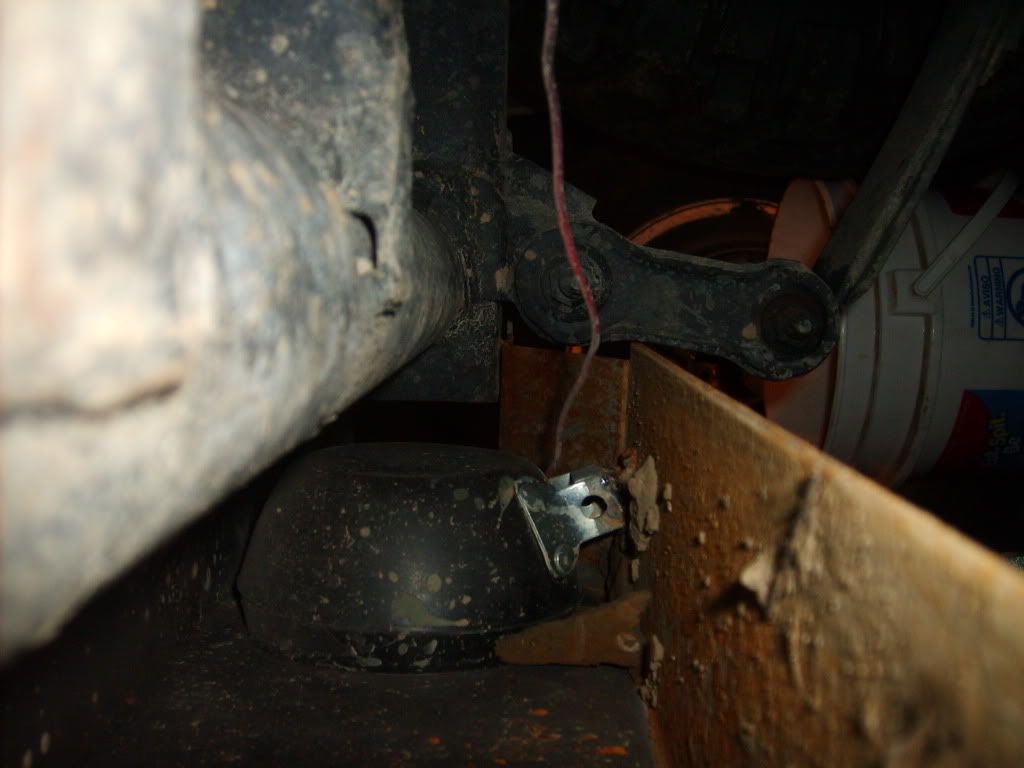

Heres mine. Not sure how much equipment you have. mine was laser cut than formed. but as far as bolting on all i did was folded some tabs down on the bumper around the side of the frame near the grill and used some factory bolt holes to put the bolts through. i couldnt really tighten them so i just put them through and welded the head of the bolt to the tabs on the bumper. I can get some pics for you tomorrow if you want. Also if you have access to a laser i could send you the cut file.


1murderedjeep is offline
post #3 of 11 Old 10-09-2011, 06:59 PM
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights
Posts: 723
sorry i didnt realize you had a tj. we probably have some different dementions.
1murderedjeep is offline
post #4 of 11 Old 10-10-2011, 05:22 AM Thread Starter
rikkards
Web Wheeler

rikkards's Avatar
1998 TJ Wrangler

Join Date: Jun 2008
Location: Ottawa
Posts: 4,041
Not sure what the differences between YJ and TJs bumper wise are but that is nicely built.and thanks for the input!
rikkards is online now
post #5 of 11 Old 10-10-2011, 02:18 PM
tangotag
Registered User
2003 TJ Wrangler

Join Date: Mar 2010
Location: WI
Posts: 458
I used 2X4.
http://www.jeepforum.com/forum/f37/a...umper-1225880/

One from the work in progress.
tangotag is offline
post #6 of 11 Old 10-10-2011, 02:27 PM Thread Starter
rikkards
Web Wheeler

rikkards's Avatar
1998 TJ Wrangler

Join Date: Jun 2008
Location: Ottawa
Posts: 4,041
Wicked thanks for the pic and the thread
rikkards is online now
post #7 of 11 Old 10-11-2011, 04:51 PM
vtx531
Registered User
2002 TJ Wrangler

Join Date: Dec 2004
Posts: 1,374
Do 2x5 because 2x4 looks too skinny. Pics in the link in my signature. Also if you cut out the back of the 2x5 it will fit over top of the frame. Drill some holes and no mounting tabs required.
vtx531 is offline
post #8 of 11 Old 10-12-2011, 09:56 AM Thread Starter
rikkards
Web Wheeler

rikkards's Avatar
1998 TJ Wrangler

Join Date: Jun 2008
Location: Ottawa
Posts: 4,041
I was thinking about 2x5 instead. However I like my winch plate and wanted to keep it but also add a winch guard to it and I think it would probably conflict between the two. So I was going to have it meet up flush with the top of the frame with 1/4" plate running across.
The issue with the 2x5 is how to do the bottom tabs. The frame is about 4" tall so assuming the 2x5 is flush on the top how to attach the bottom? Just weld to the middle of the tube? Any thing special needs to be done?

I have been building it in qcad which is a free 2D program with 2x4 as the spec but I might look at also doing 2x5. I will take a screen shot and post up for comments

Quote:
Originally Posted by vtx531 View Post
Do 2x5 because 2x4 looks too skinny. Pics in the link in my signature. Also if you cut out the back of the 2x5 it will fit over top of the frame. Drill some holes and no mounting tabs required.
rikkards is online now
post #9 of 11 Old 10-12-2011, 10:09 AM
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights
Posts: 723
I would just weld the bumper to the frame rails. No bolts being seen looks so much better. I bolted it on the side of the frame with tabs but would have rather welded it on the inside of the rails.
1murderedjeep is offline
post #10 of 11 Old 10-12-2011, 11:15 AM Thread Starter
rikkards
Web Wheeler

rikkards's Avatar
1998 TJ Wrangler

Join Date: Jun 2008
Location: Ottawa
Posts: 4,041
That a bit too permanent for a bumper.

Quote:
Originally Posted by 1murderedjeep View Post
I would just weld the bumper to the frame rails. No bolts being seen looks so much better. I bolted it on the side of the frame with tabs but would have rather welded it on the inside of the rails.
rikkards is online now
post #11 of 11 Old 10-12-2011, 11:31 AM
1murderedjeep
Registered User
1995 YJ Wrangler

Join Date: Feb 2011
Location: Glendale Heights
Posts: 723
Quote:
Originally Posted by rikkards
That a bit too permanent for a bumper.

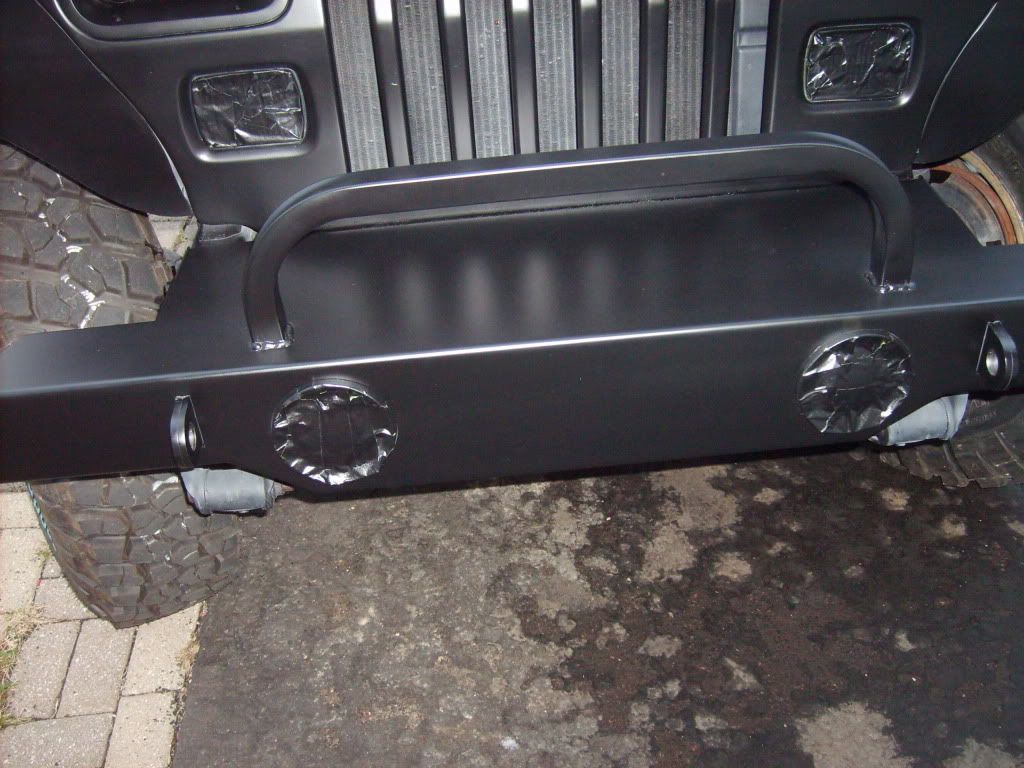

True but if it's stubby it won't get bent or really dented due to the frame rails support. Plus you can grind them off. Just saying I like the smooth look. I also used 11 gauge and one piece formed. Good luck
1murderedjeep is offline
