Need fuel line routing info plz.

On my 77 Wagoneer, it has a 360, 4 barrel, when I got it, it had the mechanical pump still on the engine, but disconnected, and a electric fuel pump just sitting in the engine compartment. Here's the deal, it has what looks like a return line fuel filter setup. I'm not sure if I hooked it up right or not. I took the electric pump off, put a new mechanical pump on and it's hooked up the 3/8th line from the tank, to the pump, goes into the fuel filter, than the other end of the filter one side goes to the carb, and the other to the return line to the tank. Is this correct???

Here is how the lines where hooked up when I got the vehicle.



So that's how I hooked it back up. But I don't think it's right.

hav24wheel is offline   Reply With Quote Quick reply to this message
Unread 03-09-2014, 01:35 PM   #2
olyeller1
Registered User
1984 J-Series Truck

Join Date: Jan 2014
Location: spruce pine, nc
Posts: 16
factory style fuel filter

When I bought my J10 years ago the factory fuel filter had been replaced with a aftermarket type without the return line (small return line was tucked away down at the frame). My Edelbrock 4bbl carb was getting hot and vaporizing the fuel. I installed the proper filter with return (just as you have labeled) and the carb has run cool for years.
olyeller1 is offline   Reply With Quote Quick reply to this message
Unread 03-09-2014, 04:12 PM   #3
RockRollin
"Positive.....I think"

RockRollin's Avatar
1990 FSJ Wagoneer

Join Date: Apr 2012
Location: Grand Haven Mi, USA
Posts: 1,108
Your diagram is correct. Make sure that the return is oriented so it is in 12:00 position
__________________
"I like fun" Edd
Clawed: 90GW, TFI, Streetfire, 3"lift all spring, 31"BFG ATs, working RKE, Edel2131, Holly 1850, mild cam,
05 Renegade OME 927, 947, top plate, JBA 4.5s
RockRollin is offline   Reply With Quote Quick reply to this message
Unread 03-09-2014, 05:42 PM   #4
hav24wheel
Registered User
1977 FSJ Wagoneer

Join Date: Jan 2009
Location: ND
Posts: 85
Ok, cool. Thanks. I did find out my tank has a lot of sediment in it, and it killed the fuel pump in a couple hrs..

I'm thinking I'll pull the tank, and get it cleaned, and install a new pump again.
hav24wheel is offline   Reply With Quote Quick reply to this message
Unread 03-11-2014, 08:43 PM   #5
carnuck
Registered User
1984 J-Series Truck

Join Date: Nov 2004
Posts: 3,212
Before running it, add a see through filter before the pump! The extra work you save in the future will be your own! (I did that rather than drop the tank and packed a spare filter)
__________________
"Usually found in a Jeep near Reiter, WA"
FOR SALE STUFF
http://tinyurl.com/jimsclads

'81 Eagle wagon with upgrades $2500
'87 Comanche shortbox 4.0/AW4/NP242 on 33" tires $3500
carnuck is offline   Reply With Quote Quick reply to this message
Unread 03-11-2014, 08:46 PM   #6
hav24wheel
Registered User
1977 FSJ Wagoneer

Join Date: Jan 2009
Location: ND
Posts: 85
Quote:
Originally Posted by carnuck View Post
Before running it, add a see through filter before the pump! The extra work you save in the future will be your own! (I did that rather than drop the tank and packed a spare filter)

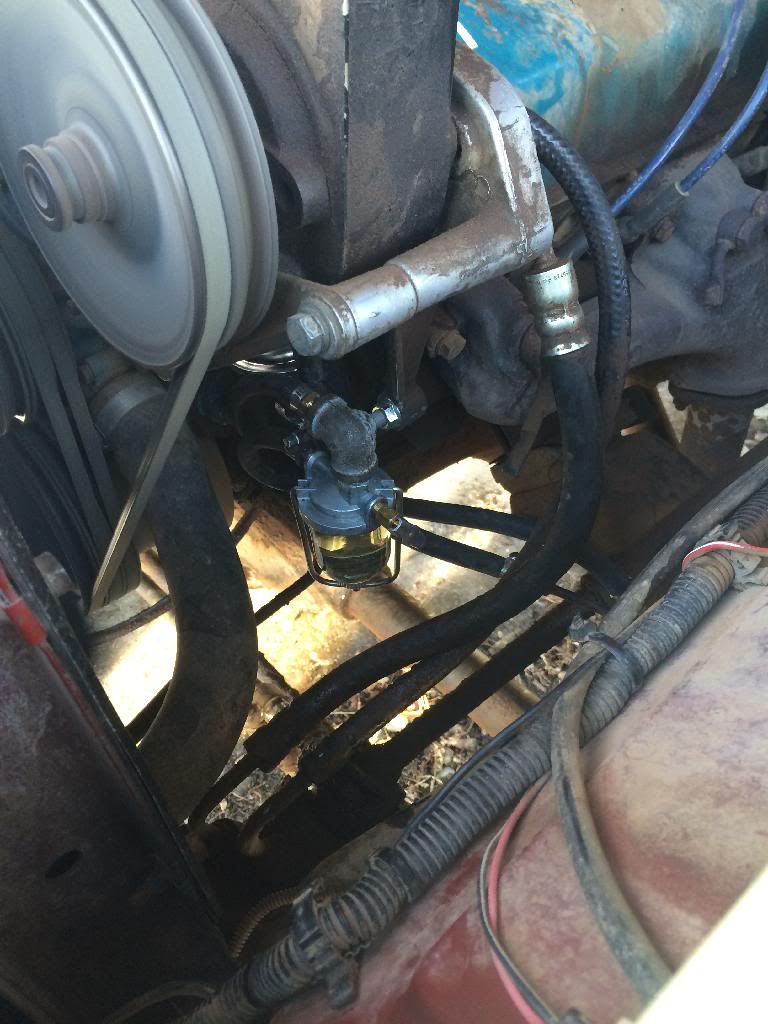

Just did that today.. Along with new filter, and fuel pump.
