gatmog presents: el-cheapo mountaineer

i was contemplating on how to get more storage space as well as hide my sub--so the idea hit me, what about a light duty rack out of reinforced pvc?




now i know the rack wouldnt be as rigid as the metal variety, however, i would only put light and soft items up there anyway (in case of a collision).

the materials used are
30ft of schedule 40 pvc 3/4"
pvc cement and primer
9 elbows, 10 tee fittings
some plywood (just enough to reinforce the rack stresspoints)

tools
tablesaw


first i sliced my cargo mat so i could access my tie downs to anchor the rack


then i started to shape up the rack


the rack is purposely made just low enough to clear the sub


i incorporated an opening for a bus pan for hauling small items


to strengthen the pvc, cut strips of wood small enough to fit the pipe and use your bfh to mash that sucker in..


then select a paint of your liking and go at it!

my paint is currently drying so more pics to come later

gatmog is offline   Reply With Quote Quick reply to this message
Unread 08-21-2006, 01:40 AM   #2
gatmog
Registered User

Join Date: Apr 2006
Location: Portland, OR
Posts: 211

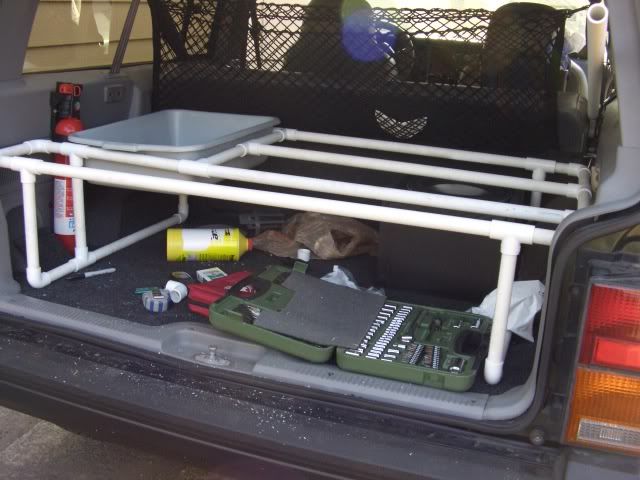

finished pics--structurally, i'd say the rack is well suited for duffel bags, groceries (in the tray), and the like--wont hold a spare tire, but nothings stopping you from putting a spare under it!

here are some finished pics!








oh yeah, weighs a good 6lbs or so...much lighter than its steel counterpart..
