Another way of doing a 3rd brake LED

I decided to post this up as its just a little different than the others in this section. I wrote it for a Jeep club forum I am a part of, so I figured why not post it at Jeepforum. So, here it is...

After installing my swing-away rear tire carrier, I was without a third brake light. While I believe its legal in Illinois to only have two brake lights, I still don't like it when people don't have the center high-mounted stop lamp (CHMSL). So, why should I not have one? Well I shouldn't not have one! Please excuse the double negative. Anyway, from some other people's ideas, I made my own using my spare tire center hub cap, a 13 LED 2.5" truck stop/turn lamp, a gasket for the LED, some silicone glue, about 4 inches of wire, and some various wire connectors.

As you can see, I cut the top off of my hub cap and then I slipped the LED into the gasket and then placed it into the hub cap.



I glued around the inside edge of the gasket.

I then realized that my theory of running the wire through the hub cap would not work since I would not be able to slide the cap through the center hole on the wheel. Rather than cutting a large hole, I just made some "remote" connectors by adding in some wire. I drilled two holes in the bottom of the hub cap and glued everything together.



On the Jeep I just cut off the factory connectors and installed the bullet type male connectors. I then used some heat shrink tubing and plugged it in.

To remove the tire, I just disconnect the wires and the center hub will slide right out of the spare tire.

And one last pic all lit up.



Red Jeep Club Member 111

'99 TJ - work in progress...see profile

'08 WK - Silver RME, DD.
Kerndone is offline
Sponsored Links
Advertisement

post #2 of 8 Old 04-02-2006, 08:41 PM
seel2000
Registered User

Join Date: Feb 2006
Location: South Texas
Posts: 205
nice write up

-Seel-

2000 WJ Laredo -- Kevin's 2.5", Rubicon twin-tube shocks, 265/75/16 Firestone Destination MT's, Pioneer head-unit, 800w RockFosg, 2x10 Kicker Comp Subs, Memphis spkrs front&back

2005 WK Laredo
seel2000 is offline
post #3 of 8 Old 04-02-2006, 09:07 PM
Rocky5
Registered User

Rocky5's Avatar
2006 LJ Wrangler

Join Date: Jul 2005
Location: Hutto, Texas
Posts: 1,351
great idea...looks great

2006 Solar YELLOW UNLIMITED-6-Speed
-Rusty's 2" spring kit w/Skyjacker Hydro 7000 shocks, 1" coil spacers up front and 3/4" coil spacers in rear, 32" BFG AT KO's on Ravines
-Spidertrax 1.25" wheel spacers, Clear Turn Signals and Markers, Custom Front Bumper Hoop with upgraded hooks, Delta 50 Flowmaster, Code Alarm CA-670 Paging-Alarm with Motion Detector, K&N FIPK, JKS Discos, Procomp LCAs, Airaid TBS, Tuffy 055 rear section sub console, 4-Hella 500's, Fumoto Oil Drain Valve, Olympic Reverse-a-bars, Delta Headlight kit with black bezels, Edge Trail Jammer kit, Smittybilt Classic Tire Carrier, WARN Oil Skid, Skid Row steering skid, JKS adj. rear track bar, RC front adj. track bar.
Rocky5 is offline
post #4 of 8 Old 04-02-2006, 09:28 PM
TellyDSP
Poland and PPV!!!!
1995 YJ Wrangler

Join Date: Feb 2003
Location: Orlando
Posts: 4,494
do you run into issues when swinging out the tire? Is there extra wire, or do you dico the brake light each time?

-Craig-
95 Rio Grande
07 Ram 1500

SIRA4x4 Club

Quote:
Originally Posted by Jeeples
n00bs bashing n00bs, it's a pitifull thing.
TellyDSP is offline
post #5 of 8 Old 04-02-2006, 11:48 PM Thread Starter
Kerndone
I lack money

Kerndone's Avatar
1999 TJ Wrangler

Join Date: Nov 2003
Location: Rancho Cucamonga
Posts: 776
Quote:
Originally Posted by TellyDSP
do you run into issues when swinging out the tire? Is there extra wire, or do you dico the brake light each time?

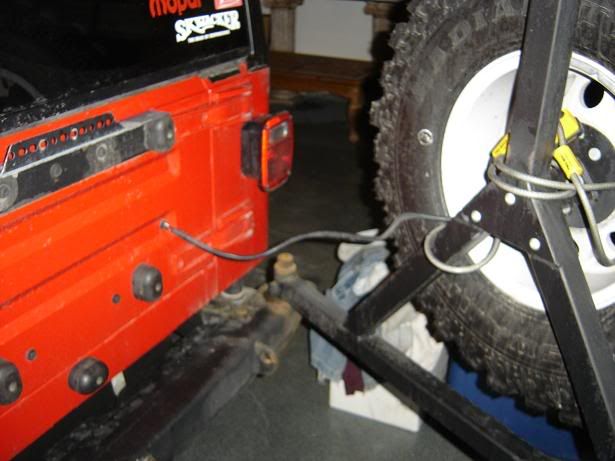

Not really, but I do have to open up the door to give it some slack before I can fully swing out the tire carrier. You can see in this pic how far I can open the carrier until I need to open up the tailgate. BTW, its just the factory wire length, I just cut off the factory connectors and crimped on my own.

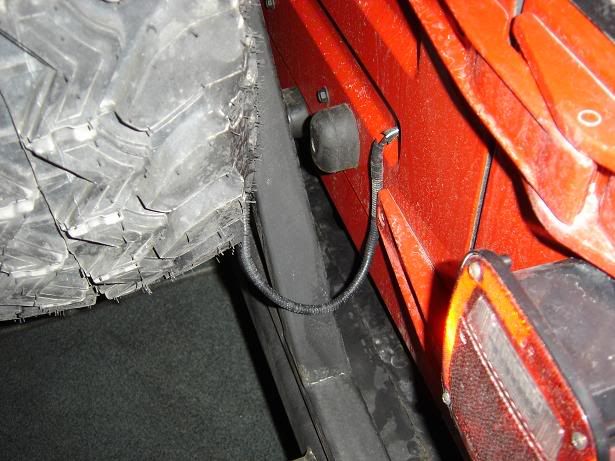

And when its closed up, the wire just kinda finds its own home.

Red Jeep Club Member 111

'99 TJ - work in progress...see profile

'08 WK - Silver RME, DD.
Kerndone is offline
post #6 of 8 Old 04-03-2006, 08:32 PM
drew01929
Registered User

Join Date: Mar 2006
Location: West Coast
Posts: 9
Nice job, i will be looking at doing something similar in the near future.
drew01929 is offline
post #7 of 8 Old 08-11-2013, 12:52 PM
vizro
Registered User
1997 TJ Wrangler

Join Date: Dec 2012
Location: Greeneville
Posts: 33
great write up thanks
vizro is offline
post #8 of 8 Old 08-13-2013, 01:00 PM
athos76
Registered User
2006 TJ Wrangler

Join Date: Jul 2008
Location: El Paso
Posts: 1,558
I had the same mod for my LoD bumper, but I cut the wire at the tailgate and routed it from under the rear and up the tire carrier. Had to add extra wire.

2006 I6 6-Speed X, 33" Goodyear Duratrac, 8.8.
athos76 is offline
