UCF Ultra High-Clearance Transfer Case Skids - Page 3

**undercoverfab** · 03-01-2010, 09:41 PM

Quote:

Originally Posted by jhendrix05

I did no kind of clearancing to the Tub, no triming to the skid for exhaust or D.S. I will take a good picture in the morning to show.

Thanks for offering a great product for a great price Matt.

I would love to see pictures. I thought some clearancing would be required. Did you measure the total clearance gain?

gribbles · 03-01-2010, 09:44 PM

Quote:

Originally Posted by jhendrix05

I did no kind of clearancing to the Tub, no triming to the skid for exhaust or D.S. I will take a good picture in the morning to show.

Thanks for offering a great product for a great price Matt.

thats awesome news. I planned on test fitting mine to see if I can get away without the lopro tranny mount. This makes me feel good, looking forward to the pics.

Oh and my skid arrived today. I agree with jhendrix05, its a beautiful product, I was planning on painting it, but I may have to leave it bare aluminum to show it off

its barely taller than a hockey puck

**undercoverfab** · 03-02-2010, 06:35 AM

Quote:

Originally Posted by jhendrix05

I got mine this morning. This is the highest quality product I have ever seen. one word describes it. Excellent.

I did Install this skid with only a JKS 1 in body lift and a JKS 1 in MML.

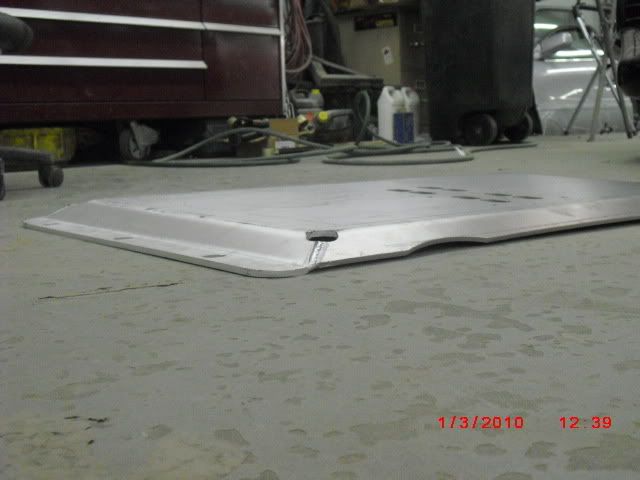

Check out the skid next to a DP can.

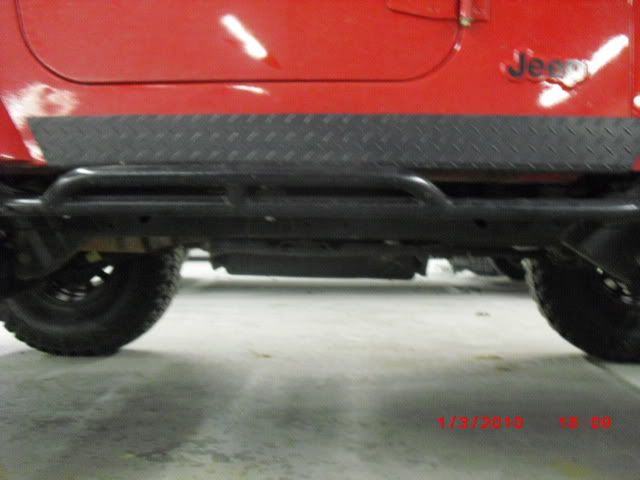

Before TT

After TT

I am really excited to see you install the 1" deep skid with only 1.25" of body lift and no hammering. Post up some better pictures of the clearance around the top of the t-case and such.

Thanks,

bandit455 · 03-02-2010, 07:28 AM

i am really excited too...

now I know which one to order

**crusher242** · 03-02-2010, 09:09 AM

This made me just order one!

**undercoverfab** · 03-02-2010, 04:34 PM

Quote:

Originally Posted by crusher242

This made me just order one!

Thanks for the order!

jjg214 · 03-02-2010, 04:41 PM

Quote:

Originally Posted by gribbles

thats awesome news. I planned on test fitting mine to see if I can get away without the lopro tranny mount. This makes me feel good, looking forward to the pics.

Oh and my skid arrived today. I agree with jhendrix05, its a beautiful product, I was planning on painting it, but I may have to leave it bare aluminum to show it off

its barely taller than a hockey puck

If i were you id atleast hit it with 2-3 coats of clear. aluminum will corrode over time outdoors, not nearly as fast as steel and not as ugly as steel... but it still does corrode.

**Hendrix** · 03-02-2010, 07:04 PM

My pictures kinda really suck. hope this helps. The transfer case has about 3/4 inch at the highest point before hitting the tub.

Side View from frame on Driver side.

Back View

From top of transfer case forward.

From the Front D/S to the Back.

I hope this will show that no clearancing is needed on my 97 TJ with auto with a 1 .25 JKS BL and MML .

Here is the added ground Clearance with 35s.

diablo_331 · 03-09-2010, 07:09 PM

Any updates on the LOPRO mount? This is the only thing that I am waiting on before ordering my 1" skid. I will be stuffing a 241 behind my NV2550 with a 1"MML and 1.25"BL. I am shooting for no tub clearancing. I will post pics when I get it all in.

**undercoverfab** · 03-09-2010, 07:48 PM

Quote:

Originally Posted by diablo_331

Any updates on the LOPRO mount? This is the only thing that I am waiting on before ordering my 1" skid. I will be stuffing a 241 behind my NV2550 with a 1"MML and 1.25"BL. I am shooting for no tub clearancing. I will post pics when I get it all in.

I am working on it right now. Actually headed to the hardware store to get some bolts in a few minutes for that very project.

**Hendrix** · 03-09-2010, 09:05 PM

Matt, Do you ever get to sleep? How about that prototype is it coming my way?

**undercoverfab** · 03-09-2010, 09:17 PM

Quote:

Originally Posted by jhendrix05

Matt, Do you ever get to sleep? How about that prototype is it coming my way?

It went out tonight... I sleep when I'm not working.

**Hendrix** · 03-10-2010, 06:40 PM

Quote:

Originally Posted by undercoverfab

It went out tonight... I sleep when I'm not working.

Thanks Matt, I got the email right after I posted. I will get it Thursday and Post new picts. I will email you a set for reference. I can put my Jeep up on a lift so the pictures will be straight on. Thanks John

**Hendrix** · 03-15-2010, 08:17 PM

I purchased the UHC 1 inch deep skid, then found out UCF was making the engine skid also here are the first pictures of the skids together on my 97 TJ.

coyote595 · 03-22-2010, 03:17 PM

Quote:

Originally Posted by jhendrix05

I did no kind of clearancing to the Tub, no triming to the skid for exhaust or D.S.

Hey Jhendrix05,

I have very similar set up as you. What did this do to your rear driveshaft angle at the cv joint (transfer case end)? Did you measure before/after or even just-after angle from TC output shaft to rear drive shaft angle? Did you feel any increase in driveline vibration at highway speeds? Did you use adjustable control arms to bring the angle of the rear u-joint to zero degrees after install? How about before and after driveshaft length from centerline of rear u-joint to centerline of the forward bearing caps of the cv joint at the transfer case end?

Sorry for all the questions. If you could just answer the ones that you can, it might help me with my decision.

Thanks alot!

Jess
