YJ Windshield Hinge Light Brackets

I am getting my YJ ready to paint this weekend and decided to make a pair of window hinge light brackets.

I used 3/16" metal that I had left over from another project. They are welded to the hinges on the bottom side. They were easy and fun to make. I think I had about an hour and a half from start to finish designing, making and painting the finished project. Once I paint (Monstaline) them; they will look pretty good.

Pattern on a piece of paper:

Transfered to the steel:

Cut out with relief cuts for the bends (it isn't square, I had issues with the die cutter):

Making the bend for the lower support:

One bend completed:

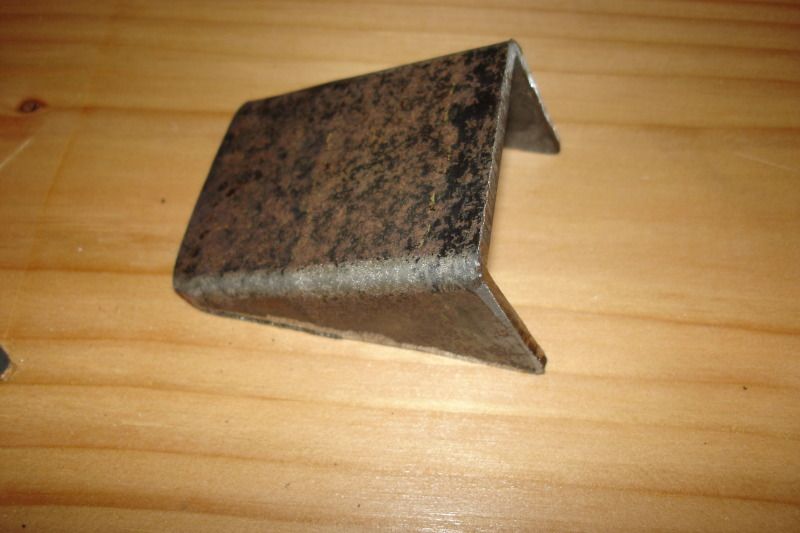

Completed bracket:

Ready for welding:

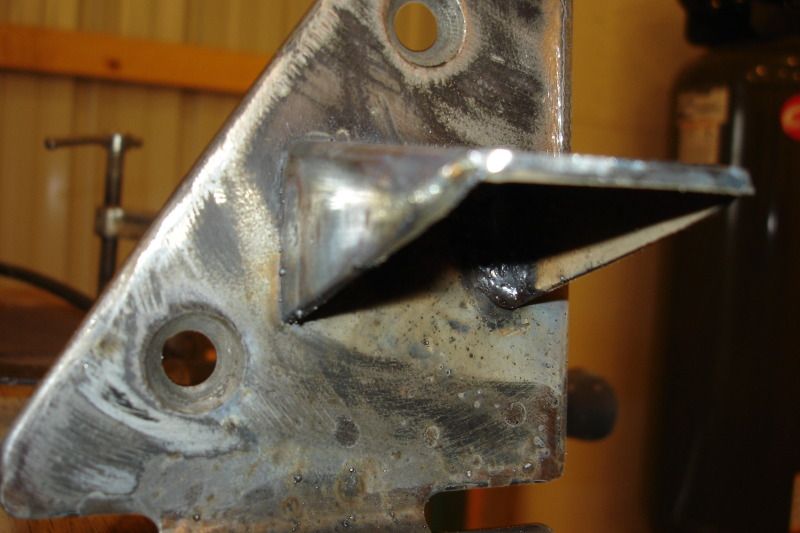

Finished weld (cleaned up with a small grinder wheel):

Right side completed:

Finished pair:

qlfarm is offline   Reply With Quote Quick reply to this message
Unread 09-25-2012, 03:03 PM   #2
wickedoffroad
Registered User
1987 YJ Wrangler

Join Date: May 2008
Location: Clarkston, Washington
Posts: 297
Looks good. Simple to make and effective.
wickedoffroad is offline   Reply With Quote Quick reply to this message
Unread 10-03-2012, 12:44 AM   #3
karlo
Registered User

Join Date: Jan 2009
Location: Florida
Posts: 1,544
Looking great. Nicely done!
karlo is offline   Reply With Quote Quick reply to this message
Unread 10-07-2012, 12:45 PM   #4
BigBlueLJ
Registered User
2005 LJ Wrangler

Join Date: Sep 2012
Posts: 41
Good idea. I just might do that myself. Thanks for posting
BigBlueLJ is offline   Reply With Quote Quick reply to this message
Unread 10-10-2012, 08:33 PM   #5
Cobrajet94
Registered User
1992 YJ Wrangler

Join Date: Sep 2011
Location: Port Washington, New York
Posts: 77
great idea thanks for posting the dimensions im going to make some this weekend for me and my friend
