Winch Plate Sketch

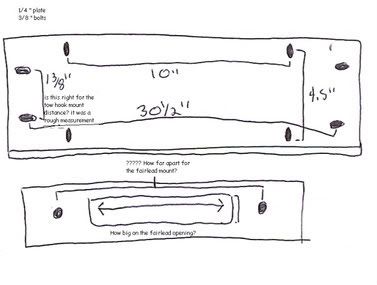

So im gonna have my winch plate made by a friend instead of paying a buttload of money. I searched and couldnt find any sketches, so i made one myself. Im not sure if its all right and if im missing any measurements or if some are wrong. Any help is appreciated.


THANKS


edit: sorry for the small azz writing. from the top question to the bottem it says:
is this the right distance for the two hook mounts, my measurement was pretty rough i had it at 1 3/8"
how fair apart are the fairlead bolt holes?
how big does the opening have to be?


STUFF
Bf goodrich 33x10.5 (one)
Add-a-trunk for sale
class II trailer hitch for cherokee- pm me

Last edited by colder152000; 09-29-2009 at 07:47 PM.
colder152000 is offline
Sponsored Links
Advertisement

post #2 of 10 Old 09-29-2009, 07:51 PM Thread Starter
colder152000
Registered User
1997 TJ Wrangler

Join Date: Jul 2009
Location: berkeley heights nj
Posts: 161

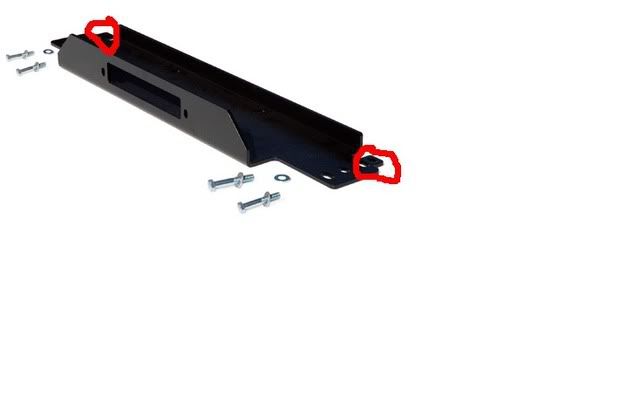

are the holes i circled necessary for my tj

STUFF
Bf goodrich 33x10.5 (one)
Add-a-trunk for sale
class II trailer hitch for cherokee- pm me
colder152000 is offline
post #3 of 10 Old 09-29-2009, 09:16 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,283
Yep.. you need the bolt holes that catch the front swaybar bracket bolt holes. You're winch mounting holes are correct. However, keep in mind the forward winch bolts will be sitting on top of your bumper so you'll likely have to add a spacer or few washers under the plate to keep it even and allow the bolt to fit above the bumper. You also want to make sure the plate is positioned fore/aft correctly so it doesn't interfere with the sway bar... or allow the winch to hit the sway bar.

Here's one I cut out last night.. This might help you get an overall perspective of the bolt hole layout.


'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline

post #4 of 10 Old 09-30-2009, 03:25 PM
funshootin1
Registered User
1998 TJ Wrangler

Join Date: Jul 2009
Location: philadelphia
Posts: 722
BESRK that plate is awesome, the speed holes seal the deal. Must be nice to have a plasma table.
funshootin1 is offline
post #5 of 10 Old 09-30-2009, 04:16 PM
Scrambler82
Registered User

Scrambler82's Avatar
1982 CJ8

Join Date: Jun 2002
Location: Boston Area
Posts: 3,598
You need to reference the holes or at least one set of holes from some point, the Datum Point.
Than all of the other measurements fall in place.
Let say one corner of the plate for both the top view and the front view.

Scrambler82

Do it right the first time !
Scrambler82 is offline
post #6 of 10 Old 10-04-2009, 01:34 PM
czjeeper
Registered User
1992 YJ Wrangler

Join Date: Jul 2006
Location: Woodland
Posts: 1,515
What are you getting for those?

US Army combat vet
2011 Grand Cherokee Laredo 3.6
Armed Forces Jeeps Member #125
Red Jeep Club Member #251

In the Portland/Vancouver area? Check 'em out!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
czjeeper is offline
post #7 of 10 Old 10-05-2009, 01:55 PM
NWA_CJ7
Registered User
1983 CJ7

Join Date: Jul 2007
Location: Rogers
Posts: 569
yea, how much put me on the list for one too!!!

83 CJ7 AMC 360, nuttered & team rushed. Dana 44 rear geared & locked, Dana 30 front geared & locked Dana 300 T. Case 4" Tough Country Lift, 1" daystar body lift, 1/2" shackle 35x12.50x15 MT MTZ's on MT classic 2's, Besrk Bumpers, Genright Tube Fenders
NWA_CJ7 is offline
post #8 of 10 Old 10-05-2009, 02:16 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,283
Haven't really worked out a design for the CJs yet. I started with the TJ since it's the most common bumper that I sell. I will work out a CJ winch plate mount soon though. Same basic upper plate but ties into the side of the CJ frame rails.

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #9 of 10 Old 10-05-2009, 02:29 PM
NWA_CJ7
Registered User
1983 CJ7

Join Date: Jul 2007
Location: Rogers
Posts: 569
Keep me posted. Are u going to design it with your front bumper mounting points in mind?

83 CJ7 AMC 360, nuttered & team rushed. Dana 44 rear geared & locked, Dana 30 front geared & locked Dana 300 T. Case 4" Tough Country Lift, 1" daystar body lift, 1/2" shackle 35x12.50x15 MT MTZ's on MT classic 2's, Besrk Bumpers, Genright Tube Fenders
NWA_CJ7 is offline
post #10 of 10 Old 10-05-2009, 02:58 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,283
Yep... pretty easy actually since the CJs mount the winches to the side of the frame. You can kind of stay away from the bumper mounting points so it won't interfere with the bumper setup.
