Welding cart build up....

Ok, I started my project. I am still looking for some ideas in the other thread so I thought I would separate the threads. Here are some pictures of the basic design so far of my welding cart. The front support is 24"H and the middle support is 30"H. The base is 40"L X 15"W The deck that will support the welder will be from the top of the front support to about the 20"H point on the middle support. I am still in the design phase but you can see the basic idea. The rear 10" will be for bottles.

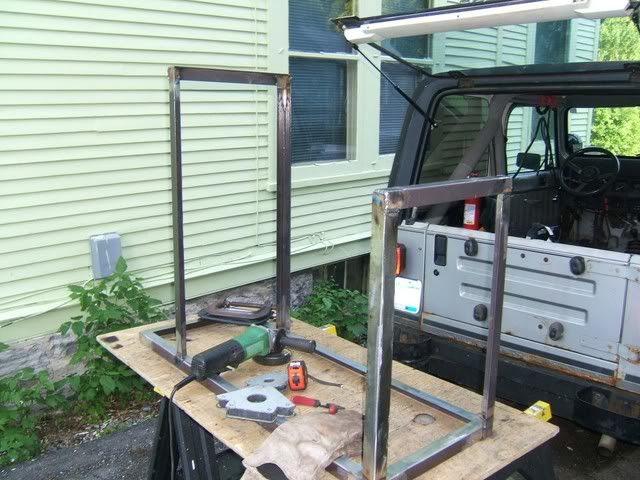

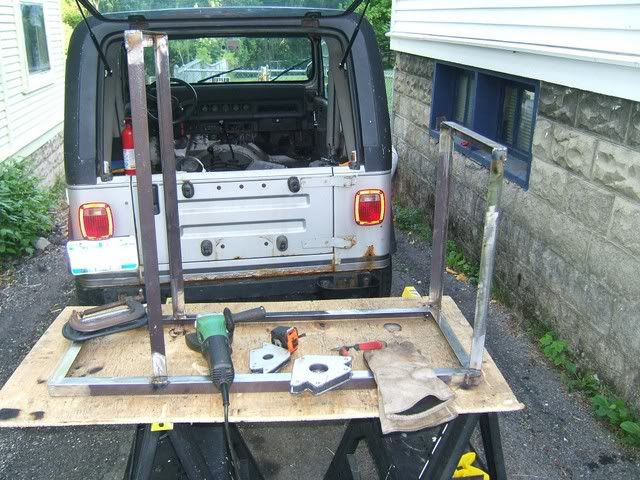

The entire structure is made from 1.25" X 1.25" X 1/8" thick angle iron/bed rail basically. The deck for the welder and bottles will be 1/8" plate. Both sections will have added supports on the underside.

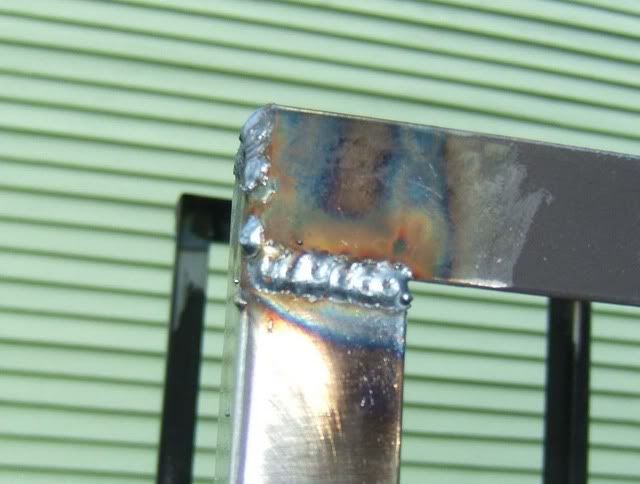

Here are a few of my corner welds:

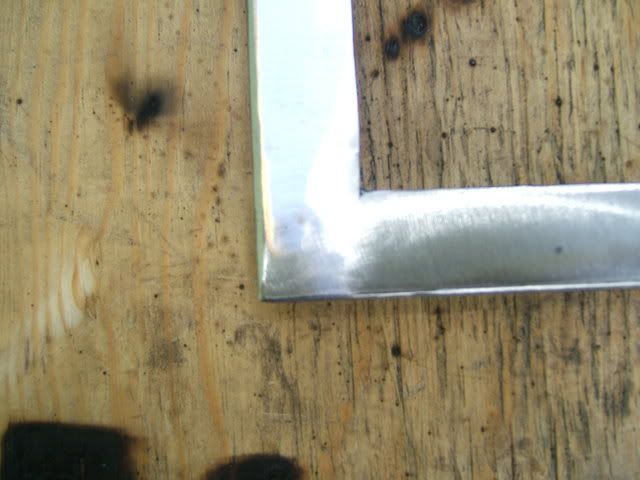

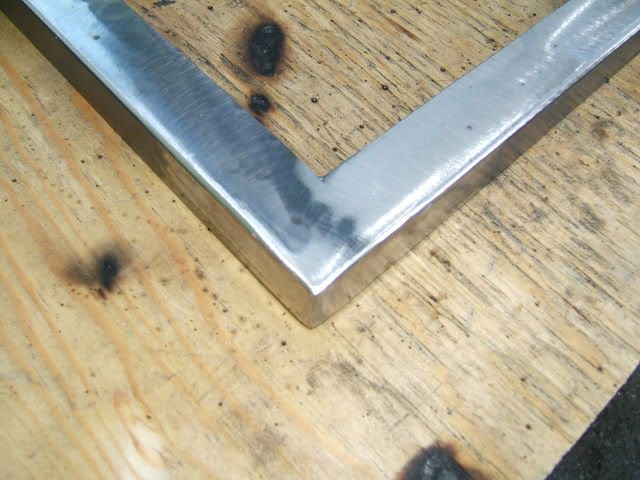

and a few of the final product after cleaning up the rear corners:




Comments and questions are welcome. Feel free to critique my welds. I can always use more input.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
Sponsored Links
Advertisement

post #2 of 69 Old 05-31-2007, 01:44 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Well, I was able to get a little more work done this morning. You can see how it will basically be now. I did try to run a few beads instead of tack welding, so let me know what you think. On with the pictures.





Here is where I plan to make supports for the decks.

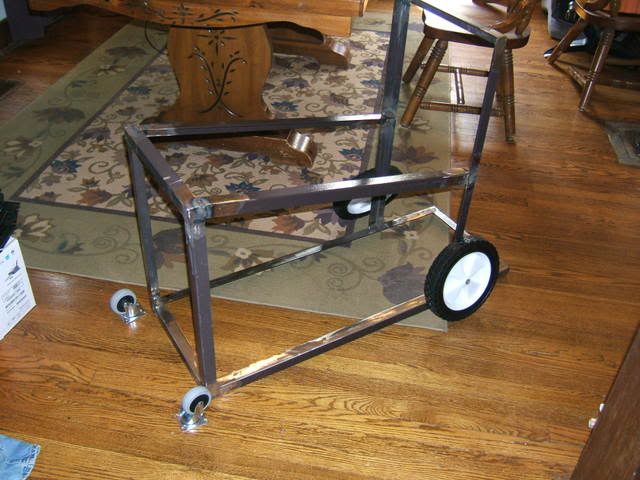

Here are the wheels that I chose and where I plan to put them. The front casters will be offset to the sides a little for a wider stance.

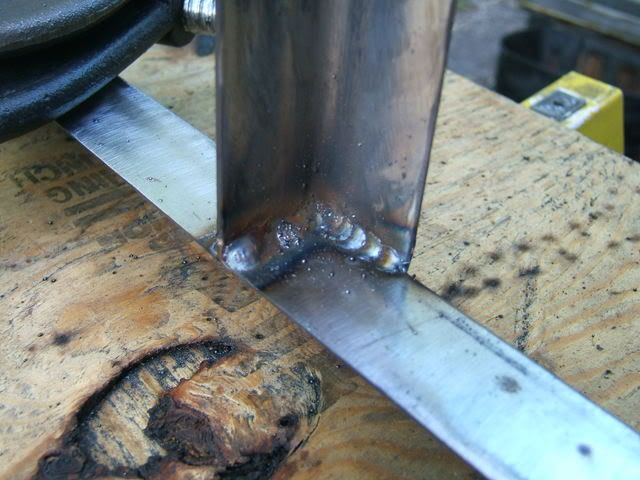

Here is one of the better welds


I also picked up some 1/2" round stock to bend into tool holders, cord hooks, etc. I got some 3/4 X 3/4 square stock to make the front handle out of. The only thing I am still on the fence about is what to use for the deck. Someone told me 1/4" plate for the top and 1/8" for the bottom. So let me know what you think.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #3 of 69 Old 05-31-2007, 01:45 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613

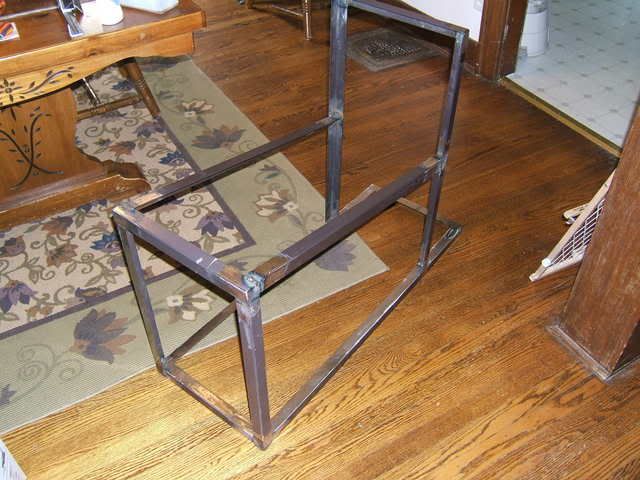

These pics will help give a better idea of how big it is








To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #4 of 69 Old 05-31-2007, 02:44 PM
SwearingYeti
Registered User

SwearingYeti's Avatar
1991 YJ Wrangler

Join Date: Aug 2005
Location: Ephrata
Posts: 352
Looks good, good penetration.

1991 Red YJ - 2.5L
1988 Red YJ -304ci
1989 OD XJ- 4.0L
SwearingYeti is offline
post #5 of 69 Old 05-31-2007, 02:48 PM
Camo Deere
Registered User

Camo Deere's Avatar
2002 TJ Wrangler

Join Date: Feb 2007
Location: Tampa, FL
Posts: 2,567
Looks good. Great idea.
Camo Deere is offline
post #6 of 69 Old 05-31-2007, 03:32 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Thanx guys. hope to have this done in the next few days.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #7 of 69 Old 05-31-2007, 04:08 PM
Nightcon777
Registered User
1998 TJ Wrangler

Join Date: Oct 2004
Location: Rhode Island
Posts: 164
you using gas with those welds or flux core wire?
Nightcon777 is offline
post #8 of 69 Old 05-31-2007, 04:23 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Those were with gas.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #9 of 69 Old 05-31-2007, 06:14 PM
ZIMSJEEP
Registered User

ZIMSJEEP's Avatar
1995 YJ Wrangler

Join Date: Mar 2006
Location: Long Island, NY
Posts: 444
Looks good bro...I have a design now for my cart

3.5" Fabtech lift, 5/8" MORE Boomerang Shackles, Brown Dog Motor Mounts, 33x12.5 Mikey Thompson Baja Claws, MT 15x8 Classic II Alloys, JKS swaybar disco's, Rancho RS 5000 stablizer, Skyjacker Hydro 7000 shocks, Warn Bumper w/ pre runner, On board air, Grant Wheel, PIAA Windshield mounted lights, Herculined Interior
ZIMSJEEP is offline
post #10 of 69 Old 05-31-2007, 09:15 PM
Ryanpowell167
Registered User
1992 YJ Wrangler

Join Date: Feb 2006
Location: Elk City
Posts: 648
Quote:
Originally Posted by rustywrangler
Here is one of the better welds

From the looks of it, you need a bit more heat to burn it in more and maybe move a little bit faster. I think it will hold though. Ive been needing a cart for bottles lately. The cart my welder and plasma are on is stainless and i dont want to weld a bottle rack to it lol. I dont even have a rack for my hobart stickmate....Thanks for the ideas!

Black 1992 wrangler, 40" creepy crawlers, d60/14b 350tbi/700r4/np205, spring over on 4" springs.
2011 Ford F-150 Raptor, whipple supercharged...
Ryanpowell167 is offline
post #11 of 69 Old 05-31-2007, 10:14 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Quote:
Originally Posted by Ryanpowell167
From the looks of it, you need a bit more heat to burn it in more and maybe move a little bit faster. I think it will hold though. Ive been needing a cart for bottles lately. The cart my welder and plasma are on is stainless and i dont want to weld a bottle rack to it lol. I dont even have a rack for my hobart stickmate....Thanks for the ideas!

Yea I looked that weld over again and its not as thick as it looks. It actually has very good penetration. I ground it clean and it looks good to me. This cart is actually ending up bigger than I thought I would like but in the end it will be holding alot. The bottom rack for now will be for my tool box etc but eventually will either hold a stick welder or plasma cutter.

Thanx for the weld advice. My instructor said turn up the heat a bit too.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #12 of 69 Old 05-31-2007, 10:15 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
Quote:
Originally Posted by ZIMSJEEP
Looks good bro...I have a design now for my cart

measure twice cut once but hey, the materials were free.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #13 of 69 Old 06-12-2007, 12:08 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
WELL I finally got to do some more work on my cart and I think the end is near. Here are some pics of the wheels mocked up in the front. They will be bolted to those plates and I will gusset the design on top so the plate does not bend.




I also got the back wheel bolts welded on. Now to just figure out how to make the Nuts stay in place.









And finally the top deck supports. For now these will hold the welder up but when I can get some more sheet metal I will skin the top deck.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #14 of 69 Old 06-16-2007, 06:48 PM Thread Starter
rustywrangler
Got my eye on you.....

rustywrangler's Avatar

Join Date: Apr 2005
Location: Syracuse, NY
Posts: 18,613
IT is finally to the point where I can start to use it.

Here are a few general shots of it.






Future home of the Fire Extinguisher


Clamp rail and gun/ground hanger


A catch all for Tips, wrenches, soap stone, pliers, etc. Threw it togeather in class


And for those of you that got terrified about the bottle not being secure. Here is my Temp fix.



Now the only things left to do are to skin the decks with sheetmetal and add the front pull handle.

Then Paint and its DONE!!!!!!!!!


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Congenital Heart Disease is a reality for me, BOTH of my children have it. Please read up and become aware for future generations

Lydia Ann-Acquired 08/05/05 Open Heart surgery 08/10/05
Jacob Patrick-Acquired 01/17/08 Open Heart surgery 02/15/08
rustywrangler is offline
post #15 of 69 Old 06-16-2007, 08:18 PM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Nice cart! I like the pics of it on the living room floor

"Honey, can you pass me the remote for the TV... it's sitting on the welder."




.
