Trailer modification question.

I have this trailer....


I want to remove the factory tongue to make it longer so that I can occasionally load a kayak on it. the trailer is 4' long, and the current tongue is about 2.5'.

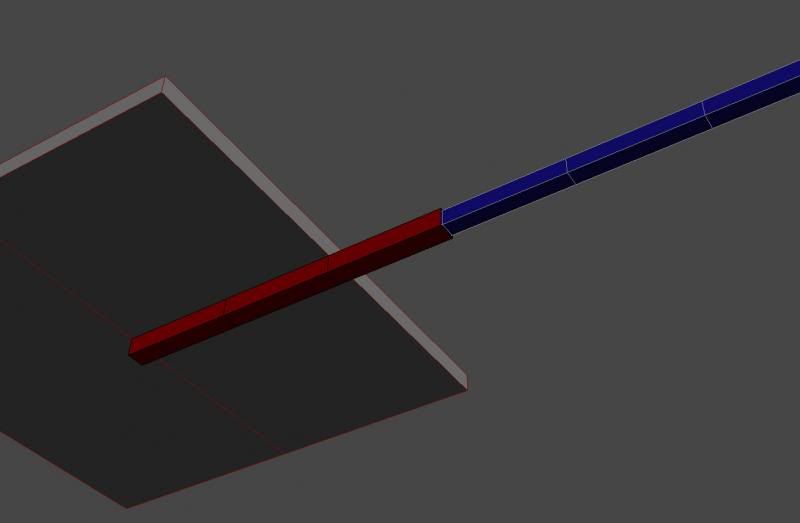

The red part is 2.5"x2.5" square tubing. The blue part is 2"x2".

I want to be able to remove the blue part for easier storage since it will be about 6' long and won't fit in my garage. Each line on the tubing represents 1'. The blue tube will slide a foot deep into the red tube, and be bolted with two bolts.

My dilemma: Should I use 1/4" thick and grind the weld seam in the red tube for a tight fit?

Or,should I go with 3/16" and deal with the slop?

I'm worried that with temp changes, the 1/4" might be too hard to slip in and out for storage as time goes by. Help!




Found this on another forum. This is 3/16", 2x2 into 2.5x2.5. Notice the amount of slop. Is this acceptable? Would it rattle while being pulled?




__________________
Quote:
Originally Posted by Rubi22
Holy ****, did someone log onto Mean Fish's account and say something thoughtful?
Gabe is offline   Reply With Quote
Unread 11-04-2013, 10:58 PM   #2
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 730
Quote:
Originally Posted by Gabe
I have this trailer.... I want to remove the factory tongue to make it longer so that I can occasionally load a kayak on it. the trailer is 4' long, and the current tongue is about 2.5'. The red part is 2.5"x2.5" square tubing. The blue part is 2"x2". I want to be able to remove the blue part for easier storage since it will be about 6' long and won't fit in my garage. Each line on the tubing represents 1'. The blue tube will slide a foot deep into the red tube, and be bolted with two bolts. My dilemma: Should I use 1/4" thick and grind the weld seam in the red tube for a tight fit? Or,should I go with 3/16" and deal with the slop? I'm worried that with temp changes, the 1/4" might be too hard to slip in and out for storage as time goes by. Help! Found this on another forum. This is 3/16", 2x2 into 2.5x2.5. Notice the amount of slop. Is this acceptable? Would it rattle while being pulled?
I'm not sure that 2x2 will easily slide into 2.5x2.5x1/4" even with the flash weld removed. Btw how did you plan on removing 12" of internal weld seam? A way around that would be to grind a keyway into the smaller tube that matches up with the weld seam on the bigger tube.
I've never tried sliding those two sizes together, but I will say this: i build front receivers/recovery systems for the KK and I have to use a big sledge to press the 2.5 receiver tube into 3x3x1/4" tube. I have the flash weld on the backside so I'm not fighting that too.
AtTheHelm is offline   Reply With Quote
Unread 11-11-2013, 11:37 AM   #3
R3dRid3r
Registered User
2013 JK Wrangler

Join Date: Jun 2013
Location: StL, Mo
Posts: 261
You might want to ask Jeff Scherb his build thread:

http://www.jeepforum.com/forum/f9/bo...l#post17607706

or in this thread started by ArmyRN but a number of contributors post in it:

http://www.jeepforum.com/forum/f27/m...hread-1180456/

all the Best!

R3dRid3r is offline   Reply With Quote
Unread 11-12-2013, 08:11 AM   #4
jscherb
Web Wheeler
2006 LJ Wrangler

Join Date: Mar 2007
Location: Elmira, NY
Posts: 8,179
The main worry I'd have is any extra leverage that long tongue could exert on the bolts that hold the tongue to the crossmembers. In another thread someone reported that the bolts on the middle crossmember of a stock HF trailer pulled through the metal of the crossmember. That metal isn't too thick, so if you do anything to lengthen the tongue, I'd recommend you reinforce the crossmembers that the tongue bolts to.
__________________
.
"Whether you think you can do something or you think you can't, you are right" - Henry Ford

Visit my Jeep Projects site for info on my custom Jeep projects:
  • Retro Wrangler pickup
  • Gaucho CJ pickup
  • Safari Cab custom modular hardtop
  • Fiberglass Jeep-tub trailer kit
  • CJ Grille Conversion Kit for the TJ/LJ
  • Fiberglass Military Replica Trailer Kit
jscherb is offline   Reply With Quote
Unread 11-12-2013, 10:47 AM   #5
JKBender
Registered User
2012 JK Wrangler

Join Date: Jun 2013
Location: Algonquin, IL
Posts: 90
I would suggest getting yourself the folding trailer from HF, or copying the folding tong design. A folding a-frame design will be far stronger than what you are considering. Also, the actual tube on the trailer you have is not a 2.5" square tube but rather a fabricated c-channel with welded plates every foot or so.

JKBender is offline   Reply With Quote
Unread 11-13-2013, 08:49 AM   #6
strvger01
Registered User
1966 CJ5

Join Date: Oct 2012
Location: Two Harbors, Minnesota
Posts: 1,105
3/16" will be fine, if you use it to replace the original thin channel tongue:
use the 3/16", 2.5x2.5 sq tubing and run it from the back of the trailer frame to about 18"-24" past the front frame of the trailer. then you can use your slip-in 2x2x3/16" tubing as you wish. anchoring the 2.5x2.5" sq. at the rear, center and front cross members will make your trailer much more stable for both the loads and for towing it. i learned the hard way many years ago that the original thin channel running only half way down the bed length will eventually fail.
__________________
1966 CJ5A, mods are coming
1966 Wagoneer, bone stock
strvger01 is offline   Reply With Quote
Unread 11-15-2013, 07:43 AM   #7
Gabe
Registered User
1998 TJ Wrangler

Join Date: Jun 2006
Posts: 2,664
Quote:
Originally Posted by strvger01 View Post
3/16" will be fine, if you use it to replace the original thin channel tongue:
use the 3/16", 2.5x2.5 sq tubing and run it from the back of the trailer frame to about 18"-24" past the front frame of the trailer. then you can use your slip-in 2x2x3/16" tubing as you wish. anchoring the 2.5x2.5" sq. at the rear, center and front cross members will make your trailer much more stable for both the loads and for towing it. i learned the hard way many years ago that the original thin channel running only half way down the bed length will eventually fail.
If I insert the 2" tubing 1' deep into the 2.5", would that give it enough strength?
__________________
Quote:
Originally Posted by Rubi22
Holy ****, did someone log onto Mean Fish's account and say something thoughtful?
Gabe is offline   Reply With Quote
Unread 11-15-2013, 08:07 AM   #8
Gabe
Registered User
1998 TJ Wrangler

Join Date: Jun 2006
Posts: 2,664
Quote:
Originally Posted by jscherb View Post
The main worry I'd have is any extra leverage that long tongue could exert on the bolts that hold the tongue to the crossmembers. In another thread someone reported that the bolts on the middle crossmember of a stock HF trailer pulled through the metal of the crossmember. That metal isn't too thick, so if you do anything to lengthen the tongue, I'd recommend you reinforce the crossmembers that the tongue bolts to.
Link please?

Edit: NVM, found it. Reading it now.


Okay, in response to the cross member breaking at the holes:

I will take your advice and also attach it to the rear crossmember. I think I might weld an angle bracket to the 2.5" and then to the trailer's crossmembers. I'll see if it can be done without bolts. I won't be putting this trailer through the stress like the other guy who broke the crossmembers. This will serve only to carry two ~40lb kayaks to and from the launch site. No offroading, no trails. After sitting for 3 or 4 hours in the sun with numb legs, It's hard to lift the kayak by myself onto the rollbars of my jeep on 35s and 3.5 lift.
__________________
Quote:
Originally Posted by Rubi22
Holy ****, did someone log onto Mean Fish's account and say something thoughtful?
Gabe is offline   Reply With Quote
Unread 11-15-2013, 09:04 AM   #9
strvger01
Registered User
1966 CJ5

Join Date: Oct 2012
Location: Two Harbors, Minnesota
Posts: 1,105
Quote:
Originally Posted by Gabe View Post
If I insert the 2" tubing 1' deep into the 2.5", would that give it enough strength?

more than enough as long as your not hauling more than 1,000lbs or so. i was hauling about 800+lbs with mine and no problems at all.
__________________
1966 CJ5A, mods are coming
1966 Wagoneer, bone stock
strvger01 is offline   Reply With Quote
Unread 11-15-2013, 09:09 AM   #10
fang_x
Registered User
1998 TJ Wrangler

Join Date: Jun 2009
Location: Montreal, Canada
Posts: 1,259
why dont you just strap the kayak to the roof of your jeep?
__________________
'98 TJ Manual -2.5" rcx long arm on 31
'99 Xj, Stock on 30"
'86 Monte Carlo 357 stroker. 450hp.
fang_x is offline   Reply With Quote
Unread 11-15-2013, 09:58 AM   #11
Gabe
Registered User
1998 TJ Wrangler

Join Date: Jun 2006
Posts: 2,664
Quote:
Originally Posted by fang_x View Post
why dont you just strap the kayak to the roof of your jeep?
After sitting for 3 or 4 hours in the sun with numb legs, It's hard to lift the kayak by myself onto the rollbars of my jeep on 35s and 3.5 lift.

I have to take the soft top down so the kayak doesn't damage the bows, and so it can sit on the rollbar and windshield. It's tough to do it on my own. With a trailer, I don't have to lift the kayak so high. At night, I can leave the kayak loaded on the trailer and just hook it up the next morning and go.
__________________
Quote:
Originally Posted by Rubi22
Holy ****, did someone log onto Mean Fish's account and say something thoughtful?
Gabe is offline   Reply With Quote
Unread 12-28-2013, 01:46 PM   #12
Bobbyfullen
Registered User

Join Date: Dec 2013
Posts: 11
You will love having the trailer for your kayaks.I built mine last year and it works great! Plus you can use it with other vehicles !
Bobbyfullen is offline   Reply With Quote
Unread 12-29-2013, 04:27 PM   #13
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
So.. did this happen yet?


I'd probably just use a piece of 18" receiver tube as the new trailer tongue. That would be plenty strong, already have the seam flattened, and already have the hole for a hitch pin.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
