Swing Out Finished!

OK-

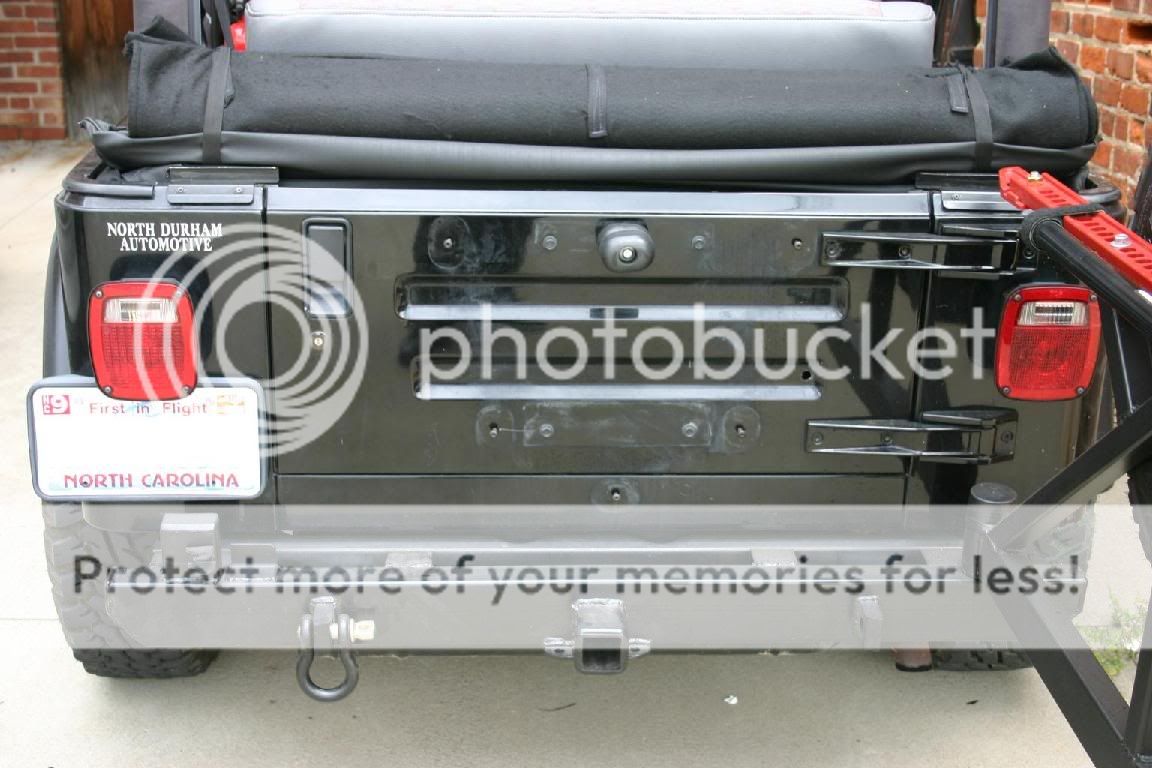

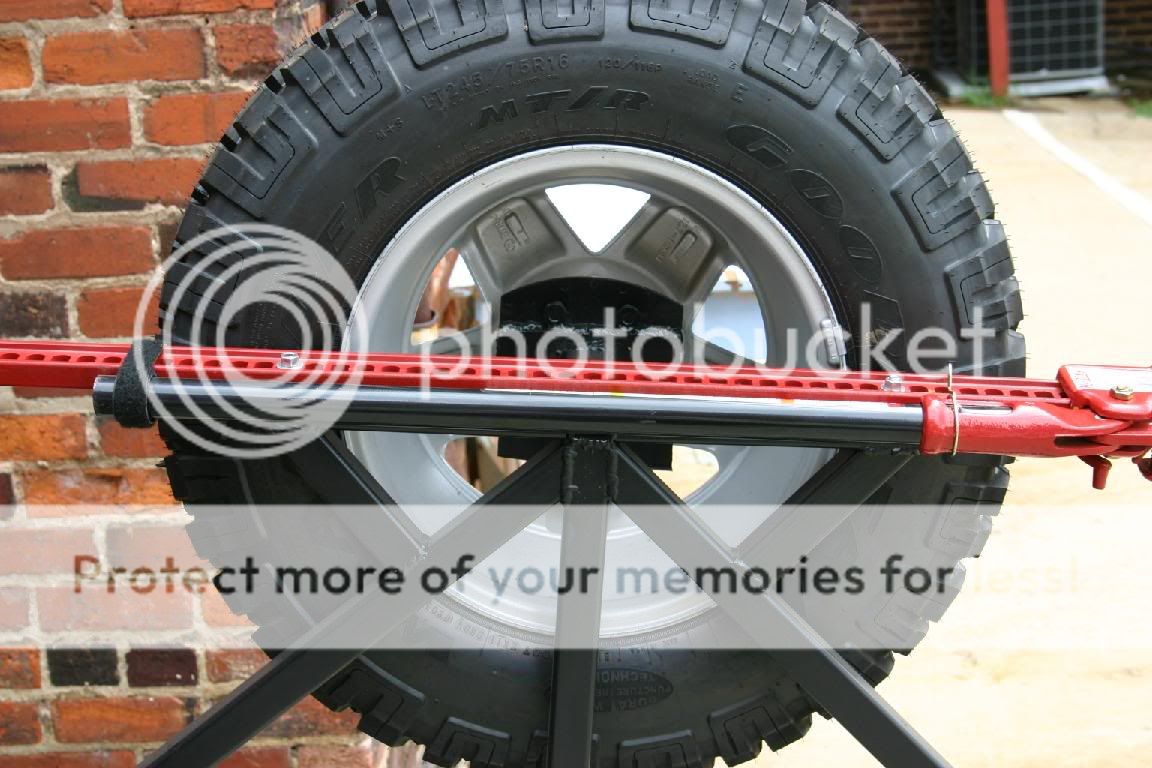

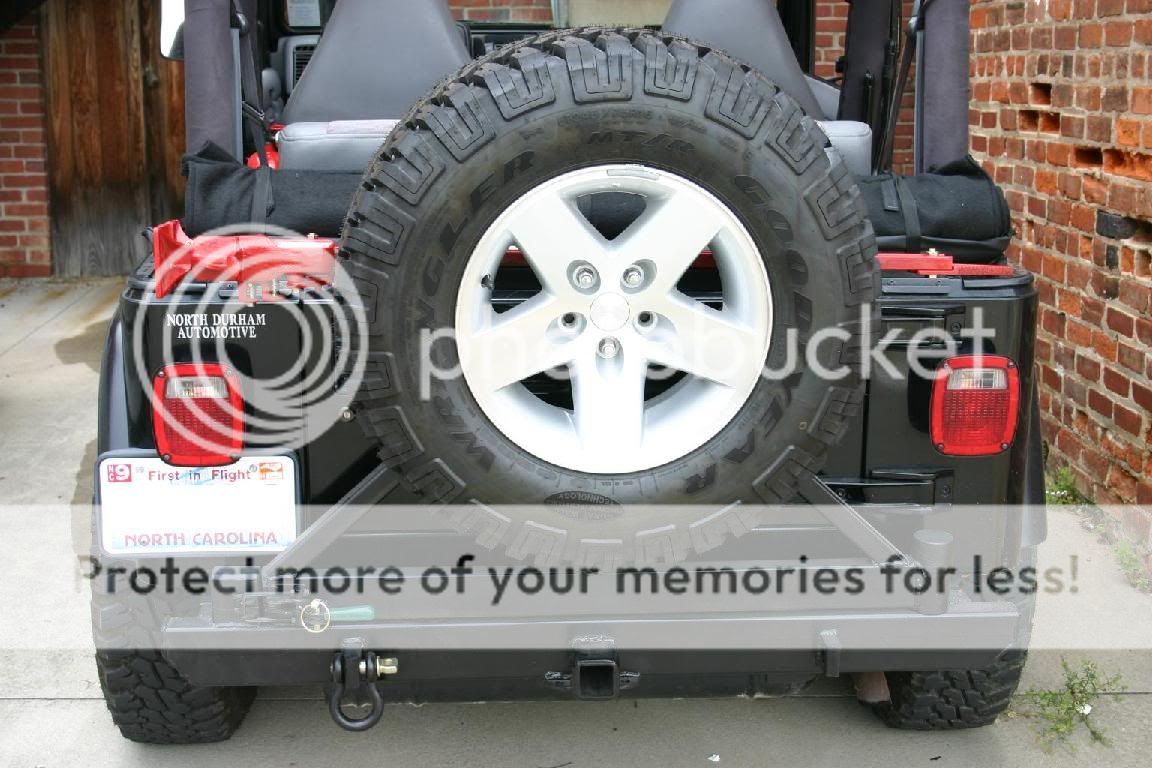

I finally finished the Swing out tire carrier and bumper. My garage has been a machine shop for the last two months b/c I could only work on it a hour or two at a time.
The first welds I did weren't pretty, but as the project went on they got much better.

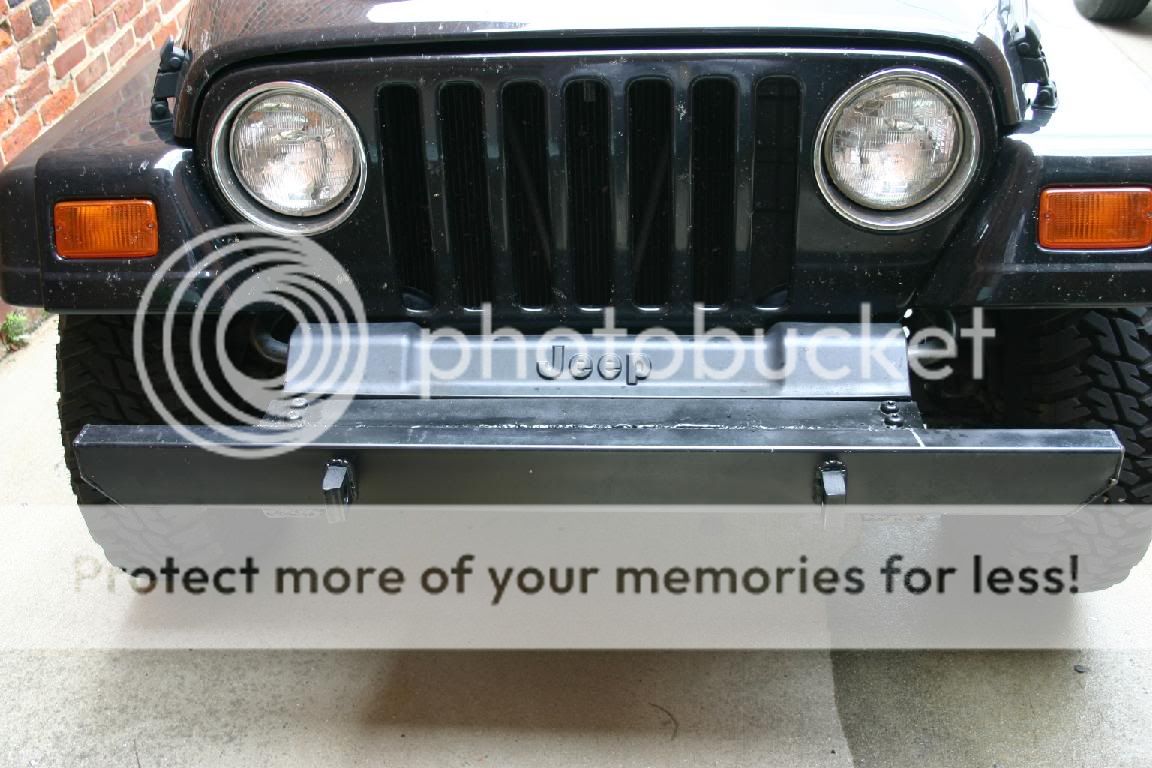

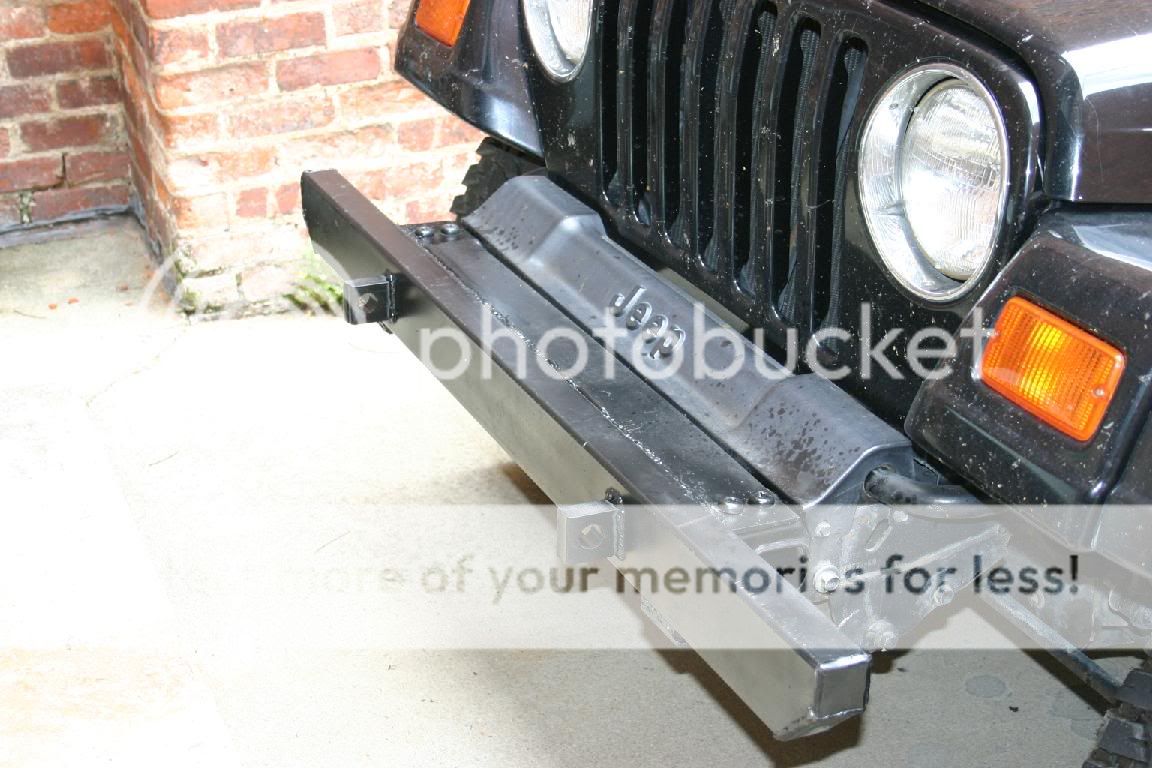

I don't really like the front bumper, but it will probably look much better once a winch is intalled.

Materials-
3/16 wall 2x4 Rectanhgular tubing for bumpers
3/16 wall 1.5" square tubing for carrier frame
3/16 wall 1x3 rectangular tubing for swing out arm
Hinge is 1" trailer axle spindle inside of a custom machined steel cylinder with the bearing races pressed in. Spindle came from Tractor Suppy Co. and the bearings and races from Auto Zone.
Front bumper is mounted using 1/4 plate.
I recycled the mounting plate from the factory spare tire carrier and welded a 1/4" reinforcing plate to the back.
I also recyled two of the factory anti vibration rubber bumpers to make one for the middle.
The anti-dust cap for the hinge is a rattle can top. (I know it is a redneck thing to do, but, hey it works and you wouldn't know itf I didn't tell )
Tralier hitch reciever also came from tractor supply and is wleded into a notch cut in bumper with a 1/4" reinforcing plate with holes for saftey chains welded along the bottom.
Clevis tabs are 1x2 steel plate welded through the bumper (front and back).
Finish is good old Rustoleum satin black.

[






J.


98 Sport- 4.0 5 Speed
Garmin GPS
Black Labrador Retriever as Spotter
Black Jeep Club Member #46
CERTAIN DEATH JEEP CLUB MEMBER # 16
Dumb A Jeep Club Member # 6
