Unread 03-18-2012, 09:27 PM   #31
Photog2000
Registered User
2000 TJ Wrangler

Join Date: Jun 2009
Location: Wisconsin
Posts: 1,109

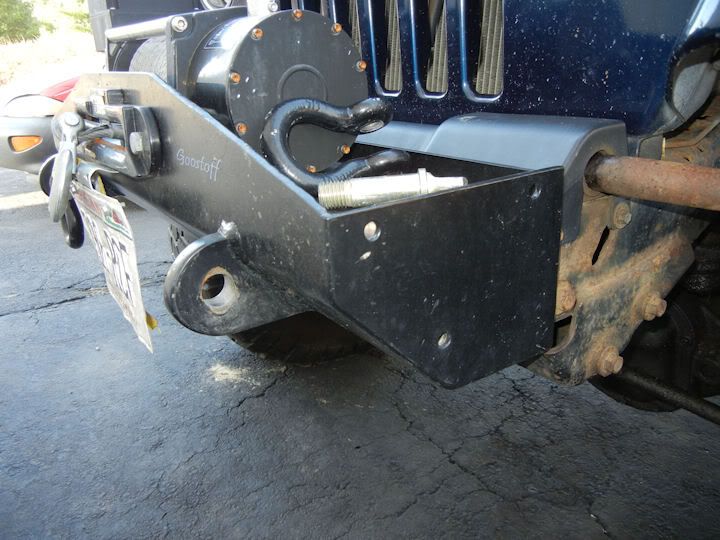

Here is a pic of my design. Like I said it is entirely 1/4 plate. Here a link also to the folder with a bunch of pics as I was building it.
http://s235.photobucket.com/albums/e...to_gus/pssmag/



Photog2000 is offline   Reply With Quote Quick reply to this message
Unread 03-20-2012, 12:09 PM   #32
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 379
Anymore opinions on the D-rings? Bolts are directly above and below. I'm not worried about my welds holding.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 07-12-2012, 07:51 AM   #33
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 379
Well... I couldn't leave it alone.

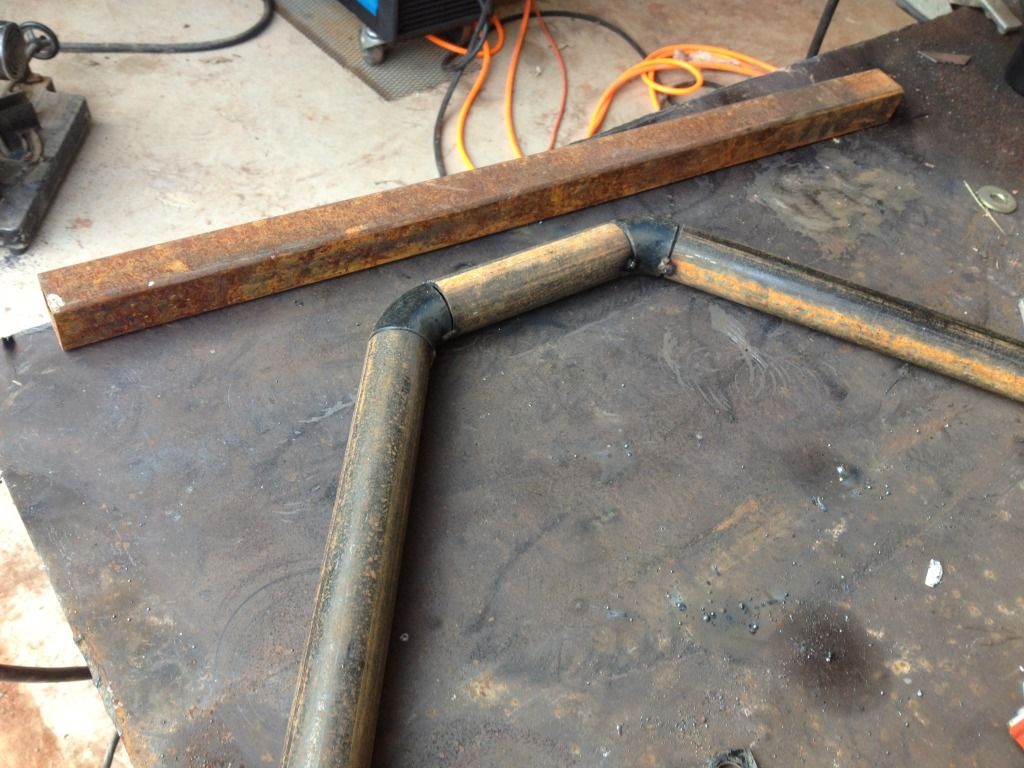

Weld in 45's

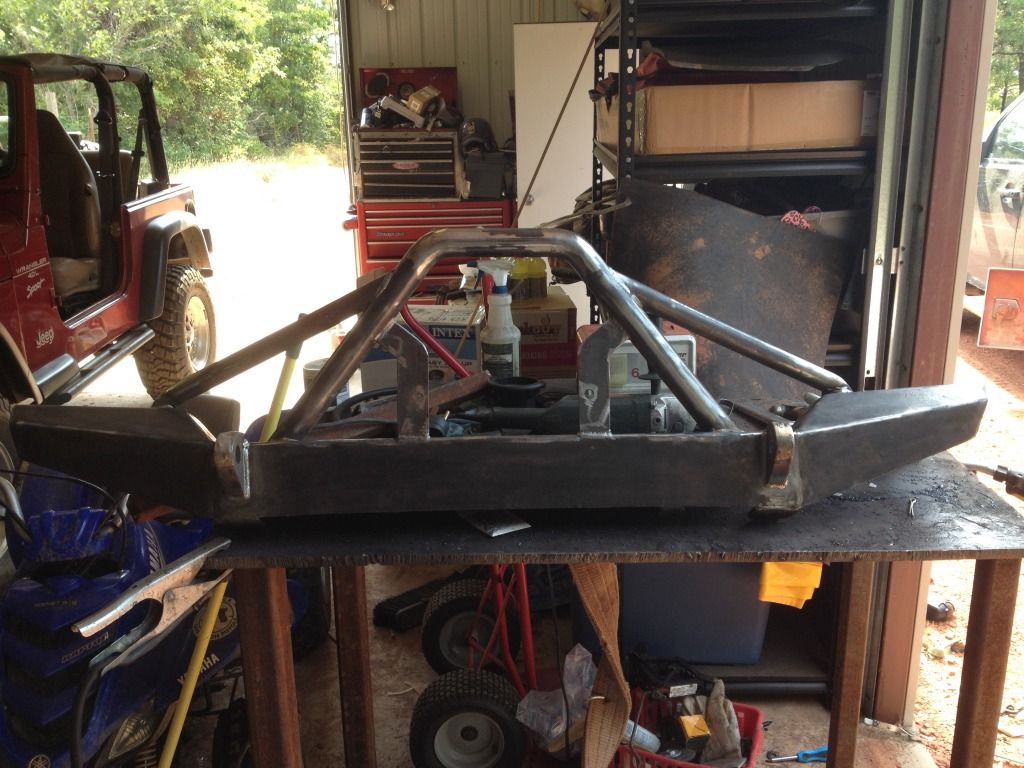

Welded out

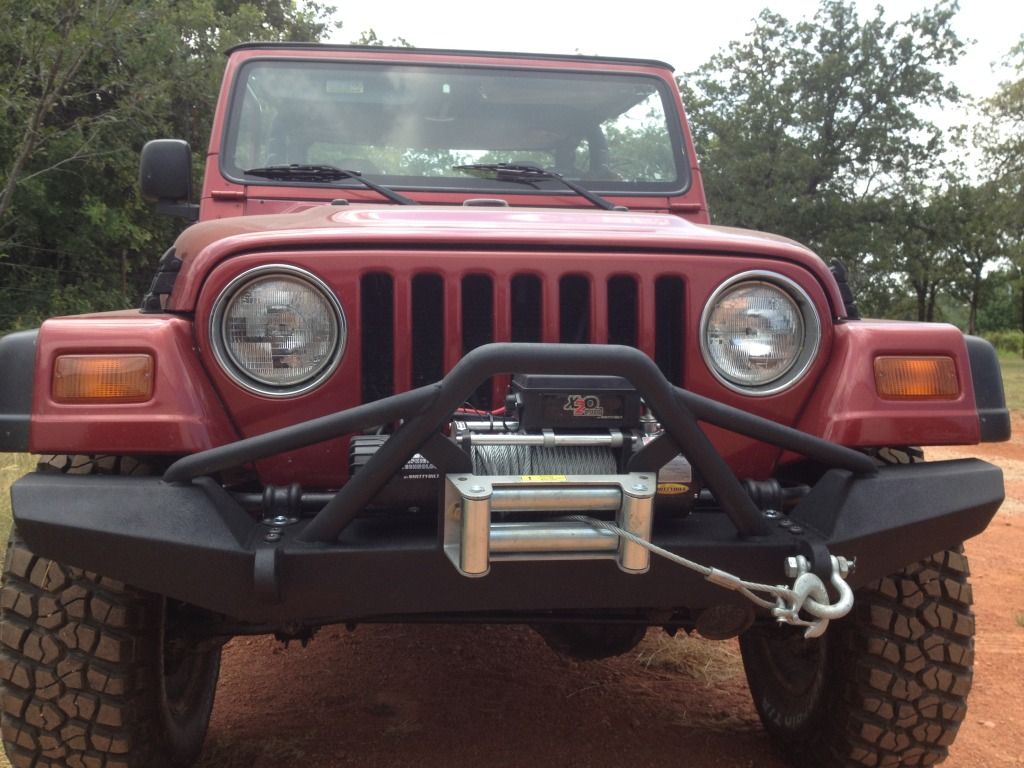

And finished



Added the hoop and changed the D-ring mount. Now they are cut into the face of the bumper. They are welded to the 1/4 plate and the 3/16 on both sides.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 07-12-2012, 08:33 AM   #34
Burlbook48
Web Wheeler

Burlbook48's Avatar
1995 YJ Wrangler

Join Date: May 2008
Location: Mendocino County, CA
Posts: 1,050
That really looks good! I like how you tied the hoop into the vetical winch plate for reinforcement.

Did I miss it? Source for weld-in 45's?
__________________
You have to start somewhere to get to the middle of nowhere.
Burlbook48 is offline   Reply With Quote Quick reply to this message
Unread 07-12-2012, 08:44 AM   #35
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 379
Quote:
Originally Posted by Burlbook48 View Post
That really looks good! I like how you tied the hoop into the vetical winch plate for reinforcement.

Did I miss it? Source for weld-in 45's?
Local welding supply. The small pipe has 90's on each end, cut to the angle I needed. You can probably find them somewhere on the web. Really common for pipe welding.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 07-12-2012, 09:43 AM   #36
1SASjeepster
Registered User
1992 YJ Wrangler

Join Date: Apr 2010
Location: Smith,TN, Tennessee
Posts: 720
Jason, that is one great looking bumper!!! I really like the lines of the bumper... truly an awesome DIY project that surpasses anything that I have seen on the market. If you ever get into "bumper building", sent me a post. I have a 92 YJ that is in need of a front bumper.

Take care,
__________________
Check out "YJ V6 Conversion" if you want to see a frame up restoration of my 1992 YJ.

Check out "WWII Jeep Photos AND Restoration of..." if you want to see the original JEEP in action...
1SASjeepster is offline   Reply With Quote Quick reply to this message
Unread 07-22-2012, 03:17 PM   #37
papa355
Registered User
1977 CJ7

Join Date: Jan 2011
Location: warsaw, ohio
Posts: 902
nice bumper, and your teasing me with the rear view of that welding rig. come on lets see a pic of the complete welding rig. I get as much or more enjoyment looking at nice welding rigs as I do jeeps ( that's a fact lol )
__________________
1977 CJ7, 304 amc, TH400 quadratrac, dana30, AMC20, SOA, 35" M/T MTZ

"I wouldn't have road rage, If you knew how to drive...."
papa355 is offline   Reply With Quote Quick reply to this message
Unread 07-22-2012, 07:25 PM   #38
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 379
Quote:
Originally Posted by papa355 View Post
nice bumper, and your teasing me with the rear view of that welding rig. come on lets see a pic of the complete welding rig. I get as much or more enjoyment looking at nice welding rigs as I do jeeps ( that's a fact lol )
Can do...
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 07-23-2012, 07:36 PM   #39
papa355
Registered User
1977 CJ7

Join Date: Jan 2011
Location: warsaw, ohio
Posts: 902
sweet is that a pipe pro?, nice rig, did you build the bed? I love welding rigs !!

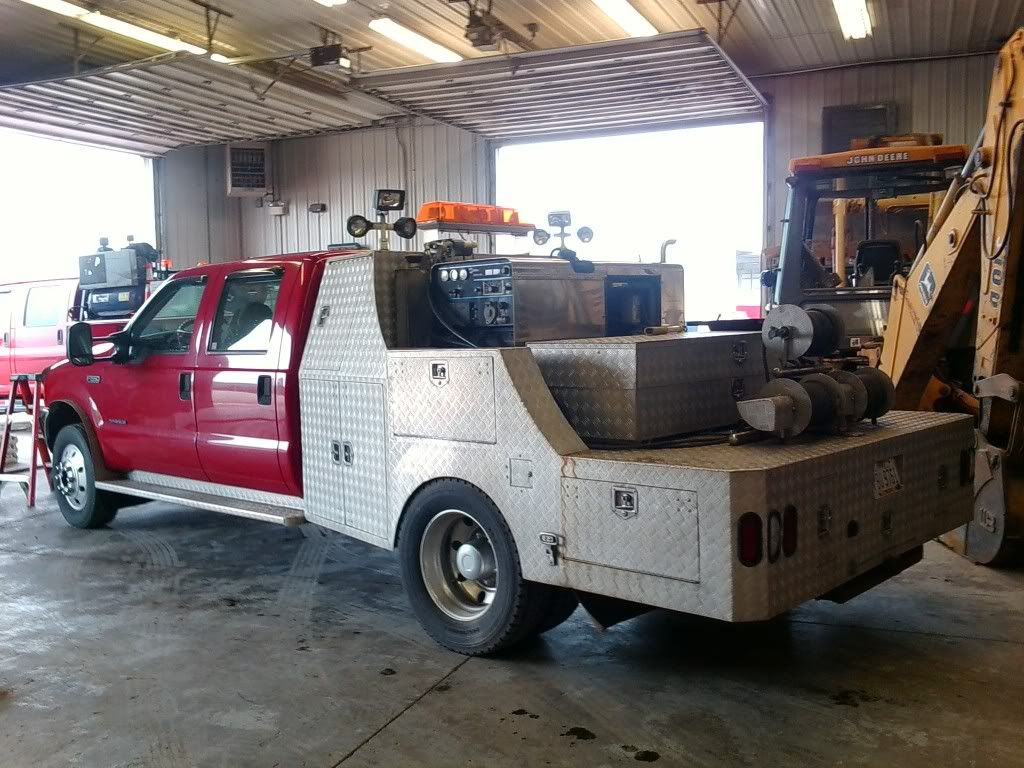

A friend of mine built this rig, he is now a welding inspector and no longer needs the rig. So he sold it to my employer, now it's my responsibility.I'm the mechanic/welder fabricator, not the pipe welder. But I still love this rig. Even for a ford, it's a nice truck ...lol. It's 100% custom built bed. 200 F550 7.3 psd, 6 spd 4x4. Miller pipe Pro stainless hood. Custom built electric reels, for leads and remote. We just got it today. It has sat in his garage for 1 1/2 years, under a cover. It needs some polishing, and I am putting a battery in the welder and servicing it (that's why the cover is off welder, atm)



sorry to hi jack ur thread, but I know most welders take pride in their rigs
__________________
1977 CJ7, 304 amc, TH400 quadratrac, dana30, AMC20, SOA, 35" M/T MTZ

"I wouldn't have road rage, If you knew how to drive...."
papa355 is offline   Reply With Quote Quick reply to this message
Unread 07-23-2012, 08:47 PM   #40
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 379
Always ready to show off my rig. My machines not a Pipepro. It's the Pro 300. I did build my bed about 6 years ago. I got the new truck last year so I had the bed blasted and painted and some Line-X sprayed.

Nice truck, there's a lot of work in that aluminum bed.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 07-23-2012, 08:54 PM   #41
papa355
Registered User
1977 CJ7

Join Date: Jan 2011
Location: warsaw, ohio
Posts: 902
Quote:
Originally Posted by jasonswelding View Post
Always ready to show off my rig. My machines not a Pipepro. It's the Pro 300. I did build my bed about 6 years ago. I got the new truck last year so I had the bed blasted and painted and some Line-X sprayed.

Nice truck, there's a lot of work in that aluminum bed.

over $8,000 in aluminum alone, that's not counting his time and labor to build it, his dad told me he spent 6 weeks building the bed alone. If you look at the doors, every diamond matches, everywhere..... all of them. He built that 90 gal. "L" fuel tank out of stainless also, the welder sits on it. He built the running boards and fender flares also.
__________________
1977 CJ7, 304 amc, TH400 quadratrac, dana30, AMC20, SOA, 35" M/T MTZ

"I wouldn't have road rage, If you knew how to drive...."
papa355 is offline   Reply With Quote Quick reply to this message
Unread 04-13-2013, 01:50 PM   #42
Miller16
Registered User
1997 TJ Wrangler

Join Date: Sep 2012
Location: Port elgin, Ontario
Posts: 120
you got blueprints? pm me
Miller16 is offline   Reply With Quote Quick reply to this message
Unread 04-13-2013, 10:23 PM   #43
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 379
No blue prints. All done with one good eye and a tape measure. Start with the winch plate, as wide as the frame and as long as needed to fit a winch. Then angle the front piece from it back to the bottom of the frame rails. Now the two pieces that weld to the sides of the winch plate. Mine were about 3" wide at the top and the same as the winch plate at the bottom. Now break out the cardboard and figure the way you want the rest of it to look.

Hope that helps. Let me know if you need more.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 04-13-2013, 10:46 PM   #44
Miller16
Registered User
1997 TJ Wrangler

Join Date: Sep 2012
Location: Port elgin, Ontario
Posts: 120
do that tomorrow, going to work on my rear bumper and fixing removing my cat and putting a straight pipe till i can afford another cat lol. gotta make it look good before making it run nice lol.
Miller16 is offline   Reply With Quote Quick reply to this message
Unread 04-22-2013, 09:30 PM   #45
Treton
Registered User
2005 LJ Wrangler

Join Date: Oct 2011
Location: Buckingham, Virginia
Posts: 369
If you took a piece of 1x1 angle and welded it across the backside behind the winch it would settle all the winch plate bowing concerns
