Unread 03-09-2012, 06:51 AM   #16
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Quote:
Originally Posted by Diamond-x View Post
It looks great. Did you design with a CAD program or card board?
No CAD program. Used cardboard. The winch plate and the the pieces that attach directly to it were just figured up with a tape measure and eye (not crazy angles).

It shouldn't be any heavier than the the store bought versions. It's the same thinkness of plate that most advertise.

jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 03-13-2012, 02:07 PM   #17
JD-85CJ7
Registered User
1985 CJ7

Join Date: Mar 2012
Location: Bakersfield, CA
Posts: 35
That's a nice looking bumper.
JD-85CJ7 is offline   Reply With Quote Quick reply to this message
Unread 03-13-2012, 10:54 PM   #18
ytowntj
Registered User
1999 TJ Wrangler

Join Date: May 2008
Location: Norfolk - Old Dominion, Va
Posts: 2,745
Very nice

Im planning a similar looking one only instead of the dip down on the top in the middle it will continue across. Im going to sink the winch down between the frame rails and have the bumper fully cover it. Then do the bumper floating using my old body pucks so I can plow deer without worry of frame damage

Any internal bracing/webbing ?
__________________
Parting my TJ:

http://norfolk.craigslist.org/pts/4338209219.html

My build - Odd approach to 33's
http://www.jeepforum.com/forum/f22/o...h-33s-1307968/
ytowntj is offline   Reply With Quote Quick reply to this message
Unread 03-14-2012, 06:12 PM   #19
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377

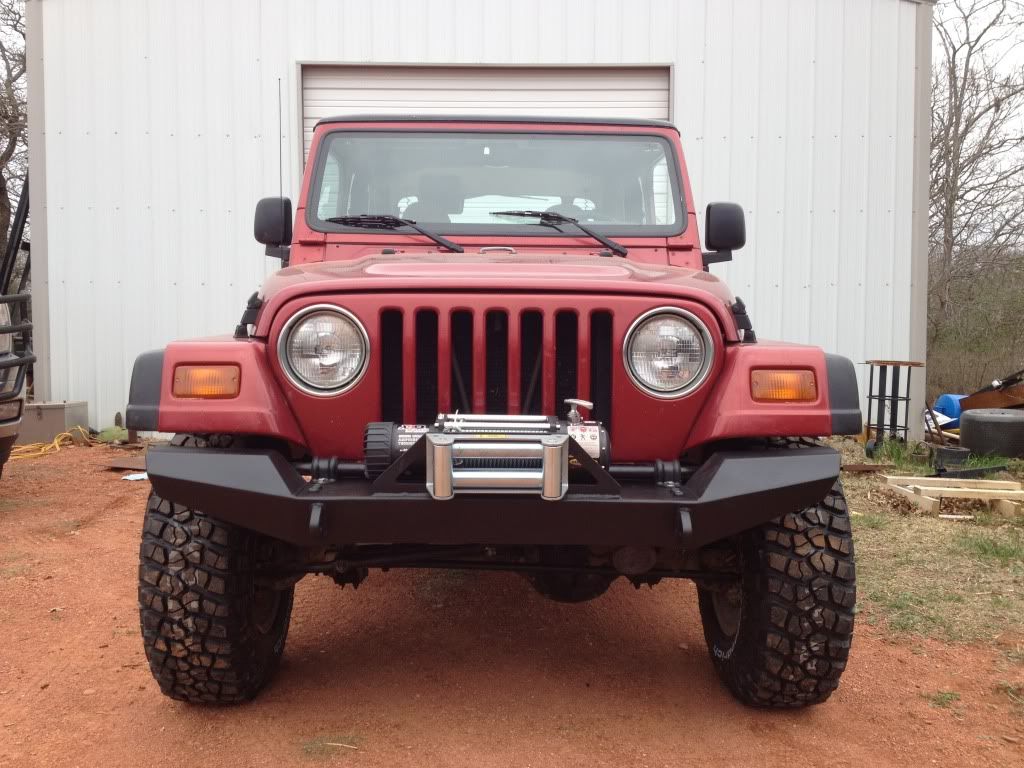

Had a day off and finished it up. I used the Duplicolor spray on bed liner, and it didn't hide the pitting as well as I had hoped. I'm still happy with the way it turned out. Got the new tires on too . Sliders next, get rid of the factory steps.

jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 03-14-2012, 06:19 PM   #20
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Quote:
Originally Posted by ytowntj View Post
Very nice

Im planning a similar looking one only instead of the dip down on the top in the middle it will continue across. Im going to sink the winch down between the frame rails and have the bumper fully cover it. Then do the bumper floating using my old body pucks so I can plow deer without worry of frame damage

Any internal bracing/webbing ?
Sinking the winch sounds pretty cool. I didn't do any bracing or webbing. I'm thinking that all the corners will give it enough strength.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 03-16-2012, 01:16 AM   #21
Molonlabemike
Registered User
1997 TJ Wrangler

Join Date: Oct 2011
Location: Rancho Chuchamonga, CA
Posts: 549
Man that bumper looks killer man, you are a master of the cardboard trade
Molonlabemike is offline   Reply With Quote Quick reply to this message
Unread 03-16-2012, 02:07 PM   #22
Diamond-x
Registered User
1991 XJ Cherokee

Join Date: Aug 2008
Location: Socal
Posts: 1,194
Looks great! Are you still planning the hoop?
Diamond-x is offline   Reply With Quote Quick reply to this message
Unread 03-16-2012, 02:50 PM   #23
sebastian22
Registered User
1995 YJ Wrangler

Join Date: Dec 2007
Location: Orange, CA
Posts: 2,035
that is a grade A professional job....whats next?

doh...just read the sliders are next. sweet!
__________________
95 Black YJ
sebastian22 is offline   Reply With Quote Quick reply to this message
Unread 03-16-2012, 07:54 PM   #24
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Quote:
Originally Posted by Diamond-x View Post
Looks great! Are you still planning the hoop?
Maybe as a bolt in. Be moving on to another project first. I found out that a friend of a friend has a tubing bender and will work for beer. So when the time comes...
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 03-16-2012, 09:34 PM   #25
05JGC
Registered User
2003 TJ Wrangler

Join Date: Jun 2007
Location: Maine
Posts: 237
I'm guessing the bumper bolts onto the frame with the stock locations of 2 on top and one on the bottom?

(Jesus sounds like a hell of a porno)
05JGC is offline   Reply With Quote Quick reply to this message
Unread 03-18-2012, 08:06 AM   #26
Photog2000
Registered User
2000 TJ Wrangler

Join Date: Jun 2009
Location: Wisconsin
Posts: 1,109
That bumper is very sharp. I love the look of how you tapered the top of the ends rather than just going straight up.

That being said I have some structural concerns of the design. In a perfect world we could always have an anchor directly in front of us when we get stuck. In the real world this is almost never the case. Your fairlead being bolted to just a flat verticle plate may fail in a side pull. There is a lot of leverage on those rollers and having all that extra plate cut out of it will weaken it even further. I would do a hard side pull in a controlled situation and try to make it fail before putting it in a real world situation and having it fail when you really need it.

My second concern is the lack of stiffener brace behind the winch itself. In a hard pull that plate will bow under the stress and something could fail. Failures like this most always happen when someone is standing there watching, and when things fly under that kind of stress someone can lose their life. I would do a hard straight pull and try to make it fail again. Pay close attention to the back side of the winch plate. If it is bowing it will eventually cause trouble.

I'm not trying to ***** in your Cherios here. I love the look but safety have to come before anything else when out in the middle of nowhere. My entire bumper is made of 1/4 plate. All parts were bent so I didnt need to worry about a weld failing. I have a 1" tall stiffener behind the winch. I had to do a hard pull on mine last weekend. On Monday as I was washing all the trail crud off I noticed that the paint around the 4 top bumper bolts had all popped off. This tells me that I was bending mine under the stress. I thought that I would never have to worry about anything giving with my design and I was was even wrong.

Be safe out there.
Photog2000 is offline   Reply With Quote Quick reply to this message
Unread 03-18-2012, 10:31 AM   #27
Azzy
Web Wheeler

Azzy's Avatar
1996 XJ Cherokee

Join Date: Sep 2010
Location: Finleyville
Posts: 3,215
NIce overall look. How are the d-rings held on? Most designs I have seen that are a longer solid piece that pops through the front plate and tie into the mounts / frame rails.
__________________
ADW - Custom gauges, decals, and now laser engraving. Check out the gallery here.
Azzy is offline   Reply With Quote Quick reply to this message
Unread 03-18-2012, 02:33 PM   #28
Photog2000
Registered User
2000 TJ Wrangler

Join Date: Jun 2009
Location: Wisconsin
Posts: 1,109
Quote:
Originally Posted by Azzy View Post
NIce overall look. How are the d-rings held on? Most designs I have seen that are a longer solid piece that pops through the front plate and tie into the mounts / frame rails.
I take it you have never seen a Poison Spyder bumper then. They just butt them up to the front. Not the way I would do it but they claim the way they did it that it is plenty strong.
Photog2000 is offline   Reply With Quote Quick reply to this message
Unread 03-18-2012, 04:20 PM   #29
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,274
Nice! I like the lines!
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 03-18-2012, 07:57 PM   #30
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Quote:
Originally Posted by Photog2000 View Post
That bumper is very sharp. I love the look of how you tapered the top of the ends rather than just going straight up.

That being said I have some structural concerns of the design. In a perfect world we could always have an anchor directly in front of us when we get stuck. In the real world this is almost never the case. Your fairlead being bolted to just a flat verticle plate may fail in a side pull. There is a lot of leverage on those rollers and having all that extra plate cut out of it will weaken it even further. I would do a hard side pull in a controlled situation and try to make it fail before putting it in a real world situation and having it fail when you really need it.

My second concern is the lack of stiffener brace behind the winch itself. In a hard pull that plate will bow under the stress and something could fail. Failures like this most always happen when someone is standing there watching, and when things fly under that kind of stress someone can lose their life. I would do a hard straight pull and try to make it fail again. Pay close attention to the back side of the winch plate. If it is bowing it will eventually cause trouble.

I'm not trying to ***** in your Cherios here. I love the look but safety have to come before anything else when out in the middle of nowhere. My entire bumper is made of 1/4 plate. All parts were bent so I didnt need to worry about a weld failing. I have a 1" tall stiffener behind the winch. I had to do a hard pull on mine last weekend. On Monday as I was washing all the trail crud off I noticed that the paint around the 4 top bumper bolts had all popped off. This tells me that I was bending mine under the stress. I thought that I would never have to worry about anything giving with my design and I was was even wrong.

Be safe out there.
I appreciate any advice. I looked at the store bought version in deciding how I would build this and had wondered about the winch plate. I may run bracing underneath letting the winch bolts go through it and spread the force across the plate. I will also try some side loading at home to see what happens. Thanks for the advice. I've never done any winching before(we couldn't afford them when I was younger).

The eyes are welded straight to the plate , once again, from looking at what was on the market. They would have to rip the plate out to come off.
jasonswelding is offline   Reply With Quote Quick reply to this message
