sliders with no bender

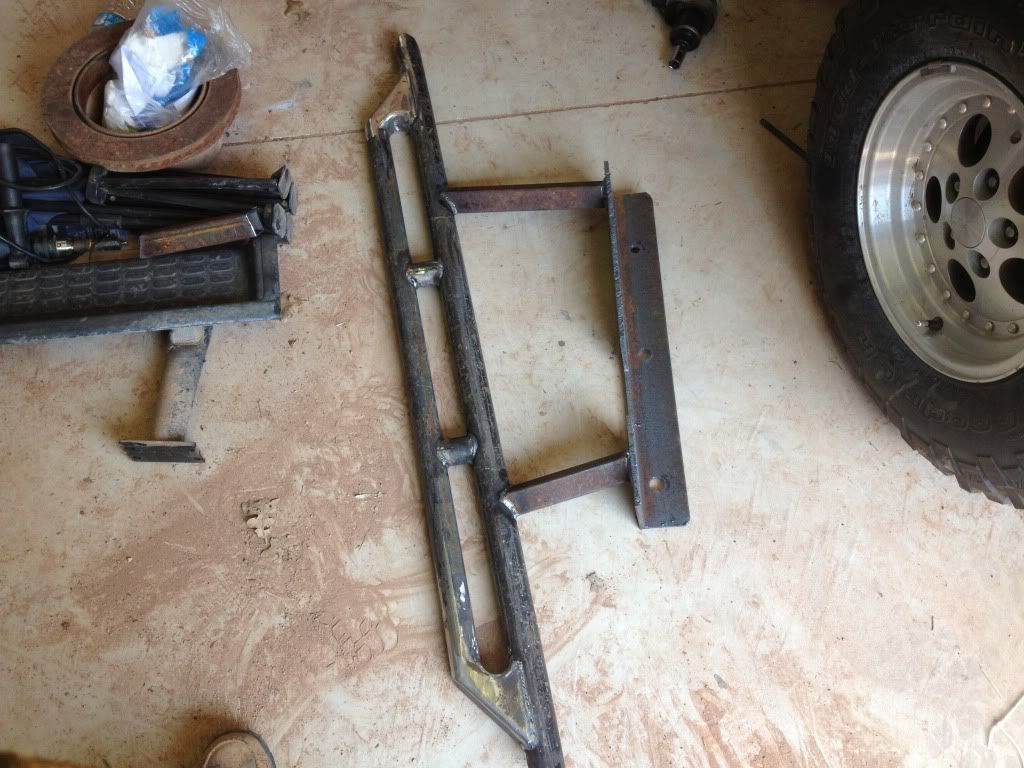

I got done early today and went by a steel supply that was on the way home. I was going to buy some 2x3x3/16 tube, weld in 90's and 45's. They would only sell the tube in a full 20' stick, so I left with nothing.

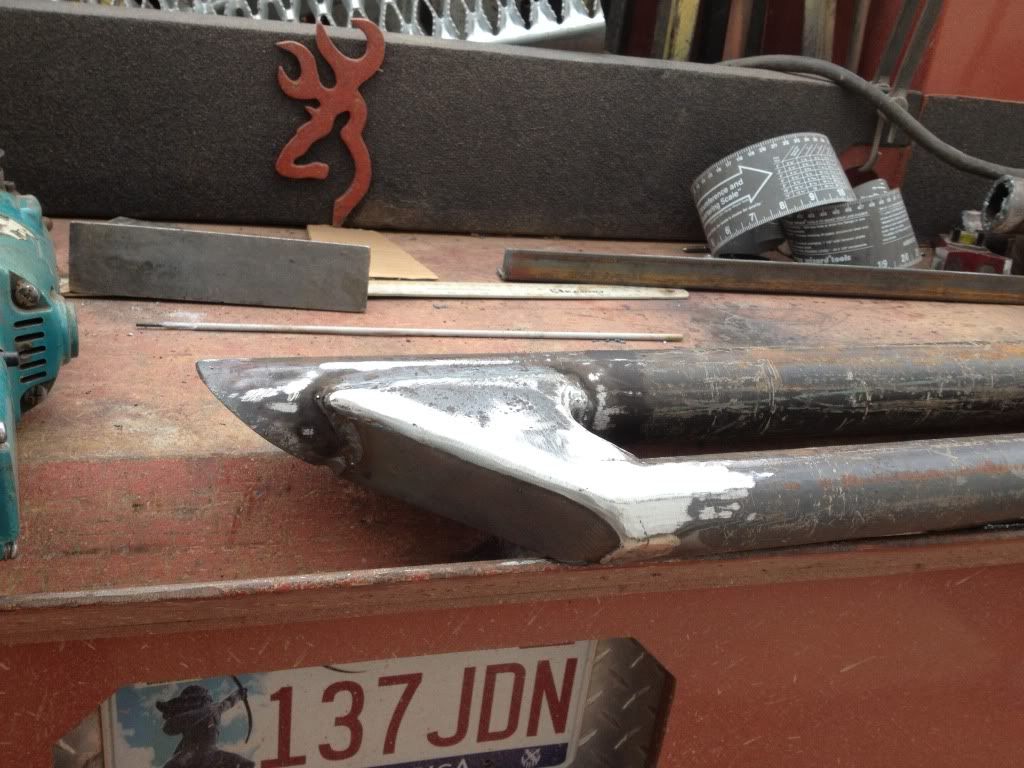

I came home and decided to make it work with what I had. The longer pipe is 1 3/4", the "step" part is 1 1/2", the plate is 3/16".






jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 04-04-2012, 09:13 PM   #2
Treton
Registered User
2005 LJ Wrangler

Join Date: Oct 2011
Location: Buckingham, Virginia
Posts: 369
Very nice job! I really like what you did with the half piece of tube and the plate
Treton is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 03:46 AM   #3
Ironworker709
Moderator

Ironworker709's Avatar
1995 YJ Wrangler

Join Date: Nov 2006
Location: Millen Area,Georgia
Posts: 3,337
Awesome Job!
__________________
Don't DREAM your life, LIVE your dreams

Never forget 9/11

"Welding is like a woman,Get 'er HOT and Penetrate"

Gotta LOVE a person who knows everything about NOTHING

The only Thing necessary for the Evil to win is a good man to do nothing....

"How far you go in life depends on your being tender with the young,compassionate with the aged,sympathetic with the striving,and tolerant with the weak and strong--because someday YOU will have been all of these"....George Washington Carver

Want to know what an Ironworker is and the job scope of a Journeyman?..click here...http://www.ironworkers.org/becoming/careers.aspx
Ironworker709 is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 08:53 AM   #4
squire_wj
Registered User

Join Date: Nov 2011
Posts: 239
That looks really good. I like that design better then the pipe being bent to meet the plate
squire_wj is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 12:29 PM   #5
cutngut
Registered User
1993 YJ Wrangler

Join Date: Oct 2011
Location: owensboro, ky
Posts: 72
Very kool! very different!
cutngut is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 02:33 PM   #6
ZJFABN
Registered User
1996 ZJ

Join Date: Oct 2009
Location: ARIZONA
Posts: 229
Looks slick!

I'm assuming your planning to mount them flat with looking at the angle that you cut the ends of the long tube. I would suggest angling them up as close to the body that you feel comfortable with. If doing this, make sure the doors will open. Also, leave a gap in case they bend up a little over time
__________________
My work, http://www.virtualjeepclub.com/showthread.php?70963-JW-Fabrication&highlight=Jwfabrication
ZJFABN is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 05:01 PM   #7
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Thanks for the compliments. I'm glad y'all like it because it is pretty time consuming.

I was planning on mounting them flat. I can't anlge up much because of the fender flare thing that is mounted behind the actual fender flare, but I'm always open to suggestions.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 05:12 PM   #8
Treton
Registered User
2005 LJ Wrangler

Join Date: Oct 2011
Location: Buckingham, Virginia
Posts: 369
remove that flare thing
Treton is offline   Reply With Quote Quick reply to this message
Unread 04-05-2012, 05:57 PM   #9
AKGeo
Web Wheeler
2000 TJ Wrangler

Join Date: Feb 2011
Location: Fairbanks, AK
Posts: 1,166
Quote:
Originally Posted by Treton View Post
remove that flare thing
x2. The only reason not to is aesthetics with the bolt holes and the weird hole with plastic covering it from the backside.
AKGeo is offline   Reply With Quote Quick reply to this message
Unread 04-08-2012, 05:53 PM   #10
RedlegWJ
Registered User
1999 WJ

Join Date: Jun 2009
Location: Lansing Michigan, Michigan
Posts: 1,523
That's great! I thought I was gonna open this and see something ghetto....
__________________
Gray 99 Laredo with '04 driveline wap. Tons of fun coming soon. Steel bumpers. 5 1/2" IRO coils, IRO adj. track bar. Rancho RS9000 Addco rear sway. 2"x.250" DOM long arms with johny joints. Custom A-arm with ball joint delete (J-joint). JK Moab wheels/ 33x 12.5 x 17 Cooper SST. Bushwacker Flares.
RedlegWJ is offline   Reply With Quote Quick reply to this message
Unread 04-16-2012, 05:33 AM   #11
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,912
Did you mount these up yet? I'd like to see how you did it.
__________________
Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline   Reply With Quote Quick reply to this message
Unread 04-16-2012, 08:49 PM   #12
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Been out of town. Last week in TX panhandle. This week I'm in New Mexico. Unfortunately it still looks just like those pictures.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 05-05-2012, 10:04 PM   #13
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Got some time this weekend. I'm still going to make a few changes. I think I'll make some cuts in the angle to lighten it up and put a gusset under the square tubing where it ties to the angle.

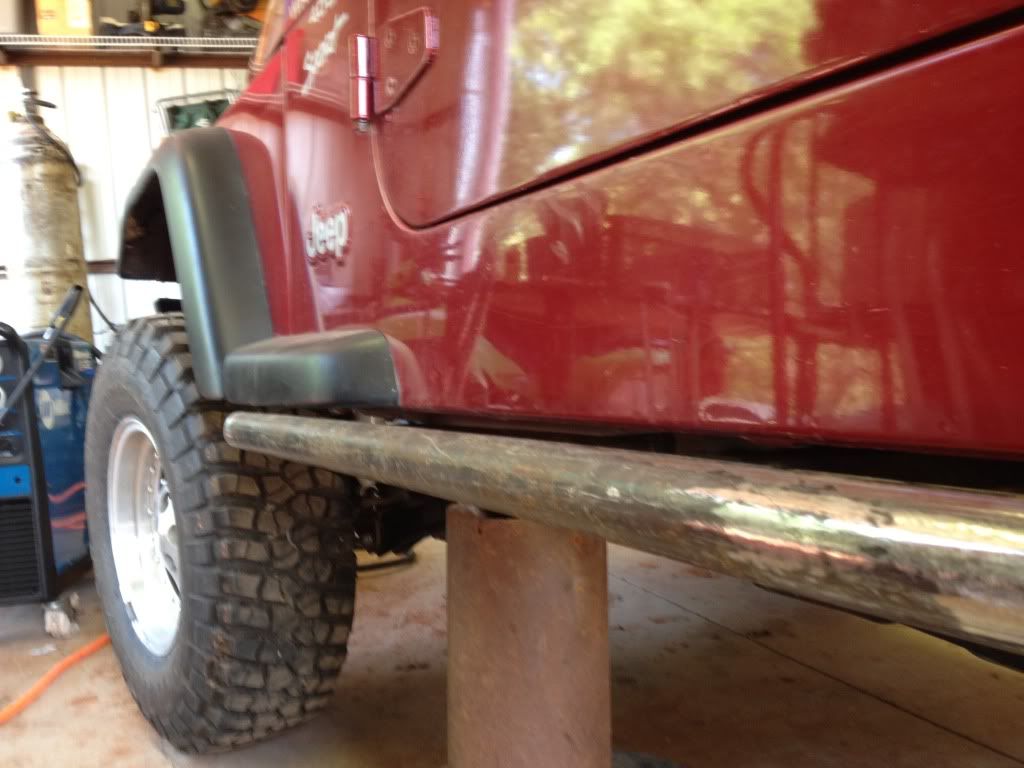

Theres a floor jack under the pipe. It lifted the front tire off the ground without much flexing.
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 06-03-2012, 02:59 PM   #14
jasonswelding
Registered User
1999 TJ Wrangler

Join Date: Apr 2011
Location: Blanchard, OK
Posts: 377
Okay, finally done. Work has been really busy both close to home and going out of state, so it's taken awhile.

I used 3x5x1/4 angle, and sandwiched it between the frame and the skid plate that holds the transfer case. The 5" leg of the angle had to be cut down a little. I mounted the pipe to the angle with 1 1/2" square tubing turned 45* for added strength. I welded a small gusset on the underside of the tube. Finished it with rattle can bedliner.
image-3503349238.jpg   image-2722454392.jpg
jasonswelding is offline   Reply With Quote Quick reply to this message
Unread 06-04-2012, 12:10 PM   #15
04WJny
Registered User
1987 YJ Wrangler

Join Date: Feb 2010
Location: Long Island, NY
Posts: 615
Those look great! Good job
__________________
2004 WJ I6 4.0L DD
1987 YJ I6 4.2L Weber 34 DGEC carb, 4in RC, Custom 1 inch BL,Custom Steering box skid, homemade rear bumper with tire carrier, 33x12.5x15 KM2's on
Cragar Soft 8's, and a few other things
