Sheet metal top for roll cage

So what gauge material is everyone using to make the sheet metal top for a custom roll cage and whats the best way to mount it so it doesnt rattle?

I'm going for something simple like this.



outbackmatt is offline   Reply With Quote
Unread 07-30-2013, 12:06 PM   #2
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 716
Depends on how much weight you're willing to put up there.
If it were me I'd put bolt it to tabs with countersunk machine screws.

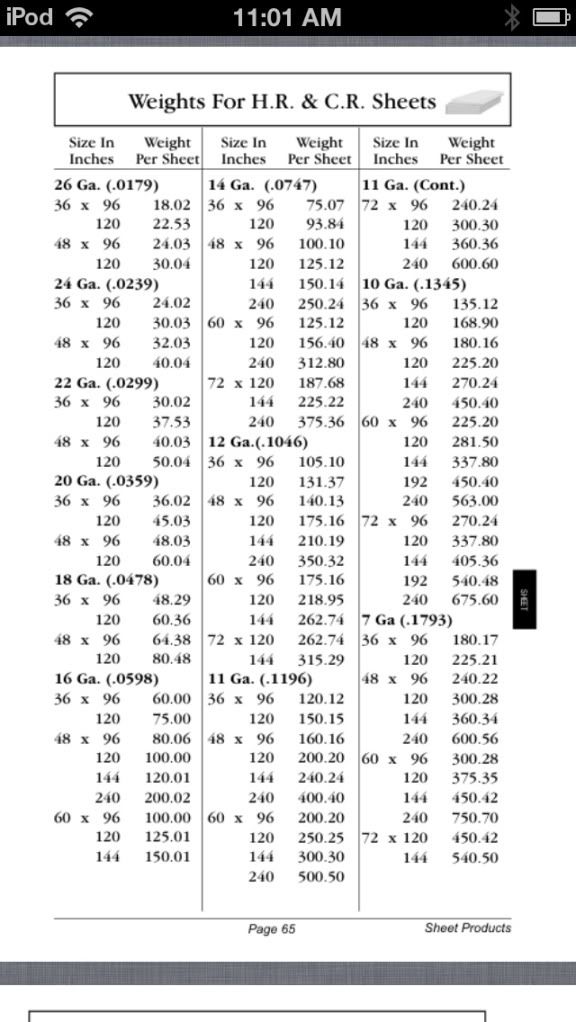

Here is a chart for weights and thicknesses of sheet metal. Hopefully this helps.

AtTheHelm is offline   Reply With Quote
Unread 07-30-2013, 02:11 PM   #3
1222
Make mine a Jeep!

1222's Avatar
2012 JK Wrangler

Join Date: Jul 2007
Location: Henderson, Nevada
Posts: 11,623
Quote:
Originally Posted by AtTheHelm View Post
...If it were me I'd put bolt it to tabs with countersunk machine screws...
Thatís exactly how I would do it too although I would use aluminum instead of sheet metal; probably 1/8-inch.
1222 is offline   Reply With Quote
Unread 07-30-2013, 02:24 PM   #4
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 5,436
^^^^Good idea.
Jim1611 is offline   Reply With Quote
Unread 07-30-2013, 03:18 PM   #5
AtTheHelm
Registered User

Join Date: Nov 2012
Location: South Lake Tahoe, CA
Posts: 716
Aluminum would be better.
AtTheHelm is offline   Reply With Quote
Unread 07-30-2013, 04:25 PM   #6
schitzangiggles
King of Macastan

schitzangiggles's Avatar
1993 YJ Wrangler

Join Date: May 2005
Location: Rigby, Idaho, Macastan (Idaho)
Posts: 6,005
Get some UHMWPE, doesn't rust, rattle, corrode or transfer heat to you hand when you touch it and puncture proof. Oh and easily machinable.
