roof rack, lightbar, tent build

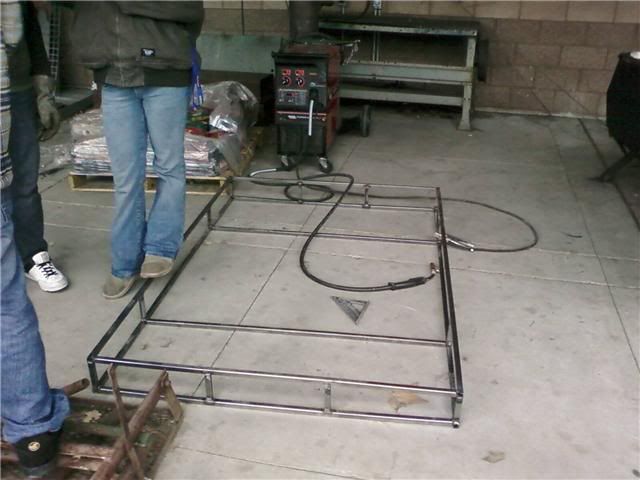

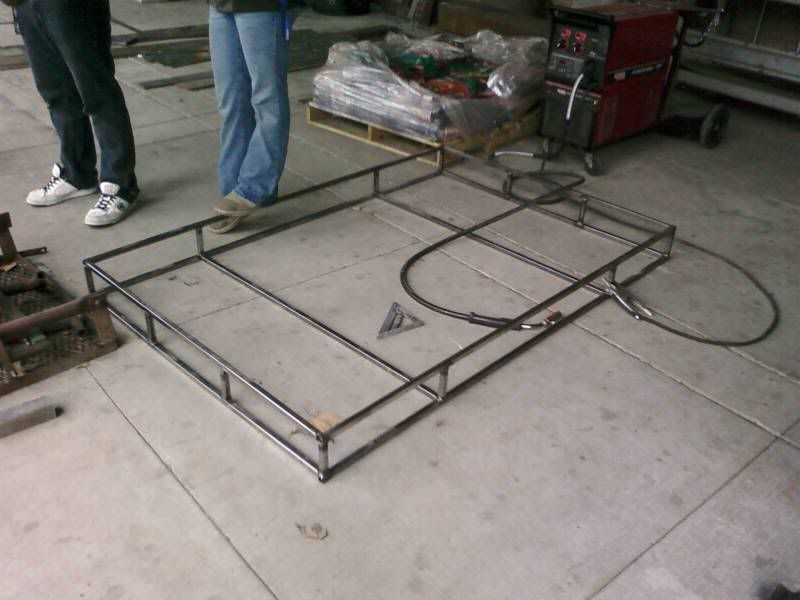

had another thread when i was throwin ideas around and thought i'd start one for the actual build. i ordered 60feet of 3/4" .65 tubing and started just cutting it up. the basic rack is 74x50x6 without the light rack. anyways here are some pics:

how im doing the light bar:


tacked together:



measuring for gutter mounts:
