Unread 12-02-2009, 09:39 PM   #841
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
I use the same basic bumper for CJs, YJs and TJs. The only thing I change is the mounting plate bolt pattern (YJ and TJ are the same).

__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 12-02-2009, 10:12 PM   #842
bogiemj
Registered User
2001 TJ Wrangler

Join Date: Sep 2009
Location: bozeman, MT
Posts: 53
Thanks a lot! I really appreciate it.
bogiemj is offline   Reply With Quote Quick reply to this message
Unread 12-02-2009, 10:47 PM   #843
LuckRider
Web Wheeler

LuckRider's Avatar
2004 TJ Wrangler

Join Date: Apr 2009
Location: NY - 12550
Posts: 9,318
Eddie, have you ever thought about threading the mounting plates like you did for the shipping bolt? I don't know if that would be a PITA, but it would force you to have to bolt from the rear side of the crossmember... not sure if many would like that.... Then again, you do still need access to that backside to bolt it in anyways... Just some random thoughts I have had.
__________________
Thanks to SuperWade2 For the 1 Year Upgrade!
Support Our Troops!
ALL WK2 Owners, Click Here
JFI Member #7: Helping out the Scammed
2004 Rubi: Ready to Kill the Chrome!
Totaled and Gone: Mostly Stock 2005 I6 Patriot Blue TJ: Monstaliner (Write-Up) BESRK Rear Bumper, Hella 500s
Do the Jeep Wave :D 0|||||||0 Take 95% of what I say as a joke/sarcasm!-Thomas
LuckRider is offline   Reply With Quote Quick reply to this message
Unread 12-03-2009, 05:42 AM   #844
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
I have considered it. I know there are a few bumper manufacturers out there that do it (I think Zach does).

Couple reasons I don't..

I now cut my mounting plate holes on my plasma table so they're slotted 1" for some adjustability left/right. If I drill/tap the plates, the only adjustability would be from the small slots in the rear crossmember itself.

Also, I'm pretty much a "one-man-band" (although my son now helps me a few days a week). To drill/tap eight 1/2" holes for each bumper would add on a considerable amount of time.. time=$$ so price would go up. I could outsource drilled/tapped blocks from a CNC machine shop but again... more overhead=$$.

I think using bolts thru a mounting plate also make it a little easier to install the bumper. You can get an outer bolt thru each mounting plate, lift the bumper into position and rely on those 2 bolts to help hold the bumper up while you install the rest of the bolts.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 12-03-2009, 10:56 PM   #845
kevin_tall_jeep
Registered User
1995 YJ Wrangler

Join Date: Dec 2008
Location: Valencia, CA 91355
Posts: 74
I just want to say that there is alot of really good fabricators here on jeep forums. I am not the greatest fab'er so this took me a long time to finish this. I want to thank all of the input that gave me the ideas for my bumper







Now I have the whole bumper finished and painted with two clevis mounts and 3/4" d-rings. I finished it a while ago just havn't got around to posting the pictures. Sorry for the poor quality, cell phone pics. I'll post finished pics this weekend

Last edited by kevin_tall_jeep; 12-06-2009 at 03:27 PM..
kevin_tall_jeep is offline   Reply With Quote Quick reply to this message
Unread 12-04-2009, 01:15 AM   #846
Curt's_97
Registered User

Join Date: Dec 2004
Location: Toronto, Ontario
Posts: 54

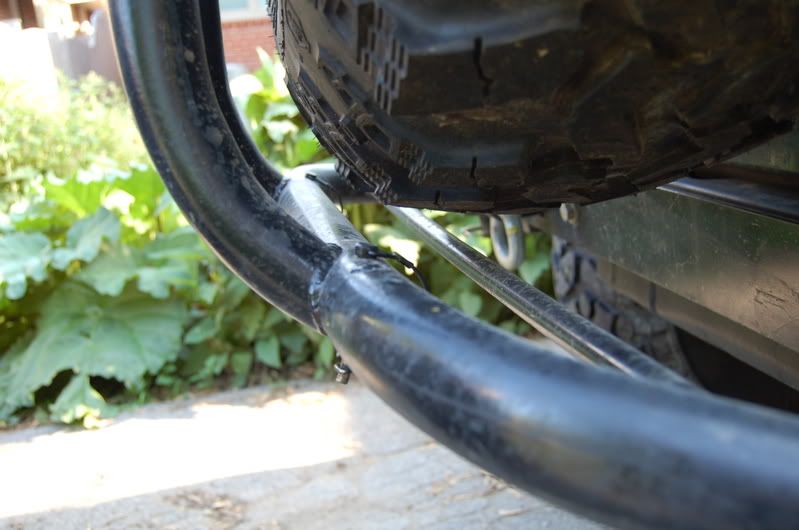

Mines a little different. Thought i'd post up. Swing out swing down i made with my poop kinker.
After a couple seasons of beating she's still holding strong.

And when i first put it together a couple years ago






Curt's_97 is offline   Reply With Quote Quick reply to this message
Unread 12-04-2009, 05:41 PM   #847
green89yj
Registered User
1989 YJ Wrangler

Join Date: Nov 2008
Location: Georgia
Posts: 1,339
wait. How does it swing down?
__________________
Build
Herc.Custom Green paint. RC 4". 5 Goodyear 33X12.5 MT/R w/Kev. Cragar V5's. Corbeau Moab seats. Optima Yellow.XRC8 Comp Winch. XJ 4.0/AX15
WTT: 4" springs for 6"
WTS: 4.2 parts. Fuel lines, pump, block, head, accessories, just ask
green89yj is offline   Reply With Quote Quick reply to this message
Unread 12-04-2009, 11:25 PM   #848
prd_cdn
Web Wheeler

Join Date: Apr 2004
Location: !!
Posts: 1,048
Quote:
Originally Posted by Curt's_97 View Post
Mines a little different. Thought i'd post up. Swing out swing down i made with my poop kinker.
After a couple seasons of beating she's still holding strong.
And when i first put it together a couple years ago

Quote:
Originally Posted by green89yj View Post
wait. How does it swing down?
I think he pulls the Snap Locks out, and it rotates on the tube.

Excellent design !!! Very Cool and ingenious !!!
prd_cdn is offline   Reply With Quote Quick reply to this message
Unread 12-05-2009, 12:16 PM   #849
RichardD
Registered User
1987 YJ Wrangler

Join Date: Sep 2007
Location: Bedford, VA
Posts: 300
That is one really cool setup! Nice work.
RichardD is offline   Reply With Quote Quick reply to this message
Unread 12-05-2009, 12:47 PM   #850
Curt's_97
Registered User

Join Date: Dec 2004
Location: Toronto, Ontario
Posts: 54
Thanks guys. Yup, it's all sleeved and has pins.

Curt's_97 is offline   Reply With Quote Quick reply to this message
Unread 12-05-2009, 01:10 PM   #851
green89yj
Registered User
1989 YJ Wrangler

Join Date: Nov 2008
Location: Georgia
Posts: 1,339
OH. Gotcha. I was lookin at those but couldn't tell what they were.
__________________
Build
Herc.Custom Green paint. RC 4". 5 Goodyear 33X12.5 MT/R w/Kev. Cragar V5's. Corbeau Moab seats. Optima Yellow.XRC8 Comp Winch. XJ 4.0/AX15
WTT: 4" springs for 6"
WTS: 4.2 parts. Fuel lines, pump, block, head, accessories, just ask
green89yj is offline   Reply With Quote Quick reply to this message
Unread 12-06-2009, 03:24 PM   #852
kevin_tall_jeep
Registered User
1995 YJ Wrangler

Join Date: Dec 2008
Location: Valencia, CA 91355
Posts: 74
Finished pics


kevin_tall_jeep is offline   Reply With Quote Quick reply to this message
Unread 12-11-2009, 02:56 PM   #853
Flajeeper1
Registered User
1987 YJ Wrangler

Join Date: Oct 2009
Location: Lakeland, FL
Posts: 726
Carrier locking pin

Eddie, your work is beautiful. I have a suggestion to reduce the wear on the paint where the locking pin to hold the carrier open rubs on the steel surface before it drops into the locking hole. They make thin nylon material with adhesive on one side that could be mounted where the pin rubs. It would protect the paint. It can be cut with sissors.
Flajeeper1 is offline   Reply With Quote Quick reply to this message
Unread 12-11-2009, 08:48 PM   #854
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,279
Quote:
Originally Posted by Flajeeper1 View Post
Eddie, your work is beautiful. I have a suggestion to reduce the wear on the paint where the locking pin to hold the carrier open rubs on the steel surface before it drops into the locking hole. They make thin nylon material with adhesive on one side that could be mounted where the pin rubs. It would protect the paint. It can be cut with sissors.

I've thought about that.. you can get that stuff from McMaster Carr. However, the pin can be lifted, turned and locked in the "up" position so it doesn't drag at all. On my own personal bumper, I just let it drag/rust and shoot it with Rustoleum a couple times a year... mainly when I'm painting "rock rash" at the same time.



... and thank you for the kind words!
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 12-13-2009, 10:53 AM   #855
ROADDOG516
Registered User
1993 YJ Wrangler

Join Date: Nov 2007
Location: DERBY, CT
Posts: 359
Hey Eddie thanks for the paint tips. Now that Im done fabbing my rear bumper, wondering if you have any pics or ideas for a front bumper with a winch. I just got a new winch and based on your rear bumper design am going to build a front bumper with winch mount. Im going simple with D rings and a small winch gaurd, and going to shape the same as the rear just shorter. Not trying to be a PITA but your ideas are great and just looking for best templates to go on. Thanks again. PS anyone else who has great ideas please jump in...
__________________
YJ=THE LAST REAL JEEP!
1966 Willys
1993 YJ
2013 JKU Sahara
ROADDOG516 is offline   Reply With Quote Quick reply to this message
