Rear bumper / Spare tire carrier... Lunchbreak build!

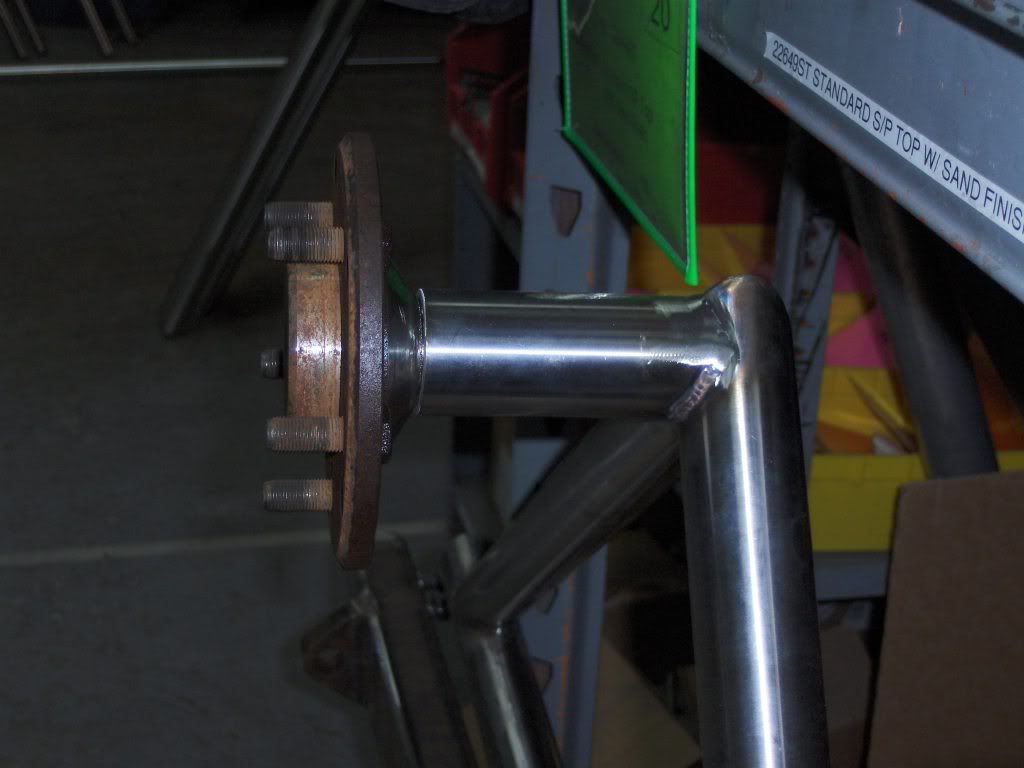

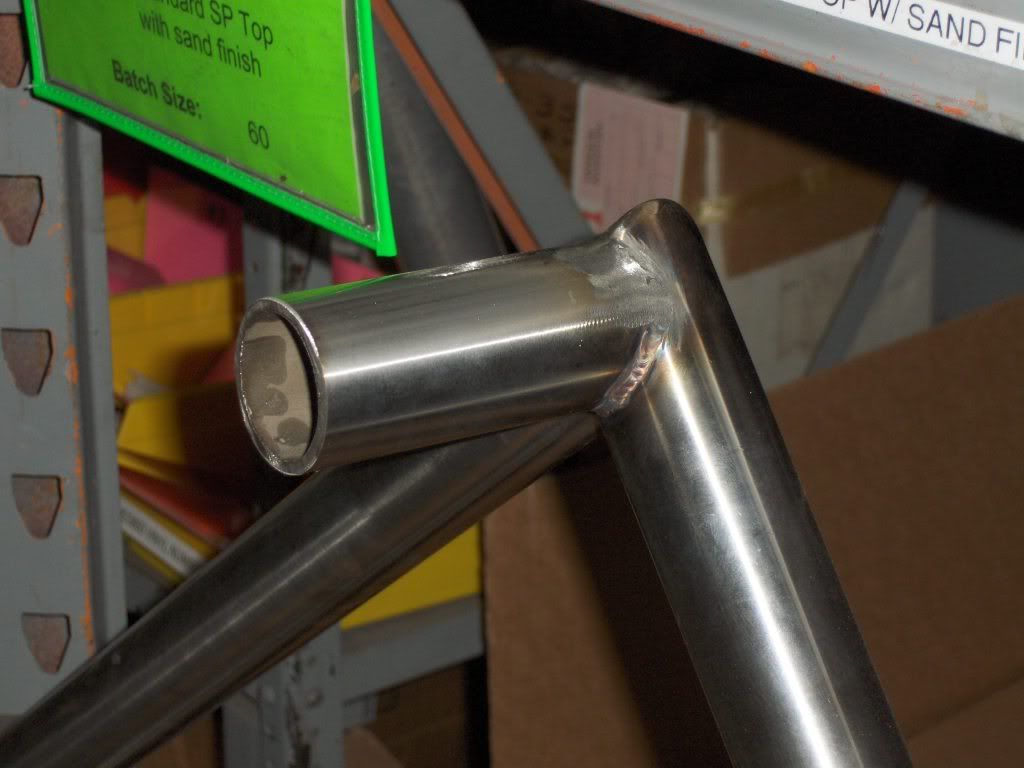

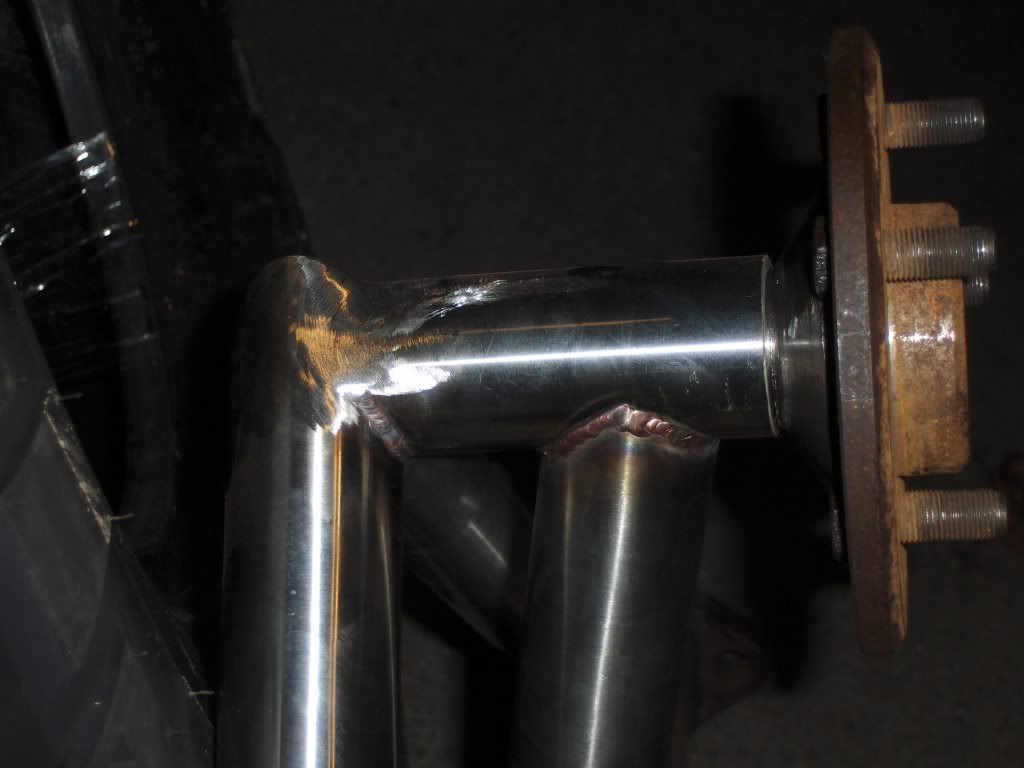

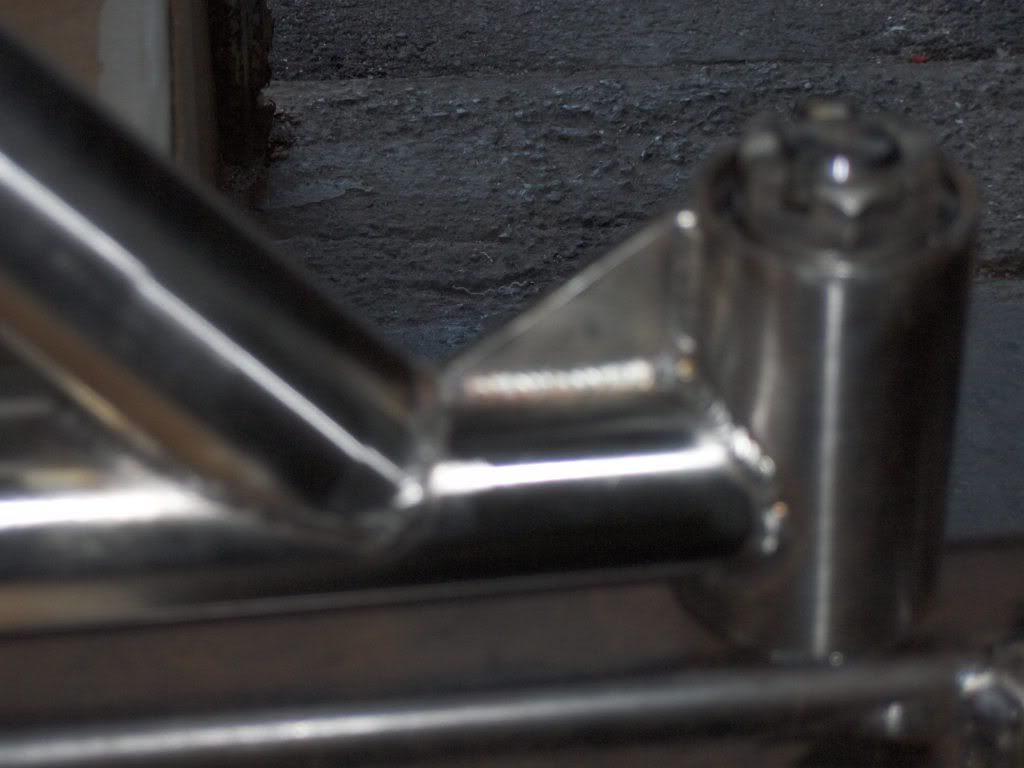

Hey guys, I have been making a rear bumper / spare tire carrier for my TJ for a few weeks now. It has ALL been done on lunch breaks at work, when I'm not too hungry (Otherwise, I go to the deli...The bumper can wait!) Anyway, here are some pics. I TIG welded everything, other than the trailer hitch and Clevis mounts, those were MIG welded. The main bumper is 3/16" 2x4 mild steel tubing.The spare tire carrier is 1.09" x .145 DOM stainless tubing. I got the spindle for the spare tire carrier, and the clevis mounts from A to Z Fabrication. The "plate" for the spare wheel is (was a) broken chromoly axle.










__________________
Jeep build up...ONGOING Jeep build up...ONGOING
R.I.P. Tow Pig Dually build
Rear bumper/spare tire carrier build
Track bar bracket fabrication
AtoZ cage install/build

NeetoCJ was a generous guy and renewed my membership..... Blame him for your troubles!
Kenbo-Slice is offline   Reply With Quote
Old 12-03-2008, 09:45 PM   #2
Kenbo-Slice
" Volkswagen "

Kenbo-Slice's Avatar
1998 TJ Wrangler

Join Date: Aug 2008
Location: Poughkeepsie, New York
Posts: 2,857
By the way... The bumper isn't done. I still need to fabricate the latching mechanism. I'm planning on using the latch from a YJ tailgate, and the nador bolt that the jaws shut around. Just like a regular car door.
__________________
Jeep build up...ONGOING Jeep build up...ONGOING
R.I.P. Tow Pig Dually build
Rear bumper/spare tire carrier build
Track bar bracket fabrication
AtoZ cage install/build

NeetoCJ was a generous guy and renewed my membership..... Blame him for your troubles!
Kenbo-Slice is offline   Reply With Quote
Old 12-03-2008, 11:11 PM   #3
dawgfan77
Registered User

Join Date: Dec 2007
Location: Aiken, SC
Posts: 87
Nice work what size tire do you plan to carry?
dawgfan77 is offline   Reply With Quote
Old 12-03-2008, 11:12 PM   #4
SilverJ
Member

SilverJ's Avatar
2006 TJ Wrangler

Join Date: Nov 2006
Location: Fort Worth, Texas
Posts: 307
Very nice, looking forward to seeing the finished product.
SilverJ is offline   Reply With Quote
Old 12-03-2008, 11:32 PM   #5
rubidriver
Registered User

rubidriver's Avatar
2005 TJ Wrangler

Join Date: Aug 2008
Location: College Station, Texas
Posts: 1,995
Quote:
Originally Posted by dawgfan77 View Post
Nice work what size tire do you plan to carry?
I would think he is going to carry the size tire thats laying behind the thing. 33x12.50 15. I may be wrong tho.
__________________
2005 Black Rubicon - OME 933/942 - OME N66/N67 - JKS Adj Track Bars Front/Rear - JKS Quicker Discos - 285/75/16 MTZ

Quote:
Originally Posted by bigj1974 View Post
your money will go farther in College Station.
rubidriver is offline   Reply With Quote
Old 12-04-2008, 02:10 AM   #6
ChiliPalmer
Bacon Ends & Pieces

ChiliPalmer's Avatar
1999 WJ

Join Date: Dec 2006
Location: Coeur d'Alene, Idaho
Posts: 2,832
Nice lookin' bumper!

Quote:
Originally Posted by rubidriver View Post
I would think he is going to carry the size tire thats laying behind the thing. 33x12.50 15. I may be wrong tho.
You mean the 35" x 12.5" x 15" sitting behind the carrier
__________________

If you want to help the sport of offroading visit the EnviroBeat Forum!

Blue Ribbon Coalition | Idaho State 4x4 Association | UFWDA | NAXJA | The KAT Team!

ChiliPalmer is offline   Reply With Quote
Old 12-04-2008, 09:08 AM   #7
rubidriver
Registered User

rubidriver's Avatar
2005 TJ Wrangler

Join Date: Aug 2008
Location: College Station, Texas
Posts: 1,995
Oops that does say 5.
__________________
2005 Black Rubicon - OME 933/942 - OME N66/N67 - JKS Adj Track Bars Front/Rear - JKS Quicker Discos - 285/75/16 MTZ

Quote:
Originally Posted by bigj1974 View Post
your money will go farther in College Station.
rubidriver is offline   Reply With Quote
Old 12-04-2008, 11:45 AM   #8
Vanmantraveler
Registered User
1981 CJ5

Join Date: Nov 2008
Location: Florida
Posts: 70
I take it the bumper is 2 x 3 quarter wall mild, and the tire swing looks like SS. OK I need to get busy at lunch rather then surfing the Jeepforum.

Bumpers will have to wait till I mod the frame and get a new body on the thing.... and the new motor and tranny... and axles... OK so next year some time...

GREAT JOB!!!!!!!!
__________________
81 CJ parts all over the Garage
Vanmantraveler is offline   Reply With Quote
Old 12-04-2008, 04:25 PM   #9
Kenbo-Slice
" Volkswagen "

Kenbo-Slice's Avatar
1998 TJ Wrangler

Join Date: Aug 2008
Location: Poughkeepsie, New York
Posts: 2,857
Thanks for the compliments guys! Yeah the tires are going to be 35", and yes the KM2's in the pics are going on next week!!! I'm almost finished with this thing, so within the next few days, I'll post the final product. So far it has only cost me $43 for the spindle, and $25 for the clevis mounts... For a grand total of $68!!! (plus a few bucks for shipping)
__________________
Jeep build up...ONGOING Jeep build up...ONGOING
R.I.P. Tow Pig Dually build
Rear bumper/spare tire carrier build
Track bar bracket fabrication
AtoZ cage install/build

NeetoCJ was a generous guy and renewed my membership..... Blame him for your troubles!
Kenbo-Slice is offline   Reply With Quote
Old 12-04-2008, 04:32 PM   #10
wildman90
Registered User
1993 YJ Wrangler

Join Date: Oct 2008
Location: st louis
Posts: 202
man, your place is way too clean!!!! i have a 30X56X14 shop and can hardly move in it! time to do some cleaning!

maybe i missed it, but what is the pivot system built of. i was thinking of doing the 1" spindle for trailers route?
wildman90 is offline   Reply With Quote
Old 12-04-2008, 04:36 PM   #11
Kenbo-Slice
" Volkswagen "

Kenbo-Slice's Avatar
1998 TJ Wrangler

Join Date: Aug 2008
Location: Poughkeepsie, New York
Posts: 2,857
Quote:
Originally Posted by wildman90 View Post
man, your place is way too clean!!!! i have a 30X56X14 shop and can hardly move in it! time to do some cleaning!

maybe i missed it, but what is the pivot system built of. i was thinking of doing the 1" spindle for trailers route?
Thats basically what it is, a trailer spindle. Rated for approx. 1000lbs with Tapered bearings. I could have made it myself on the lathe at work... but I didn't feel that it was worth the frustration for 43 bucks! haha.
__________________
Jeep build up...ONGOING Jeep build up...ONGOING
R.I.P. Tow Pig Dually build
Rear bumper/spare tire carrier build
Track bar bracket fabrication
AtoZ cage install/build

NeetoCJ was a generous guy and renewed my membership..... Blame him for your troubles!
Kenbo-Slice is offline   Reply With Quote
Old 12-04-2008, 11:14 PM   #12
Godchsr
Registered User
2001 WJ

Join Date: Jun 2006
Location: Belton MO
Posts: 331
That looks really nice. Welds are great! I wish I could Tig (or had a tig to try)
__________________
Looking for a Jeep again... I just can't stay away
Godchsr is offline   Reply With Quote
Old 12-05-2008, 09:34 AM   #13
JeepRocks86
Some Call me RockDog

JeepRocks86's Avatar
2003 TJ Wrangler

Join Date: Feb 2006
Location: Louisville, KY
Posts: 6,037
Looks good. I assume you are going to lave the stainless un painted?
__________________
Stretched TJ Future, Coil overs, 40s, 60/14 bolt
My Build Thread.
www.kifourwheelers.com www.indyorv.com

For Sale:
TJ 44 Combo, 4.88s, detroit, Alloy USA shafts, Disc Brakes, HD lower mounts, Clayton tube Truss
35" procomp tires with Aluminum wheels $650
(4) 5x4.5 steel beadlocks $200
3 11"& 2 13" BBCS shocks
Ford Dana 60 Rear $150
Big Daddy Offroad HD tie Rod
(4) 15x8 5x4.5 TJ, YJ, XJ, etc bolt pattern Aluminum wheels $175


JeepRocks86 is offline   Reply With Quote
Old 12-05-2008, 06:08 PM   #14
Kenbo-Slice
" Volkswagen "

Kenbo-Slice's Avatar
1998 TJ Wrangler

Join Date: Aug 2008
Location: Poughkeepsie, New York
Posts: 2,857
Yeah, I plan on leaving the stainless unpainted. The 2x4 tubing for the bumper is going to be herculined, to match my front bumper.
__________________
Jeep build up...ONGOING Jeep build up...ONGOING
R.I.P. Tow Pig Dually build
Rear bumper/spare tire carrier build
Track bar bracket fabrication
AtoZ cage install/build

NeetoCJ was a generous guy and renewed my membership..... Blame him for your troubles!
Kenbo-Slice is offline   Reply With Quote
Old 12-08-2008, 05:47 PM   #15
wildman90
Registered User
1993 YJ Wrangler

Join Date: Oct 2008
Location: st louis
Posts: 202
whats the latch going to look like? if you have it done, can you post a pic?
wildman90 is offline   Reply With Quote
