Rear Bumper Project

Wednesday a friend and i decided to make a rear bumper for my tj. we headed down to the metal yard to check out the scrap pile and got enough materials for two bumpers. we decided to make two and sell the second one or something. i'll try to get pics of the bumper as soon as i can.

heres a list of materials:
2"x4"x1/4" wall rectangular stock 55" long (can sub thinner material if you like but I like it beefy!)
approx 7" length of 2 1/2"x2 1/2"x1/4" wall stock for receiver (can sub a store bought receiver tube.. Northern has one for like $10)
approx 7" of 2 1/2"x1/4" thick flat stock for chain plate
approx 6" length of 3"x1/4" wall square stock (for mounting legs and receiver lip)
approx 18" of 3"x3/8" thick flat stock cut in half for the bumper mounting flanges
approx 18" of 2"x1/4" thick flat stock for bumper end caps
approx one foot of 2"x3/4" thick flat stock for clevis mounts
...and a bit of expanded metal to make a logo (we are dorks...but my friend has other stuff he can use the logo for.)


PS - we followed BESRK's write up minus the swingout tire carrier. THANKS BESRK!!! and....we're both in high school



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
: Black Hard Top/Strapless Bikini/Viking Fast Back Top | Warn Rock Crawler Front Bumper | Homemade Rear Bumper | Black Herculiner interior | Rokmen Rear Corner Guards |


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NWilhelm is offline
Sponsored Links
Advertisement

post #2 of 12 Old 01-06-2007, 11:15 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Glad the writeup helped.. now, where's the pics!!?

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #3 of 12 Old 01-06-2007, 11:17 AM Thread Starter
NWilhelm
Registered User
1999 TJ Wrangler

Join Date: Feb 2006
Location: Huntsville, AL
Posts: 158
i'm workin on it. i still have to get them from my friends dad. he was the photographer.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
: Black Hard Top/Strapless Bikini/Viking Fast Back Top | Warn Rock Crawler Front Bumper | Homemade Rear Bumper | Black Herculiner interior | Rokmen Rear Corner Guards |


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NWilhelm is offline
post #4 of 12 Old 01-07-2007, 06:33 PM Thread Starter
NWilhelm
Registered User
1999 TJ Wrangler

Join Date: Feb 2006
Location: Huntsville, AL
Posts: 158

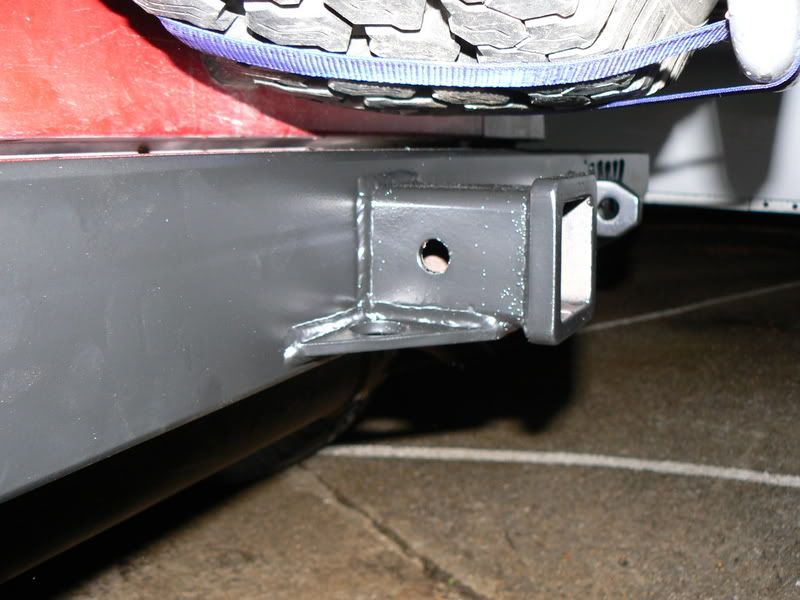

Here is mine mounted on my tj. the other one is identical. enjoy!













To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
: Black Hard Top/Strapless Bikini/Viking Fast Back Top | Warn Rock Crawler Front Bumper | Homemade Rear Bumper | Black Herculiner interior | Rokmen Rear Corner Guards |


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NWilhelm is offline
post #5 of 12 Old 01-07-2007, 09:26 PM
99redwj
Registered User
1999 WJ

Join Date: Sep 2006
Location: Marietta,GA
Posts: 338
good job!keep it up

Matthew
1999 4.7 Grand Cherokee
IRO 4" lift,JKS quick discos,DT 8000's,Baja MTZ 32x10.5x16,Cragar 8's,Flowmaster 40
2006 5.7 Grand Cherokee
2003 4.0 Wrangler
4" Pro-comp lift,33x12.50x15 Pro-Comp MT,Warn bumper,American racing AR-172,Piaa fogs
99redwj is offline
post #6 of 12 Old 01-08-2007, 06:56 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
Nice! What's the WW thing stand for?

'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BESRK is offline
post #7 of 12 Old 01-08-2007, 05:17 PM Thread Starter
NWilhelm
Registered User
1999 TJ Wrangler

Join Date: Feb 2006
Location: Huntsville, AL
Posts: 158
it stands for Wilhelm Williams Fabrication. my last name is Wilhelm and my friends last name is Williams (obviously).


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
: Black Hard Top/Strapless Bikini/Viking Fast Back Top | Warn Rock Crawler Front Bumper | Homemade Rear Bumper | Black Herculiner interior | Rokmen Rear Corner Guards |


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NWilhelm is offline
post #8 of 12 Old 01-12-2007, 12:33 PM
Bikertrash
Registered User

Bikertrash's Avatar

Join Date: Jul 2004
Location: Cypress, TX
Posts: 73
Great job!

Bikertrash
2004 LJ Unlimited Hardtop, Solar Yellow,Automatic
Rubicon Express 3 1/2" SuperFlex
33" x 12.5" x 15" Cooper STTs
Bikertrash is offline
post #9 of 12 Old 01-12-2007, 04:08 PM Thread Starter
NWilhelm
Registered User
1999 TJ Wrangler

Join Date: Feb 2006
Location: Huntsville, AL
Posts: 158
thanks didnt you have a write up too, bikertrash?

im workin on one it takes a while


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
: Black Hard Top/Strapless Bikini/Viking Fast Back Top | Warn Rock Crawler Front Bumper | Homemade Rear Bumper | Black Herculiner interior | Rokmen Rear Corner Guards |


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NWilhelm is offline
post #10 of 12 Old 01-13-2007, 11:44 AM
Bigbob
Registered User

Bigbob's Avatar

Join Date: Jul 2005
Location: Bakersfield
Posts: 3,608
Quote:
Originally Posted by NWilhelm



What is the object of having the extention between the crossmember and the bumper? I see many folks build them this way. I just bolted my 2"X5" directly to the crossmember and it seems better that way. I guess if you were gonna put a swingout on it the extention may be needed. What's the reason? Thanks, bob

2006 Solar Yellow Rubicon Unlimited
Jeep Club Member #1340
6 Speed, Hardtop
Mods done: Hurst tee handle, cheap hand throttle, Rokmen Merc front bumper, Warn 9.5 TI winch with 3/8" X 100 worth of Viking yellow rope, DPG OME Ultimate with JKS ACOS up front, Kilby Gas Tank Skid, Kilby Steering Box Skid, Jeep Medic Belly Up, Skidrow Engine Skid, Rockcrusher Diff Skid in the rear, Warn Diff cover in front, , AR Outlaw II's and MTR 12:50/15's, Homemade rear Bumper, Cheap Cobra CB, Puma OBA, Sirius Radio, Locker Defeat, Rockhard cage, Rockmen short corners, homemade tire swing/tailgate hinge affair, Airlift air bags on the rear- - - - - - and more to come!
Bigbob is offline
post #11 of 12 Old 01-13-2007, 06:17 PM Thread Starter
NWilhelm
Registered User
1999 TJ Wrangler

Join Date: Feb 2006
Location: Huntsville, AL
Posts: 158
Quote:
Originally Posted by Bigbob
What is the object of having the extention between the crossmember and the bumper? I see many folks build them this way. I just bolted my 2"X5" directly to the crossmember and it seems better that way. I guess if you were gonna put a swingout on it the extention may be needed. What's the reason? Thanks, bob
I did mine this way for several reasons:
one i prefer the look of it out a bit, two i plan on adding a tire carrier later, three i needed practice welding and i wanted to practice on something out of the way


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
: Black Hard Top/Strapless Bikini/Viking Fast Back Top | Warn Rock Crawler Front Bumper | Homemade Rear Bumper | Black Herculiner interior | Rokmen Rear Corner Guards |


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
NWilhelm is offline
post #12 of 12 Old 01-14-2007, 11:17 AM
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,285
I do mine like that for a couple reasons. One, I do quite a few bumpers. It's much easier to generically drill 4 predetermined holes in a plate than to drill and sleeve a bumper blank... and I would sleeve to prevent crushing of the bumper body. I will cut/drill an entire length of flat steel (3"x1/2" thick), toss all the pieces into a vat of acid for 24hrs, and then rinse/dry/stack them on the shelf for future use or sale. Then, when I actually make the bumper, I just drop the plates onto my jig (the actaul rear frame portion of a CJ, YJ/TJ) and set the bumper on it for tacking. Tack up, remove and weld a good fitting bumper.. quickly. And yes.. it does help when doing a tire carrier. Keeps the carrier off the tailgate.
